Targeted overexpression of Bcl-X_L in B-lymphoid cells results in lymphoproliferative disease and plasma cell malignancies

Multiple myeloma (MM) is an incurable expansion of malignant plasma cells within the bone marrow.^1,2  Common complications of MM include bone lesions, anemia, susceptibility to infections, renal failure, and hypercalcemia.³  Standard treatments include steroids, DNA alkylating agents, and autologous peripheral blood stem cell transplantations, although they are not curative.²

Unlike other hematologic malignancies that often have common genetic abnormalities, there is no pathognomonic genetic lesion described for MM.^4,5  Regardless, up-regulation of antiapoptotic proteins such as Bcl-X_L and Mcl-1 has been identified in MM.⁶  Indeed, expression levels of these proteins are heightened in human and murine MM cell lines, especially upon stimulation with interleukin-6 (IL-6), an important growth factor for MM.^7,8  While Bcl-X_L and Mcl-1 share similar structure and function, recent studies have identified unique roles for these proteins in MM cells. Bcl-X_L is shown to play a role in making MM cells resistant to chemotherapeutic drugs,⁹  although Mcl-1 is thought to be more influential in promoting tumor survival.¹⁰  These studies have been mostly performed in MM cell lines, however, and the role of elevated Bcl-X_L or Mcl-1 expression in plasma cells and/or MM has not been tested in an animal system. Furthermore, the contribution of these proteins to plasmacytomagenesis has not yet been demonstrated.

Many different lymphoid malignancy transgenic animal models use the mu heavy chain immunoglobulin (Ig) enhancer (Eμ) to target transgene expression to B and/or T cells. Because we were interested in specifically targeting Bcl-X_L expression to B cells in late developmental stages, we chose a more suitable enhancer for our model. We previously demonstrated that the κ Ig gene 3′ enhancer (3′KE) is most active in mature B and plasma cells,¹¹  and we used it to direct transgenic Bcl-X_L expression in mice. We also crossed the 3′KE/Bcl-X_L mouse to an Eμ/c-Myc mouse to evaluate the cooperativity of Bcl-X_L and c-Myc in promoting B- and plasma cell malignancy.

The 3′κ enhancer and Vκ21 promoter (3′KE/KP) were isolated from pK3′E.KP.LUC.¹¹  The Eμ and TK promoter were excised from a Bcl-X_L construct¹²  and were replaced with the 3′KE/KP to form p3′KE/Bcl-X_L. The transgenic vector was purified by CsCl centrifugation, linearized, and sent to the University of Minnesota Mouse Genetics Laboratory for microinjection.

All mice were housed in a specific pathogen-free environment under Institutional Animal Care and Use Committee (IACUC) protocol no. 0006A56361. 3′KE/Bcl-X_L mice were of the FVB/N strain, and Eμ/c-Myc mice (Jackson Laboratory, Bar Harbor, ME) were of the C57BL/6 strain. For experiments crossing the 3′KE/Bcl-X_L to the Eμ/c-Myc mice, all comparisons were made among F1 progeny.

Genomic DNA from tail snips was obtained as previously described.¹³  Proteinase K (20 mg/mL) was added to the lysis solution, and the samples were incubated overnight at 55°C to ensure complete sample digestion.

A total of 100 ng genomic DNA was amplified by polymerase chain reaction (PCR). We used the following primer sets: Bcl-X_L-FLAG, 5′-GACTACAAGGACGACGATGACAAG-3′; RBCLDOWN, 5′-AGTGGATGGTCAGTGTCTGGTCAC-3′; c-Myc-1MYC, 5′-CAGCTGGCGTAATAGCGAAGAG-3′; 2MYC, 5′-CTGTGACTGGTGAGTACTCAACC-3′; IL-2 (PCR amplification control)-1IL-2, 5′-CTAGGCCACAGAATTGAAAGATCT-3′; 2IL-2, 5′-GTAGGTGGAAATTCTAGCATCATCC-3′.

To identify founders, 10 μg genomic DNA was digested with BglII (Invitrogen, Rockville, MD), and Bcl-X_L cDNA was used as a probe. To determine clonality of isolated samples, 10 μg genomic DNA was digested with BamHI and was probed with DNA corresponding to the κ locus (Invitrogen). Southern blotting was performed as previously described.¹³

RNA samples were isolated using TRIzol and were treated with DNase I (Invitrogen). cDNA was synthesized using Superscript RT (Invitrogen). Template cDNA was amplified using the Bcl-X_L primers used for genotyping. Actin primers were used as a control (ACTINUP, 5′-CCTAAGGCCAACCGTGAAAAG-3′; ACTINDOWN, 5′-TCTTCATGGTGCTAGGAGCCA-3′).

Western blot analysis was performed as previously described¹⁴  using the following antibodies: anti-Bcl-X_L (Santa Cruz Biotechnology, Santa Cruz, CA), anti-FLAG (Sigma, St Louis, MO), antiactin (Santa Cruz Biotechnology), and antimouse Ig (Amersham, Cleveland, OH). To detect serum Ig proteins, 0.5 μL serum was loaded in each well. To detect urine Ig proteins, protein concentrations were determined using the Bio-Rad Protein Assay (Bio-Rad, Hercules, CA), and 50 μg protein was loaded into each well.

The following monoclonal antibodies (mAbs) were used for cell staining: anti-CD-3, anti-B220, anti-CD138, anti-IgM, anti-IgD, and anti-heat-stable antigen (HSA) (all antibodies from BD Pharmingen, San Diego, CA, except anti-HSA [T. Waldschmidt, University of Iowa]). Standard flow cytometric analysis was carried out on a FACSCalibur machine (BD Pharmingen) at the University of Minnesota Cancer Center Flow Cytometry Core, and data were collected and analyzed using Cellquest Pro (BD Pharmingen). Stained cells were sorted on a FACSVantage machine (BD Pharmingen).

Cells were maintained in RPMI 1640 supplemented with 10% fetal calf serum (FCS), 2 mM l-glutamine, 100 U/mL penicillin, and 100 μg/mL streptomycin (all from Invitrogen).

Cells were stained with 0.4% trypan blue (Sigma) and counted on a hemacytometer (Fisher Scientific, Pittsburgh, PA).

Enzyme-linked immunosorbent assays (ELISAs) were performed by the University of Minnesota Cytokine Reference Laboratory as previously described.¹⁵

Mice were humanely killed and necropsied, and each opened mouse carcass, including internal organs, was fixed in 10% formalin (Sigma). Selected tissues were embedded in paraffin and sectioned at 3 to 5 μm. Tissues were either stained with hematoxylin and eosin (H&E) or prepared for immunohistochemistry (IHC). For IHC, tissues were steamed for 30 minutes in 1 mM EDTA (ethylenediaminetetraacetic acid), pH 8.0, and blocked with 3% hydrogen peroxide, Avidin/Biotin Block (Vector, Burlingame, CA), and Dako Protein Block (Dako, Carpinteria, CA). Tissues were incubated overnight with biotinylated anti-B220 or anti-CD138 antibodies (BD Pharmingen) at 4°C. Tissues were incubated with streptavidin horseradish peroxidase (HRP) enzyme conjugate (Dako) for 15 minutes, and Vector Nova Red Substrate (Vector) was used for color determination. Sections were counterstained with Mayer hematoxylin.

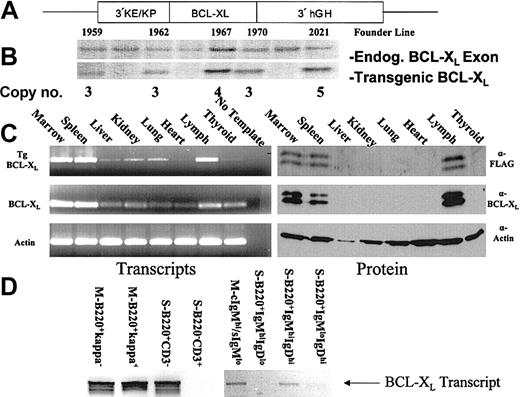

To examine the developmental activity of the 3′KE and the effect of dysregulation of apoptosis in B lymphocytes, we constructed the plasmid vector p3′KE/Bcl-X_L in which the 3′KE and kappa Vκ21 promoter (KP) are paired with murine Bcl-X_L cDNA containing the FLAG epitope (Figure 1A). The FLAG epitope was placed at the 5′ end of the Bcl-X_L cDNA as previously described.¹²  The human growth hormone (hGH) minigene sequence¹⁶  was placed at the 3′ end of the construct to provide RNA splicing and processing. Linearized p3′KE/Bcl-X_L was injected into male pronuclei of FVB/N mouse embryos. Southern blotting identified 5 transgenic founders, and transgene copy number ranged from 3 to 5 copies (Figure 1B). Of the 5 founders, 4 demonstrated germ-line transmission of the transgene, and the founder lines 1962, 1967, and 2021 were maintained and characterized. All 3 founder lines demonstrated abnormal B-lymphocyte biology. Data presented in this report were mainly collected using animals from the 1967 founder line, with a few samples from the 2021 founder line. We have noted the founder lineage and age of each mouse for each experiment.

To characterize transgene expression, RNA and protein were isolated from the marrow, spleen, liver, kidney, lung, heart, lymph, and thyroid of a 6-week-old 3′KE/Bcl-X_L mouse from the 1967 founder line. RT-PCR was used to detect transcripts in the tissue samples. The transgenic Bcl-X_L was tagged with the FLAG epitope, and both endogenous and transgenic Bcl-X_L levels were determined. Transgenic Bcl-X_L levels were highest in the marrow, spleen, and lymph nodes (Figure 1C). Low levels of transcripts detected in other tissues were likely due to transgene-expressing lymphocytes in peripheral circulation that migrated to those locations, including microscopic foci of lymphocytes found upon histopathological examination. Transgenic Bcl-X_L expression at the protein level was confined to the marrow, spleen, and lymph (Figure 1C). Two isoforms of Bcl-X_L are seen—Bcl-X_L and its alternatively spliced Bcl-X ΔTM (loss of transmembrane domain).¹⁷

Next we used FACS to sort different cell populations of lymphocytes and RT-PCR to identify which cell populations harbored transgenic Bcl-X_L transcripts. All tissue samples came from 6-week-old 3′KE/Bcl-X_L mice from the 1967 founder line. Marrow cells from 3′KE/Bcl-X_L mice were stained with anti-κ, anti-B220, anti-IgM-fluorescein isothiocyanate (FITC) (surface), and/or anti-IgM-phycoerythrin (PE) (cytoplasmic) antibodies. Spleen cells from 3′KE/Bcl-X_L mice were stained with anti-B220, anti-CD3, anti-IgM, and/or anti-IgD antibodies. Transgenic transcripts were detected in the pan-B-cell (B220⁺/κ^-), immature/mature B-cell (B220⁺/κ⁺), and intracellular IgM-staining plasma cell (cytoplasmic IgM^hi/surface IgM^lo [cIgM^hi/sIgM^lo]) populations of the bone marrow (Figure 1D). Transgenic transcripts were detected in the pan-B-cell (B220⁺/CD3^-) and immature/transitional B-cell (IgM^hiIgD^hiB220⁺) spleen populations but not detected in the pan-T-cell (B220^-/CD3⁺), immature B (IgM^hiIgD^loB220⁺), or mature B (IgM^loIgD^hiB220⁺) spleen populations (Figure 1D). This analysis demonstrates that 3′KE activity and transgene expression is restricted to B cells but not T cells. Furthermore, transcripts can be detected in immature/transitional B cells of the spleen and IgM-expressing bone marrow plasma cells, correlating with the abnormal lymphocyte populations detected by flow cytometry and histopathological analysis in this report.

Because a B-cell-restricted transcriptional enhancer was used to drive Bcl-X_L expression in a transgenic mouse, we expected the 3′KE/Bcl-X_L mice to have altered lymphocyte compartments. Samples of peripheral blood from 12-week-old 3′KE/Bcl-X_L mice (n = 3) from the 1967 founder line and littermate controls (LMCs) (n = 2) were analyzed on a Hemavet automated cell counter (CDC Technologies, Oxford, CT). All 3′KE/Bcl-X_L animals demonstrated a lymphocytosis compared with LMCs, with an average count of 13.2 × 10³ ± 2.26 × 10³ lymphocytes per microliter versus 3.5 × 10³ ± 0.21 × 10³ lymphocytes per microliter (P = .02).

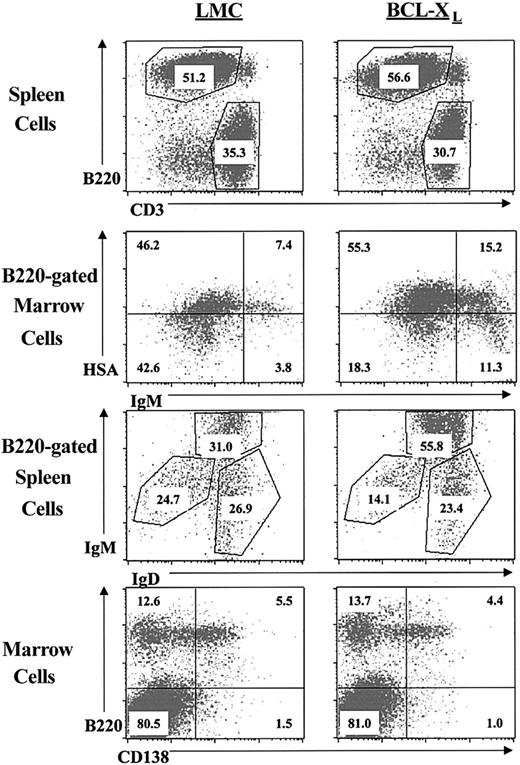

To further characterize the differences in the lymphocyte populations, samples of cells from 12-week-old LMC or 3′KE/Bcl-X_L mice from the 1967 founder line were stained with fluorescently labeled antibodies corresponding to different B- and T-lymphocyte cell surface markers and analyzed by flow cytometry. Splenocytes from age-matched LMC and 3′KE/Bcl-X_L mice were stained with anti-B220 and anti-CD3 antibodies. The percentages of B and T lymphocytes are similar in both groups (Figure 2 and Table 1).

Given that the 3′KE is not strongly active until the immature and mature stages of B-cell development, we did not expect to see altered lymphocyte populations until those stages and beyond. Indeed, we did not find any differences in the BP-1⁺ pre-B-cell populations between the 3′KE/Bcl-X_L and LMC mice (data not shown). Marrow cells from 3′KE/Bcl-X_L transgenic and LMC mice were stained with anti-B220, anti-IgM, and anti-HSA antibodies, and spleen cells from 3′KE/Bcl-X_L transgenic and LMC mice were stained with anti-B220, anti-IgD, and anti-IgM antibodies. The 3′KE/Bcl-X_L transgenic animals showed a significant increase in the B220⁺/IgM^hi/IgD^hi immature/transitional B cells of the spleen as well as the B220⁺/IgM⁺ immature (HSA^hi) and mature (HSA^lo) B cells of the marrow (Figure 2 and Table 1). These expanded populations correlate to the transgenic transcriptional analysis in Figure 1. Marrow cells were also stained with anti-B220 and anti-CD138 antibodies to examine the plasma cell compartments of LMC and 3′KE/Bcl-X_L transgenic mice. No significant differences were seen among the CD138^hiB220^lo plasma cell populations of the 2 groups (Figure 2 and Table 1).

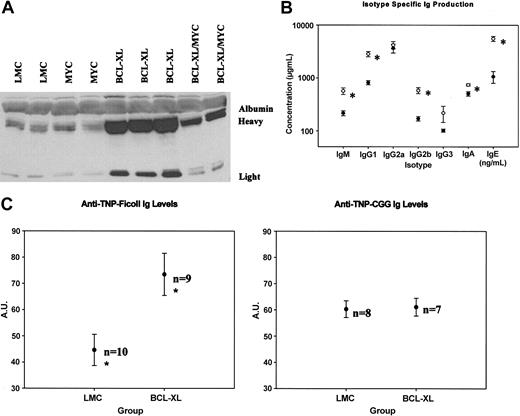

We collected serum samples from 12-week-old 1967 founder line 3′KE/Bcl-X_L and LMC mice. Western blotting of serum samples using an antimouse Ig antibody demonstrates that total amounts of heavy and light chain Ig proteins were significantly elevated in the 3′KE/Bcl-X_L mice compared with LMCs (Figure 3A). We then used ELISAs to determine isotype-specific serum Ig levels. 3′KE/Bcl-X_L animals demonstrated significantly (P < .05) elevated levels of the IgM, IgG1, IgG2b, IgA, and IgE isotypes compared with LMCs (Figure 3B). Serum samples were analyzed by conventional serum protein electrophoresis as well as 2-dimensional gel electrophoresis with subsequent Western blotting to detect Ig proteins, and although the γ-globulin fractions in the 3′KE/Bcl-X_L mice were expanded, no clonal spikes were observed in any of the samples (data not shown).

Given the putative apoptosis-resistant B lymphocytes and elevated serum Ig levels in the 3′KE/Bcl-X_L animals, we wanted to test whether the 3′KE/Bcl-X_L animals respond to antigenic challenge and whether they make more antigen-specific Igs than LMCs. We rationalized that such an antigenic challenge would help us to distinguish between a lymphoproliferative disease and a malignancy, because malignant cells would unlikely be responsive to antigen. Eight-week-old 1967 founder line 3′KE/Bcl-X_L and LMC animals were immunized with trinitrophenyl (TNP)-Ficoll, a T-cell-independent antigen, or trinitrophenyl (TNP)-chicken γ-globulin (CGG), a T-cell-dependent antigen. Primary immunizations were given in Freund complete adjuvant (FCA), and secondary immunizations were given 14 days later in Freund incomplete adjuvant (FIA). Serum samples were collected 14 days after the secondary immunization, a time point when maximum antibody production was expected. ELISAs were performed to estimate antigen-specific Ig levels. 3′KE/Bcl-X_L mice make 65% more TNP-Ficoll-specific Igs than LMCs (P < .05), although 3′KE/Bcl-X_L and LMC animals make similar amounts of TNP-CGG-specific Igs (Figure 3C).

Necropsies of 3′KE/Bcl-X_L and LMC mice were performed, and histologic sections of the kidneys, spleen, lymph nodes, liver, lung, heart, gastrointestinal (GI) tract, and long and flat bones were made and stained with hematoxylin and eosin (H&E). No abnormalities were detected in the LMC mice studied. Analyses of the 3′KE/Bcl-X_L mice revealed distinct histopathologic lesions in the 3 founder lines studied, and the incidence and magnitude of microscopic lesions correlated directly with age of the animal. Histopathologic changes were detected in all 3′KE/Bcl-X_L mice studied, ranging between 3 and 24 months of age.

A number of 3′KE/Bcl-X_L mice developed multiple perivascular foci of lymphocytes in the kidney, including a 23-month-old animal from the 2021 founder line (Figure 4A). Mice that had urine Ig levels detectable by Western blot analysis demonstrated the most pronounced pathology. Sections were immunostained with anti-CD138 or anti-B220 antibodies. A focus in a 9-month-old 1967 founder line 3′KE/Bcl-X_L mouse immunostained intensely for surface CD138 but did not stain for surface B220 (data not shown), consistent with the cell surface phenotype of plasma cells (Figure 4B). Given the foci of plasma cells in the kidney and other tissues and the serum immunoglobulinemia, the total amount of Ig protein filtered by the kidney was increased in the transgenic animals. As a result, significant hyaline renal tubular casts, presumably Ig protein deposits, were detected in a number of animals. The 23-month-old animal depicted in Figure 4A demonstrated prominent hyaline casts affecting many renal tubules. Younger animals demonstrated less pronounced changes, with only 1 or 2 casts per kidney section.

Histopathological changes were also noted in the bone marrow and other lymphoid organs of the 3′KE/Bcl-X_L mice. The percentage of lymphocytes present in the marrow cavity based on light microscopic evaluation was significantly increased compared with LMCs (data not shown).

Additionally, nests of plasma cells were found in the marrow of aged mice, including the 23-month-old 2021 founder line 3′KE/Bcl-X_L mouse depicted in Figure 4C. Radiographs of multiple 3′KE/Bcl-X_L and LMC mice were radiographically normal, with no evidence of diffuse demineralization or focal lesions in either group (data not shown). Some of the 3′KE/Bcl-X_L mice contained sheets of plasma cells within lymph nodes, including the 9-month-old 1967 founder line mouse depicted in Figure 4D, and foci of CD138⁺ plasma cells and B220⁺ lymphocytes were detected in other nonlymphoid soft tissues, including the liver and lung (data not shown).

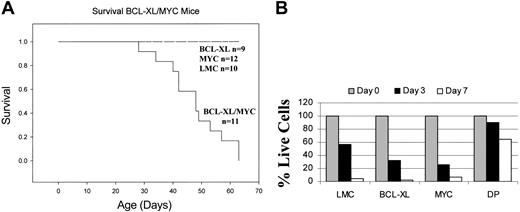

Dysregulation of the c-Myc protooncogene has been implicated in both human and murine plasmayctomas.^4,18,19  As such, we crossed the 1967 founder line 3′KE/Bcl-X_L mouse to the Eμ/c-Myc mouse to evaluate the cooperativity of Bcl-X_L and c-Myc under the control of the 3′KE and the Eμ, respectively. Because the 3′KE/Bcl-X_L mice are of the FVB/N strain and the Eμ/c-Myc mice are of the C57BL/6 strain, all comparisons were made among the syngeneic F1 progeny. The coexpression of antiapoptotic Bcl-X_L and oncogenic c-Myc proved highly fatal, and 50% of the double transgenic mice died of a lymphoproliferative disorder at 5.5 weeks (Figure 5A). Mononuclear spleen cells from 4-week-old mice from all 4 genotypes constituting the F1 progeny were cultured in RPMI media, and the percentage of viable cells was estimated by trypan blue staining at days 3 and 7. Most cells from the LMC and single transgenic mice were dead at day 7, while more than 60% of the double transgenic cells were viable (Figure 5B). Furthermore, more than 60% of splenocytes from the double transgenic mice were still viable after 4 weeks in culture (data not shown).

Samples of peripheral blood from 4-week-old double transgenic mice (n = 2) and LMCs (n = 2) were analyzed on a Hemavet automated cell counter. All transgenic animals demonstrated a severe lymphocytosis compared with LMCs, with an average count of 79.16 × 10³ ± 3.08 × 10³ lymphocytes per microliter versus 6.32 × 10³ ± 2.74 × 10³ lymphocytes per microliter (P = .02). Peripheral blood mononuclear cells were stained with anti-κ and anti-B220 antibodies; 52.78% ± 6.23% of the peripheral blood mononuclear cells of the double transgenic mice were B220⁺/κ⁺, reflecting immature/mature B-cell populations, versus 5.38% ± 0.24% of the LMC mice cells. Serum Ig levels were detected by Western blotting, and while there were more serum heavy and light chain Ig proteins in the double transgenic mice than in the LMC or c-Myc mice, the Bcl-X_L mice had the most elevated levels (Figure 3A).

Necropsies were performed on animals exhibiting excessive morbidity between 4 and 6 weeks of age, and all double transgenic animals demonstrated a very severe splenomegaly (Figure 6A). In the liver, multiple beige nodules, up to 2 mm in diameter, were seen in all transgenic animals. Histologic sections of the kidneys, spleen, lymph nodes, liver, lung, heart, GI tract, and long and flat bones were made and stained with H&E. A multifocal to coalescent infiltration of mononuclear cells with large, round to polygonal hypochromatic nuclei and a low mitotic rate was seen in the kidneys, spleen, lymph node, liver, lung (Figure 6B), heart, thymus, and pancreas. Similar mononuclear cells were present in the sternal bone marrow. Radiographs of the double transgenic mice showed osteolytic lesions in the long bones (Figure 6C). When the corresponding areas of bone were sectioned and stained, large sheets of pleomorphic plasmacytic cells were found adjacent to lysed osseous trabeculae, sometimes penetrating the corticalis and infiltrating the surrounding soft tissue (Figure 6C). Southern blot analysis was used to examine the clonality of samples isolated from 2 double transgenic mice. Clonally related populations were detected in the blood, marrow, spleen, and liver nodule samples collected (Figure 6D). The invasive nature of the bone marrow plasma cell lesions and the clonally related B-cell populations demonstrated in the double transgenic mice illustrate features consistent with a malignant phenotype.

This report describes the development of a novel transgenic system designed to direct Bcl-X_L expression to B cells in late developmental stages, including plasma cells. The 3′KE/Bcl-X_L mice have altered lymphocyte populations and serum immoglobulinemia, and nonmalignant bone marrow and extramedullary plasma cell foci and renal tubular casts develop in adult mice. When Bcl-X_L and c-Myc are coexpressed under the control of the 3′κ and Eμ enhancers, respectively, highly fatal B-cell lesions develop. The predominant expanded lymphocytic population is composed of immature/mature B cells, and these cells infiltrate nearly every organ system studied. Notably, plasma cell lesions develop in the bone marrow, intimately interacting with the microenvironment to induce bone resorption. To our knowledge, this is the first report demonstrating genetically induced bone marrow plasma cell lesions in the mouse.

Bcl-X_L is overexpressed in a variety of human cancers, including acute myelogenous leukemia,²⁰  Hodgkin lymphoma,²¹  non-Hodgkin lymphoma,²²  and HIV-associated lymphoma.²³  Elevated Bcl-X_L expression has also been demonstrated in human⁹  and murine⁷  myeloma cells. Bcl-X_L's role in conferring increased survival and chemotherapeutic resistance to myeloma cells has been debated, however. IL-6, an important cytokine in plasma and myeloma cell biology, induces expression of Bcl-X_L and Mcl-1, both antiapoptotic. Recent studies using antisense technology demonstrate that Mcl-1 rather than Bcl-X_L is more influential in survival of human myeloma cell lines.¹⁰  A limitation of these studies, however, is that myeloma cell lines may not accurately reflect in vivo plasma cell biology. Our in vivo analysis of Bcl-X_L demonstrates that elevated Bcl-X_L expression alone or coexpressed with c-Myc can contribute to abnormal B-lymphocyte and plasma cell biology, because plasma cell foci or plasma cell lesions develop in the 3′KE/Bcl-X_L or 3′KE/Bcl-X_L × Eμ/c-Myc mice, respectively.

Notably, the 3′KE/Bcl-X_L mice do not show an increase in the percentage of plasma cells constituting the bone marrow based on data collected by flow cytometry. We have demonstrated that transgenic Bcl-X_L transcripts are present in IgM plasma cells and that 3′KE/Bcl-X_L mice make more immunoglobulins than littermate controls. It is possible that transgenic Bcl-X_L expression in plasma cells changes their microenvironment requirements, and these plasma cells migrate to atypical locations and form foci as detected upon necropsy. Indeed, recent work has demonstrated that enforced Bcl-X_L expression can complement necessary B-cell survival and development of signaling pathways such as the BAFF-R (B-cell activating factor of the tumor necrosis factor family-receptor),²⁴  and it is likely that Bcl-X_L expression has altered B- and plasma cell survival and distribution. Thus, even though 12-week-old 3′KE/Bcl-X_L mice have similar percentages and absolute numbers of plasma cells constituting their bone marrow compared with LMCs, they likely have a greater total number of plasma cells in extramedullary sites.

While the extramedullary plasma cell foci identified likely indicate that enforced Bcl-X_L expression leads to increased numbers of plasma cells with an abnormal distribution, transgenic Bcl-X_L expression alone may not confer bone marrow microenvironment independence. Bone marrow plasma cell foci were observed in 3′KE/Bcl-X_L mice older than 1 year of age. Additionally, plasma cell tumors were only found in the bone marrow of our 3′KE/Bcl-X_L × Eμ/c-Myc double transgenic mice. It is possible that the extramedullary plasma cell foci found in the 3′KE/Bcl-X_L mice are a result of additional stochastic mutations that decrease reliance on the bone marrow microenvironment. Elevated Bcl-X_L expression increases the likelihood that cells that acquire mutations survive. Because the 3′KE/Bcl-X_L mice have a normal life span, there is sufficient time for cells to gain additional stochastic mutations. It is possible that these cells are able to migrate to extramedullary sites. The 3′KE/Bcl-X_L × Eμ/c-Myc transgenic mice have very shortened life spans, however. Thus, there is a narrower window of opportunity for Bcl-X_L/c-Myc double transgenic plasma cells to gain additional mutations compared with Bcl-X_L single transgenic plasma cells, and a lack of additional mutations may confine the plasma cell lesions to the bone marrow where growth factors such as IL-6 are present in high concentrations.

Previous Bcl-X_L transgenic mice have been described. One mouse uses the Eμ and a herpes TK promoter to drive Bcl-X_L expression.¹²  This transgenic cassette drives high-level expression of Bcl-X_L early in B-cell development, with a much lower level of expression in peripheral B cells.¹²  Another mouse uses the Eμ and an SV40 promoter to drive Bcl-X_L, and Bcl-X_L expression is higher in peripheral B cells than in bone marrow B cells.¹²  When either of the Eμ/Bcl-X_L mice was crossed to an Eμ/c-Myc mouse, however, double transgenic mice developed highly fatal acute early B-cell leukemia, and the immunophenotypes of the malignant cells were essentially identical (T. Behrens, unpublished data, 1997). The Bcl-X_L transgene used in our studies is driven by a combination of the 3′κ enhancer and Vκ21 promoter, uniquely targeting B cells in late developmental stages. These regulatory elements were likely influential in governing the phenotype of the malignant cells in our 3′KE/Bcl-X_L × Eμ/c-Myc mice.

Potter et al have described the pristane oil-induced mouse plasmacytoma (MPC) model.^25-27  The BALB/c strain of mice develops MPCs when given intraperitoneal injections of pristane oil. While this model has proved useful in understanding plasma cell transformation, MPCs only develop in extramedullary sites and are dependent upon the MPC-prone genetic background of the BALB/c mouse. Our transgenic model uses a targeted system to genetically induce plasma cell tumors that exhibit bone marrow involvement in an MPC-resistant strain of mice and demonstrates the cooperativity of Bcl-X_L and c-Myc in B-cell tumor formation.

Our data indicate that the 3′KE can effectively target transgene expression of Bcl-X_L to B cells in late developmental stages, including plasma cells. This targeted system serves as a model for directed development of plasma cell tumors exhibiting bone marrow involvement. Furthermore, these data provide direct evidence that Bcl-X_L can contribute to plasmacytomagenesis, identifying the antiapoptotic protein as a potential molecular target for treating plasma cell tumors, including MM.
