The common hereditary elliptocytosis-associated α-spectrin L260P mutation perturbs erythrocyte membranes by stabilizing spectrin in the closed dimer conformation

The hereditary elliptocytosis (HE) syndromes are the most common disorders of erythrocyte shape. In parts of Africa, the incidence of HE approaches that of sickle cell disease, presumably because HE red cells confer some resistance to invasion by malaria parasites. Most cases of HE are due to missense mutations in the erythrocyte membrane skeleton protein spectrin.^1,2

Spectrin is a critical component of the erythrocyte membrane skeleton, a network of proteins on the cytoplasmic face of the membrane that maintains the shape and elasticity of the red cell membrane.^3,4  In the erythrocyte, spectrin exists as an antiparallel αβ-heterodimer that self-associates in a head-to-head fashion to form tetramers and higher order oligomers.⁵  Studies of spectrin mutations in HE and the related disorder hereditary pyropoikilocytosis (HPP)^6,7  have provided important insights into the structure and function of spectrin in the cell.⁸  Furthermore, erythrocyte spectrin has served as the paradigm for our understanding of spectrin proteins in nonerythroid cells. We now know that spectrin mutations in other cell types play important roles in pathogenesis of several disease phenotypes, including a number of neurologic disorders.^9-11

In the erythrocyte, α-spectrin is an ∼280-kDa polypeptide comprising 20 homologous ∼106 amino acid “spectrin-type homologous domains” often called “spectrin repeats,” an N-terminal partial repeat, an SH3 domain, and a C-terminal EF hand domain. β-Spectrin is an ∼246-kDa polypeptide comprising 16 complete repeat units, a partial repeat near the C terminus, an N-terminal actin binding domain, and a nonhomologous phosphorylated C-terminal domain (Figure 1A). Spectrin tetramers are anchored to the membrane through ankyrin^12-14  and an actin-based junctional complex. Crystal structures of up to 3 or 4 tandem spectrin type domains have been determined, and all of these domains are 3-helix bundles interconnected by short helical segments.^15-19

Many HE and HPP mutations are in the tetramerization domain comprising the α0 and β17 partial domains, and these mutations reduce or abolish tetramer formation either through destabilization of protein folding or disrupting protein-protein contacts in the contact interface.^20,21  However, in many cases, pathogenic mutations are located large distances (100 Å or more) from the tetramerization site and are thought to exert destabilizing effects on tetramer formation through poorly understood mechanisms. These include the 3 most common HE-associated α-spectrin mutations found worldwide: dupL154, L260P, and L207P.^22-24  Two of these common mutations insert helix-breaking proline residues into α-helical segments of spectrin repeats. Study of a rare distal mutation, αQ471P, located adjacent to the linker between the α4 and α5 repeats, revealed this mutation decoupled these 2 repeat domains, causing them to unfold near physiological temperature. This suggested that these domains would prematurely unfold under moderate tensile stress, resulting in destabilization of the actin crosslinks provided by the spectrin tetramers.²⁵

In the current study, we analyzed the common HE αL260P mutation²⁶  located adjacent to the linker between the α2 and α3 repeats. Because this mutation was in an analogous structural position within spectrin repeats to the αQ471P mutation (Figure 1C), we hypothesized that a similar mechanism would contribute to destabilization of spectrin tetramers and red cell membranes. Surprisingly, initial results indicated a different mechanism was involved; therefore, a detailed evaluation of the αL260P mutation was pursued using a mini-spectrin construct capable of forming closed dimers, open dimers, and bivalent tetramers analogous to full-length spectrin (Figure 1B).²⁷  The L260P mutant protein showed reduced capacity to form tetramers in bivalent tetramerization assays, suggesting that perturbations in the closed dimer-open dimer equilibrium played an important role in tetramer assembly. Chemical crosslink analyses revealed mutant-specific crosslinks in the vicinity of the mutation, indicative of large conformational rearrangements that stabilized closed dimers. Shifting the equilibrium from tetramers to closed dimers would reduce the amount of tetramers on the membrane, a new mechanism of HE-associated red cell membrane destabilization, and one that differs markedly from the Q471P mutation.

Elucidation of these multiple mechanisms underlying the pathobiology of membrane dysfunction in HE and HPP provides essential knowledge required for potential development of future therapeutic interventions for these diseases.

The expression and purification of the wild-type (WT) construct used in this study have been described previously.²⁷  Site-directed mutagenesis was used to introduce the HE-associated mutation L260P into the mini-spectrin construct. The purification of the L260P mutant protein followed the same procedure as the WT protein. Expression and purification of the α0-5 and β16-17 constructs followed a similar purification scheme.

Differential scanning calorimetry, circular dichroism, sedimentation equilibrium analysis, and isothermal titration calorimetry were performed as previously described.^21,27

The WT and L260P dimers and tetramers were isolated and evaluated by gel filtration chromatography using 2 G4000SW_XL BioAssist columns (Tosoh Corp.) connected in series and maintained at room temperature (20-23°C). After initial isolation of the tetramer or dimer, the sample was diluted to 0.05 mg/mL and then 100 pmol was reinjected immediately or incubated at 37°C and reinjected at 45-minute intervals.

Crosslinking reactions were performed using a freshly prepared solution of 1-ethyl-3-(3-dimethylaminopropyl)carbodiimide (EDC)/sulfo-N-hydroxysulfosuccininimide (sulfo-NHS). The WT and L260P dimers and tetramers were isolated by gel filtration in 10 mM phosphate and 130 mM sodium chloride; pH 7.3. Sample concentrations were adjusted to 0.2 mg/mL with the same buffer. Reactions containing 10 mM EDC/5 mM sulfo-NHS were incubated at 0°C. Reactions containing 2.5 mM EDC/1.25 mM sulfo-NHS were incubated at room temperature (20-23°C). Aliquots of each sample were removed at 30, 60, and 120 minutes and quenched by addition of 20 mM dithiothreitol (final concentration) followed by incubation at the same temperature for 15 minutes. After quenching, samples were buffer exchanged and concentrated using Amicon Ultra Ultracel-50K filter units (Millipore Corp.) before sodium dodecyl sulfate–polyacrylamide gel electrophoresis (SDS-PAGE).

For each crosslinked sample (oligomer state, temperature, and time point), multiple lanes loaded with 6 μg/lane were separated on 3% to 8% Tris-Acetate mini-gels (Life Technologies) in Tris acetate running buffer and stained with colloidal Coomassie Blue. Bands corresponding to control, crosslinked dimer, or crosslinked tetramer were excised, alkylated, and digested with trypsin.

Liquid chromatography tandem mass spectrometry (LC-MS/MS) analysis was performed on an LTQ-Orbitrap XL mass spectrometer (Thermo Scientific) coupled with a Nano-ACQUITY UPLC system (Waters) as previously described,²⁸  with minor modifications. Briefly, charge-state screening was enabled to reject +1 and +2 ions. Lists of expected mass to charge ratio and retention time ranges for candidate crosslinks identified in the discovery run were subsequently used in targeted LC-MS/MS analyses to identify additional crosslinks. Monoisotopic precursor selection was disabled, precursor mass tolerance was set at 20 ppm, and MS/MS threshold was set at 10 000 ion counts for low-resolution MS/MS and 50 000 ion counts for high-resolution scans. Resolution was set to 15 000 for both full scans and MS/MS scans. Isolation width was increased from 2.5 to 4 mass to charge ratio for high-resolution scans to compensate for space-charging.

Label-free comparisons of the discovery LC-MS/MS data were performed on the Rosetta Elucidator system to identify peptide signals that were enriched in the crosslink samples as previously described.^28,29  Precursor signals that were at least 10-fold enriched in 1 of the crosslink samples (relative to control) were retained as crosslink candidates. Using a mass tolerance of 5 ppm, the mass list of these candidates was compared with mass lists of theoretical crosslinks generated via in silico trypsin digestion and crosslinking of the pertinent mini-spectrin sequence. Custom software was used to evaluate the correlation between low-resolution MS/MS spectra and theoretical crosslinked peptide amino acid sequences, to create target lists for high-resolution MS/MS data acquisition, and to perform a final analysis on the resulting spectra (Sriswasdi S, Harper SL, Tang HY, and Speicher DW, manuscript in preparation). Automatically generated, graphically annotated spectra, along with correlation quality scores, were used to identify crosslinked peptides and pinpoint specific crosslinked sites.

Homology modeling was performed using MODELER, as previously described.^30-34  The portion of a WT mini-spectrin tetramer model encompassing 3 long-range L260P-specific crosslinks, α2-3-4/β17α0-1-2, was used as the starting structure. Distances between crosslinked Cα residues in this region were constrained by imposing upper bounds for physical distances at 11.0 Å with a standard deviation of 0.1 Å. In each scenario, 100 models were generated and the structure with the lowest pairwise root-mean-square deviation was chosen.

The effects of the αL260P mutation on tetramer formation were initially evaluated using α0-5 and β16-17 recombinant polypeptides in an isothermal titration calorimetry binding assay at 23°C and 30°C. Isothermal titration calorimetry characterizes properties of biomolecule interactions in solution, particularly the binding affinity. We used this technique to measure the capacity of WT and mutant recombinant fragments to form univalent associations at the tetramerization site. Interestingly, this mutant exhibited binding affinities that were similar to the corresponding WT peptides (Table 1). Similarly, the Q471P mutant exhibited normal tetramer binding affinity.²⁵  In contrast, prior analyses of HE and HPP mutations located within the α0 and β17 tetramerization binding site showed reduced tetramer binding for most mutations when a similar univalent tetramer binding assay was used.²¹  The normal binding affinity for these distal mutants in univalent tetramer-binding assays suggested the need for more complex recombinant constructs capable of undergoing the entire set of interactions encountered in full-length spectrin. A previous study demonstrated that a WT mini-spectrin recombinant protein comprising α0-5 linked to β16-17 recapitulated tetramer binding and structural properties.²⁷  Specifically, this mini-spectrin showed identical tetramer binding affinity at 30°C to that of full-length spectrin purified from fresh human erythrocytes, which had a dissociation constant (K_d) of approximately 1 μM.^35,36  These similarities indicated the mini-spectrin was a suitable template for studying distal mutations in a more physiological context than provided by univalent head-to-head tetramer binding assays.

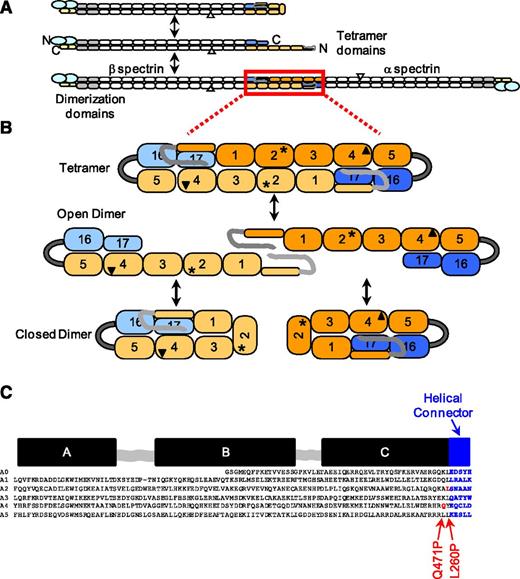

The relationships of full-length spectrin and the WT mini-spectrin construct as well as the respective closed dimer ↔ open dimer ↔ tetramer equilibria are shown in Figure 1. The locations of the L260P (asterisk) and the Q471P (triangle) mutations are shown on the mini-spectrin schematic. Both mutations are located at the end of the C-helix immediately adjacent to the interdomain linker region (Figure 1C). Because each spectrin type repeat (rounded rectangles) is approximately 50 Å in length, the L260P and Q471P mutations are at least 100 Å and 200 Å, respectively, from the tetramer binding site on the same polypeptide chain.

Using the mini-spectrin template, the L260P and Q471P mutants were compared with the WT protein using sedimentation equilibrium, which is another technique used to measure binding affinities of biomolecules. Sedimentation equilibrium is more appropriate than isothermal titration calorimetry when the interacting species are very large and of similar size, as is the case here, where 2 identical dimers form a tetramer. This technique was used to measure the bivalent binding affinity of the WT and mutant mini-spectrins. The apparent K_d of 1 μM for the WT dimer-tetramer association was confirmed and an apparent K_d of 5 μM at 30°C was obtained for the L260P mutant, indicating a fivefold weaker binding affinity. In contrast, the Q471P mutant continued to exhibit binding affinity equivalent to the WT protein in this divalent assay. Experiments performed at 23°C showed a similar trend of weaker binding affinity for L260P compared with the WT or Q471P mini-spectrins, although for each construct the binding affinity was stronger at the lower temperature (Table 1; supplemental Figure 1), consistent with the known temperature effects on tetramer formation of full-length spectrin.³⁷  This weaker binding affinity of the L260P mini-spectrin is consistent with prior analyses of full-length spectrin isolated from L260P erythrocytes, which showed normal amounts of total spectrin, but a relative decrease in the tetramer to dimer ratio.³⁸

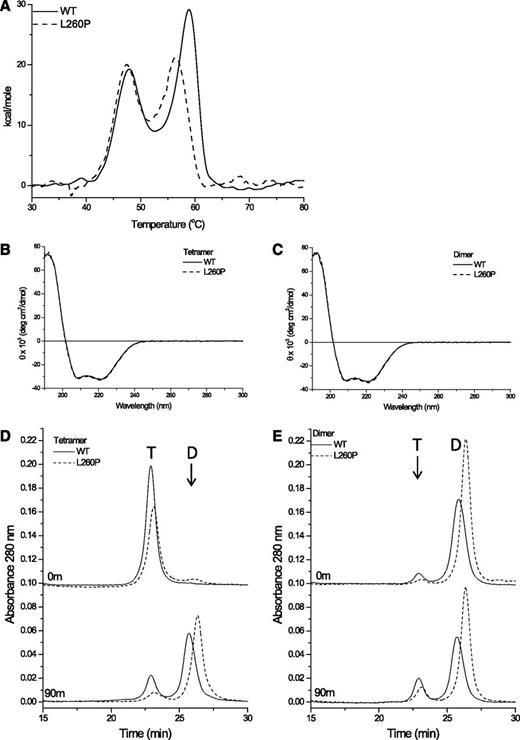

Thermal stability and secondary structural characteristics of the WT and L260P proteins were determined using differential scanning calorimetry (DSC) and circular dichroism. DSC measures temperature-induced unfolding of protein domains and is therefore an indicator of protein stability because more stable structures unfold at higher temperatures. Representative DSC scans are shown in Figure 2A. Scans of the WT protein showed 2 peaks, 1 with a melting temperature (T_m) at 48°C (ΔH = 145 kcal/mol) and a second at 58°C (ΔH = 144 kcal/mol). DSC scans of L260P also show 2 thermal transitions, the first at 48°C (ΔH = 133 kcal/mol) is similar to WT, whereas the second transition shows a 2°C decrease in T_m and a slight reduction in enthalpy (ΔH = 121 kcal/mol). Both proteins precipitated during the course of the experiment, resulting in some uncertainty in the T_m and enthalpy values. The most likely interpretation is that the higher melting domain, which corresponds to the α1-3 repeats,³⁹  is slightly destabilized, whereas there is not significant perturbation of the lower melting domain, which corresponds to repeats α4-5.³⁹  Repeated thermal denaturation up to 50°C shows that the α4-5 domains are able to unfold reversibly (supplemental Figure 2) and irreversible protein aggregation only occurs when the second domain denatures. The WT and L260P mutant proteins exhibit high helical (∼90%) content for both dimers and tetramers, as indicated by circular dichroism (Figure 2B-C), which measures secondary structure. The similar spectra for WT and mutant proteins indicates that introduction of the L260P mutation into the mini-spectrin construct did not significantly affect the secondary structure, that is, the percentage of α-helix.

High-performance liquid chromatography gel filtration, which separates proteins based on their solution size and shape (hydrodynamic radius), was used to determine the relative amounts of tetramers and dimers and potential shape changes induced by the L260P mutation. The mini-spectrins were evaluated by incubating them at 37°C for varying times in physiological buffer. Purified dimer fractions or tetramer fractions from either WT or L260P were injected onto the high-performance liquid chromatography column, which was maintained at room temperature (∼20-23°C), immediately after purification or after incubation at 37°C for 45 (data not shown) or 90 minutes (Figure 2D-E). No differences in elution profile were noted for the 45- and 90-minute time points, indicating equilibrium was achieved within 45 minutes at 37°C. This is in agreement with previously published data for full-length spectrin showing that dimer-tetramer equilibrium is achieved on the order of 45 minutes at 37°C, on the order of hours at 23°C, and on the order of many days at 4°C, further demonstrating the similarity of the mini-spectrin and full-length protein in terms of tetramerization.⁴⁰  Critical evaluation of the equilibrated samples (Figure 2D-E, lower panels) shows that the relative ratios of dimer and tetramer are the same regardless of whether the initial purified sample was tetramer or dimer, as expected for a reversible equilibrium. Furthermore, L260P contains a higher percentage of dimer than the WT protein at the same concentration, consistent with the lower K_d observed in the sedimentation equilibrium experiments. Finally, the later elution of both the tetramer and dimer peaks for the L260P protein indicate that the mutant protein is a more compact and/or more flexible structure because later elution is indicative of somewhat smaller hydrodynamic radii.

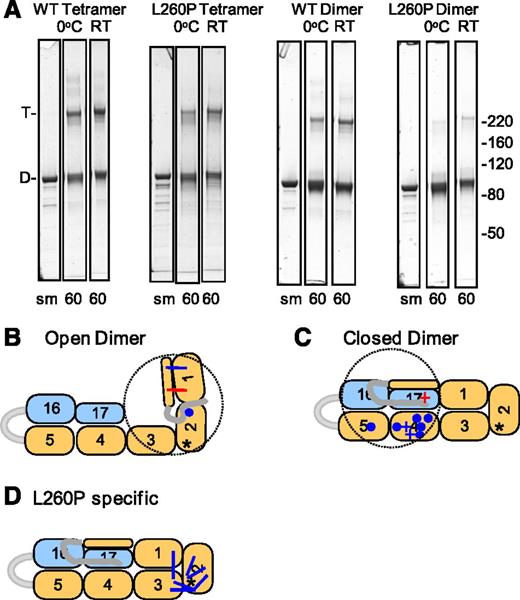

L260P dimers and tetramers were chemically crosslinked with EDC/NHS at 0°C and room temperature in parallel with WT controls. This “zero-length” reaction covalently links amines (N terminus α-amino group and ε-amino group of Lys) to carboxyl groups (C terminus carboxyl group, and side chain carboxyl groups of Asp or Glu) that are within salt-bridging distances. Allowing for side chain lengths, this requires that the α-carbons of the crosslinked residues be within approximately 12 Å. After the crosslinking reaction was quenched, the samples were subjected to SDS-PAGE (Figure 3A; supplemental Figure 3). The respective dimer or tetramer bands from each time point were excised from the gel, subjected to tryptic digestion, then analyzed on an LTQ-Orbitrap XL mass spectrometer.

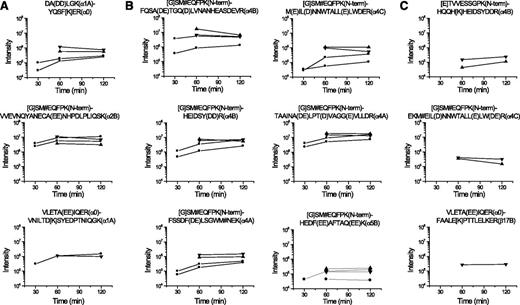

Chemical crosslinking coupled with MS allows identification of closely associated amino acid side chains. In the case of the crosslinker used here, an acidic and basic group must be within salt bridge distances to react. Comparison of the crosslinks observed and the amount (intensity) of each was used to estimate the relative amounts of open or closed dimer in WT and L260P mini-spectrin dimers and to identify conformational changes. The most informative crosslinks for analyzing the L260P mutant were those indicative of open dimers, indicative of closed dimers, or unique to the L260P mutant. Three crosslinks were identified that were indicative of an open dimer conformation (Figure 3B; supplemental Table 1). Quantitation of these crosslinks (Figure 4A) showed that they were observed with both WT and L260P dimers, and crosslink VLETAEEIQER(α0)-VNILTDKSYEDPTNIQGK(α1A) was only observed at room temperature. Yields of the other 2 crosslinks were higher at room temperature for both WT and L260P, consistent with the prior observation that the closed ↔ open dimer equilibrium shifts toward open dimers at higher temperatures.⁴⁰  Nine crosslinks consistent with closed dimers were observed (Figure 3C; supplemental Table 1). Six of these crosslinks were observed for both WT and L260P (Figure 4B), whereas 3 were specific to L260P (Figure 4C). All of the closed dimer-specific crosslinks involved the N terminus of α-spectrin or a peptide from this flexible tail region, which has been previously identified as a highly mobile, relatively disordered region based upon nuclear magnetic resonance (NMR) structures of α-spectrin recombinant fragments.⁴¹  Overall, yields of most crosslinks indicative of closed dimers are higher for the L260P mutant than for WT dimers; this, together with the more compact hydrodynamic radius of the L260P dimer, suggests that this mutant has substantially shifted the open ↔ closed dimer equilibrium toward the closed dimer state. Stabilization of dimers in the closed conformation by the L260P mutation is further supported by mutant dimer-specific crosslinks (Figure 3D), particularly the crosslink between the α1 and α3 domains, which suggests that these 2 domains more tightly laterally associate compared with WT closed dimers. All other L260P dimer-specific variants are in the vicinity of the mutation and are suggestive of substantial conformational changes within α2 and between α2 and α3 (Figure 3D; supplemental Table 2). Several representative spectra of L260P specific crosslinks are shown in supplemental Figures 4-6.

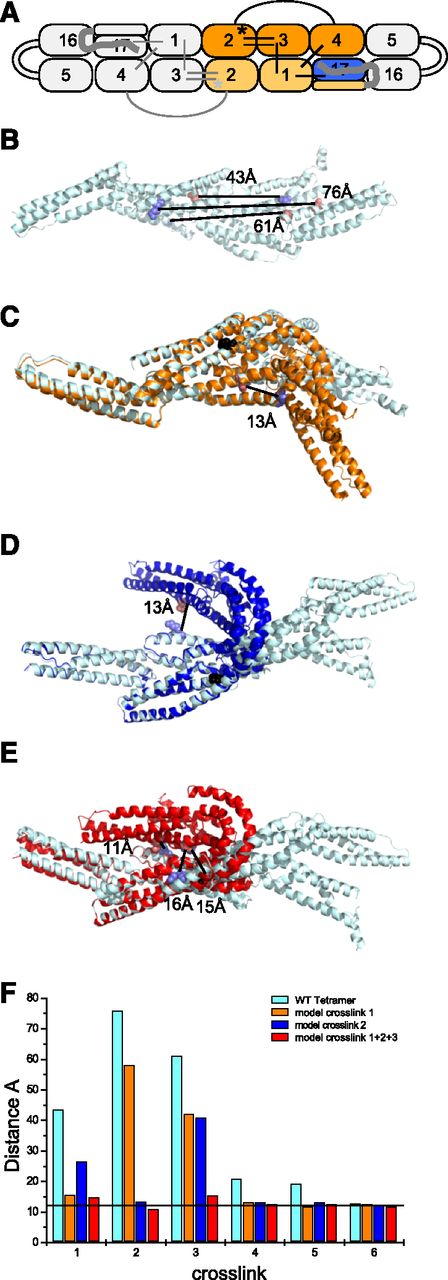

Chemical crosslinking-MS was also used to identify closely associated residues in WT and L260P tetramers in order to identify changes in protein conformation induced by the mutation. The most interesting L260P mini-spectrin tetramer crosslinks are those unique to the mutant. However, it is also informative that 25 of 35 crosslinks were observed in both WT and L260P tetramers, indicating most regions of the protein did not undergo significant conformational changes. Analogous to results for the mutant dimer, most of the 10 mutant-specific crosslinks involved the α2 domain that harbors the mutation (supplemental Table 3). The 6 most informative crosslinks are shown in Figure 5A and Table 2. Importantly, 3 L260P-specific crosslinks were between residues that were 43-76 Å apart in the WT protein, as illustrated by mapping these mutations onto a structure of the WT tetramer (Figure 5B; representative spectra are shown in supplemental Figures 7 and 8). This WT structure was used as a template for modeling the structural changes indicated by these crosslinks. It was not possible to derive a single stable structure that satisfied the distance constraints for all crosslinks simultaneously. The most feasible ensemble of mutant structures is shown in Figure 5C-E. Distances between the α-carbons of crosslinked residues for the different models are shown in Figure 5F. Taken together, these data indicate that the region in the vicinity of the mutation is unusually flexible and dynamic because it most likely adopts multiple alternative conformations. All of these conformations preserve the high helical content, indicated by the circular dichroism measurements, and all conformations involve a large kink between α2 and α3 that is consistent with the smaller hydrodynamic radius observed in the L260P mutant compared with the WT mini-spectrin (Figure 2D).

Most HE and HPP patients have mutations in red cell spectrin that destabilize tetramer formation; the resulting reduced number of spectrin crosslinks bridging between junctional complexes weakens the membrane skeleton. The most intriguing HE/HPP mutations are those located substantial distances from the tetramerization site because the mechanisms by which these distal mutations reduce tetramer formation and destabilize red cell membranes are not known. Because of the very large size of full-length spectrin polypeptide chains, structural and functional analyses of hereditary anemia-associated mutations in the context of full-length recombinant spectrin have been impractical. Thus, we developed a mini-spectrin recombinant protein as a template to study properties of mutant spectrin tetramerization in a more physiological context than the more commonly used head-to-head univalent association of individual α and β recombinant fragments. Importantly, this mini-spectrin undergoes the open-closed dimer equilibrium and the bivalent dimer-tetramer equilibrium with similar apparent tetramer affinity to that of the full-length molecule.²⁷

Understanding the specific mechanisms underlying mutations in erythrocyte spectrin and careful development of physiologically pertinent mini-spectrins are critical for both understanding the pathobiology of disease and for designing rationale strategies for therapeutic interventions. Such strategies are being successfully pursued for dystrophin and uterotrophin, which are large, membrane-associated spectrin repeat–containing proteins associated with muscular dystrophy.^42,43  As with erythrocyte spectrin, their large size makes them difficult to synthesize for biologic studies and prohibits their use in most gene therapy vectors.⁴⁴  Furthermore, mini-dystrophins have proven to be very promising in recent gene therapy trials.^45,46

The moderate perturbation in thermal denaturation (Figure 2A) and the lack of significant changes in secondary structure (Figure 2B-C) for the L260P mutation suggest that structural destabilization is relatively minor and localized. These observations are consistent with prior results using mild proteolysis to characterize mutant spectrin from patients with HE and HPP because proteolysis of spectrin from L260P patients showed protease susceptibility only increased in the immediate vicinity of the mutation.^38,47-49  The chemical crosslinking data also are consistent with relatively moderate structural changes that are limited to the vicinity of the mutation because all crosslinks observed in the WT protein were also observed in the L260P mutant. The additional crosslinks unique to the mutant were either indicative of the shift toward closed dimers or in the vicinity of the mutation (Figures 3 and 5).

The crosslinking data yielded additional important insights into changes in the tertiary conformation of the mutant dimers and tetramers. Several mutation-specific crosslinks are of particular interest. One crosslink between α1 and α3 indicates these 2 domains are in closer proximity in the mutant dimer compared with WT, consistent with the smaller hydrodynamic radius observed in gel filtration experiments (Figure 2D). Also, structural modeling was used to further explore the crosslinks observed in the L260P tetramer that were long distances apart in the WT structure. These mutant-specific crosslinks indicate substantial changes in the tertiary structure in order to bring these residues into close enough proximity for crosslinking to occur (Figure 5). Also, the inability to converge on a single model that satisfied all distance constraints simultaneously suggests that the actual structure of the mutant protein is most likely an ensemble of multiple conformations as shown in Figure 5C-E.

The differences observed for the L260P and Q471P mutations suggest that the mechanisms of tetramer destabilization are more dependent upon the location within the spectrin molecule than on analogous locations within different spectrin repeats. The differing mechanisms for the L260P and Q471P mutants fit schematic models of closed and open dimers (Figure 1B). As illustrated, the closed-open dimer conformational rearrangement is likely to involve flexing of hinges or other conformational rearrangements between α1 and α2 as well as α2 and α3. Hence, it is not surprising that the L260P mutation, which is located next to the α2-α3 connector, affects the closed-open dimer equilibrium as demonstrated in this study. In contrast, the Q471P mutation, which is located next to the α4-α5 connector, does not significantly affect this equilibrium because it is quite distal from the domains involved in the closed-open dimer conformational changes. Taken together, these results predict that other HE and HPP mutations located in the α-spectrin domains 1-3 might destabilize tetramer formation by favoring closed dimers, whereas mutations outside this region are likely to destabilize red cell membranes by alternative mechanisms.
