Impaired factor V–related anticoagulant mechanisms and deep vein thrombosis associated with A2086D and W1920R mutations

Factor V (FV) is involved in both procoagulant and anticoagulant mechanisms.^1,2 The procoagulant activity of FV is mediated as a cofactor for activated FX (FXa) in the prothrombinase complex that converts prothrombin to thrombin on phospholipid (PL) membranes.^3-5 These reactions lead to thrombin-catalyzed proteolytic cleavages of FV at Arg⁷⁰⁹, Arg¹⁰¹⁸, and Arg¹⁵⁴⁵, resulting in its conversion to activated FV (FVa). The activated molecule is rapidly inactivated by proteolytic cleavage of the heavy chain (HCh) at Arg³⁰⁶, Arg⁵⁰⁶, and Arg⁶⁷⁹ by activated protein C (APC) and protein S (PS) to downregulate the potential for hypercoagulant reactions.^6,7 Cleavage at Arg⁵⁰⁶ is important for the exposure of other cleavage sites but is not essential for the decrease in FVa activity^8,9; however, cleavage at Arg³⁰⁶ results in near complete loss of FVa activity. Nevertheless, any defect in 1 or more of these cleavage reactions influences the process of APC-induced inactivation of FVa.

Alternatively, FV functions as an anticoagulant cofactor for APC, and enhances APC/PS-catalyzed inactivation of FVIIIa through proteolytic cleavage at Arg³³⁶.^10,11 Hence, the anticoagulant potential of FV is mediated by promoting the proteolysis by APC before thrombin cleavage. Cleavage at Arg⁵⁰⁶ of FV that still contains the B domain contributes to anticoagulant activity but cleavage at Arg³⁰⁶ is less important in this respect.^12,13 Any molecular defect in these cleavage reactions potentiates APC resistance (APCR). The FV B domain contains an essential region that interacts with tissue factor pathway inhibitor (TFPI).^14,15 Consequently, the anticoagulant functions of FV are associated with both APC and TFPI.^16,17 In addition, Al Dieri et al¹⁸ identified a novel anticoagulant mechanism for FVa involving inhibition of tissue factor (TF)-induced procoagulant function, regardless of the presence of APC and TFPI. The use of recombinant human FV (rFV) may help to clarify the precise mechanism(s) of the anticoagulant properties of FV. The large size (∼7.0 kb) of human FV complementary DNA, however, presents significant challenges for the stable expression of full-length FV in high yields.

APCR has been recognized as a molecular abnormality of FV involved in the pathogenesis of thrombosis. A point mutation in the FV gene, R506Q (FV_Leiden), is the most common defect known to affect the APC cleavage site in FV.¹ This inherited disorder impairs APC-induced inactivation of FVa directly, and via FV cofactor of FVIIIa, which has been identified in ∼20% of Caucasians with deep venous thrombosis (DVT).² Other mutations, including R306T (FV_Cambridge),¹⁹ R306G (FV_HongKong),²⁰ I359T (FV_Liverpool),²¹ E666D,²² and A512V (FV_Bonn)²³ have also been identified in association with DVT. These mutated residues are within the HCh, at or close to the APC cleavage site. We also previously identified a novel FV-W1920R mutation (FV_Nara), located in the C1 domain, remote from APC cleavage site, that is responsible for APCR-related recurrent DVT.²⁴ This mutation appeared to decrease the affinity for PL binding and for PS in the complex.²⁵ A mutation, FV-A2086D (FV_Besançon), in the C2 domain that is associated APCR has recently been identified.²⁶ The individual properties of FV(a)-A2086D have previously been investigated using highly diluted plasma of the patient with the homozygous FV-A2086D as a source of the mutant FV. The study revealed that FV(a)-A2086D resulted in APCR and decreased APC-cofactor activity associated with lower affinity for PLs. In contrast, FVa-A2086D has slightly (≤1.5 fold) unfavorable kinetic parameters (K_m and V_max) of prothrombin activation compared with normal FVa. The investigators concluded that FV(a)-A2086D affects the anticoagulant pathways more strongly than prothrombinase activity. However, the detailed analyses using recombinant FV-A2086D have not been evaluated, and the molecular relationships between these mutations and thrombophilia are yet to be fully explored.

In this study, we successfully expressed full-length rFV proteins in high yield, using a stable, human cell system with the piggyBac transposon vector. The defective mechanisms of FV-related function under the FV-A2086D mutation were investigated and FV-W1920R mutants were also studied. The data from these experiments provide novel insights into the causes of DVT in these genetic disorders.

Commercially available reagents were purchased from internationally reputable suppliers. These included restriction enzymes (New England Biolabs, Beverly, MA); infusion cloning (Takara-Bio, Otsu, Japan); specific primers (Hokkaido System, Sapporo, Japan); rFVIII (NovoEight, Novo Nordisk A/S, Bagsværd, Denmark); FV, FIXa, FX/FXa, APC, PS, and mAbAHV-5146 (Hematologic Technologies, Essex Junction, VT); α-thrombin, r-hirudin, and Glu-Gly-Arg-chloromethylketone (EGR-ck) (Calbiochem, San Diego, CA); FV-deficient, PC-deficient, PS-deficient, and antithrombin-deficient plasma (Affinity Biologicals, Ancaster, Canada); FVIII-deficient and FIX-deficient plasma (George King. Overland Park, KS); chromogenic substrate S-2222 and S-2238 (Sekisui Medical, Tokyo, Japan); rTF (Innovin; Dade, Marburg, Germany); and thrombin-specific fluorogenic substrate (Bachem, Bubendorf, Switzerland). The monoclonal antibody (mAb) C5 was kindly provided by C. Fulcher (Scripps Research, La Jolla, CA).²⁷ PL vesicles (phosphatidylserine, phosphatidylcholine, and phosphatidylethanolamine at 10%, 60%, and 30%, respectively) and EGR-APC were prepared as reported previously.^28,29

The piggyBac transposon system³⁰ was used to express wild-type (WT) and mutant FV as illustrated in supplemental Figure 1. The pPB-CAG-EBNXN sequence,³¹ which contains the constitutively active CAG promoter to express the gene of interest,³² was used as a backbone piggyBac vector. The enhanced green fluorescent protein (EGFP) coding region from pCX-EGFP³³ was amplified using the following primers: EGFP-BgSg-F1, 5′-GGCAGATCTGCGATCGCCATGGTGAGCAAGGGCGAGGAGCTG-3′ and EGFP-PmXh-R1, 5′-CGGCTCGAGGTTTAAACTTACTTGTACAGCTCGTCCATGCC-3′. Therefore, BglII-SgfI sites and PmeI-XhoI sites were introduced upstream and downstream of the EGFP fragment, respectively. The EGFP fragment was digested with BglII and XhoI, and cloned into the BglII-XhoI site of the pPB-CAG-EBNXN, between the CAG promoter and the bovine growth hormone polyadenylation signal, yielding in pPB-CAG-EGFP-BSPX plasmid. The PGKpuropA expression cassette was excised from pPGKpuro by PstI-SalI digestion and cloned into the PstI-SalI site of the pPB-CAG-EGFP-BSPX, between the bovine growth hormone polyadenylation signal and the piggyBac transposon sequence, resulting in pPB-CAG-EGFP-BSPX-PGKpuro. The full-length WT-FV coding sequence was excised from pF1KB4969 (Kazusa DNA Research Institute, Kisarazu, Japan) by SgfI-PmeI digestion, and the EGFP region of the pPB-CAG-EGFP-BSPX-PGKpuro was replaced with this fragment using the same restriction enzymes, generating pPB-CAG-F5-PGKpuro (supplemental Figure 1). Construction of a vector containing the mutations is described in detail in the supplemental Methods.

HEK293T cells were transfected with FV expression vectors and the piggyBac transposase expression vector pCMV-hyPBase³⁴ using lipofectamine3000 (Life Technologies, Carlsbad, CA) and selected using puromycin (1 μg/mL) to stably express rFV proteins. HEK293T cells were maintained in media supplemented with 10% fetal bovine serum and ampicillin and streptomycin. After the cells became confluent, the supernatant was replaced with serum-reduced medium (Opti-MEM). FV activity (FV:C) was measured using a PT-based clotting assay. FV antigen (FV:Ag) was measured with an enzyme-linked immunosorbent assay using a Factor V-Paired Antibody set (Affinity Biologicals, Ancaster, Canada) per the manufacturer's protocol. The product was loaded onto a SP-Sepharose column and eluted with 1 M NaCl. Collected active fractions were loaded onto Q-Sepharose columns, followed by elution with 1 M NaCl. Active fractions were applied to Superd200-GL columns. Protein quantity was measured by UV analysis. The proteins were concentrated using AmiconUltra-15 (cutoff, 100 kDa).

FV (10 nM) was incubated with thrombin (10 nM) for 5 minutes at 37°C, before the addition of hirudin (5 U/mL). The FVa solution was incubated with APC (1 nM), PS (30 nM), and PL (20 μM) in HBS buffer (20 mM HEPES pH 7.2, 0.1 M NaCl, 1 mM CaCl₂, and 0.005% polysorbate20) for the indicated times.^24,35 Aliquots were obtained from the mixtures and diluted ∼30 fold. Residual FV:C was measured using PT-based clotting assays. The presence of thrombin and hirudin in the diluted samples had little effect on these assays (data not shown). FVa proteolytic cleavage was confirmed by western blotting.²⁴

FV cofactor activity for APC was measured by a FVIIIa degradation assay.³⁵ FVIII (10 nM) was activated in the presence of PL (20 μM) by thrombin (5 nM) for 30 seconds, followed by the addition of hirudin (2.5 U/mL). The generated FVIIIa was incubated with APC (2 nM) and PS (10 nM) with rFV for the indicated times in HBS buffer. Reactants were incubated with FIXa (2 nM) and FX (200 nM) for 1 minute, followed by measurement of generated FXa. Relative FVIII:C was calculated from the amounts of generated FXa. FVIIIa proteolytic cleavage was confirmed by western blotting.²⁴

FV (100 pM) was activated with thrombin (5 nM) for 5 minutes, followed by the addition of hirudin (2.5 U/mL). Reactants were mixed with PL and FXa, before the addition of prothrombin at the indicated concentration in HBS buffer.³⁶ Thrombin generation rates were determined after the addition of S-2238 (final concentration [f.c.] 0.33 mM). Thrombin generation was quantified based on a standard curve that was prepared using known amounts of thrombin.

FV interaction with EGR-APC or PS was determined using Biacore T200 (Cytiva, Sheffield, United Kingdom). EGR-APC and PS were coupled to the CM5 sensor-chip. The association of the ligand was monitored in running (HBS) buffer at a flow rate of 25 μL/min for 2 minutes. Dissociation of the bound ligand was recorded over a 2-minute period by replacing the ligand solution with buffer alone. The level of nonspecific binding, corresponding to the ligand binding to the uncoated chip, was subtracted from the signal. Rate constants for association (k_ass) and dissociation (k_diss) were determined by nonlinear regression analysis. Dissociation constants (K_d) were calculated as k_diss/k_ass.

1. Thrombin generation–based: FV (450 nM) samples were incubated with thrombin (5 nM) for 30 minutes, followed by the addition of hirudin (2.5 U/mL). FVa (f.c. 4.5 nM) was added to plasma, and thrombin generation was measured.^18,37

2. Diluted PT–based: PT was assessed using 100-fold diluted PT reagent (Innovin). Diluted PT reagent (50 μL) was mixed into plasma (50 μL) with FVa (4.5 nM) and incubated for 2 minutes, followed by the addition of 25 mM CaCl₂ (50 μL).

FV-WT and mutants (FV-A2086D, W1920R, and R506Q) were expressed in HEK 293T cells using the piggyBac transposon vector. FV:C and FV:Ag levels in these products are summarized in Table 1. FV:Ag in FV-A2086D and FV-W1920R mutants were reduced compared with WT but levels of FV-506Q were comparable with those of WT. These characteristics of FV mutants were consistent with those found in patient plasma samples as previously reported.^24,26 Using sodium dodecyl sulfate–polyacrylamide gel electrophoresis (SDS-PAGE), the purity of the rFV proteins was confirmed to be >90% (supplemental Figure 1B). APCR was confirmed using an aPTT-based APCR assay, for which all mutations are shown in Table 1.

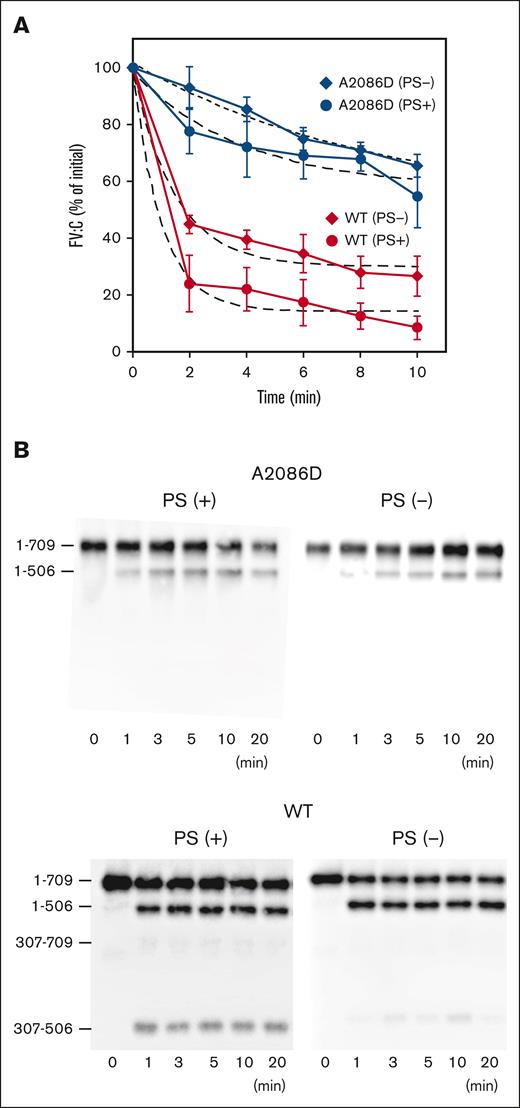

APC-catalyzed inactivation of the FVa mutant was examined using a PT-based clotting assay to investigate residual FVa activity (Figure 1A). In the presence of PS, FVa-WT activity (FVa-WT:C) rapidly decreased after the addition of APC, and had declined to between ∼20% and 30% of its initial level at 2 minutes. However, FVa-A2086D:C decreased more slowly and remained at ∼60% of initial activity at 10 minutes. The inactivation rate constant of FVa-A2086D was ∼4-fold lower compared with that of FVa-WT. In the absence of PS, FVa-WT:C was inactivated after the addition of APC and had declined to ∼30% of the initial level at 10 minutes, whereas FVa-A2086D:C remained at ∼70% of the initial level. The inactivation rate of FVa-A2086D was ∼6 fold lower than that of FVa-WT.

SDS-PAGE analyses of APC cleavage were designed to investigate the mechanism(s) contributing to disordered APC-catalyzed FVa inactivation (Figure 1B). In the presence of PS, the 1-506 fragment band rapidly appeared in FVa-WT within 1 minute after the reaction with APC, followed by 307-506 bands, demonstrating rapid and consecutive cleavage at Arg⁵⁰⁶ and Arg³⁰⁶. In the absence of PS, cleavage at Arg³⁰⁶ was not readily apparent after a 20-minute incubation, confirming the contribution of PS in cleavage at Arg³⁰⁶ (lower panels). The appearance of the 1-506 band in FVa-A2086D was markedly delayed relative to its appearance in WT, and cleavage at Arg³⁰⁶ was not detected, regardless of the presence of PS (upper panels). These results suggest that the impaired APC-catalyzed inactivation of FVa-A2086D was owing to markedly delayed cleavage at Arg⁵⁰⁶ and limited cleavage at Arg³⁰⁶, independently of PS. These data also indicate that these mutations might directly interfere with APC and/or PS interactions, similar to that of FVa-W1920R.^24,25

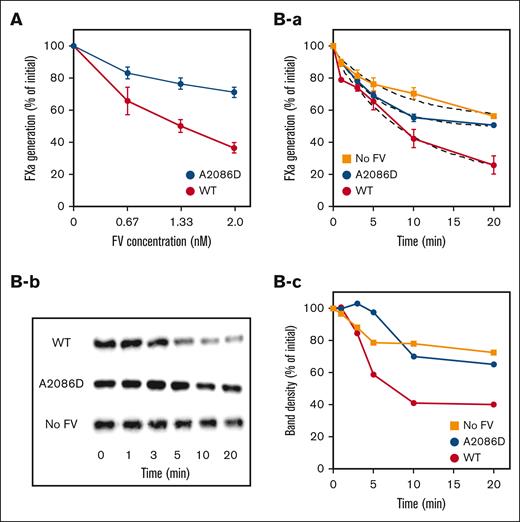

The characteristics of FV-A2086D as a cofactor of APC were examined using a FVIIIa degradation assay (Figure 2). FV-WT enhanced APC-catalyzed inactivation of FVIIIa in a dose-dependent manner. FXa generation was decreased by ∼60% at the maximum concentration of FV-WT used (2 nM) compared with the control in the absence of FV. FV-A2086D also moderated FXa generation but the effects were less than those observed with FV-WT (∼30% of control). The time courses of APC-catalyzed inactivation of FVIIIa are illustrated in Figure 2Ba. FXa generation was decreased to between ∼20% and 30% of that in the control after 20 minutes in the presence of FV-WT. However, in the presence of FV-A2086D, FXa generation was restricted to only ∼50% of that of the control at the same time point. The rate of FVIIIa degradation in FV-A2086D was ∼0.68 fold of that of WT, and the degree of this rate was almost comparable with that observed in the absence of FV.

APC-catalyzed inactivation of FVIIIa is regulated by cleavage at Arg³³⁶ in the A1 domain of FVIII.^38,Figure 2Bb,c illustrates the time-dependent cleavage at Arg³³⁶ and the changes in band density analyzed by western blotting using mAb C5, which recognizes residues 351-365 epitope. In using this technique, the disappearance of the A1 band identifies cleavage at Arg³³⁶.³⁹ For FV-WT, the band density of intact A1 decreased gradually in a time-dependent manner. In contrast, the disappearance of the A1 band in FV-A2086D was markedly delayed, similar to the condition without FV. These results suggest that the APC cofactor activity of FV-A2086D was significantly impaired.

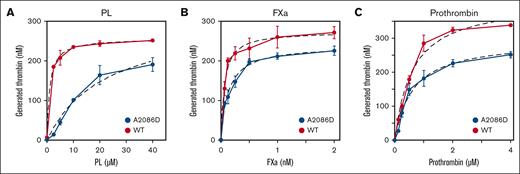

The interactions of FV-A2086D with PL were further examined using a prothrombinase assay. The results are shown in Figure 3 and summarized in Table 2. With FVa-A2086D, the K_d value for PL vesicles was ∼22 fold greater than with FVa-WT, showing that Fva-A2086D had reduced affinity for PL. In addition, the K_d value for Fxa was ∼2-fold greater with FVa-A2086D than with FVa-WT. However, similar K_m values for prothrombin were recorded between FVa-A2086D and FVa-WT, as previously reported.²⁶

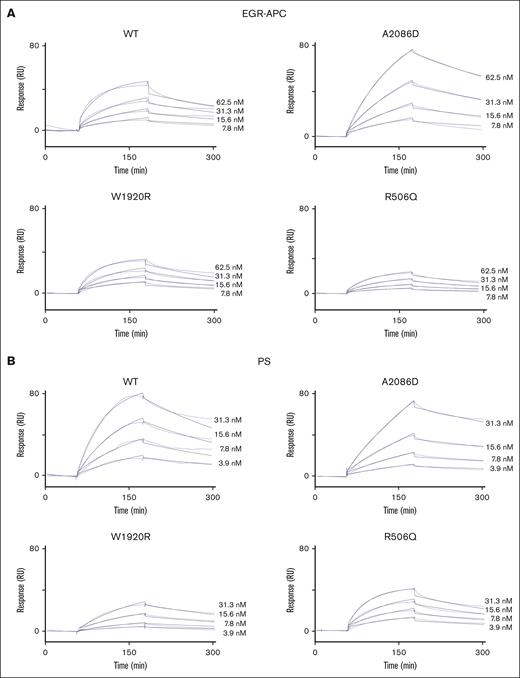

Our findings were consistent with defective APC-related mechanisms associated with FV-A2086D,²⁶ similar to FV-W1920R.²⁴ To examine the influence of FV mutant interaction with APC or PS, direct binding for these interactions was investigated using semifluid-phase SPR-based assays. Active site–blocked EGR-APC was used in these experiments to limit APC proteolysis of the FV molecule. For this experiment, in addition to FV-A2086D, 2 FV mutants with APCR, FV-W1920R and FV-R506Q, were prepared. Figure 4A-B shows binding curves corresponding to the association and dissociation of FV mutants on immobilized EGR-APC or PS, respectively. The data were analyzed by nonlinear regression using a 1:1 binding model with a drifting baseline. Based on the blood concentrations of FV, PC, and PS, the differences in the K_d values between FV-A2086D, FV-W1920R, FV-R506Q, and FV-WT for binding to either EGR-APC or PS seemed unlikely to be significant (Table 3). These findings suggest limited disturbance in the binding of FV-A2086D and FV-W1920R to EGR-APC and PS. However, interpretation of these data is limited, because of the absence of PL, and its interaction with FV instead of FVa.

Additional mechanism(s) related to DVT other than APCR were examined by focusing on possible inhibitory reactions of the LCh region in FVa, using TF-induced thrombin generation assays.¹⁸ Therefore, we speculated that FVa-A2086D and FV-W1920R mutated in the LCh may exacerbate the inhibitory effect on thrombin generation, and FV-R506Q mutated in the HCh may exhibit an inhibitory effect similar to that of FV-WT. FVa mutants were added to pooled normal plasma before evaluating TF-induced thrombin generation. Exogenous FVa-A2086D and FVa-W1920R mutants had little effect on thrombin generation, whereas the addition of FVa-WT and FVa-R506Q mutant severely decreased peak levels of thrombin activity (Figure 5A). Thrombin generation patterns like those with FVa-A2086D and FVa-W1920R were demonstrated in control experiments in the absence of FVa. We confirmed that small amounts of thrombin and hirudin had no effect on thrombin generation (data not shown). Similar results were obtained with AT-, PC-, and PS-deficient plasmas (Figure 5B-D), suggesting that the inhibitory effects were independent of these factors.

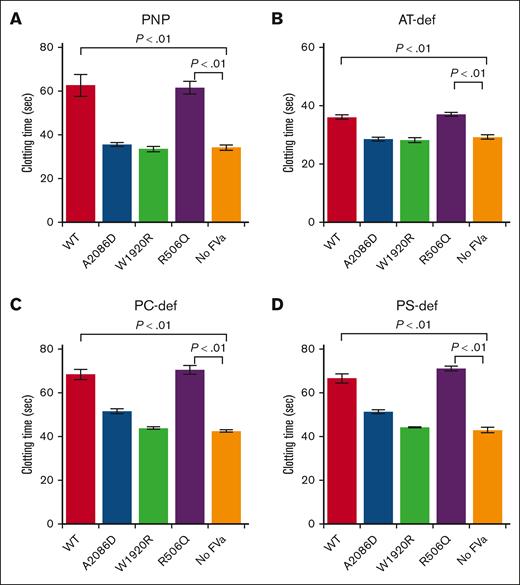

Alternative experiments were also conducted by adding FVa mutants to pooled normal plasma, followed by measuring prothrombin times (PTs) with a diluted PT reagent (Figure 6). Exogenous FVa-WT and FVa-R506Q prolonged the PT, consistent with the inhibition of procoagulant function. However, PT in the presence of FVa-A2086D and FVa-W1920R were comparable to plasma without FVa. Small amounts of thrombin and hirudin had no effect on diluted PT assays (data not shown). These results demonstrate that FVa-A2086D and FVa-W1920R mutants had lost the ability to moderate TF-induced procoagulant activity. In addition, we confirmed that similar results were obtained using AT-, PC-, and PS-deficient plasmas (Figure 6B-D, respectively), consistent with the results obtained for thrombin generation.

We have successfully expressed full-length FV in HEK293T cells using the piggyBac transposon system.^30,31 To the best of our knowledge, there have been no reports of a stable, human cell line expressing full-length FV. The piggyBac transposon, originally isolated from the cabbage looper moth Trichoplusia ni, is highly active in mammalian cells,³¹ and mobilizes 100-kb DNA fragments.⁴⁰ Moreover, the technique was successfully used for the in vivo delivery of FVIII.⁴¹ Supplementary histone deacetylase inhibitors are shown to increase expression of recombinant FV in baby hamster kidney cells,⁴² but our method enabled higher levels of expression using human cells without modification of the culture medium. The results suggest that the piggyBac transposon offered a promising approach for the expression of other factors.

Castoldi et al,²⁶ using patient plasma, reported that FV-A2086D exhibited APCR. However, sufficient amounts of recombinant FV could not be obtained, and, as the authors described, an influence of plasma components could be not fully excluded. In this study, we again confirmed that recombinant FV-A2086D exhibited APCR. Compared with FV-WT, the binding affinity of FVa-A2086D with FXa and prothrombin were not significantly different from what was previously reported.²⁶ Similar to that reported by Castoldi et al,²⁶ the effect of PS was reduced in APC-induced inactivation, compared with WT, similar to that observed with FV-W1920R. In addition, we confirmed that FV cofactor activity in FVIIIa inactivation was reduced, similar to FV-W1920R.

Pioneering studies established that FV(a) bound to APC on the PL membrane,⁴³ and later reports demonstrated that FVa residues 311-325 represent an APC-binding region.⁴⁴ The current data using an SPR-based assay confirmed that variant FV bound directly to APC in the absence of PL. However, in this study’s APC-related investigations, no significant differences between FV-A2086D, FV-W1920R, and FV-WT were observed. Therefore, results from this study suggested that mutations in the C1 and C2 domains are unlikely to affect APC associations. However, we performed an SPR-based assay using FV instead of FVa, in the absence of PL, and therefore, interpretation of APC-induced FVa inactivation from these data might be limited. The results support, however, that the reduction in cofactor function for FVIIIa inactivation would be because of other factors and not the reduced affinity of APC.

Gierula et al²⁵ concluded that membrane interactions between FVa-W1920R and PS are essential for FVa cofactor function. Our SDS-PAGE analyses clearly demonstrated that FV-A2086D and FV-W1920R²⁴ were not proteolyzed by APC at Arg³⁰⁶, irrespective of the presence of PS, and our assays of FVa activity indicated that these mutations interfered with APC function. Minimal differences were observed, however, in direct interaction of PS with FV-A2086D and FV-W1920R, compared with FV-WT. Structural analysis of FV/FVa by cryoelectron microscopy revealed that the 2 C domains in FV are similar to each other,⁴⁵ however, some differences are evident in FVa. The C2 domain exhibits an open conformation that penetrates the PL bilayer, and in silico analysis revealed that FV-A2086D and FV-W1920R might display a more closed conformation.²⁶ Both mutations seem to affect near-homologous residues in the C1 or C2 domain, causing comparable structural changes and modifying PL-binding properties. We thought that the APCR of FV-A2086D and FV-W1920R was caused by defective interactions of FVa with APC or PS, or association with PL in the FV(a)/PS/APC complex, which is also based on previous reports.^25,26

FVa markedly inhibits TF-induced thrombin generation,¹⁸ a function considered to be related to the LCh fragment of FV. This study indicated that inhibitory mechanisms were severely impaired in FV-A2086D and FV-W1920R, mutated in the C1 and C2 domain, respectively. FV-R506Q, with a mutation in the A2 domain demonstrated an anticoagulant effect similar to FV-WT. Furthermore, clotting times using a diluted PT assay showed similar results. Our findings support the argument of Al Dieri et al,¹⁸ and strongly suggest that these defective molecular interactions could contribute to thrombosis in patients with FV-A2086D and FV-W1920R. Confirmatory data were also obtained using TFPI-, FIX-, and FVIII-deficient plasma samples in the diluted PT assays (supplemental Figure 2). These results indicate that the inhibitory effect of FVa is independent on these factors, as suggested by Al Dieri et al.¹⁸

In a clinical context, this report could help improve the assessment and risk of thrombophilia. The reported mean age at the first thrombotic event in patients homozygous for the FV R506Q mutation was 25 years (range, 10-40 years) and 36 years (ranges 18-71) for heterozygotes.⁴⁶ However, only a single case of FV-A2086D and FV-W1920R was reported,^24,26 and it is difficult to compare age-related risks in these instances, although both patients developed thromboses as teenagers. Our assays of aPTT-based APCsr, which are usually used to evaluate APCR, showed progressively less APCR in the order of FV-R506Q, FV-W1920R, and FV-A2086D. However, the inhibitory effect of LCh of FV was not observed with the aPTT reagent (data not shown), consistent with q previous report that the intrinsic pathway was not involved.¹⁸ Therefore, we used the diluted PT reagent instead of the aPTT reagent for the APCR assay to evaluate anticoagulant function potential that reflect both APCR and an inhibitory effect. The clotting time of FV-deficient plasma mixed with FV-WT in the presence of APC was prolonged by 1.48 ± 0.08 fold. However, that of FV-deficient plasma mixed with FV-A2086D, FV-W1920R, and FV-R506Q was prolonged by 1.07 ± 0.02, 1.08 ± 0.02, and 1.10 ± 0.06 fold, respectively (supplemental Table 2), suggesting similar levels of APCR in all mutants. The diluted PT–based APC sensitivity ratio may offer a more appropriate assessment of APCR in patients with genetic FV defects.

This study has some limitations. The important relationship between FV and TFPI was identified in an inherited bleeding disorder linked to the FV variant, A2440G (FV_{East Texas}).⁴⁷ FV appeared to enhance the function of TFPI, along with PS, during the initial coagulation phase.⁴⁸ FV possesses anticoagulant activity in plasma in the presence of TFPIα.⁴⁹ Because the relationship between FV and TFPI was not investigated in the present study, this is a topic for future work. We have successfully evaluated the association of FV with APC and PS but, as mentioned earlier, we need to evaluate the association of FVa with APC and PS, and it would be important to evaluate the binding affinity on the PL membranes. Furthermore, regarding the inhibitory effect of LCh of FV, we used FVa and could not perform the same experiment using the isolated LCh of FV. Further investigation is required to clarify the precise mechanism(s).

We conclude that FV-A2086D presented defects in APC mechanisms associated with FVa susceptibility and FV cofactor activity for APC. In addition, anticoagulant function of FV was attributed to an inhibitory effect on TF-induced procoagulant activity, and was defective in FV-A2086D and FV-W1920R, mutated within the LCh. The impaired FV/FVa-associated anticoagulant properties of FV-A2086D included the diminished FVa susceptibility and defective FV cofactor activity of APC, inhibition of TF-induced procoagulant function, and low levels of TFPI.²⁶ Furthermore, FVa, FV cofactor, and TF-related abnormalities were evident in FV-W1920R. These disordered reactions appeared to represent a hypercoagulable phenotype, likely enhancing the risk of DVT.
