The ISHLT chronic lung allograft dysfunction consensus criteria are applicable to pulmonary chronic graft-versus-host disease

Chronic graft-versus-host disease (cGVHD) is a complication of allogeneic hematopoietic stem cell transplant (HCT) that affects 30% to 70% of long-term survivors and indicates poor quality of life and increased nonrelapse mortality (NRM).^1,2  Pulmonary manifestations are one of the most difficult to treat conditions in cGVHD.³  Bronchiolitis obliterans syndrome (BOS), characterized by small airway inflammation and fibrotic obliteration, has been definitively linked to cGVHD. The current diagnostic criteria for BOS, as established by the 2014 National Institutes of Health (NIH) cGVHD consensus criteria, require a new-onset irreversible obstructive ventilatory defect on pulmonary function testing (PFT) after HCT with a forced expiratory volume at 1 second (FEV1) < 75% of predicted normal values and FEV1/forced vital capacity (FVC) < 0.7, with or without evidence of air-trapping on expiratory thoracic computer tomography (CT), and absence of other causes of pulmonary dysfunction.⁴  BOS occurs in 3.4% to 10% of HCT recipients and implicates a 2-year and 5-year NRM rate of approximately 50% and 80%, respectively.^5-7  The NIH criteria do not include nonobstructive phenotypes of pulmonary cGVHD (PcGVHD). However, restrictive pulmonary disease after HCT has been described, and the incidence of severe restrictive ventilatory defects (vital capacity < 60%) beyond 100 days after transplant is around 3%.^3,8  The clinical characteristics and associations of the nonobstructive pulmonary complications with HCT outcomes are not well elucidated.

Chronic lung allograft dysfunction (CLAD), an irreversible and progressive form of allograft failure in lung transplantation, manifests as a sustained decline in FEV1 by at least 20% from the subject’s best PFTs. Based the on 2019 International Society for Heart and Lung Transplantation (ISHLT) CLAD Consensus Report, the definition of CLAD and CLAD phenotypes, including BOS, restrictive allograft syndrome, mixed obstruction/restriction, and undefined, have been standardized, providing a framework for clinical practice and research (Table 1).⁹  CLAD and PcGVHD share similar immune-mediated pathophysiologic mechanisms.¹⁰  Therefore, we hypothesized that the ISHLT consensus definition for CLAD could be adapted to identify and characterize non-obstructive phenotypes of PcGVHD.

We retrospectively reviewed patient data from the “Natural History Study of Clinical and Biological Factors Determining Outcomes in Chronic Graft-Versus-Host Disease” (#NCT00092235), a study previously approved by the NIH Institutional Review Board and conducted in accordance with the Declaration of Helsinki. This study enrolled patients with cGVHD, referred by their primary HCT center to the NIH, where their pre- and post-HCT clinical data were collected comprehensively, and they underwent thorough clinical/laboratory workup and multidisciplinary evaluation.¹¹  The patients were followed for survival outcomes for as long as 10 years after the initial NIH visit. Consecutive patients enrolled between 1 October 2004 and 31 January 2020 were analyzed for study inclusion. Patients without a diagnosis of cGVHD or without complete PFT (spirometry, lung volume, and diffusion capacity) or CT imaging data were excluded. Follow-up data were obtained from the electronic medical records and censored on 1 June 2021.

We used an adapted criteria inspired by the 2019 ISHLT CLAD criteria⁹  for PcGVHD adjudication (Table 1). Population reference values were used in the Adapted Criteria, instead of the subject’s best PFTs. The adapted criteria defined PcGVHD as an FEV1 < 80% predicted in the absence of other etiologies. The criteria captured 4 PcGVHD subtypes based on their pulmonary function and CT scan characteristics: obstruction, restriction, mixed obstruction/restriction, and undefined (Table 1). Obstruction required obstructive ventilatory defect (FEV1/FVC < 0.7) without restriction (TLC > 90%) or restrictive CT findings. Restriction required restrictive ventilatory defect (TLC < 90% predicted) and restrictive CT findings. Mixed phenotype required mixed ventilatory defects and restrictive CT findings. The undefined was characterized by obstructive ventilatory defect plus either restrictive ventilatory defect or restrictive CT findings. Restrictive CT findings included any degree (patchy, unilobar, multilobar, or extensive) of ground glass opacities (GGO), parenchymal consolidation, traction bronchiectasis, lobar volume loss, usual interstitial pneumonia pattern, or pleural abnormalities.¹²  Other abnormalities on CT scans, such as mosaic attenuation/air-trapping, cystic changes, or emphysema, were not restrictive-defining CT findings. For patients with multiple NIH-performed PFTs, the latest one was used for adjudication. Patients with normal post-HCT PFT(s) (FEV1 ≥ 80% predicted) were the control group in this study. Patients with abnormal post-HCT PFT(s) (FEV1 < 80% predicted) but lacked other findings to qualify for any PcGVHD phenotype, or with other pulmonary etiologies such as infection, were termed “unclassified” and did not meet the criteria for PcGVHD. The end points were post-HCT overall survival (OS), defined as the time from HCT to death from any cause, and post-cGVHD OS, defined as the time from the diagnosis of cGVHD to death from any cause.

An adjudication committee of 2 transplant pulmonologists, 1 transplant hematologist, and 1 cardiothoracic radiologist reviewed PFT, CT, and electronic medical records to adjudicate patients for PcGVHD using both the NIH⁴  and the adapted criteria. We grouped the patients who met the adapted criteria into those who met the NIH criteria (NIH+) and those who did not (NIH−).

All NIH-performed PFTs were queried. For patients with FEV1 < 80% predicted, concomitant (within 1 month) thoracic CT images were separately reviewed by an independent cardiothoracic radiologist (A.S.). Two sets of independent reviewers (Y.P. and A.V.C. or Y.P. and M.B.K.) adjudicated subjects by the adapted criteria. Cases with inconsistent conclusion between the reviewers were discussed in a committee meeting (Y.P., A.V.C., M.B.K., and S.A.-E.) for consensus.

Demographic characteristics were described as counts and percentages for categorical variables and as mean and standard deviation (SD) for continuous variables. We used t test or Mann-Whitney U test, and analysis of variance or Kruskal-Wallis test to compare continuous variables with or without a normal distribution between 2 or more groups, respectively; χ² test was used for categorical variables. Pearson correlation analysis was used to analyze the correlation between FVC and TLC. Univariable and multivariable Cox proportional hazard models were used to evaluate the association of the clinical variables with post-HCT OS and post-cGVHD OS. The following variables were selected based on their plausible effect on HCT outcome: age, recipient sex, Karnofsky performance status (KPS), transplant location (at the NIH or in the community), transplant indication, donor type, graft source, and relapse/refractory malignancy.^11,13,14  Kaplan-Meier survival curves were shown for illustration purposes. All analysis were constructed using SAS 9.4 (SAS institute, Cary, NC). Statistical significance was defined as a 2-tailed P ≤ .05.

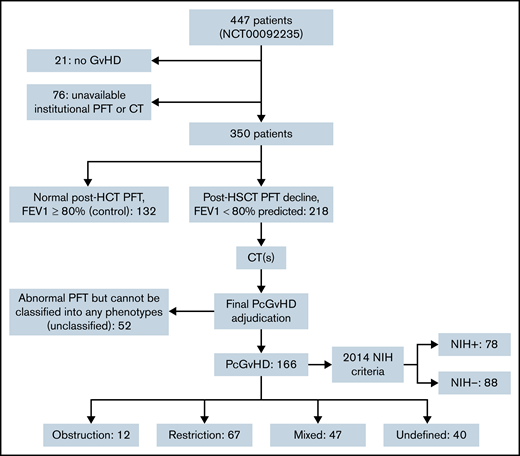

Of the 447 patients enrolled in the NIH cGVHD natural history study between 1 October 2004 and 31 January 2020, 97 were excluded (21 did not have cGVHD; 76 did not have an available PFT and/or CT), leaving 350 patients for the study cohort. The study cohort received HCT between 7 January 1987 and 21 March 2018. The median time from HCT to the diagnosis of cGVHD was 234 days (interquartile range [IQR], 144-373), and median time from cGVHD diagnosis to NIH enrollment was 795 days (IQR, 373-1491). A total of 117 patients had multiple NIH-performed PFTs (median number of PFT = 5; range, 2-35). The median time from HCT to the adjudication PFT was 1460 days (IQR, 948-2594 days).

In the study cohort, 260 (75.5%) had severe cGVHD (cGVHD severity score = 3). Among them, 132 (37.7%) were controls with normal post-HCT PFT. PcGVHD was diagnosed in 166 (47.4%) patients, including 12 (3.4%) obstruction, 67 (19.1%) restriction, 47 (13.4%) mixed, and 40 (11.4%) undefined. Fifty-two patients (14.9%) were in unclassified, including 34 (65.4%) with restrictive PFT but lacked CT abnormalities, 17 of which had chest skin sclerosis that likely explained the restrictive PFT. Chest wall sclerosis was also seen in 8 of the undefined, 9 of the mixed, and 31 of the restrictive subtype. Thirty-one of the restrictive and 9 of the mixed subtype showed PFT signs of intrapulmonary restriction with TLC < 90% and showed pulmonary imaging findings to support the restrictive PFT pattern. The 17 patients in the unclassified group with chest wall sclerosis all had reduced TLC but their CT chest showed no airway, parenchymal, or pleural abnormalities. Furthermore, diffusing capacity of carbon monoxide adjusted for hemoglobin (DLCO adj) was significantly lower in the patients with PcGVHD with chest wall sclerosis than the unclassified patients with chest wall sclerosis (51.9 ± 14.7% vs 61.5 ± 17.2, P = .031), indicative of a potentially greater degree of parenchymal involvement in the former. Another 9 (17.3%) of the unclassified group had decreased FEV1 but normal FEV1/FVC and normal TLC. Additionally, other etiologies for lung abnormalities, such as infection or primary disease, were identified in 15 unclassified patients.

Only 78 (47.0%) of the patients with adapted criteria-defined PcGVHD met the NIH criteria for BOS (NIH+). Reasons for not meeting the NIH criteria (88 patients, 53.0%, NIH−) were restrictive lung disease without obstruction (67, 76.1%), bronchodilator reversibility (11, 12.5%), or FEV1 ≥ 75%predicted (10, 11.4%). None of the patients in the control or unclassified group met the NIH criteria. Initial inter-rater agreement rate was 81.4% for whether PFT showed obstruction, restriction, or normal; inter-rater agreement rate for PcGVHD diagnosis and phenotype classification was 82.3%. The reason for the initial interrater disagreement was unfamiliarity with the criteria, and all the disagreements resolved after the adjudication meeting. The CONSORT flow diagram is shown in Figure 1.

The demographic features, HCT, and GVHD information of the 350 patients are shown in supplemental Table 1. Average age at HCT was 39.6 years (standard deviation [SD], 16.5). The majority (88.2%) were white. More than 75% of the patients had an NIH global score severe cGVHD, and most received more than 4 lines of systemic immunosuppressive therapy for cGVHD. Average KPS at the time of NIH visit was 78.3 (SD, 11.8).

Patients with PcGVHD had the lowest KPS compared with the control and unclassified groups (74.6 ± 12.0 vs 83.0 ± 9.7 and 77.6 ± 12.0, P < .001), and as expected, the lowest FEV1 (50.3 ± 16.3 vs 97.4 ± 12.8 and 64.0 ± 14.2, P < .001). More than 90% of patients in the PcGVHD group had severe cGVHD, whereas around 75% and less than 60% of patients in the unclassified and control groups, respectively, had severe cGVHD (P < .001). The comparison of clinical characteristics among the control, PcGVHD, and unclassified groups is shown in Table 2.

Within the patients with adapted criteria–defined PcGVHD, the NIH− and NIH+ groups were similar with regard to the majority of clinical features. The NIH− group had a higher percentage of male patients and pre-HCT tobacco use than the NIH+ group. The NIH− group, mainly consisted of the restrictive phenotype, had significantly lower TLC and RV, and significantly higher FEV1, FEV1/FVC, and FEF 25% to 75% than the NIH+ group. DLCO was similar between the 2 groups. Although cGVHD severity were similar between the groups, skin, joints, and fascia cGVHD were more commonly seen in the NIH− group than the NIH+ group (Table 3).

Within the 4 PcGVHD phenotypes, recipient sex, race, indication for HCT, conditioning intensity, rates of acute GVHD, and KPS were similar (supplemental Table 2). Median time from HCT to diagnosis of cGVHD was more than 100 days later in patients who developed restrictive PcGVHD compared with those who develop obstructive or mixed PcGVHD (P = .040). The time from HCT to adjudicative PFT were similar between the groups. Patients with obstruction were older at the time of transplant (average age, 51.8 years; SD, 13.1), and patients with undefined phenotype the youngest (average age, 30.8 years; SD, 17.4). Patients with the mixed phenotype more commonly had tobacco exposure before HCT. Busulfan exposure was more common in obstruction compared with others. Skin, joints, and fascia cGVHD coexisted with restriction in more than 80% of cases, significantly more than the other phenotypes. The rates of liver and gastrointestinal tract cGVHD were similar among the 4 phenotypes.

Although all patients with PcGVHD had pre-bronchodilator FEV1 < 80%predicted, the mixed phenotype had the lowest FEV1 (mean, 43.1%; SD, 15.0%); patients with obstruction and restriction had similar FEV1 (57.7 ± 15.9% vs 55.0 ± 14.1%, P = .554). DLCO adj was the poorest in restriction and the best in obstruction (50.2 ± 17.8 vs 67.5 ± 21.0%, P = .003) and not significantly different between the restriction and the mixed phenotypes (P = .424). In the entire study cohort, TLC and FVC had a strong correlation (R² = 0.809, P < .001).

A myriad of thoracic CT findings was identified (Table 4; supplemental Figure 1); however, honeycombing or usual interstitial pneumonia pattern were absent. It was not uncommon for patients with restriction to have obstructive features on CT, such as mosaic attenuation pattern (50.7%) and air-trapping (53.7%). Traction bronchiectasis, lobar volume loss, and pleural abnormalities were more commonly seen in the isolated restrictive phenotype. The mixed phenotype had high rates of both obstructive and restrictive CT features, the most common being mosaic attenuation pattern (82.9%), air-trapping (78.7%), and GGO (66.0%).

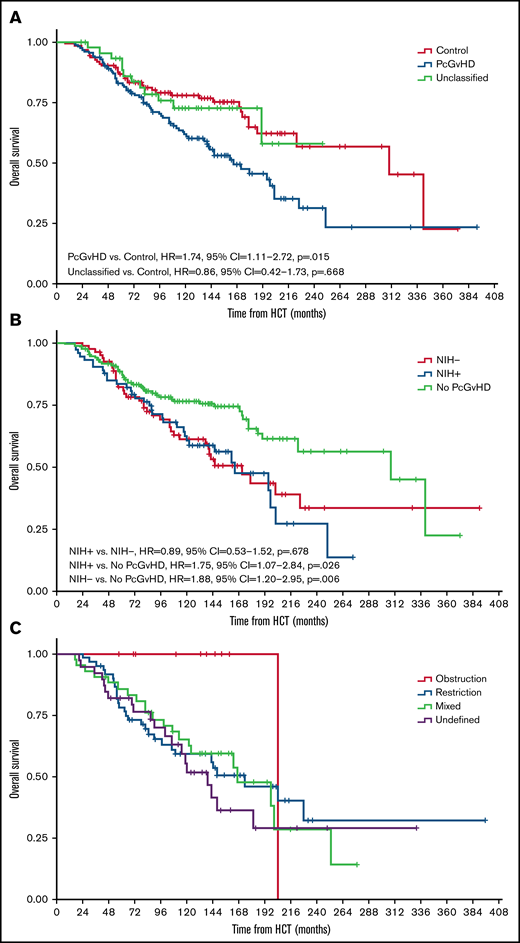

The median post-HCT OS of the study cohort was 203 months (range, 8-392 months). Patients with PcGVHD had an increased risk of death compared with those without PcGVHD (multivariable Cox model, see Methods; hazard ratio [HR] = 1.74, 95% confidence interval [CI] = 1.11-2.72, P = .015). OS of the cGVHD control and unclassified groups was similar (P = .668; Figure 2A). The median post-HCT OS of the NIH− and NIH+ PcGVHD groups was similar, 172 months (IQR = 81-230) vs 165 months (IQR = 84-214; HR = 0.89, 95% CI = 0.53-1.52, P = .678), both significantly poorer than patients without PcGVHD (HR = 1.75, 95% CI = 1.07-2.84, P = .025 and HR = 1.88, 95% CI = 1.20-2.95, P = .006, respectively; Figure 2B). Among different PcGVHD phenotypes, the restriction and undefined groups had worse survival than the control group (HR = 1.93, 95% CI = 1.14-3.27, P = .015, and HR = 2.25, 95% CI = 1.24-4.14, P = .009, respectively), whereas survival between the obstruction or mixed group vs the control group was not significantly different (HR = 0.38, 95% CI = 0.05-2.86, P = .346 and HR = 1.49, 95% CI = 0.83-2.65, P = .181, respectively; Figure 2C).

After cGVHD diagnosis, the median OS of the study cohort was 184 months (range, 3-388 months). Similar to post-HCT OS, patients with PcGVHD had a higher risk of death compared with controls (HR = 1.60, 95% CI = 1.03-2.48, P = .037), whereas patients in the control and unclassified groups had similar risk of death (P = .413; supplemental Figure 2a). NIH− and NIH+ PcGVHD groups showed similar risks of death after cGVHD diagnosis (HR = 0.86, 95% CI = 0.51-1.46, P = .578; supplemental Figure 2b). Similarly, the restriction and undefined groups had the worst post-cGVHD diagnosis survival among different PcGVHD phenotypes (supplemental Figure 2c).

Pretransplant PFT results were available in 84 patients (24%) and early (within 1 year of HCT) post-HCT PFTs were available in 21 (6%) of the study cohort. Only 54 had volume data, making the calculation of ΔFEV1 possible; the rest only had percentage of the populational reference value. Various degrees of declination in FEV1 were seen in the patients with PcGVHD, with mean ΔFEV1 −1.37 to −1.13 L and ΔFEV1% −51 to −35% (supplemental Table 3). Conversely, the declination in the unclassified and control groups were less prominent, with mean ΔFEV1 −0.42 to −0.07 L and ΔFEV1% −14 to +1%.

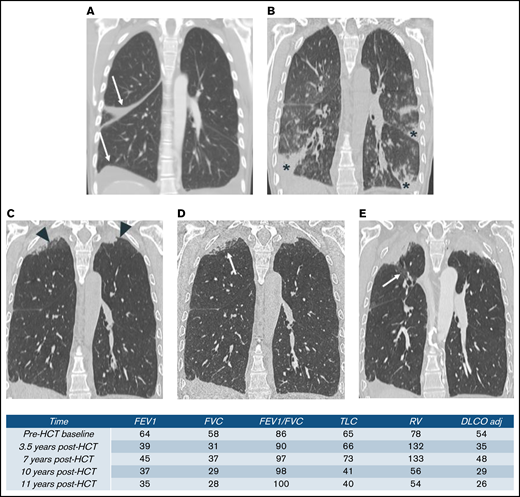

One patient in the restrictive group had abnormal PFT pre-HCT with further decline after HCT. Her chest CT scan demonstrated a pattern of pleuroparenchymal elastosis (PPFE), a rare entity characterized by upper lobe-predominant pleural and subpleural parenchymal fibrosis, seen in both lung transplant and HCT (Figure 3).^15,16

Informed by the potential similarities in immunopathogenesis for both PcGVHD after HCT and CLAD after lung transplantation, we refined and classified PcGVHD phenotypes based on the adapted criteria inspired by the ISHLT CLAD consensus criteria in a large cohort of patients with cGVHD. We intended to systematically evaluate post-HCT PFTs and thoracic CTs to novel PcGVHD phenotypes with clinical features that are distinct from patients with obstruction, some of which were not captured by the NIH cGVHD consensus criteria. Different from the NIH criteria that used post-bronchodilator FEV1 and FVC, the adapted criteria used pre-bronchodilator values, as airway smooth muscle tone could play a significant role in the pathophysiology in BOS, and bronchodilator reversibility could not exclude BOS.¹⁷  The TLC cutoff of 90% was used, as a previous study has shown that the combination of TLC < 90% and interstitial changes on the thoracic CT was sensitive and specific for diagnosing interstitial disease after HCT, with positive and negative predictive values 1.00 and 0.75, respectively.¹⁸  Using this adapted criteria, we reported that about half of patients with severe cGVHD potentially have PcGVHD; less than half of these patients with PcGVHD met the NIH criteria. Much like patients with PcGVHD who met NIH criteria (NIH+), the patients with PcGVHD uncaptured by the NIH criteria (NIH−) showed worse survival compared with cGVHD controls without PcGVHD. The adapted criteria may therefore provide more informative clinical phenotypes and risk stratification of PcGVHD.

Multiple prior case reports and case series have reported nonobstructive or coexisting obstructive and restrictive late pulmonary complications in HCT recipients.¹⁶  In a single center study, 31 of 1277 HCT recipients (2.4%) were diagnosed with restriction and interstitial lung disease, with median time from HCT to diagnosis of 11.3 months.¹⁹  In a case series of 70 patients who received lung transplantation post-HCT between 1990 and 2013, 52 (74.3%) of the explanted lung had BOS, and 17 (24.3%) had pulmonary interstitial fibrosis.²⁰  In another study involving 60 patients that received lung transplantation after HCT, 36 met the 2014 NIH criteria for BOS and 24 (40.0%) did not. On histology, BOS occurred in 55 (92%) and pulmonary fibrosis occurred in 34 (57%) of patients, and the 2 coexisted in 29 (48%) of patients.¹⁸  Another study focusing on late onset post-HCT noninfectious pulmonary complications showed that, at a median follow up of 72.3 (15.2-88.5) months, 22 (11.1%) and 12 (6.0%) of 198 HCT recipients were diagnosed with BOS and interstitial lung disease, respectively.²¹  In our cohort, isolated restrictive lung disease was the most common phenotype detected compared with obstruction and mixed obstruction/restriction, a higher prevalence than others have previously reported in literature, which could be related to the difference between our cohort, which were patients referred from various HCT centers around the United States vs other single center series.^8,18 ,-²¹  Despite the differences, our results, together with others, highlight the limitation of the current NIH criteria. Given the high prevalence of pulmonary dysfunction in patients with severe cGVHD, it is worthwhile to develop a more diligent, lung transplant–like monitoring strategy of pulmonary function in these patients, and methods such as home spirometry monitoring are worth exploring.²²

We confirmed in our cohort that similar phenotypes of pulmonary disease are observed in cGVHD after HCT and CLAD after lung transplantation. We demonstrated the strong correlation between FVC and TLC, which was also seen in CLAD, supporting the use FVC as an alternative method to monitor post-HCT lung volume in resource-limiting situations.²³  Discrepancies remained in the distribution of different phenotypes between our study and the CLAD literature. A single center study of 506 lung transplant recipients showed that 174 patients developed CLAD, including 104 (59.8%) with obstruction, whereas restriction, mixed, and undefined phenotypes each comprised around 10% of patients.²³  In contrast, our cohort after HCT had a high percentage of restriction, mixed, and undefined, whereas obstruction comprised only 7.2% of the PcGVHD population. The differences between our results and lung transplantation literature may again reflect the difference between our multicenter-based referral cohort vs single center cohorts but also may reflect differences in pathophysiology between PcGVHD and CLAD. In cGVHD, there may be more wide-spread immune-mediated tissue injury and remodeling, whereas in lung transplantation, there could be ischemia-reperfusion injury early after surgery that contributes to CLAD.²⁴  Moreover, in CLAD, the patient’s best posttransplant PFT is used as the baseline to monitor PFT decline, whereas the current study used the populational predictive value.

The small size of the obstructive cohort may not accurately reflect the outcome of this phenotype, which may explain the discrepancy between our survival results with the existing CLAD and GVHD BOS literature.^5,6  Other reasons for the relatively better outcome of the obstructive phenotype observed in our cohort, in comparison with post-HCT BOS literature, could be that the prior BOS literature included all patients with obstructive components (ie, the combination of obstructive, mixed, and undefined), whereas in the current study these were analyzed separately. Future prospective studies with a larger cohort of obstructive PcGVHD is needed to determine the relative survival of different PcGVHD phenotypes, in comparison with the CLAD counterparts in lung transplantation.

The major limitation of our study is the lack of baseline and chronological PFT and CT data in close to 80% of the study cohort. Around 16% to 17% of patients may have pre-HCT PFT abnormality, with FEV1 or DLCO < 80% predicted; pre-HCT restrictive lung disease has been reported in as high as 7.6% of patients.^25,26  The rate of PcGVHD could have been overestimated in our study because of the lack of comparison with pre-HCT PFT. Because of this limitation, we could not establish the accurate time of PcGVHD onset and could not analyze the survival after PcGVHD diagnosis. Furthermore, we could not implement a “decline from baseline” criterion similar to the NIH criteria or the ISHLT-CLAD criteria, in the current adapted criteria. Nonetheless, in patients with available PFT volume data, the patients who met the current adapted criteria all had chronological decline. In future studies using cohorts with longitudinal PFT monitoring, we would like to test a modified adapted criteria with the addition of a “decline from baseline” requirement, which will likely improve the performance of the criteria in diagnostic accuracy.

Other limitations should be noted in our study. First, the number of haploidentical HCT was very small and may not reflect the current landscape of graft source and posttransplant cyclophosphamide-based GVHD prophylaxis. Second, patients were referred and most had severe GVHD, rendering the cohort liable to referral and selection bias, and therefore, potentially not representative of general cGVHD population. Third, the cohort lacked non-GVHD HCT recipients and could not compare the characteristics of patients with chronic restrictive lung disease without cGVHD vs patient with PcGVHD defined by the adapted criteria, nor could it establish the association of restrictive lung disease with cGVHD. Restrictive lung disease in the absence of GVHD has been described in HCT recipients.¹⁹  Fourth, lung volume was measured with a dilutional method (nitrogen washout) in our study, which may underestimate the TLC and have inadvertently classified some patients with purely obstructive phenotype as mixed phenotype.²⁷  Last, there was insufficient data regarding donor-recipient’s blood group matching and cytomegalovirus status, and it would be worthwhile to evaluate the effects of these factors on the development of PcGVHD in future studies.

In conclusion, with PcGVHD criteria adapted from the 2019 ISHLT CLAD Consensus guidelines, we identified novel phenotypes of pulmonary dysfunction after HCT with varying implications on survival, supporting further investigation into their relationship with cGVHD and a re-classification of the current NIH criteria. The adapted criteria demonstrated potential to effectively and systematically identify different phenotypes of chronic lung disease in patients with cGVHD. The current limitations of the adapted criteria, namely the failure to take into consideration the trend of pulmonary function decline after HCT, will need to be overcome in future longitudinal studies. The similarities between PcGVHD and CLAD can facilitate more cross-talks between lung transplantation and HCT field.
