Characterization of Tfrc-mutant mice with microcytic phenotypes

The transferrin receptor (TfR, TfR1, CD71), encoded by the TFRC gene in humans, is an integral component of iron metabolism and erythrocyte production.¹  The highest expression of TfR is seen in the bone marrow on developing erythroblasts, which require intake of circulating iron for hemoglobin synthesis.^2,3  The 2 key ligands of TfR are transferrin (Tf) and the hemochromatosis protein (HFE), which both play prominent roles in iron metabolism and regulation, respectively.⁴  These ligands directly compete for overlapping binding sites within the ectopic helical domain of the receptor, composed of N-terminal amino acids 607 to 760 (mouse equivalent, 610-763) within exons 17 to 19.⁵  The binding affinities and conformational relationships of both ligands to TfR have been previously described.^6,7  As a homodimer, TfR has 2 binding sites for the acceptance of 2 molecules of either Tf or HFE, or it can form a ternary structure with both simultaneously at a 1:1:1 ratio, but ultimately, the receptor has a much higher affinity for Tf, specifically iron-bound Tf (Fe-Tf), at biological potential of hydrogen (pH).⁵  This is due to the enclosed conformational change that Tf undergoes when iron is captured from the circulation. In contrast, TfR has a weak affinity for iron-free Tf, the conformation of which is more open and reduces the number of binding sites accessible by the receptor. After the binding of Tf to the membrane-bound receptor, the Tf-TfR complex undergoes receptor-mediated endocytosis within a clathrin-coated pit, facilitated by endocytic mediators, such as dynamin 2 (Dnm2).⁸  A reduction in endosomal pH (∼5.5) allows iron to disassociate from its carrier protein without disturbing Tf-TfR binding, and subsequently, iron enters the cell through the DMT-1 portal, where it can be used in the synthesis of heme or stored intracellularly in the form of ferritin.⁹  The iron-free Tf-TfR complex is then recycled to the cell surface, where Tf is released back into the circulation.

TfR-HFE interactions also play an important role in maintaining iron homeostasis.¹⁰  As the concentration of serum iron increases, so does Fe-Tf, which subsequently outcompetes HFE for TfR binding positions. Displaced HFE initiates a negative feedback loop by prompting the formation of an iron-regulatory complex around the liver-specific homolog TfR2.¹¹  This complex involves the recruitment of proteins such as hemojuvelin (HJV) and BMP-6, which require HFE for stabilization. The regulatory complex initiates downstream signaling through TfR2 and other iron-sensing receptors and ultimately triggers production of the peptide hormone hepcidin.¹¹  Hepcidin inhibits excessive iron from entering the circulation via blockage and degradation of ferroportin. At low iron concentrations, TfR is thought to sequester HFE to prevent it from inappropriately enacting on TfR2.^10,12  In addition to regulation, TfR2 is also important for erythropoietic development through its cooperation with the erythropoietin receptor; however, the phenotypes of experimental animals lacking TfR2 are strikingly different to those with TfR defects.¹³

Inheritable mutations within genes encoding HFE, TfR2, or HJV are known to cause iron overload, or hemochromatosis.¹¹  In contrast, there have been no definitive reported cases of red-cell diseases resulting from inherited mutations in TFRC in humans. Genome-wide association studies previously identified a homozygous mutation in the C-terminal cytoplasmic domain of TfR, resulting in primary immunodeficiency,¹⁴  but no erythroid-specific diseases resulting from mutations in TFRC have been confirmed to date. However, microcytic anemia with iron deficiency–like characteristics, often unresponsive to iron therapy, is a recognized clinical finding in humans, and many cases go unresolved.¹⁵  It is therefore possible that congenital mutations within other key proteins of the iron metabolism pathway, such as TfR, do exist in the population but go undetected. The generation of experimental animals harboring Tfrc mutations, particularly mice, typically results in iron-deficient erythropoiesis with various degrees of anemia and liver iron overload,^1,8,16  but the pathological role of aberrant TfR endocytic cycling in iron therapy–resistant microcytic anemia and its clinical relevance remain poorly characterized. In a series of genome-wide ENU mutagenesis screens, we identified a collection of mutant mice with dominant microcytic red-cell phenotypes, all harboring Tfrc mutations within the Tf/HFE binding domain. Detailed phenotypical analyses of these mutant strains have offered greater insight into the key characteristics of TfR-mediated microcytic anemia and the molecular mechanisms underpinning red-cell pathologies.

Dominant ENU mutagenesis screens were performed in mice as described previously.¹⁷  G₁ pedigrees displaying microcytosis were identified from 7 individual founder mice. Gene mapping followed by whole-exome sequencing was performed on each strain,⁸  which identified each mutation in the Tfrc gene, as listed in Table 1. Genotyping of the strains red blood cell 6 (RBC6; Tfrc^+/L645R) or RBC21 (Tfrc^+/R654H) was performed using bone marrow complementary DNA (cDNA) and the primers forward (5′-CAC ACC TGG CTT TCC TTC TT-3′) and reverse (5′-ATG AGG AAC CAG ACC GTT ATG-3′), followed by sequencing using BigDye Terminator reagents. All animal experiments were approved by the animal ethics committees of the Alfred Medical and Research Education Precinct and Monash University.

Full blood examinations were performed on EDTA-treated whole blood collected from submandibular venepuncture and processed by the Hemavet automated blood analyzer (Drew Scientific, Miami Lakes, FL). Tf and ferritin assays were performed by enzyme-linked immunosorbent assay (ALPCO Diagnostics, Salem, MA). Serum iron and Tf saturation were quantified using a total iron binding capacity reagent set (Pointe Scientific, Inc., Canton, MI). Liver iron was assayed using an iron assay kit (Abcam, Cambridge, MA).

Single-cell flow imaging was performed on whole bone marrow stained with conjugated antibodies Ter-119 and CD71 (BD Biosciences, San Jose, CA) on the Amins ImageStreamX Mark II flow cytometer (Merck, Darmstadt, Germany). A minimum of 2000 erythroblast (Ter-119⁺) events were captured for each run. Compensation and analysis were performed using Amnis IDEAS software (Merck). Early proerythroblasts and late erythroid cell subtypes were excluded from analysis based on Ter-119 expression. Focused cells were chosen based on a bright field intensity gradient of >40, followed by elimination of debris and doublets by the bright field aspect ratio vs area dot plot. Colocalization analysis generated a median bright intensity score for the florescent intensities of Ter-119 and CD71, where higher score indicated greater overlap of the 2 probes. Internalization analysis generated the mean internalization erode score using Ter-119 as the mask probe, where a score equal to 1.0 indicated the probe was membrane bound, and a score >1.0 correlated with increased internalization of the probe. Using these parameters, Tf uptake was assessed on bone marrow additionally stained with 5 mg/mL of Tf–Alexa Fluor 647 conjugate (Life Technologies, Scoresby, Australia) for 45 minutes at 4°C in the dark. Uptake was initiated by incubating cells at 37°C and halted at desired time points by placing cells in ice. Cells were then briefly acid washed (150 mmol/L of sodium chloride, 20 mmol/L of calcium dichloride, 20 mmol/L of sodium acetate; pH, 4.6) before cytometric analysis and imaging. Tf uptake was calculated at each time point by dividing the relative intensity of internalized Tf by the 0-minute noninternalized unwashed control.

Total RNA was extracted from liver using TRIzol (Invitrogen) according to the manufacturer’s instructions, followed by cDNA amplification of 1 μg total RNA using a reverse transcription kit (Promega). Quantitative real-time polymerase chain reaction was performed on a LightCycler 480II (Roche Diagnostics) using the GoTaq qPCR Master Mix (Promega). Expression of genes was normalized to β-actin, and data are presented as relative expression compared with WT controls. Gene-specific primers were as follows: Hamp-1: forward (5′-AAG CAG GGC AGA CAT TGC GAT-3′) and reverse (5′-CAG GAT GTG GCT CTA GGC TAT GT-3′); β-Actin: forward (5′-CTG TCC CTG TAT GCC TCT G-3′) and reverse (5′-ATG TCA CGC ACG ATT TCC-3′).

Where applicable, results are expressed as mean ± standard deviation. For statistical analysis, a 2-tailed Student t test was employed, unless stated otherwise, where P < .05 indicated significance (or as defined in the figure legends).

A series of independent genome-wide ENU mutagenesis screens were performed in mice to identify novel genes or alleles regulating erythropoiesis, as previously described.^17,18  Seven G₁ progeny exhibiting a reduced MCV >3 standard deviations below the average population were isolated. Further breeding demonstrated the phenotype was fully penetrant and autosomal dominant in inheritance. Pedigrees were termed the RBC mutants, numbered in order of discovery (Table 1).

To identify the genetic mutation responsible for the microcytic phenotypes observed, gene mapping or whole-exome sequencing was used as previously described^8,17  and confirmed by Sanger sequencing on bone marrow cDNA. Mutations within the Tfrc gene on chromosome 16 were identified in each pedigree. Two mutants were genetically identical (RBC8 and RBC17), resulting in 6 different Tfrc mouse strains (Table 1), including the previously reported RBC6 mouse (Tfrc^+/L645R).⁸  Five of the 6 unique alleles were missense substitutions, and 1 was a premature stop codon (RBC4). All mutations were localized within exon 17, 18, or 19, resulting in substitutions of conserved amino acids (Figure 1A). Three-dimensional modeling of the murine TfR dimer, in the context of the Fe-Tf complex, showed several Tfrc mutations (RBC5, RBC6, RBC21) to be within the helical binding domain, either at or adjacent to known Tf/HFE binding sites (Figure 1B). Modeling predicted that many mutational sites played important structural and conformational roles within TfR, such as providing hydrophobic packing for the helical bundle (RBC5, RBC6), or otherwise produced an unstable truncated form (RBC4). One mutation, R654H (RBC21), was found to be directly involved in securing Tf to the receptor (Figure 1C) and was the only substitution predicted not to distort protein conformation, instead affecting the ligand binding capacity of Tf.

Mice carrying the RBC21 allele (denoted Tfrc^R654H) displayed a unique phenotype among the RBC mutants and therefore became the major focus of our investigations. Similar to other Tfrc mutants described here and previously,¹⁷ Tfrc^+/R654H mice displayed significantly reduced MCV, hemoglobin, and hematocrit, as well as increased red-cell count and red-cell distribution width, in comparison with WT littermates (Table 2). White-cell and platelet values were unchanged. Peripheral blood smears revealed microcytic red cells with unremarkable morphology in heterozygotes (Figure 2A). Surprisingly, serum ferritin and serum Tf, typically used to diagnose iron deficiency in humans, were normal in both Tfrc^+/L645R and Tfrc^+/R654H mice (Table 3). Total liver iron was also normal. However, red-cell ferritin concentrations were significantly reduced in both strains, indicating an intracellular iron deficit in both the Tfrc^+/L645R and Tfrc^+/R654H mutants (Table 3).

A key difference observed in the Tfrc^+/R654H strain was increased expression of CD71 (TfR) on the surface of Ter-119⁺ bone marrow erythroblasts (Figure 2B). In all other Tfrc-mutant RBC strains, such as Tfrc^+/L645R, CD71 expression was significantly reduced compared with WT littermates (Figure 2B). These data, combined with the 3-dimensional modeling, suggested that Tfrc^R654H erythroblasts express a structurally stable mutant TfR protein at the cell surface.

In contrast to other strains, Tfrc^R654H/R654H embryos displayed notably delayed homozygous lethality (Table 1). Tfrc^R654H/R654H embryos had an anemic phenotype detectable at E14.5 and died between E16.5 and E18.5 (Figure 2C). E14.5 Tfrc^R654H/R654H embryos showed severe pallor, edema, and underdeveloped craniofacial structures and had significantly fewer fetal liver cells compared with WT littermates (Figure 2D). Despite this, CD71 expression on Ter-119⁺ cells harvested from E14.5 Tfrc^R654H/R654H fetal livers was increased (Figure 2E). To determine which mutant allele was dominant, we intercrossed Tfrc^+/L645R and Tfrc^+/R654H heterozygous mice to generate Tfrc^L645R/R654H compound heterozygotes. Double-heterozygous embryos were found to be phenotypically identical to Tfrc^R654H/R654H embryos, with embryonic lethality observed between days E16.5 and E18.5 (Figure 2C). Thus, the Tfrc^R654H mutation retained partial function and was able to rescue the loss-of-function Tfrc^+/L645R-mutant allele.

Given that the Tfrc^R654H mutation was germ line and affected all tissues requiring iron intake, fetal liver transplantations were performed to establish whether embryonic lethality in homozygotes was due to erythropoietic defects. WT or Tfrc^R654H/R654H fetal liver cells from E14.5 embryos were transplanted into lethally irradiated adult WT mice. Survival of the transplanted recipients was tracked over time (Figure 2F), and peripheral blood was analyzed after 7-week recovery (Table 4). As expected, WT fetal liver cells were able to rescue lethally irradiated mice, with complete donor reconstitution of all hematopoietic lineages. However, a majority of mice transplanted with Tfrc^R654H/R654H fetal liver cells died within 2 weeks as a result of severe anemia (Figure 2F). Furthermore, blood analysis of the single surviving Tfrc^R654H/R654H recipient demonstrated severe microcytic, hypochromic anemia (Table 4). Thus, the lethality of homozygous embryos could be attributed to an intrinsic defect in red-cell production.

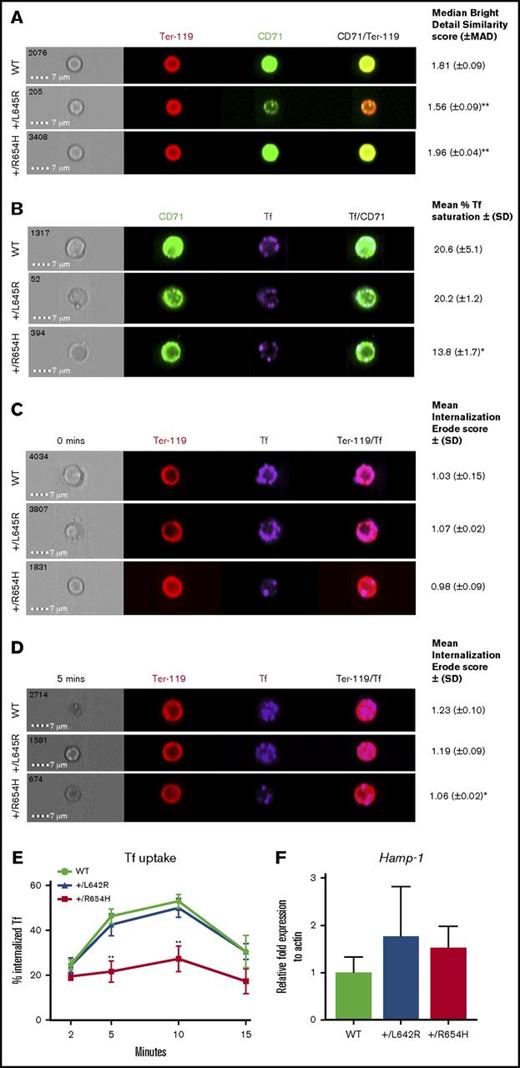

The reduced intracellular iron, despite elevated CD71 expression, suggested that the Tfrc^R654H mutation affected interactions with Tf. The binding capacity and internalization of Tf and TfR were analyzed in erythroblasts using the Amnis ImageStreamX flow imaging cytometer. We first validated CD71 expression levels on Ter-119⁺ erythroblasts harvested from each cohort using single-cell fluorescent imaging (Figure 3A). In comparison with WT cells, CD71 expression on Tfrc^+/L645R erythroblasts was significantly reduced and displayed a lower CD71/Ter-119 overlap score (1.56 compared with 1.81 in WT; P = .01), indicating reduced CD71 expression. In Tfrc^+/R654H erythroblasts, however, the median CD71/Ter-119 overlap was greater than the WT ratio (1.96; P = .01), consistent with the increased CD71 surface expression observed by flow cytometry (Figure 2B). Erythroblasts from WT, Tfrc^+/L645R, and Tfrc^+/R654H mice were subsequently stained with a Tf–Alexa Fluor conjugate for flow imaging to analyze Tf-TfR binding and internalization. After incubation with the ligand, both WT and Tfrc^+/L645R erythroblasts showed an average of 20% Tf saturation across membrane-bound CD71 (Figure 3B). In contrast, Tfrc^+/R654H erythroblasts demonstrated significantly reduced Tf conjugation to CD71 at the cell surface, despite increased CD71 expression (13.8%; P = .045), indicating that the Tfrc^R654H mutation reduced Tf binding to TfR.

To investigate whether reduced Tf binding resulted in less intracellular Tf uptake, TfR uptake through receptor-mediated endocytosis was assessed by flow imaging over time using a Tf–Alexa Fluor conjugate. Internalization of Tf was quantified by the mean internalization erode score, which positively correlates with the percentage of endocytosed Tf. At 0 minutes (Figure 3C), Tf was detectable exclusively at the cell membrane in all 3 cohorts, resulting in a low internalization score (∼1.03). After 5 minutes (Figure 3D), a significant proportion of Tf was internalized by receptor-mediated endocytosis in WT erythroblasts (1.23), correlating with Tf uptake of 46% (Figure 3E). Tfrc^+/L645R-mutant erythroblasts had a similar internalization erode score (1.19; P = .09) and Tf uptake of 42% (Figure 3E). In contrast, Tfrc^+/R654H-mutant erythroblasts showed significantly reduced internalization (1.06; P = .02) and endocytosis of Tf (21%; Figure 3E) after 5 minutes.

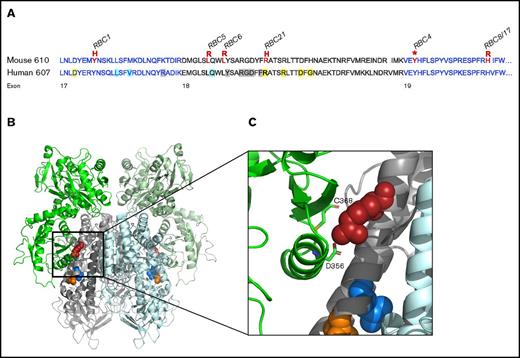

Tf and HFE have a number of overlapping binding sites for TfR; however, based on the helical domain sequence (Figure 1A),⁶  the Tfrc^L645R and Tfrc^R654H mutations were not predicted to affect HFE binding. To confirm the mutations did not interfere with HFE binding to the receptor, we measured liver Hamp-1 messenger RNA expression as an indirect readout of the HFE-TfR interaction. Liver Hamp-1 expression was normal in both Tfrc^+/L645R and Tfrc^+/R654H mice compared with WT controls (Figure 3F). These results indicated the HFE binding regions on TfR were unaffected, and the red-cell phenotypes observed in these mice were not the result of increased hepcidin production.

To determine if Tfrc mutations respond to iron therapy, we treated Tfrc^+/L645R and Tfrc^+/R654H mice with iron dextran and reevaluated iron parameters 3 weeks later. Despite the significant increases that occurred to serum Tf, serum ferritin, and liver iron after administration, iron dextran treatment was unable to restore red-cell ferritin concentrations in either mutant strain (Table 5). Consequently, the reduced MCV and mean corpuscular hemoglobin persisted in both Tfrc^+/L645R and Tfrc^+/R654H mice (Table 5). Taken together, these results indicate that microcytic, hypochromic anemia caused by Tfrc mutations is nonresponsive to iron replacement therapy, regardless of CD71 expression (Tfrc^L645R) or endocytic function (Tfrc^R654H).

We conducted a genome-wide ENU mutagenesis screen to identify novel regulators of erythropoiesis in mice. Here, we describe a series of autosomal-dominant mutations of the Tfrc gene. The phenotype in each case was microcytic hypochromic anemia. Of the 6 unique Tfrc mutants identified, the RBC21 strain (Tfrc^+/R654H) displayed a distinct phenotype, including sustained erythroblast CD71 expression and delayed homozygous lethality. This study offers a broader examination of hematological and developmental phenotypes caused by autosomal-dominant Tfrc mutations, as well proposed pathological mechanisms underlying those phenotypes.

Receptor-mediated endocytosis of the Tf-TfR complex is the key mechanism by which cells, particularly erythroblasts, obtain iron. Extensive studies in vitro have identified key motifs within the extracellular helical domain of the receptor (exons 17-19) that are indispensable for ligand binding and function.^5,6  Studies of microcytic mice harboring point substitutions and deletions within Tfrc, including those identified in ENU mutagenesis screens,^1,8,16  or mutations in upstream factors regulating TfR transcription^19,20  typically reported a microcytic, hypochromic phenotype because of haploinsufficiency of the receptor. Through crystal structure modeling and CD71 flow cytometry, we found the Tfrc^+/R654H mouse strain expressed a stable mutant protein at the cell surface. This provided a unique opportunity to study the consequences of defective TfR ligand binding and its effect on erythropoiesis and development in vivo.

The R654 amino acid (human equivalent, R651) is a key Tf binding hotspot within the TfR, the loss of which has been shown to severely diminish the Tf, but not HFE, binding affinity of the receptor.^1,10  The use of novel cytometric tools, such as the Amnis ImageStreamX flow imager, provided visual and quantitative evidence of the importance of this binding site in iron transport and metabolism and ultimately demonstrated how a microcytic phenotype could persist in the Tfrc^+/R654H mutant despite sustained CD71 expression levels. Interestingly, the pattern of ineffective Tf-TfR uptake observed in Tfrc^+/R654H erythroblasts was comparable to a mouse model harboring a Dnm2 mutation, displaying defects in endocytosis.⁸  This suggested both Tf binding and receptor internalization were disrupted by the Tfrc^R654H mutation; however, there may be additional disruptions to intracellular mechanisms contributing to the phenotype of the animal. Indeed, other aspects of receptor-mediated endocytosis and endosomal iron transport could be further investigated using this method, because many intracellular erythroid metabolic programs remain poorly described.

Surprisingly, and in contrast to other mutants described here, Tfrc^R654H/R654H embryos survived until late embryogenesis, enabling the study of the requirements of Tfrc during development. Early embryonic lethality of homozygotes previously prevented these observations.^8,16,20  Aside from the profound anemia and tissue hypoxia, gross malformations of the brain and craniofacial regions seen in E14.5 to E18.5 homozygotes and double Tfrc^L645R/R654H heterozygous embryos are consistent with previous reports that TfR cycling has a prominent role in neurological development.¹  The opportunity to perform fetal liver transplantations using Tfrc^R654H/R654H cells allowed further assessment of the function of this Tfrc allele in adult hematopoiesis. Although homozygosity of the Tfrc^R654H mutation was ultimately incompatible with life, blood values of the long-surviving transplant recipient suggested reconstitution of nonerythroid cell lineage populations was still possible in the absence of TfR cycling. Lymphocyte development, for instance, may use alternative uptake pathways when TfR-mediated endocytosis is inefficient, given the observed role of iron in lymphoid maturation.²¹

Iron studies performed on Tfrc^+/R654H and Tfrc^+/L645R mice were normal except for Tf saturation, which was slightly elevated in the Tfrc^+/R654H strain. This may be linked to CD71 expression status. Red-cell ferritin proved to be the most informative indicator of an iron metabolic defect in Tfrc mutants, which did not respond to iron dextran administration. Red-cell ferritin is frequently used to identify cellular iron deficits in microcytic mice when serum markers appear normal^8,22  and has been shown to be more informative than ZnPP/heme ratios, for example.⁸  However, intraerythrocytic ferritin is not a typical clinical test of iron deficiency anemia.²³  Despite the obvious defect in iron uptake by red cells, the predominant red-cell phenotype was microcytosis in the absence of hypochromia. This suggests that isolated microcytosis may be due to inherited defects in the TfR. Although mutations within the TFRC gene have not yet been associated with microcytosis in humans, the inclusion of intracellular iron measurements may prove to be highly valuable in the search for congenital mutations within iron internalization pathways, particularly in cases when iron therapy has failed. A greater understanding of the phenotypical characteristics associated with congenital iron metabolic defects in animal models, along with the development of novel tools and markers of iron deficiency, will progressively contribute to better clinical management strategies for patients with unresolved microcytic anemias.
