Bone marrow origin of hematopoietic progenitors and stem cells in murine muscle

It has been held for decades that, in organ systems with regenerative ability, populations of cells called stem cells exist and are able to self-renew and generate committed progenies. It has also been generally believed that stem cells possess organ/tissue specificity. However, this dogma was recently challenged by a number of reports that a variety of cells, including those in the hematopoietic, neuronal, and muscular organs, have the potential to differentiate into tissues other than those specified in their origins.1-13 For example, bone marrow (BM) cells have been shown to be capable of regenerating a number of mesenchymal tissues, such as bone, cartilage, and muscle1-7; neuronal cells have been reported to be capable of differentiation into hematopoietic cells8,9; and it was reported that BM cells are also capable of hepatocyte regeneration.10-12

Equally strikingly, it has recently been reported that mononuclear cells harvested from murine skeletal muscle are capable of hematopoietic reconstitution of lethally irradiated mice.7,13 These observations not only raised important questions about cell fate specification in developmental biology but also offered the potential of medical utility of the ectopic stem cells for the reconstitution of hematopoiesis. In this report, we have examined the nature and origin of the hematopoietic progenitors and stem cells in the muscle by using clonal cell culture and transplantation techniques.

Recombinant human thrombopoietin (TPO) was provided by Kirin Brewery (Tokyo, Japan); and recombinant rat steel factor (SF), recombinant human erythropoietin (EPO), and granulocyte colony-stimulating factor (G-CSF; filgrastim) by Amgen (Thousand Oaks, CA). Recombinant human interleukin-11 (IL-11) was a gift from Genetics Institute (Cambridge, MA). Recombinant murine IL-3 and granulocyte/macrophage colony-stimulating factor (GM-CSF) were purchased from R&D Systems (Minneapolis, MN). The final concentrations of cytokines used in culture were as follows: TPO, 100 ng/mL; SF, 100 ng/mL; IL-11, 100 ng/mL; IL-3, 10 ng/mL; GM-CSF, 10 ng/mL; and EPO, 2000 mU/mL (2 U/mL).

Fluorescein isothiocyanate (FITC)– or phycoerythrin (PE)-conjugated A20 (anti–Ly-5.1; mouse immunoglobulin G2a [IgG2a]); FITC-conjugated 104 (anti–Ly-5.2; mouse IgG2a); PE-conjugated RB6-8C5 (anti–Gr-1; rat IgG2b); PE-conjugated RA3-6B2 (anti-CD45R/B220; rat IgG2a); and PE-conjugated 30-H12 (anti–Thy-1.2; rat IgG2b) were purchased from Pharmingen (San Diego, CA). PE-conjugated M1/70.15 (anti–Mac-1; rat IgG2b) was purchased from Caltag Laboratories (Burlingame, CA).

C57BL/6–Ly-5.1 mice and C57BL/6–Ly-5.2 mice were purchased from Jackson Laboratories (Bar Harbor, ME) and Charles River Laboratories (Raleigh, NC), respectively. The Institutional Animal Care and Use Committee of the Department of Veterans Affairs Medical Center approved the animal studies. In order to study the origin of the hematopoietic cells in the muscle, we used Ly-5.2 mice that had been made chimeric by transplantation of BM cells from Ly-5.1 mice. As will be described in more detail later, we used 4 groups of chimeric mice that were survivors of studies described previously.14Four additional groups of chimeric mice were prepared specifically for the current study by transplanting unfractionated or CD34⁻BM cells of Ly-5.1 mice into Ly-5.2 mice after lethal (950-cGy) irradiation.

Muscle mononuclear cells were prepared by means of minor modifications of the method described by Yablonka-Reuveni and Nameroff.15 This method has been used for isolation of the muscle mononuclear cells that were capable of hematopoietic reconstitution.13 Hind legs of 5- to 7-week-old Ly-5.1 mice or chimeric Ly-5.2 mice were separated just above the head of femurs following dislocation of hip joints. Muscles were then harvested on a dissecting microscope (Leica MZ6) (Heerburg, Switzerland), with care being used to avoid cutting bones. After removal of fat, epimysium, tendons, and internal connective tissues, the muscles were minced with scissors and incubated with constant agitation for 45 minutes at 37°C in 0.1% trypsin (Life Technologies, Grand Island, NY). Cells were released from the tissue fragments by vigorous trituration. Pooled cells were filtered through a 40-μm nylon mesh, washed, and resuspended in α-modification of Eagle medium (α-MEM) (ICN Biochemicals, Aurora, OH). The samples were further purified by discontinuous density-gradient centrifugation by means of Percoll (Amersham Pharmacia Biotech, Piscataway, NJ).15Here, the samples were centrifuged at 15 000g for 5 minutes at 8°C in a fixed angle rotor, and mononuclear cells were collected from the 20% to 60% interface.15 Peripheral blood (PB) was collected by cardiac puncture with the use of methoxyflurane anesthesia, and BM cells flushed from femora and tibiae were made into single cell suspension by repeated pipetting. Mononuclear cells were prepared from PB and BM cells by Percoll. For determining the origin of engrafting cells, we sorted the muscle mononuclear cells of chimeric mice using a FACSVantage (Becton Dickinson, San Jose, CA) fluorescence-activated cell sorter (FACS).

Methylcellulose culture was performed in 35-mm Petri dishes (Becton Dickinson Labware, Lincoln Park, NJ). Unless otherwise specified, 1 mL culture mixture contained designated numbers of mononuclear cells, α-MEM, 1.2% 1500-cP methylcellulose (Shinetsu Chemical, Tokyo, Japan), 1% deionized fraction V bovine serum albumin (Intergen, Purchase, NY), 0.1 mM 2-mercaptoethanol (Sigma-Aldrich, St Louis, MO), 30% fetal calf serum (Intergen), and TPO, SF, EPO, IL-3, and IL-11. Dishes were incubated at 37°C in a humidified atmosphere with 5% CO₂, 5% O₂, and 90% N₂. Erythroid colony-forming units (CFU-Es) were counted on day 2 of culture, and all other colonies consisting of 50 or more cells were scored on an inverted microscope after 8 days of culture. Specific cellular composition of the colonies was determined by means of cytospin preparations of individual colonies stained with May-Grünwald-Giemsa on days 8 to 14 of culture. Abbreviations of colony types are as follows: erythroid burst-forming units (BFU-Es); granulocyte and/or macrophage (GM) colonies; mixed colonies containing erythroid and myeloid cells and megakaryocytes (GEMM).16

The hematopoietic engrafting capability of muscle and BM cells of the chimeric mice were studied by injecting test cells into the tail vein of recipient mice after a single 950-cGy dose of total body irradiation of recipients using 4 × 10⁶ V linear accelerator. To prevent posttransplantation death, designated types of radioprotective cells were also transplanted. Two or 6 months later, PB was obtained from the retro-orbital plexus of the recipients with the use of heparin-coated micropipettes (Drummond Scientific, Broomall, PA). Red blood cells were lysed by 0.15 M NH₄Cl, and the samples were analyzed for Ly-5 expression on a FACSCalibur (Becton Dickinson). Cells in the T-cell, B-cell, granulocyte, and monocyte/macrophage lineages were analyzed by staining with PE-conjugated anti–Thy-1.2, anti-CD45R/B220, anti–Gr-1, and anti–Mac-1.

Ly-5.1 mice were injected at 12-hour intervals subcutaneously with 125 μg/kg human recombinant G-CSF in 0.1 mL phosphate-buffered saline (Life Technologies) for 5 consecutive days. Three hours after the last injection, PB and muscles were harvested. Mononuclear cells of PB and muscles were plated in methylcellulose in the presence of TPO, SF, EPO, IL-3, and GM-CSF. On day 8 of culture, colonies were scored. Mice that received no G-CSF treatment were used as controls.

Student t test was used to determine statistical significance. Correlation was determined by using Pearson correlation coefficient.

We examined the nature and the incidence of the progenitors in the muscle of Ly-5.1 mice by using methylcellulose culture and compared them with the progenitors in BM and PB. The results are presented in Table 1. For measurement of CFU-Es, we plated 5 × 10⁴ muscle, BM, or PB mononuclear cells per dish. The incidence of day-2 CFU-Es of muscle was less than one fiftieth that of BM. PB had no CFU-Es even when 2 × 10⁵cells were plated (data not shown). For analysis of day-8 colony-forming units in culture (CFU-Cs), we plated the numbers of cells that would yield 30 to 40 colonies per dish. The incidence of day-8 CFU-Cs in muscle was approximately one tenth that of BM and 10 times higher than PB. The incidences of BFU-Es and mast cell progenitors in the muscle, relative to total day-8 CFU-Cs, were much lower than those in PB.

We then performed a time course study of colony formation from muscle, PB, and BM. On day 8, 10, 12, and 14 of culture, all colonies from quadruplicate cultures were individually lifted from methylcellulose culture, centrifuged to glass slides by means of a Cytospin 2 (Shandon Southern, Sewickley, PA), and stained with May-Grünwald-Giemsa for determination of cellular composition. Various types of single-lineage and multilineage colonies were seen. Predominant types of colonies are presented in Table2. Similarly to the multilineage colonies cultured from BM cells,16 a variety of lineage combinations were seen in the muscle-derived multilineage colonies, such as colonies containing neutrophils, macrophages, mast cells, erythrocytes, and megakaryocytes. Again, the relative incidence of muscle-derived erythroid bursts was very low. The number of colonies consisting of undifferentiated blast cells in cultures of muscle cells gradually increased during incubation. In replating studies, these blast cell colonies proved to be committed to B-cell lineage (data not shown). Together, these results indicated that the hematopoietic progenitors in the muscle constitute a distinct population of progenitors.

Next, we examined the origin of the progenitors and stem cells in muscle by using chimeric mice. The details of the conditions for creating the chimera for progenitor studies are presented in Table3. In experiments 1 through 5, muscle and BM cells of the chimeric mice were cultured in methylcellulose media for 8 days, and the cells in the colonies were individually picked, pooled, and analyzed for Ly-5 expression. Results of colony formation and analysis of the percentage of donor (Ly-5.1) cells in the colonies are also presented in Table 3. There was significant correlation between the percentage of Ly-5.1 cells in the pooled colonies from the muscle and from the BM (Pearson correlation coefficient, 0.961;P < .01). For example, in experiment 5, in which all mice revealed very high levels of donor (Ly-5.1) cells in PB, the cells cultured from both BM and muscles were derived completely from Ly-5.1 BM cells. The fact that we were able to analyze groups of mice with levels of chimerism between 25% and 99% ensured an accurate sampling of the population. These observations indicated that hematopoietic progenitors in the muscle are derived from BM.

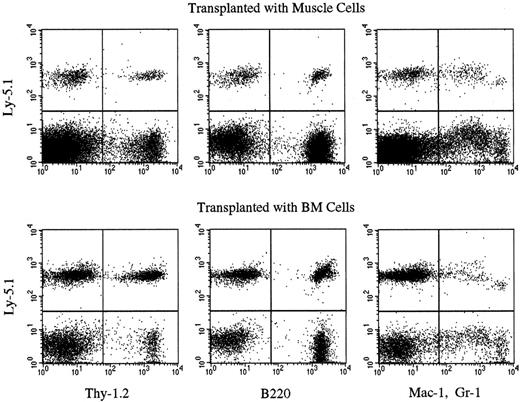

We then tested the engrafting capabilities of the muscle cells of the chimeric mice by transplantation into secondary Ly-5.2 mice. In our preliminary studies, transplantation of 1 × 10⁵ muscle mononuclear cells of healthy adult Ly-5.1 mice yielded low-level (about 1% or less) hematopoietic chimerism in primary recipients 6 months after transplantation (data not shown). Therefore, we transplanted more than 1 × 10⁵ muscle cells of the chimeric mice in the secondary-transplantation studies. The cells harvested from the muscle or BM of chimeric mice (experiments 5 and 6 in Table 3) were injected into lethally irradiated Ly-5.2 mice along with radioprotective cells (Table 4). Six months later, PB was collected from the Ly-5.2 secondary-recipient mice, and the levels of engraftment were analyzed by flow cytometry. Although the levels of chimerism were low in the recipients of muscle cell transplantation, multilineage reconstitution by Ly-5.1 cells was clearly observed in both groups of recipients (Table 4, Figure1). These results indicated that some hematopoietic stem cells in the muscle are derived from BM.

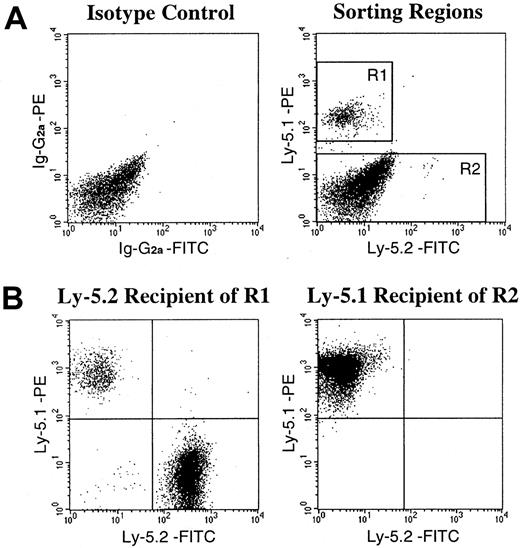

Recent reports from Gussoni et al7 and Jackson et al13 suggested the existence, in the muscle, of a Ly-5⁻ population of stem cells that are capable not only of muscular regeneration but also of hematopoietic reconstitution. This bipotential population of stem cells in the muscle tissue of Ly-5.2 origin may have survived the irradiation and contributed to the high levels of engraftment by Ly-5.2 cells in the secondary transplantation. Therefore, in the next series of experiments, we created chimeric mice showing very high (99%) levels of hematopoietic chimerism (experiments 7 and 8 in Table 3), fractionated the muscle mononuclear cells, and analyzed the engrafting abilities of the fractionated cell populations. The sorting gates for 2 populations of muscle mononuclear cells of the chimeric mice are presented in Figure 2A. Reflecting the high levels of Ly-5.1 cells in PB, the majority of Ly-5⁺cells in the muscle were also of Ly-5.1 type. The R1 gate was used for isolation of Ly-5.1⁺ donor BM-derived cells. The Ly-5.1⁻ R2 gate may have included Ly-5.1–derived cells that are not expressing the antigen and/or Ly-5.2–derived cells. After FACS sorting, the isolated 2 populations of muscle cells were injected into lethally irradiated Ly-5.2 or Ly-5.1 recipients, respectively, along with radioprotective BM cells from mice having the recipients' Ly-5 genotypes. Two months later, hematopoietic engraftment in recipients' PB was analyzed by flow cytometry (Table5, Figure 2B). The Ly-5.1 cells (R1) engrafted in the Ly-5.2 recipients. However, transplantation of Ly-5.1⁻ muscle cells (R2) did not show hematopoietic engraftment by Ly-5.2 cells. These results indicated that all hematopoietic stem cells in the muscle of chimeric mice are of BM origin.

Our studies using chimeric mice suggested communication between the hematopoietic cell population in the muscle and BM. In the next experiment, we tested the effects of G-CSF–induced progenitor mobilization on the progenitors in the muscle. Administration of G-CSF caused more than 20-fold increases in the numbers of CFU-Cs, CFU-GMs, and CFU-GEMMs in PB (Table 6). However, the number and type of progenitors in muscle tissue were not affected by administration of G-CSF.

It was reported recently that murine skeletal muscles contain cells that are capable of significant hematopoietic reconstitution. Gussoni et al7 noted the presence in the muscle tissue of side population (SP) cells that had been reported to be highly enriched for hematopoietic stem cells.18 The muscle SP cells were capable not only of muscular regeneration but also of significant hematopoietic engraftment when transplanted into lethally irradiated syngeneic mice.7 Subsequently, Jackson et al13 reported that cultured mononuclear cells from muscle of adult mice are capable of hematopoietic reconstitution. They also attributed the hematopoietic engraftment to the muscle SP cells and speculated that skeletal muscle stem cells, ie, satellite cells, are responsible for the hematopoietic activity.

In this study, we attempted to characterize the hematopoietic progenitors and stem cells that are present in muscle tissue. Care was taken to harvest cells only from the muscle tissue and not to contaminate the samples with BM cells. We demonstrated that both the types and the relative incidences of the hematopoietic progenitors in muscle are different from those in PB or BM. However, methylcellulose culture studies of the muscle cells of chimeric mice revealed significant correlation between the incidences of donor origin progenitors in the muscle and the BM. We had a significant number of stable chimeric mice from other experiments that provided the opportunity to analyze various donor populations of stem cells. Whether we used CD34⁺, CD34⁻, or unfractionated donor cells, we were able to test the correlation of the hematopoietic potential between muscle and BM cells because this was analyzed in individual mice. This correlation indicated that hematopoietic progenitors in the muscle are of BM origin. Furthermore, the secondary-transplantation experiments with the chimeric mice demonstrated that hematopoietic stem cells in the muscle are also derived from BM. Since we gave lethal irradiation to create chimeric mice, we could not study the original population of hematopoietic cells in the muscle. However, our studies clearly documented communication of hematopoietic populations between BM and muscle tissue. Progenitor mobilization by G-CSF did not affect the hematopoietic progenitors in the muscle. Transition of the hematopoietic populations from BM to the muscle appears to be a slow process.

Following the initial identification of long-term hematopoietic engrafting cells in murine muscle,7,13 investigators in other laboratories19-21 also documented hematopoietic populations in the muscle. However, there are some discrepancies concerning the level of hematopoietic reconstitution. While Gussoni et al7 and Jackson et al13 revealed high levels of hematopoietic engraftment by the muscle cells, Farace et al19 and Bauermeister et al20 described lower engrafting potentials of the muscle cells. There are a number of technical differences in the preparation of the test cells. Although our studies indicated lower levels (1% to 9%) of engraftment, our analysis was based primarily on secondary transplantation of chimeric animals. Gussoni et al7 used muscle SP cells from young (3- to 5-week-old) mice. Jackson et al13 used muscle cells that were cultured for 5 days under conditions for satellite cell growth. Both groups suggested that the Ly-5⁻ cells in the muscle SP cells are bipotential, having myogenic and hematopoietic capabilities.7,13 Subsequently, Howell et al21 also reported hematopoietic engraftment by Ly-5⁻ muscle cells from neonatal (4- to 7-day-old) mice. We have observed that Ly-5⁻ muscle cells derived from the chimeric mice do not possess hematopoietic capability. However, our results do not exclude the possibility of a BM-derived stem cell that has the potential for both hematopoietic and myogenic differentiation. Clonal studies are necessary to assess the true potentials of stem cells in muscle tissue.

The authors wish to thank Drs Fumihiko Ishikawa, Akaru Ishida, and Takao Deguchi for assistance in breeding of experimental mice; Dr Pamela N. Pharr, Anne G. Livingston, and Karen A. Rivers for assistance in preparation of this manuscript; Dr Haiqun Zeng for assistance in FACS sorting; and the staff of the Radiation Oncology Department of the Medical University of South Carolina for assistance in the irradiation of the mice.
