Lutheran blood group glycoprotein and its newly characterized mouse homologue specifically bind α5 chain-containing human laminin with high affinity

The Lutheran blood group is composed of a complex set of antigens expressed on 2 integral membrane glycoprotein isoforms of 85 and 78 kd.1,2 The complementary DNA (cDNA) encoding the 85-kd isoform has been cloned,3 and the predicted structure is that of a type 1 membrane protein. There are 5 disulfide-bonded, extracellular, immunoglobulin superfamily (IgSF) domains, a single hydrophobic membrane span, and a cytoplasmic tail of 59 residues.3 The composition of the extracellular IgSF domains puts Lutheran blood group glycoproteins (Lu gps) in the subset of adhesion molecules that includes the human tumor marker MUC18/MCAM4 and the chicken neural adhesion molecule Gicerin.4-6Chicken gicerin binds neurite outgrowth factor, a variant of the extracellular matrix (ECM) protein laminin7,8 and, interestingly, recent studies suggest that Lu gp also functions as a laminin receptor.9-11

The Lu gp cytoplasmic tail contains an SH3 binding motif and 5 potential phosphorylation sites, consistent with receptor signaling function. Of note, differences in the structure of the cytoplasmic tail distinguish the 2 isoforms. The 78-kd isoform (also termed B-CAM12 or Lu[v13]13) is generated by alternative splicing of intron 13 and differs from the larger form by having a truncated cytoplasmic tail lacking the SH3 binding motif as well as the potential phosphorylation sites. A recent study in epithelial cells14 suggests that the cytoplasmic tail may, in addition, contain basolateral membrane sorting signals. Analysis of transfected MDCK cells showed that a cytoplasmic di-leucine motif in the 85-kd isoform regulated its sorting to the basolateral membrane while the smaller isoform demonstrated a nonpolarized expression.14

Normal and sickle red cells, as well as stably transfected cells expressing either the 85- or 78-kd isoform, bind laminin.9-11,15-17 The degree of binding correlates with the level of Lu gp expression and sickle red cells bind more laminin than normal red cells.9-11 It therefore seems reasonable to postulate that this newly characterized laminin receptor may function not only during normal erythropoiesis in cell-ECM interactions but it may also contribute to the pathophysiology of sickle cell disease by mediating adhesion of sickle cells to vascular endothelial cells.

Many vital questions regarding the molecular characterization and the biologic function of the Lu-laminin interaction remain. In this paper we show that the Lu extracellular region binds specifically and with high affinity to human laminin isoforms that contain the α5 chain (laminins 10/11) and that laminin binding is mediated by the N-terminal 3 IgSF domains of human Lu. We also show that Lu, labeled with fluorescent antibody BRIC 221, is linked to the membrane skeleton in intact erythrocytes and we speculate that the interaction of the Lu cytoplasmic tail with the spectrin-based skeleton may be important for laminin-induced signal transduction. Because we believe that the development of Lu knockout mice is a key requirement for obtaining a detailed understanding of the role of Lu in both normal erythropoiesis and in sickle cell disease, we have cloned, sequenced, and localized the mouse gene encoding the murine homologue to human Lu gp. Importantly, using recombinant murine Lu gp extracellular IgSF domains, we document that the laminin binding property of murine and human Lu gp molecules is conserved.

Mouse EST clones that were closely related to human Lu gp were obtained from IMAGE Consortium (info@image.llnl.gov). Sequencing primers were sense and antisense vector primers, as well as 2 sense mouse cDNA primers (5′-AGATTGCCACCTGCAGC and 5′-GCAACTTGTCAAGAAGC) and 2 antisense mouse cDNA primers (5′-AAAGGCCCCCTCCCAG and 5′-TGTTAGACGCTTCACAG). DNA sequencing was performed using dye-labeled terminator chemistry on Applied Biosystems 373 or 373A automated DNA sequencers (PerkinElmer, Foster City, CA and PerkinElmer, Warrington, United Kingdom, respectively).18

The mouse Lu gene was characterized by analysis of bacterial artificial chromosome (BAC) clones obtained by polymerase chain reaction (PCR) screening of mouse BAC library CitbCJ7 derived from embryonic stem (ES) cell lines of the 129/SvJ strain (Research Genetics, Huntsville, AL). Briefly, the putative organization of the murine gene was deduced by aligning sequence of the human gene with sequences of murine EST clones. One pair of primers was designed based on sequence of the 3′ untranslated region (forward primer: 5′-CAATCTCTGGATCTGGAACTTTGG-3′; reverse primer: 5′-AGCCCCCACCTCCCTCTTC-3′). Of 4 BAC clones that were positive using this primer set, one was found to contain the entire Lugene, as determined by sequencing of PCR products and by subcloning of BAC DNA. Subcloning of BAC DNA in a bluescript vector enabled sequencing of the entire murine Lu gene.

The Jackson Laboratory BSS interspecific back-cross ([C57BL/6JEi X SPRET/Ei]F₁ X SPRET/Ei) panel was used for mapping.19 A HhaI polymorphism (C57BL/6JEi, 95 and 125 base pairs [bp] fragments; SPRET/Ei, 220 bp) within a 220-bp PCR fragment amplified with the Lu specific forward and reverse primers 5′-GCAGTGGAGGCTTTGGAGAT-3′ and 5′-CTCCCTCTTTCCCTCCCCA-3′, respectively, was used to follow segregation of alleles in the 94 back-cross progeny from the BSS panel on ethidium-stained 2% agarose gels.

The mouse Lu gene was also mapped by fluorescence in situ hybridization (FISH) analysis, using BAC DNA labeled by random priming with digoxigenin and stained with Texas red on mouse metaphase chromosome from C57 black mouse.20 Chromosome-specific probes were random labeled with biotin and stained with fluorescein isothiocyanate (FITC).21

Stable, transfected K562 cells expressing human Lu gp and domain deletion mutants were previously described.22 A control, stable transfectant expressing LW glycoprotein was prepared as outlined.22 Prior to use in cell adhesion assays, cell surface expression of Lu gp and mutants was confirmed by flow cytometric analysis using monoclonal antibody BRIC 224 against the N-terminal domain.22 Mean fluorescence intensity (MFI) values obtained and percent positive cells were respectively: control LW transfectant-MFI 4, 0%; full length Lu (FL)-MFI 557, 98%; domain 5 deleted (Del 5)-MFI 401, 98%; Del 4-5–MFI 219, 92%; Del 3-5–MFI 560, 98%; and Del 2-5–MFI 176, 94%.

Chimeric fusion proteins comprising the extracellular domains of full-length human or mouse Lu gp or of human Lu domain deletion mutants and the hinge region and Fc domains of human IgG (Lu-Fc) were expressed as follows. Regions of human Lu cDNA encoding the extracellular domains (GenBank accession X83425, nucleotides 20-1660 or the corresponding regions in domain deleted cDNAs) were amplified by PCR using a sense primer with a 5′ HindIII restriction site (TGGGATCCAGATAGGCCACGCGCAGCTCC) and an antisense primer with an in-frame 5′ consensus splice sequence and BamHI site (ACGGATCCACTTACCTGTCTCTGGCGAGCCTTGGACCA). The PCR templates were full-length Lu cDNA or domain deletion Lu cDNAs in pBluescript prepared as previously described.22 PCR products were subcloned into pIg vector as described23 and verified by sequence analysis. The region of mouse Lu cDNA encoding the predicted extracellular domains was amplified by PCR using a sense primer with a 5′ HindIII restriction site (AATATAAGCTTAACATGGAACCCCCTGACGCC) and an antisense primer with an in-frame, 5′ SalI site (CTAGTCTAGACTGGGCAGTCTGAGGGGCCACA). The PCR product was subcloned into pIg+ vector (R&D Systems, Oxford, United Kingdom) and verified by sequence analysis. Recombinant proteins were overexpressed by transient transfection of COS-7 cells as described23 and either directly captured on anti-Fc on the cuvette of the optical biosensor or purified on protein A sepharose. Full-length Lu-Fc and domain deletion mutants were tested in the biosensor for binding of monoclonal antibodies against the first N-terminal IgSF domain (BRIC 108 and BRIC 224) or the fourth IgSF domain (BRIC 221) of human Lu gp22prior to use in laminin binding experiments. Clones encoding the control Fc fusion proteins MUC18-Fc and NCAM-Fc were gifts from Dr David Simmons (SmithKline Beecham, Harlow, United Kingdom). Control LW-Fc and CD47-Fc were prepared as above.

Human placental laminin, affinity purified using antibody against laminin α5 chain (human laminin 10/11), was obtained from Calbiochem (Nottingham, United Kingdom) or from Gibco (Paisley, United Kingdom); crude, human placental laminin (human merosin) from Gibco or from Sigma (Poole, United Kingdom); and mouse EHS laminin 1 from Sigma. The protein concentration of each preparation was confirmed using the “Nano-orange” dye binding technique (Molecular Probes, Leiden, The Netherlands). Molar concentrations of each laminin species were calculated using published apparent molecular weights.24 25 Control ECM protein, human thrombospondin were purchased from Calbiochem.

Laminin or bovine serum albumin (BSA, Sigma) in 0.1 M sodium bicarbonate pH 9.6 was coated on microplates (Immulon-4, Dynex Technologies, Billingshurst, United Kingdom) at 4°C for 18 hours. Various amounts of laminin (0-5 × 10⁻¹² mole) were added to each well and allowed to bind passively. K562 transfectants were fluorescently labeled using 2′, 7′-bis(2-carboxyethyl)-5(6)-carboxyfluorescein acetoxymethyl ester (BCECF, Sigma). Ten microliters of 1 mg/mL BCECF was added to 10⁷ cells suspended in 1 mL Iscove modified Eagle medium containing 5% human AB serum (IMEM-AB), incubated at 37°C for 15 minutes, then washed in IMEM-AB. Then, 10⁴ cells, suspended in IMEM-AB, were added to each well and allowed to adhere at 37°C for 1 hour before unbound cells were removed by washing with IMEM-AB. Fluorescence was measured before and after washing and the percentage bound cells quantitated.

Binding of laminin to Lu-Fc was examined in an IAsys optical biosensor (Affinity Sensors, Cambridge, United Kingdom). Affinity purified goat antihuman Fc (Sigma) was covalently coupled to a carboxy methyl dextran reaction cuvette (Affinity Sensors) according to the manufacturer's instructions. Fc fusion proteins in phosphate-buffered saline (PBS) pH 7.4, 0.05% Tween 20 (PBSt) were captured on this matrix and tested for interaction with laminin. To characterize the kinetic rate and equilibrium constants for the interaction of Lu-Fc with human laminin 10/11 soluble, recombinant, full-length Lu-Fc was added to PBSt buffer (final concentration 10 μg/mL) and captured on the anti-Fc surface until the biosensor recorded a response of 100 arc seconds; then the buffer was changed. Dissociation of Lu-Fc from anti-Fc was negligible. Soluble, human laminin 10/11 was applied (final concentration 24 nM) and association recorded for 4 minutes before the laminin was exchanged for PBSt and dissociation of the complex recorded. In all subsequent experiments Lu-Fc or control recombinant Fc fusion proteins were applied to the anti-Fc matrix to give an instrument response of 100 arc seconds before washing with PBSt and examination of laminin interaction. Association and dissociation rates were estimated by curve fitting using biosensor software.

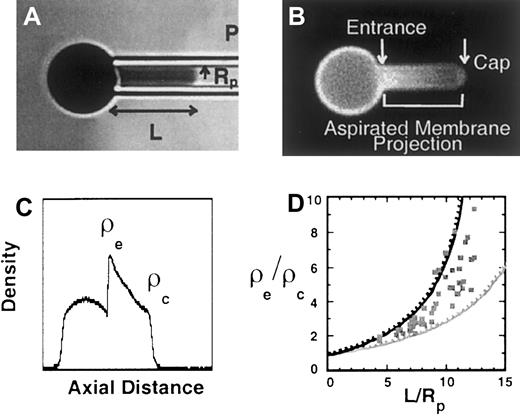

The redistribution of membrane components in response to mechanical deformation was analyzed by fluorescence-imaged microdeformation (FIMD).26-28 The membrane component of interest was fluorescently labeled in situ and then individual cells were aspirated into a glass micropipette (diameter 1.0-1.2 μm). Aspiration created an in-plane deformation of the membrane skeleton, which condensed to enter the micropipette and subsequently dilated down the micropipette. Aspiration length scaled by the micropipette radius (L/Rp) was predetermined by the surface-to-volume ratio of the cell (osmotically controlled) and by the large compressibility modulus of the lipid bilayer. The relative density of a fluorescently labeled component at different locations along the aspiration length was quantified as the fluorescence intensity at that location normalized by the fluorescence intensity of the labeled molecules in the spherical portion of the aspirated cell.

By scanning the GenBank database with the human Lu protein sequence we identified 5 mouse EST clones (accession numbers AA034658,AA008742, W48082, W78289, and AA038169), which were more closely related to the human Lu protein than to any other member of the human IgSF. The clones were obtained from IMAGE Consortium and found to contain overlapping DNA sequences, suggesting that they were derived from the same cDNA. We characterized the cDNA insert sizes of these 5 ESTs and determined that the cDNA insert in IMAGE clone 466937 (GenBank accession number AA034658) was ∼2.4 kb. Because the human Lu cDNA protein-coding region comprises ∼1.89 kb, we anticipated that this ∼2.4-kb cDNA insert would provide us with the complete protein coding region. The clone was sequenced and found to contain a cDNA insert of 2.34 kb with a single open reading frame of 1869 bp encoding the putative mouse Lu gp, the 3′ nontranslated region and poly-A tail. The cDNA and translated amino acid sequences have been submitted to GenBank (accession number AF221507).

To clone the murine Lu gene we screened a BAC murine genomic library (CitbCJ7) derived from ES cell lines of the 129/SvJ mouse strain. Using primers in the 3′ untranslated region, we isolated a BAC clone 97J17, which was shown by PCR and hybridization with cDNA probes to contain the entire Lu gene (GenBank accession numberAF246667). Sequencing of the BAC DNA showed that the murine Lugene was 14.1 kb and contained 15 exons, ranging in size from 6 to 226 bp (Figure 1). All of the intron/exon boundary sequences exhibited the characteristic 5′ splice donor GT and the 3′ splice acceptor AG motifs (Table1). The exonic sequences derived from our genomic sequence were completely homologous with the sequence of the Lu cDNA derived from the EST clone with the exception of 6 nucleotides (nt 4830, 5035, 5103, 6317,10114, and 12046). Three of these 6 nucleotide differences would result in amino acid changes. Specifically, nt 5035 in exon 6 was G in the genomic sequence and A in the cDNA sequence, generating codons for aspartic acid and asparagine, respectively. Nucleotide 6317 in exon 8 was G in the genomic sequence and C in the cDNA sequence, encoding glycine and arginine respectively. Finally, nt 10114 in exon 9 was C in the genomic sequence and T in the cDNA sequence, coding for alanine and valine, respectively. The size and organization of the murine gene was very similar to that of its human counterpart, which also contains 15 exons distributed over 13 kb.22 29 Mouse Lu, like human LU, does not have Kozak consensus sequence around the initiating ATG. In addition, both mouse and human genes have stop codons at the beginning of intron 13 (CCgtaagtg and CCgtgagtg, respectively). In the case of the human gene this structure results in alternative splicing of intron 13 that generates 2 different stop codons, producing the 85-kd and 78-kd isoforms of human Lu gp. Further study will be necessary to determine whether similar splicing occurs in the mouse.

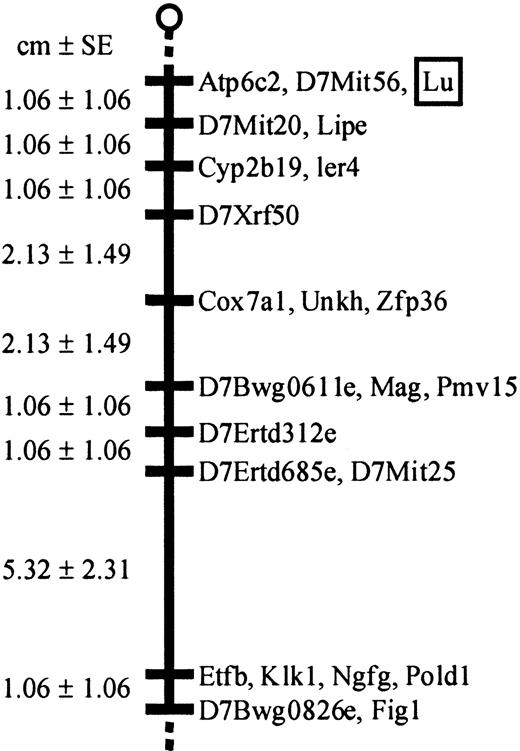

The chromosomal localization of the mouse Lu gene was mapped using The Jackson Laboratory BSS interspecific back-cross panel.19,Lu was nonrecombinant with Atp6c2 and D7Mit56, placing Lu ∼4 cM distal to the centromere on mouse chromosome 7 (Figure 2). This region of mouse chromosome 7 shows conserved synteny with human 19q13.2,30 where human LUlocalizes.3 13 The typing data have been placed in the Mouse Genome Database (accession number J:60990) and can be accessed through the World Wide Web (http://www.jax.org). BAC DNA containing theLu gene localized to the proximal end of chromosome 7 by FISH analysis (data not shown), confirming the linkage data.

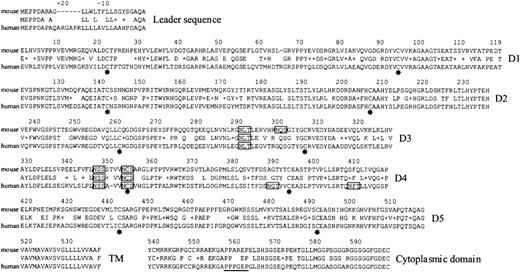

Characterization of mouse Lu cDNA allowed us to align the deduced amino acid sequences of murine and human Lu gp3 using the “BLAST 2 sequences” program (NCBI Entrez, Figure3). The level of amino acid identity between the putative translated products was 72%. The mouse Lu cDNA we have sequenced encodes the 85-kd Lu glycoprotein isoform. Analysis of the extracellular region of the murine homologue of Lu revealed several interesting features. It appears likely that the disulfide-bonded IgSF domains will be similarly folded in the murine and human polypeptides because the critical cysteine residues, 22, 93, 140, 205, 260, 305, 353, 393, 441, and 492, as well as other key residues within each of the predicted IgSF domains, are conserved. In addition, 3 of the 4 potential glycosylation sites in the mouse third and fourth extracellular domains are conserved. Within the cytoplasmic tail the proline-rich SH3 binding motif P⁵⁵⁷PPXXP present in human is partially conserved in mouse (P⁵⁵⁷PAXXP) and each of the 5 serine residues is conserved, suggesting that ligand-induced receptor signaling may be similar in mouse and human cells.

Although there is now very good evidence that Lu gp serves as a laminin receptor, the particular laminin proteins that function as ligands in this interaction have not yet been characterized. Laminins are a large family of proteins, each composed of 3 polypeptide chains (α, β, and γ).25 There are at least 5 distinct α chains and similar numbers of β and γ chains. Earlier studies on laminin adhesion have used laminins prepared from mouse Engelbreth Holm Schwarm (EHS) tumor cell cultures or from human placenta. Mouse EHS-laminin is the prototype laminin 1 (α1β1γ1). In contrast, crude human placental laminin preparations (merosin) contain mainly laminin 2 (α2β1γ1), laminin 4 (α2β2γ1), and a comparatively small proportion of laminins 10 (α5β1γ1) and 11 (α5β2γ1).24 Recently it has been discovered that laminins 10 and 11 can be specifically purified from human placental laminin,24 using a monoclonal antibody that recognizes the laminin α5 chain.31 Thus a number of distinct laminin isoforms are now available for adhesion assays. In the present study we explored the possibility that a specific form of laminin is a high-affinity ligand of Lu gp.

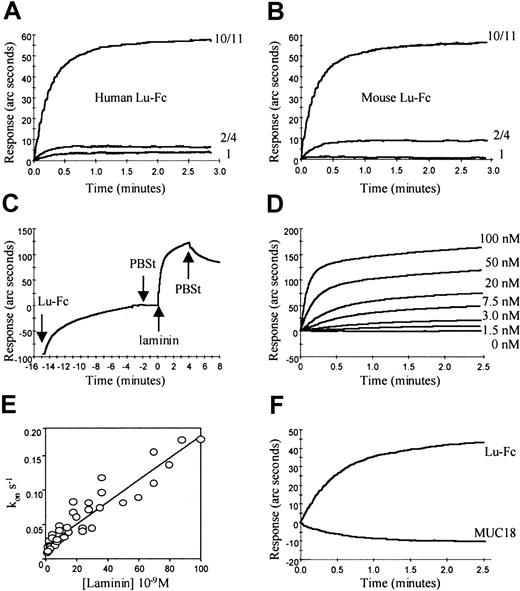

To define the laminin isoform(s) that associates with Lu gp, the optical biosensor assay was used. Recombinant human Lu-Fc was captured on the anti-Fc biosensor cuvette; then affinity purified human laminin 10/11, crude human placental laminin, or mouse laminin 1 was applied (each at a final concentration of 42 nM) and association was recorded. We observed that human Lu-Fc protein bound human laminin 10/11 (Figure4A). In marked contrast, a relatively small association response was observed with an equal molar concentration of the crude human placental laminin preparation (laminin 2/4) and no binding occurred to mouse laminin 1 (Figure 4A).

Having obtained the predicted sequence of the murine homologue of Lu gp, we were also able to determine whether murine Lu gp interacts with the same laminin isoforms as human Lu gp. After expressing the predicted extracellular domains of murine Lu as an Fc fusion protein, we tested this recombinant polypeptide in the biosensor assay. Mouse Lu-Fc also bound human laminin isoforms 10 and 11, a small proportion of crude human placental laminin but not mouse laminin 1 (Figure 4B). These data clearly show that both human and mouse Lu are specific membrane receptors for laminin isoform(s) containing the α5 polypeptide chain.

To characterize the kinetics of the human Lu gp/laminin interaction, soluble recombinant, full-length Lu-Fc was added to PBSt buffer (final concentration 10 μg/mL) and captured on the anti-Fc surface (Figure 4C) until the biosensor recorded a response of 100 arc seconds and then the buffer was changed. Dissociation of Lu-Fc from the anti-Fc was negligible (Figure 4C). Soluble, human laminin 10/11 was then applied (final concentration 24 nM) and kinetics of the protein-protein interaction was recorded for 4 minutes before the laminin was exchanged for PBSt and dissociation of the protein complex recorded (Figure 4C).

The association rates (k_on) and dissociation rates (k_off) for the interaction with human laminin 10/11 were measured at laminin concentrations in the range 0.1 to 100 nM. Values for k_on and k_off were estimated by curve fitting using biosensor software assuming simple, monophasic interaction (A+B↔AB, representative data for the association of laminin 10/11 with human Lu-Fc are shown in Figure 4D). Measured values for k_on were plotted against laminin concentration and the association rate constant (k_ass) was derived from the gradient of this plot using biosensor software. Data for the association of laminin 10/11 with human Lu-Fc are shown in Figure 4E. The dissociation rate constant (k_diss) was taken as the mean value for k_off. The dissociation equilibrium constant (K_D) was calculated (K_D = K_diss/K_ass). Errors for k_ass were obtained using the biosensor software and errors for k_dissand K_D were calculated using the sum of squares method. The results of kinetic analysis for the interaction of human laminin 10/11 with human Lu-Fc revealed high-affinity binding (k_ass = 1.6 ± 0.09 × 10⁶M⁻¹s⁻¹, k_diss = 1.26 ± 0.01 × 10⁻² s⁻¹, K_D = 7.9 ± 0.47 nM).

The interaction of human laminin 10/11 with mouse Lu-Fc was examined in a similar manner (data not shown). Compared with human Lu-Fc the affinity of the binding of laminin 10/11 to mouse Lu-Fc was found to be approximately an order of magnitude lower (k_ass = 3.5 ± 0.7 × 10⁵M⁻¹s⁻¹, k_diss = 2.62 ± 0.01 × 10⁻²s⁻¹, K_D = 74.5 ± 14.5 nM).

To determine the specificity of the binding interaction, we tested other cell adhesion molecules expressed as soluble Fc fusion proteins. We observed that the extracellular region of the human structural analogue MUC 18-Fc failed to bind 10 nM laminin (Figure 4F) as did LW-Fc, NCAM-Fc, and CD47-Fc (data not shown). Soluble human thrombospondin (final concentration 2.9 nM) was also applied to captured human Lu-Fc and failed to bind (data not shown).

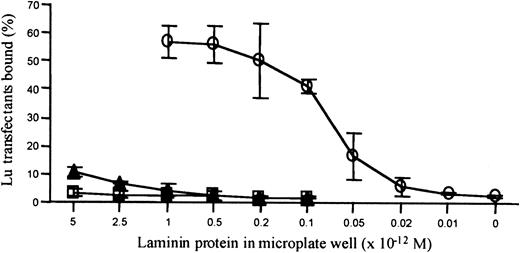

As an independent and complementary approach to identifying the laminin ligand, K562 transfectants were tested in a microplate cell adhesion assay. Laminin preparations were titrated and added to microplates in the range 5 × 10⁻¹² to 5 × 10⁻¹⁶ mole per microplate well. Fluorescently labeled K562 transfectants expressing full-length human Lu gp were allowed to adhere to the coated microplates, fluorescence was measured before and after washing, and the percentage bound cells was calculated. The titration results clearly show that in this static adhesion assay system the human Lutheran transfectant adhered in microplate wells coated with small quantities of human laminin 10/11 (37% cell adhesion at 5 × 10⁻¹³ mole per well added laminin, Figure 5). In contrast, the transfectants showed poor adhesion in wells containing 10-fold greater quantities of mouse laminin 1 or crude human placental laminin (3% and 11% cell adhesion, respectively, at 5 × 10⁻¹² mole per well added laminin, Figure 5). The data from this series of experiments, therefore, confirmed the results of the biosensor assays and clearly demonstrated that human Lutheran Fc fusion proteins specifically bind human laminins containing the α5 polypeptide chain.

To identify the laminin-binding domain(s) on Lu gp, Lu deletion mutants, lacking one or more IgSF domains (Figure6A) were expressed as Fc fusion proteins and assayed for laminin binding. Each Fc fusion protein was captured on the anti-Fc biosensor cuvette to give an instrument response of 100 arc seconds. Human laminin 10/11 (final concentration 10 nM) was added to the cuvette and the binding response was recorded. Full-length Lu-Fc, the mutant lacking Lu domain 5 (Del 5), and the mutant lacking domains 4 and 5 (Del 4-5) gave a positive binding curve, whereas the mutant Lu-Fc fusion proteins lacking domains 3, 4, and 5 (Del 3-5); the mutant lacking domains 2, 3, 4, and 5 (Del 2-5); and MUC18-Fc (MUC18) control failed to bind laminin 10/11 (Figure 6B). These data imply that the first 3, N-terminal IgSF domains are critical for laminin binding to Lu gp.

As an independent and complementary approach to defining the ligand binding domain on the Lu gp receptor, fluorescently labeled K562 transfectants expressing full-length or domain-deleted Lu gp were tested in the microplate adhesion assay in microplates coated using 10⁻¹² mole human laminin 10/11 per well. Fluorescence was measured before and after washing and the percentage bound cells quantitated. K562 transfectants expressing full-length Lu and mutants Del 5 and Del 4-5 adhered to laminin 10/11, whereas transfectants expressing mutants Del 3-5 and Del 2-5 did not adhere (Figure 6C). Negative controls were K562 transfectants expressing LW glycoprotein and full-length Lu gp applied to laminin and immobilized bovine albumin, respectively. Considered together these data clearly show that a laminin-binding site(s) is present in the 3 membrane distal IgSF domains.

To begin to characterize the binding interactions of the cytoplasmic domain of Lu gp we determined whether Lu gp interacts with the spectrin-based skeleton. For these studies, Lu gp in human erythrocytes was specifically labeled with FITC-conjugated monoclonal anti-Lu gp BRIC 221 and analyzed by fluorescence imaged microdeformation. The redistribution of Lu in response to microdeformation was mapped by quantitating the ratio of entrance to cap density (ρ_ε/ρ_c) as a function of aspiration length (L/Rp). We observed that FITC-labeled anti-Lu gp exhibited a steep gradient in concentration along the projection, which was almost as steep as that of skeletal-actin (Figure7). This is in contrast to findings with glycophorin A or band 3, which exhibit less steep gradients reflecting the presence of both skeleton-associated and freely diffusing populations of these molecules. Based on these findings we suggest that BRIC 221-labeled Lu is predominantly linked to the membrane skeleton and we speculate that the interaction of its cytoplasmic tail may be critical for laminin-induced signal transduction.

A major finding of the current study is that Lu gp is a specific, high-affinity receptor for human laminins containing the α5 polypeptide chain. Of the 10 laminin isoforms identified to date, 2 isoforms are in this category—laminin 10 (α5β1γ1) and laminin 11 (α5β2γ1). Our data further suggest that Lu gp may bind laminins 10/11 via the α5 chain and not via the β or γ chain, because we clearly showed that human laminins 2 (α2β1γ1) and 4 (α2β2γ1), which share common β and γ chains with laminins 10/11, do not associate with Lu gp. This report, therefore, extends the findings that Lu gp(s) is a membrane laminin receptor of erythroid cells9 10 by characterizing the affinity of the Lu gp/laminin interaction and by identifying the specific laminin-binding partner.

We and others have previously shown that Lu gp first appears in erythroid differentiation at the stage of orthochromatic erythroblasts.32,33 These findings suggest that Lu gp/laminin binding may have a role in the later stages of erythroid maturation, specifically in the migration of maturing erythrocytes through the subendothelium of bone marrow sinusoids. Recently, a study of human and murine bone marrow demonstrated that laminin 10/11 is expressed in sinusoidal ECM.34 Our current data showing that laminin 10/11 is the specific Lu gp binding partner strengthens the hypothesis that Lu gp may mediate erythroid adhesion with bone marrow sinusoidal ECM and play a functional role in marrow egress.

Our identification of α5 chain-containing laminins as the Lu gp specific ligand is also consistent with accumulating evidence suggesting that the Lu gp/laminin interaction contributes to the abnormal adhesion of sickle red blood cells to vascular endothelium.9-11,15-17,35 Sickle cells show abnormal adhesion to laminin and it is now clear that an increased expression of Lu gp found on unfractionated red blood cells from patients with sickle cell disease may be the direct causal mechanism of this phenomenon.10,11,36 Indeed, we have found that the Lu gp copy number on sickle cells may be as much as 50% higher than on control red cells from healthy, Afro-Caribbean volunteers (Gardner, Spring, Parsons, Anstee, unpublished observations). It has recently been reported that sickle cells bind to human laminin isoforms 10 and 11 but not to human laminin 2, human laminin 4, or mouse laminin 1.17 Strikingly, our present data indicate that human Lu gp demonstrates a similar adherence pattern and also binds to human laminin-isoforms 10 and 11 but not to human laminin 2, human laminin 4, or mouse laminin 1. These data thus imply that the observed binding interaction between sickle cells and laminins 10 and 11 involves the Lu gp laminin receptor.

To begin to understand the precise molecular mechanisms involved in Lu gp receptor function we characterized in more detail the protein-protein interactions of the extracellular and cytoplasmic domains of this adhesion molecule. Using domain-deleted Lu gp constructs expressed both as soluble fusion proteins and on the membranes of stable transfectants, we have located a laminin binding region within the first 3, N-terminal IgSF domains. Independently, another group has reported that cells transfected with a domain-deleted Lu gp construct containing only the membrane proximal, fifth IgSF domain adhered to laminin.11 In contrast to the data presented here, these investigators found that deletion of domain 5 abolished laminin binding. We have shown, using 2 different techniques, that domain 5 is not critical for laminin binding. Of note, however, in our experiments with transfected K562 cells we did observe that fewer cells expressing mutants with deletions of domain 5 or 4-5 bound laminin compared to cells expressing full-length Lu gp. Hence our current data, coupled with that of Zen and colleagues,11raises the intriguing possibility that there may be 2 laminin-binding regions on the Lu gp structure: one on domains 1-3 and the other on domain 5. There is precedence for such a hypothesis since VCAM-1, which has 7 IgSF domains, contains 2 distinct binding sites for α4β1 integrin: one on the membrane distal IgSF domain and the other on the fourth IgSF domain.37 38

The protein-protein interactions of the cytoplasmic domain of a receptor molecule can play critical roles in regulating receptor function. To determine whether Lu interacts with the spectrin-based skeleton we used a molecular mapping technique that is a powerful means of providing insight into in situ protein linkages. Our findings that BRIC 221-labeled Lu exhibited a steep gradient in concentration along the membrane projection, which was almost as steep as that of skeletal actin, implies that Lu is predominantly skeleton associated. We postulate that this interaction of the Lu gp cytoplasmic tail with the spectrin-based skeleton may also be critical for laminin-induced signal transduction. In future studies it will be interesting to determine whether laminin binding alters the protein interactions of the Lu cytoplasmic domain.

Because we believe that the development of a suitable animal model is a key requirement for obtaining a detailed understanding of the role of Lu in normal erythropoiesis and in sickle cell adhesion, we cloned and sequenced the mouse gene encoding the murine homologue to human Lu gp. Our characterization of mouse Lu confirms and extends the observations very recently reported by Rahuel and colleagues.39 These investigators described the intron/exon boundaries, sequenced 7 of the 14 introns, and estimated the sizes of the remaining 7 introns. We have obtained and submitted to GenBank the complete sequence of the 15 exons and all 14 introns. The splice acceptor and donor site sequences obtained by our 2 groups are very similar with the differences being primarily at the single nucleotide level. With the exception of introns 1, 2, and 8 earlier estimates of intron size39 are within 4 to 94 nucleotides of our complete sequence data. In the case of introns 1, 2, and 8, Rahuel and colleagues predicted sizes of more than 2000, ∼1600, and ∼4200 nucleotides, respectively, whereas our genomic sequence data have shown that intron 1 is 1834 nt, intron 2 is 1365, and intron 8 is 3671. The exonic sequences derived from our genomic sequence were completely homologous with the cDNA sequence we obtained of the EST clones with the exception of single nucleotide variations in exons 5, 6, 8, 9, and 13. The only nucleotide differences that would result in changes in amino acid sequence occurred in exons 6, 8, and 9 where the genomic sequence would encode an aspartic acid, glycine, and alanine, respectively, whereas the cDNA sequence would encode an asparagine, arginine, and valine, respectively. Interestingly in human Lu gp, blood group single nucleotide polymorphisms have been mapped to each of the 5 IgSF domains22 and it is possible that a similar situation may exist for mouse.

From our characterization of the murine homologue we discovered that human and mouse Lu gps are highly conserved at the amino acid sequence level (72% overall identity). This conservation was reflected within individual IgSF domains but, among candidate ligand-binding domains, the first domains showed least identity (65%), whereas the second and third domains were most conserved (82% and 75%, respectively). The fifth domain showed 69% identity. Strikingly consistent with these findings, the predicted extracellular IgSF domains of mouse Lu gp, when expressed as a fusion protein, displayed the same binding pattern as human Lu gp and specifically bound human laminin 10/11 but not human laminin 2/4 or mouse laminin 1. However, the affinity of the interaction of human laminin 10/11 with mouse Lu gp, while still in the nanomolar range, was an order of magnitude lower than that observed for human Lu gp. Examination of published amino acid sequences of various laminin α chains revealed that while only a partial sequence is published for the human α5 chain, it shows 68% identity with mouse α5. We speculate that the observed differences in affinities might reflect minor divergences at the primary sequence or functional levels during evolution. In contrast to our results, Rahuel and coworkers reported that transfectants expressing a fusion protein comprising N-terminal c-myc and full length mouse Lu gp bound mouse laminin 1.39 One possible explanation for this is that the presence of N-terminal c-myc at or close to the laminin-binding region may have caused partial loss of ligand specificity in this construct. However, our finding that the murine Lu gp has conserved the laminin-binding specificity of the human receptor molecule strongly suggests that the Lu gp/laminin 10/11 interaction may have a key biologic function. Ahead lies the challenge of defining the precise role of Lu gp in normal erythropoiesis and in sickle cell disease.

We would like to thank Dr Marja Ekblom for advice on the nature of commercial laminin preparations. We are very grateful to Dr Uli Weier and Dr Robert Lersch (LBNL, Berkeley, CA) for their invaluable help in FISH analysis and to Mr Michael Patterson for his expert technical assistance.
