Dendritic cells (DCs) are professional antigen-presenting cells in the immune system and can be generated in vitro from hematopoietic progenitor cells, DC precursors, and monocytes in peripheral blood. Serial analysis of gene expression (SAGE) was conducted in lipopolysaccharide (LPS)-stimulated mature and activated DCs (MADCs) derived from human blood monocytes. A total of 31 837 tag sequences from an MADC cDNA library represented 10 962 different genes, and these data were compared with SAGE data for monocyte-derived immature DCs (IMDCs). Many of the genes, such as germinal center kinase–related protein kinase, cystatin F, interferon (IFN)-α–inducible protein p27, EBI3, HEM45, actin-bundling protein, ELC, DC-LAMP, serine/threonine kinase 4, and several genes in expressed sequence tags, were differentially expressed in MADCs, and those encode proteins related to cell structure, antigen-processing enzymes, chemokines, and IFN-inducible proteins. The profile of MADCs was also compared with that of LPS-stimulated monocytes. The Epstein-Barr virus–induced gene 3 and IFN-α–inducible protein p27 are newly identified to be specifically and highly expressed in MADCs, but not in LPS-stimulated monocytes. The comprehensive identification of specific genes expressed in human IMDCs and MADCs should provide candidate genes to define heterogeneous subsets as well as the function and maturation stage of DCs.

Dendritic cells (DCs) play a pivotal role in the immune system by processing and presenting antigens to CD4+naive T cells.1 DCs have also been reported to be involved in the direct induction of CD8+ cytotoxic T cells,2 immunoglobulin production by B cells,3 and T-cell tolerance.4,5 DCs, which are found in virtually every tissue and fluid, are mostly immature DCs expressing a chemokine receptor, CCR1 or CCR6, and are able to capture antigens. Once activated by inflammatory stimuli, DCs mature and start to express a chemokine receptor, CCR7, and also produce chemokines that recruit various types of leukocytes, including immature DCs at the inflammatory site. These mature and activated DCs (MADCs) are consequently recruited via the lymphatics to the T-cell–rich areas of secondary lymphoid organs to stimulate CD4+ naive T cells6-8 by SLC produced in the lymphatic endothelium and high endothelial venules.

DCs undergo a series of events leading to irreversible maturation and ending with apoptotic cell death.9 During their migration, DCs undergo further changes of phenotype and function, including loss of antigen uptake and processing and increase of accessory function. DC maturation can be influenced by a variety of factors, notably microbial and inflammatory mediators. Whole bacteria, the gram-negative microbial cell-wall component lipopolysaccharide (LPS),10monocyte-conditioned medium,11 and cytokines such as interleukin (IL)-1 and tumor necrosis factor-α (TNF-α) all stimulate DC maturation. Ceramide, which is induced by maturation signals, can shut down antigen capture by the DCs.12Mature DCs express high levels of the NF-kB family of transcriptional control proteins,13,14 which regulate the expression of many genes encoding immune and inflammatory proteins. During maturation of DCs, the expression of CD83, CD80, CD86, and CD49 is kept, but that of CD1a is reduced.10,15

DCs in lymphoid and nonlymphoid organs vary in their surface markers and functions and therefore have different names, such as Langerhans cells in the epidermis; interdigitating DCs in lymph nodes; interstitial DCs in the heart, lung, kidney, and intestine; and thymic DCs in the thymus. DCs are thought to belong to a lineage distinct from monocytes and macrophages. However, it has been reported that macrophages and DCs share a common progenitor.16,17 Human DCs have been generated from CD34+ precursor cells isolated from cord blood18 and bone marrow19 in the presence of granulocyte-macrophage colony-stimulating factor (GM-CSF) and TNF-α. Moreover, blood monocytes cultured with GM-CSF and IL-4 differentiate into nonadherent CD1a+CD14low cells with morphologic and functional characteristics of DCs.20,21 However, the process of differentiation from monocytes to DCs has not yet been explored systematically. To clarify this point, we previously performed serial analysis of gene expression (SAGE) in immature DCs (IMDCs) derived from human blood monocytes.22 Many of the genes that were differentially expressed in IMDCs were identified to be genes encoding proteins related to cell structure, cell motility, and chemokines. In this study, to further understand the characteristics of DC differentiation, we have applied the SAGE method to human MADCs. The SAGE method has proved to be a powerful means for the quantitative cataloging and comparison of expressed genes in the cells or tissues from various physiologic, developmental, and pathologic states.23-27

Preparation of cells

Peripheral blood mononuclear cells (PBMCs) were isolated from venous blood drawn from normal healthy volunteers at the Tokyo Metropolitan Red Cross Blood Center.22 Briefly, PBMCs were isolated by centrifugation on a Ficoll-Metrizoate density gradient (d = 1.077, Lymphoprep; Nycomed, Oslo, Norway) and suspended in RPMI 1640 medium containing 7.5% heat-inactivated fetal calf serum (FCS; GIBCO/LIFE Technologies, Tokyo, Japan), 100 μg/mL streptomycin, and 100 U/mL penicillin G. The FCS contained 3 pg of LPS per milliliter as assessed by a Limulus amebocyte lysate. PBMCs were incubated with anti-CD14 monoclonal antibody (mAb) bound with microbeads, and monocytes were isolated by passing the PBMCs through a magnetic cell separation system (MACS; Miltenyi Biotec, Germany) with column type VR. These cell suspensions were then aliquoted into plastic tissue culture plates and incubated for 30 minutes at 37°C in 5% CO2 to obtain the highly purified cells. More than 99% of the cells were judged to be monocytes by morphology, by positive staining for CD14 (LeuM3; Becton Dickinson, San Jose, CA) in flow cytometric analysis, and by nonspecific esterase staining.

Phenotyping with monoclonal antibodies

The expression of leukocyte cell surface markers and cytoplasmic antigens was assessed. The cells were sequentially incubated with optimal concentrations of biotinylated anti-CD86 (2331; PharMingen, San Diego, CA) and anti-CD1a mAbs (HI 149; PharMingen), followed by fluorescein isothiocyanate (FITC)-labeled streptavidin and by phycoerythrin (PE)-conjugated goat anti-mouse IgG, respectively, or directly stained with FITC-labeled anti–HLA-DR (4C3; PharMingen), mouse anti-CD80 (MAB104; Coulter, Fullerton, CA), CD83 (HB15a; Coulter), and PE-labeled anti-CD14 (M5E; PharMingen) mAbs. To block nonspecific FcR-mediated binding of mAbs, cells were incubated for 60 minutes at 4°C with normal goat serum (Cedarlane Laboratories Ltd, Hornby, Ontario, Canada) before staining. For all experiments, irrelevant control mAbs of the same IgG isotype and second step controls were included. Stained cells were fixed with 1% paraformaldehyde (Sigma), and analyses were performed using the EPICS XL (Beckman Coulter, Hialeah, FL).

SAGE protocol

mRNAs of MADCs were purified from a mixture of total RNA from 6 donors. Monocytes were incubated with IL-4 (100 U/mL; Ono Pharmaceutical Co, Ltd, Japan) or GM-CSF (500 U/mL; Kirin Brewery Co, Ltd, Japan) in RPMI 1640 medium containing 7.5% FCS in 5% CO2 at 37°C for 7 days, then incubated with 100 μg/mL of LPS for 2 days. Total RNA from these cells was isolated by direct lysis in RNAzol B (Cinna/Biotex Laboratories, USA). Poly(A)+ RNA was isolated using the FastTrac mRNA purification kit (Invitrogen, Carlsbad, CA) according to the manufacturer's instructions. SAGE was done as described.23,24,28 SAGE libraries were generated using 1.5 μg poly(A)+ RNA, which was converted to cDNA with a BRL synthesis kit (GIBCO BRL, Rockville, MD) with the inclusion of primer biotin-labeled 5′-T18-3′. The cDNA was cleaved with the restriction enzyme NlaIII, and the 3′-terminal cDNA fragments were bound to streptavidin-coated magnetic beads (Dynal, Oslo, Norway). After ligation to oligonucleotides containing recognition sites for BsmF1, the linked cDNAs were released from the beads by digestion with BsmF1. The released tags were ligated to one another, concatenated, and cloned into theSphI site of pZero 1.0 (Invitrogen). Colonies were screened with polymerase chain reaction (PCR) using M13 forward and M13 reverse primers. PCR products containing inserts of longer than 400 bp were sequenced with the Big Dye terminator kit and analyzed with a 377 ABI automated 96-lane sequencer (Perkin-Elmer, Branchburg, NJ). All electropherograms were reanalyzed by visual inspection to check for ambiguous bases and to correct misreads.

SAGE was performed on mRNA from MADCs and LPS-stimulated monocytes. Sequence files were analyzed with the SAGE software,28 the National Center for Biotechnology Information (NCBI) SAGE database (http://www.ncbi.nlm.nih.gov/SAGE/), and NCBI's sequence search tool (Advanced BLAST search,http://www.ncbi.nlm.nih.gov/BLAST/). After elimination of linker sequences and the repeated ditags, a total of 31 837 tag sequences from MADCs were analyzed.

Reverse transcriptase (RT)-PCR

Total RNAs (200 ng) were prepared by the use of RNAzol B. The RNA was reverse-transcribed in 50 μL of 10 mmol/L Tris-HCl (pH 8.3), 6.5 mmol/L MgCl2, 50 mmol/L KCl, 10 mmol/L dithiothreitol, 1 mmol/L of each dNTP, 2 μmol/L random hexamer, and 2.4 U/μL of Moloney murine leukemia virus reverse transcriptase for 1 hour at 42°C. The cDNA, corresponding to 40 ng of total RNA, was boiled for 3 minutes and quenched on ice before amplification by PCR. The conditions for PCR were as follows: in a 50-μL reaction, 0.15 μmol/L of each primer; 1.25 μmol/L of each dGTP, dATP, dCTP, and dTTP (Toyobo); 50 mmol/L KCl; 10 mmol/L Tris-HCl, pH 8.3; 0.15 mmol/L MgCl2; and AmpliTaq (Perkin-Elmer). The cycle number of PCR for each gene is shown in parentheses and primers used were as follows: CCR7 (28): sense 5′-TCCTTCTCATCAGCAAGCTGTC-3′, antisense 5′-GAGGCAGCCCAGGTCCTTGAAG-3′; actin-bundling protein (25): sense 5′-ATGGACCTGTCTGCCAATCAG-3′, antisense 5′-CTTTGATGTTGTAGGCGCCA-3′; interferon (IFN)-inducible protein 27 (30): sense 5′-TCTGCTCTCACCTCATCAGCA-3′, antisense 5′-CCTGGCATGGTTCTCTTCTCTG-3′; HEM45 (28): sense 5′-GGTGCTGTGCTGTACGACAAGT-3′, antisense 5′-CGGATTCTCTGGGAGATTTGAT-3′; EBI3 (30): sense 5′-TGTTCTCCATGGCTCCCTACGT-3′, antisense 5′-TACTTGCCCAGGCTCATTGTGG-3′; DC-LAMP (30): sense 5′-GGCCCTAGCTTAGCCCCTTATT-3′, antisense 5′-CTCCGAGGTGAAAAAACCGA-3′; cystatin F (28): sense 5′-TTCCCAGGACCTTAACTCACGT-3′, antisense 5′-GGTGTTTGTCATGGCTGTGGT-3′; CD23 (28): sense 5′-GGAGGAACTTCGAGCTGAACA-3′, antisense 5′-AGTTCCGAAGGCCAATCCA-3′; lysosomal acid lipase (28): sense 5′-TCTTCCCCAGAGTGCGTTTTt-3′, antisense 5′-CATGGAACACCAAGTTGGTGAT-3′; CD11b (28): sense 5′-TGTGAAAGGGCTCTGCTTCCT-3′, antisense 5′-TCTTAAAGGCATTCTTTCGGGC-3′; IgGFcR (28): sense 5′-CTTTTCCGTGCTTACCTGCAG-3′, antisense 5′-AAATCAGCATCCTGGGCCT-3′; factor XIII (28): sense 5′-ATTGGCCCTAGAAACTGCCCT-3′, antisense 5′-TGGACTTTTGCTTGGCCAGA-3′; MacMARCKS (40): sense 5′-CCACGTGAAAAGCAATGGAGA-3′, antisense 5′-TTCTGAGGCTGCACTAGCCTCT-3′; IL-12 p35 (40): sense 5′-CCTTCACCACTCCCAAAACCT-3′, antisense 5′-TGAAATTCAGGGCCTGCATC-3′; IL-12 p40 (30): sense 5′-GGATGCCCCTGGAGAAATGG-3′, antisense 5′-CTCCCAGCTGACCTCCACCT-3′; and adenylyl cyclase–associated protein (CAP) (28): sense 5′-GCACTGTTCGCGCAGATTAA-3′, antisense 5′-A CAATGCCCACCACGTCAT-3′.

Reaction mixtures were incubated in a Perkin-Elmer DNA Thermal Cycler (denaturation, 60 seconds at 94°C; annealing, 60 seconds at 58°C; extension, 120 seconds at 72°C).

Statistical analysis

Statistical significance between samples was calculated as described previously.29 To analyze the correlation coefficients between the different libraries, 58 540, 31 837, 31 837, 57 560, 55 856, and 57 463 tags from IMDCs, MADCs, LPS-stimulated monocytes (LPS-Mo), monocytes (Mo), macrophage colony-stimulating factor (M-CSF)-induced macrophages, and GM-CSF–induced macrophages,30 respectively, were normalized to 31 837, and then all pairwise Pearson correlation coefficients for each library-to-library comparison were calculated using all normalized gene expression measurements.

Surface phenotype of LPS-stimulated MADCs

To identify genes specifically expressed in MADCs, we generated SAGE libraries from human MADCs. Peripheral blood CD14+monocytes were cultured with GM-CSF plus IL-4 for 5 days and then stimulated with LPS for 2 days. Under these culture conditions, the cells differentiated into nonadherent CD14, CD1a−/+, CD80+, CD83+, CD86+, CD40high, and HLA-DRhighcells with the dendritic morphology of MADCs (Figure1), which validates the phenotype of MADCs.

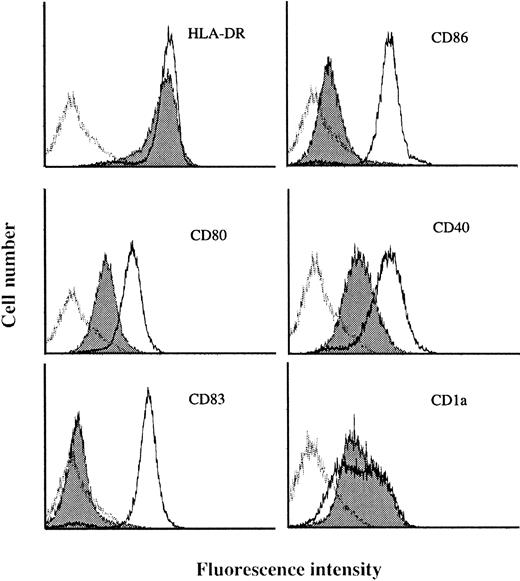

Fig. 1.

Surface phenotype of human blood monocyte–derived DCs stimulated by LPS (MADCs).

Human monocytes were cultured in RPMI 1640 medium plus 7.5% FCS in the presence of GM-CSF (500 U/mL) and IL-4 (100 U/mL) for 5 days and then stimulated with LPS for 2 days. After culture, the cells were washed and then stained with various antibodies as described in “Materials and methods.” The data are shown as histograms depicting the number of cells exhibiting various fluorescence intensities. The dotted lines represent MADCs stained with specific antibodies, the solid histograms represent IMDCs stained with specific antibodies, and the solid lines represent isotype-matched control. Results are representative of 3 independent experiments.

Fig. 1.

Surface phenotype of human blood monocyte–derived DCs stimulated by LPS (MADCs).

Human monocytes were cultured in RPMI 1640 medium plus 7.5% FCS in the presence of GM-CSF (500 U/mL) and IL-4 (100 U/mL) for 5 days and then stimulated with LPS for 2 days. After culture, the cells were washed and then stained with various antibodies as described in “Materials and methods.” The data are shown as histograms depicting the number of cells exhibiting various fluorescence intensities. The dotted lines represent MADCs stained with specific antibodies, the solid histograms represent IMDCs stained with specific antibodies, and the solid lines represent isotype-matched control. Results are representative of 3 independent experiments.

Close modal

SAGE tag abundance in MADCs

A total of 31 837 tag sequences from the MADC library allowed the identification of 10 962 different genes. Next, the expressed genes were searched through the GeneBank database to identify individual genes. Table 1 shows the top 50 transcripts in MADCs. The most frequently expressed gene in human MADCs was identified to be TARC (expression frequency, 2.62%), followed by ferritin H-chain gene (2.57%) and β2-microglobulin gene (2.06%). Overall, the genes expressed abundantly in the MADC library mostly consist of genes encoding major histocompatibility complex (MHC) class I and class II, chemokines, molecules related to protein synthesis, and cytoskeleton proteins. More information is available on the internet at http://www.prevent.m.u-tokyo.ac.jp/SAGE.html/.

Table 1.

Transcript profile in LPS-stimulated mature DCs (MADCs)

Tag no.SAGE tagUniGene clusterDescription
831 GGCACAAAGG 56742 TARC
617 TTGGGGTTTC 62954 Ferritin, heavy polypeptide 1
655 GTTGTGGTTA 75415 β-2-microglobulin
338 AACGGGGCCC 97203 MDC
272 GTTCACATTA 84298 CD74 antigen
255 GGGGAAATCG 76293 Thymosin beta 10
238 CCTGTAATCC  Multiple match
211 TGTGTTGAGA 181185 Eukaryotic translation elongation factor-1 α 1
210 CAAATCCAAA 255996 Germinal center kinase–related protein kinase
208 TTGGTGAAGG 75968 Thymosin, beta 4, X chromosome
183 CTGACCTGTG 77961 Major histocompatibility complex, class I, B
175 CCCTGGGTTC 111334 Ferritin, light polypeptide
172 GTGCGCTGAG 77961 Major histocompatibility complex, class I. C
188 GGCTGGGGGC 75721 Profilin 1
168 CCCATCGTCC 249495 Ribosomal protein S8
155 GTGAAACCCC  Multiple match
154 CAAGCATCCC  No match
148 ATAGTAGCTT 118400 Actin-bundling protein
147 CCACTGCACT  Multiple match
128 GCTTTATTTG 180852 Actin, gamma 1
111 GTGCACTGAG 181244 Major histocompatibility complex, class I, A or C (77961)
110 TCCGTGGTTG 78516 Neuronal tissue–enriched acidic protein
110 TTGGTCCTCT 108124 Homosapiens mRNA for homolog to yeast ribosomal protein L41
108 CGCCGACGAT 21205 Interferon-α–inducible protein (clone IFI-8-16)
105 GCAGCCATCC 4437 Ribosomal protein L28
103 GCCTGCTGGG 2706 Glutathione peroxidase 4 (phospholipid hydroperoxidase)
99 GCCATAAAAT 1908 Proteoglycan 1, secretory granule
94 TGTCCTGGTT 179685 Cyclin-dependent kinase inhibitor 1A (p21, Cp1)
83 GTGAAACCCT  Multiple match
92 CACCTAATTG 181353 Pre–B-cell colony-enhancing factor
92 AATCTGCGCC 833 Interferon-stimulated protein, 15 kd
81 TTTTCTGAAA 78138 Thioredoxin
81 ACTTTTTCAA 149587 Homo sapiens mRNA; cDNA DKFZpS64E1616 (from clone DKFZpS84E1616)
76 CTAAGACTTC  No match
74 TGCAGCACGA 77961 Major histocompatibility complex, class I, C
74 TGCCTGCACC 135084 Cystatin C
71 GCCCCCAATA 188261 Lectin, galactoside-binding, soluble, 1 (galactin 1)
71 ACCCTTGGCC  No match
70 ACGCAGGGAG 180532 Human heart mRNA for heat-shock protein 90, partial cos
68 GTGCTGAATG 77385 Myosin, light polypeptide 6, alkali, smooth muscle and nonmuscle
67 TTCTGCTTTC 1852 CCR7
66 GTAGCGCCTC 143212 Cystatin F (leukocystatin)
66 GACGGCGCAG 73946 Endothelial cell growth factor 1 (platelet derived)
64 GGGCATCTCT 76607 Human HLA-DR α-chain mRNA
61 TTGGCCAGGC  Multiple match
59 CCATTGCACT 194382 Ataxia telenglactasia mutated (includes complementation groups A, C, and D)
59 GAAGCAGGAC 180370 Collin 1 (nonmuscle)
59 ACTGTGGCGG 112242 ESTs
59 TTCATACACC  No match
59 CACAAACGGT 165453 Ribosomal protein S27 (metallopanstimulin 1)
Tag no.SAGE tagUniGene clusterDescription
831 GGCACAAAGG 56742 TARC
617 TTGGGGTTTC 62954 Ferritin, heavy polypeptide 1
655 GTTGTGGTTA 75415 β-2-microglobulin
338 AACGGGGCCC 97203 MDC
272 GTTCACATTA 84298 CD74 antigen
255 GGGGAAATCG 76293 Thymosin beta 10
238 CCTGTAATCC  Multiple match
211 TGTGTTGAGA 181185 Eukaryotic translation elongation factor-1 α 1
210 CAAATCCAAA 255996 Germinal center kinase–related protein kinase
208 TTGGTGAAGG 75968 Thymosin, beta 4, X chromosome
183 CTGACCTGTG 77961 Major histocompatibility complex, class I, B
175 CCCTGGGTTC 111334 Ferritin, light polypeptide
172 GTGCGCTGAG 77961 Major histocompatibility complex, class I. C
188 GGCTGGGGGC 75721 Profilin 1
168 CCCATCGTCC 249495 Ribosomal protein S8
155 GTGAAACCCC  Multiple match
154 CAAGCATCCC  No match
148 ATAGTAGCTT 118400 Actin-bundling protein
147 CCACTGCACT  Multiple match
128 GCTTTATTTG 180852 Actin, gamma 1
111 GTGCACTGAG 181244 Major histocompatibility complex, class I, A or C (77961)
110 TCCGTGGTTG 78516 Neuronal tissue–enriched acidic protein
110 TTGGTCCTCT 108124 Homosapiens mRNA for homolog to yeast ribosomal protein L41
108 CGCCGACGAT 21205 Interferon-α–inducible protein (clone IFI-8-16)
105 GCAGCCATCC 4437 Ribosomal protein L28
103 GCCTGCTGGG 2706 Glutathione peroxidase 4 (phospholipid hydroperoxidase)
99 GCCATAAAAT 1908 Proteoglycan 1, secretory granule
94 TGTCCTGGTT 179685 Cyclin-dependent kinase inhibitor 1A (p21, Cp1)
83 GTGAAACCCT  Multiple match
92 CACCTAATTG 181353 Pre–B-cell colony-enhancing factor
92 AATCTGCGCC 833 Interferon-stimulated protein, 15 kd
81 TTTTCTGAAA 78138 Thioredoxin
81 ACTTTTTCAA 149587 Homo sapiens mRNA; cDNA DKFZpS64E1616 (from clone DKFZpS84E1616)
76 CTAAGACTTC  No match
74 TGCAGCACGA 77961 Major histocompatibility complex, class I, C
74 TGCCTGCACC 135084 Cystatin C
71 GCCCCCAATA 188261 Lectin, galactoside-binding, soluble, 1 (galactin 1)
71 ACCCTTGGCC  No match
70 ACGCAGGGAG 180532 Human heart mRNA for heat-shock protein 90, partial cos
68 GTGCTGAATG 77385 Myosin, light polypeptide 6, alkali, smooth muscle and nonmuscle
67 TTCTGCTTTC 1852 CCR7
66 GTAGCGCCTC 143212 Cystatin F (leukocystatin)
66 GACGGCGCAG 73946 Endothelial cell growth factor 1 (platelet derived)
64 GGGCATCTCT 76607 Human HLA-DR α-chain mRNA
61 TTGGCCAGGC  Multiple match
59 CCATTGCACT 194382 Ataxia telenglactasia mutated (includes complementation groups A, C, and D)
59 GAAGCAGGAC 180370 Collin 1 (nonmuscle)
59 ACTGTGGCGG 112242 ESTs
59 TTCATACACC  No match
59 CACAAACGGT 165453 Ribosomal protein S27 (metallopanstimulin 1)

The top 50 transcripts expressed in MADCs are listed. The tag sequence represents the 10-bp SAGE lag. UniGene clusters are listed. More information is available on the Internet athttp://www.prevent.m.u-tokyo.ac.jp/SAGE.html/.

Comparison of expression patterns in MADCs

IMDC SAGE libraries were generated from human monocytes cultured in GM-CSF plus IL-4 plus TNF-α for 5 days.22 Under these culture conditions, the cells differentiated into nonadherent CD1a+, CD80low/−, CD86low/−, HLA-DR+, CD40+, and CD83 cells with the dendritic morphology of IMDCs (Figure 1). The 58 540 and 31 837 tag sequences from the IMDC and MADC libraries, respectively, were normalized to 31 837, and then comparison of the expressed genes between IMDCs and MADCs was performed. The expression levels of most of the transcripts in these cells were similar (Figure2). However, 225 transcripts were found to be statistically different (P < .01) between these types of cells. Expression levels of 95 of 225 genes were decreased in MADCs as compared with those in IMDCs. Conversely, 130 transcripts were expressed at higher levels in MADCs than in IMDCs. Table2 shows the top 50 increased transcripts in MADCs as compared with IMDCs. The most frequently increased transcript was identified to be germinal center kinase–related protein kinase (70-fold), followed by CCR7 (67-fold), cystatin F (66-fold), and so on. The transcripts increased in MADCs mainly consisted of genes encoding chemokines such as RANTES, ELC, PARC, MDC, and TARC; a chemokine receptor CCR7; enzymes such as germinal center kinase–related protein kinase, metallothionein 2A, and serine/threonine kinase 4; and IFN-inducible proteins such as IFN-stimulated protein 15 kd, IFN-α–inducible protein p27, IFN-α–inducible protein p78, HEM45 (IFN-stimulated gene 20 kd), IFN-α–inducible protein (clone IFI-6-16), and IFN-inducible protein 17. Table 2 compares the SAGE data for MADCs with those for monocytes, M-CSF–induced macrophages, and GM-CSF–induced macrophages. These data demonstrate that many of the genes, which are highly expressed in MADCs, are low in monocytes and macrophages.

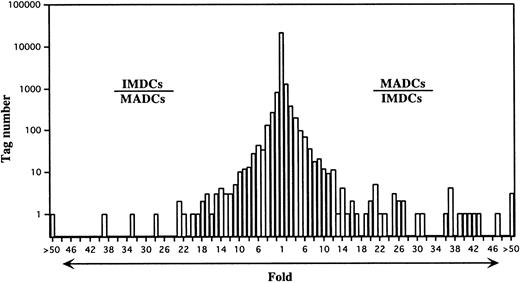

Fig. 2.

Comparison of gene expression frequency in IMDCs and MADCs.

A semilogarithmic plot reveals that 44 tags were decreased more than 10-fold in MADCs compared with IMDCs, whereas 71 tags were increased more than 10-fold in MADCs compared with IMDCs. Each number of tags was normalized to 31 837. The relative expression of each transcript was determined by dividing the number of tags observed in IMDCs or MADCs, as indicated. To avoid division by 0, a tag value of 1 for any tag that was not detectable in one sample was used. These ratios are plotted on the abscissa. The number of genes displaying each ratio is plotted on the ordinate.

Fig. 2.

Comparison of gene expression frequency in IMDCs and MADCs.

A semilogarithmic plot reveals that 44 tags were decreased more than 10-fold in MADCs compared with IMDCs, whereas 71 tags were increased more than 10-fold in MADCs compared with IMDCs. Each number of tags was normalized to 31 837. The relative expression of each transcript was determined by dividing the number of tags observed in IMDCs or MADCs, as indicated. To avoid division by 0, a tag value of 1 for any tag that was not detectable in one sample was used. These ratios are plotted on the abscissa. The number of genes displaying each ratio is plotted on the ordinate.

Close modal
Table 2.

Increased transcripts in MADCs

FoldnSAGE tagUniGene clusterDescription
IMDCMADCLPS-MoMoM-CSFGM-CSF
70 210 18 CAAATCCAAA 227400 Germinal center kinase–related protein kinase
67 67 TTCTGCTTTC 1652 CCR7
66 86 GTAGCGCCTC 143212 Cystatin F (leukocystatin)
47 47 11 GATCCCAACT 118766 Metallothionein 2A
43 43 GGCGTTTAGA  No match
42 42 11 AAAAATCGGC 226695 RANTES
41 62 48 AATCTGCGCC 833 Interferon-stimulated protein, 15 kd
40 40 CCAGGGGAGA 2867 Interferon-α–inducible protein p27
38 39 GGTGCCCAGT 75607 MARCKS, 8CK-L
37 148 ATAGTAGCTT 118400 Actin-bundling protein
36 36 CGGAGCCGGC 34267 ESTs
31 31 GCTCCCTACG 185705 EBI3
30 30 11 AGTGCCGTGT 76391 Interferon-inducible protein p75
27 27 CATCTCACTC  No match
27 27 GCCCTGCTAC 50002 ELC
26 26 54 GCTTGCAAAA 177781 Superoxide dismutase 2
26 26 CCTCCCTGCT 90790 ESTs
25 25 TGTTTCCTTA 10887 DC-LAMP
25 25 20 GGGTTTGTTT 75889 Proline-rich protein with nuclear targeting signal
25 25 13 49 TCACAGCTGT 77054 B-cell translocation gene 1, antiproliferative
24 24 24 TAAATCCAAA 224982 ESTs
23 46 GATCAATCAG 16530 PARC
22 22 GTGCCTTTTT 204290 cDNA DKFZp588N2119
21 21 GCGGCTCCTG  No match
21 21 AACCCCTGGA 255647 ESTs
21 21 AGCGGCTACA 183487 HEM46 (interferon-stimulated gene 20 kd)
21 21 GGCAGCCAGA 75061 MacMARCKS
21 21 AGCAAATCCA  No match
20 20 CTTGCAAACC 229838 ESTs
20 20 11 ATCCCTCAGT 181243 Activating transcription factor 4
18 18 338 12 65 AACGGGGCCC 97203 MDC
17 17 11 GTCTTAAAGT 177781 Superoxide dismutase 2, mitochondrial
16 16 TCCGCAAGGT 37617 ESTs
16 16 GCAGGCCAAG  Multiple match
15 108 24 14 70 30 CGCCGACGAT 21205 Interferon-α–inducible protein (clone IFI-6-16)
14 14 TCTGTTGGAC 218318 ESTs
14 14 CAGGTGAAAC  Multiple match
14 14 CCCCTGGCTG 920 Modulator recognition factor I
14 110 21 11 TCCGTGGTTG 79518 Neuronal tissue–enriched acidic protein
13 13 TTTGGGACCC 270 Sec7 and coiled/cell domains, binding protein
12 68 831 15 GGCACAAAGG 86742 TARC
12 12 CAGCCTGCGA 35140 Serine/threonine kinase 4
12 12 GCAAATCCAA  No match
12 12 ACCATTGGAT 146360 Interferon-induced protein 17
12 12 GACAGATGGA 83575 ESTs
12 12 TTTCATCGTA 106149 ESTs
12 12 TGTGGAAACC 80205 plm-2 oncogene
12 12 ATGGTCTACG 98593 ESTs
12 12 10 GTGCCCGTGC 83846 Trisephosphate isomerase 1
12 59 59 15 11 ACTGTGGCGG 112242 ESTs
FoldnSAGE tagUniGene clusterDescription
IMDCMADCLPS-MoMoM-CSFGM-CSF
70 210 18 CAAATCCAAA 227400 Germinal center kinase–related protein kinase
67 67 TTCTGCTTTC 1652 CCR7
66 86 GTAGCGCCTC 143212 Cystatin F (leukocystatin)
47 47 11 GATCCCAACT 118766 Metallothionein 2A
43 43 GGCGTTTAGA  No match
42 42 11 AAAAATCGGC 226695 RANTES
41 62 48 AATCTGCGCC 833 Interferon-stimulated protein, 15 kd
40 40 CCAGGGGAGA 2867 Interferon-α–inducible protein p27
38 39 GGTGCCCAGT 75607 MARCKS, 8CK-L
37 148 ATAGTAGCTT 118400 Actin-bundling protein
36 36 CGGAGCCGGC 34267 ESTs
31 31 GCTCCCTACG 185705 EBI3
30 30 11 AGTGCCGTGT 76391 Interferon-inducible protein p75
27 27 CATCTCACTC  No match
27 27 GCCCTGCTAC 50002 ELC
26 26 54 GCTTGCAAAA 177781 Superoxide dismutase 2
26 26 CCTCCCTGCT 90790 ESTs
25 25 TGTTTCCTTA 10887 DC-LAMP
25 25 20 GGGTTTGTTT 75889 Proline-rich protein with nuclear targeting signal
25 25 13 49 TCACAGCTGT 77054 B-cell translocation gene 1, antiproliferative
24 24 24 TAAATCCAAA 224982 ESTs
23 46 GATCAATCAG 16530 PARC
22 22 GTGCCTTTTT 204290 cDNA DKFZp588N2119
21 21 GCGGCTCCTG  No match
21 21 AACCCCTGGA 255647 ESTs
21 21 AGCGGCTACA 183487 HEM46 (interferon-stimulated gene 20 kd)
21 21 GGCAGCCAGA 75061 MacMARCKS
21 21 AGCAAATCCA  No match
20 20 CTTGCAAACC 229838 ESTs
20 20 11 ATCCCTCAGT 181243 Activating transcription factor 4
18 18 338 12 65 AACGGGGCCC 97203 MDC
17 17 11 GTCTTAAAGT 177781 Superoxide dismutase 2, mitochondrial
16 16 TCCGCAAGGT 37617 ESTs
16 16 GCAGGCCAAG  Multiple match
15 108 24 14 70 30 CGCCGACGAT 21205 Interferon-α–inducible protein (clone IFI-6-16)
14 14 TCTGTTGGAC 218318 ESTs
14 14 CAGGTGAAAC  Multiple match
14 14 CCCCTGGCTG 920 Modulator recognition factor I
14 110 21 11 TCCGTGGTTG 79518 Neuronal tissue–enriched acidic protein
13 13 TTTGGGACCC 270 Sec7 and coiled/cell domains, binding protein
12 68 831 15 GGCACAAAGG 86742 TARC
12 12 CAGCCTGCGA 35140 Serine/threonine kinase 4
12 12 GCAAATCCAA  No match
12 12 ACCATTGGAT 146360 Interferon-induced protein 17
12 12 GACAGATGGA 83575 ESTs
12 12 TTTCATCGTA 106149 ESTs
12 12 TGTGGAAACC 80205 plm-2 oncogene
12 12 ATGGTCTACG 98593 ESTs
12 12 10 GTGCCCGTGC 83846 Trisephosphate isomerase 1
12 59 59 15 11 ACTGTGGCGG 112242 ESTs

The 50 transcripts displaying the largest increase in expression are listed. MADCs are listed by fold induction. n indicates the number of times the tag was identified. Conditions are described in Figure 2. More information is available on the Internet athttp://www.prevent.m.u-tokyo.ac.jp/SAGE.html/. In this table, each number of tags from IMDC (58 540), MADC (31 837), LPS-Mo (31 837, LPS-stimulated monocytes), Mo (57 580, monocytes), M-CSF (55 956, M-CSF–induced macrophages), and GM-CSF (57 483, GM-CSF–induced macrophages) was normalized to 31 837.

Table 3 shows the top 50 transcripts that are decreased in MADCs. The transcripts decreased in MADCs mainly consisted of genes encoding enzymes such as lipase A, α1-antichymotrypsin, glucose-6-phosphatase, and acid phosphatase type 5; and surface marker proteins such as CD52, CD11b, factor XIII, and CD23.

Table 3.

Decreased transcripts in MADCs

FoldnSAGE tagUniGene clusterDescription
IMDCMADCMoM-CSFGM-CSF
68 68 24 44 AGAAGTGTCC 85226 Lipase A, lysosomal acid, cholesterol esterase
39 38 10 CACCACGGTG 107325 α-1-antichymotrypsin
33 33 AGCTGTCCCC  No match
28 58 38 71 196 GGGGCAACAG 214742 CDW52 antigen (CAMPATH-1 antigen)
23 23 AGAAGCCGTG 172831 CD11b (p170)
23 23 15 15 31 CTGGCGCGAG 83656 Rho GDF dissociation inhibitor (GDI) β
22 22 66 19 25 ATGTGTAACG 61256 S100 calcium-binding protein A4
20 20 TTTGCTCTCC 75350 Vinculin
19 19 CCTCTGGGCA 167256 P460 (cytochrome) oxidoreductase
18 18 CCAAGACTTC  No match
18 35 58 107 167 GCGGTTGTGG 79358 Lysosomal-associated multiapanning membrane protein-5
17 52 AGCCACCGCA 242 Glucose-6-phosphatase, catalytic
17 17 24 CCGACGGGCG  No match
17 17 TGGCTGGCCA 174142 Colony-stimulating factor-1 receptor
16 16 TTGAGACCTC 80424 Coagulation factor XIII, A1 polypeptide
15 15 ACTGACTGCA 23262 Ribonuclease, RNase A family, k6
15 15 11 CGTGTGCCTG 108713 ESTs
15 15 15 12 TGGCCATCTG 184052 ESTs
14 14 17 TCTTGATTTA 74561 α2-macroglobulin
14 14 32 36 TGTCCCAGCC 1211 Acid phosphatase-β, tartrate resistant
14 14 11 CTGCTAACCC 170310 ESTs
14 14 14 14 23 CCAGGCAGGG 117339 cDNA DKFZp586C1522
13 13 GGGGGTGAAG 76171 CCAAT/enhancer-binding protein (C/EBP), α
13 13 AGTCTCTCTT  No match
13 25 12 13 CCACACAAGC 102737 ESTs
12 12 ATGGAAGTCT 155939 Inosilol polyphosphate-5-phosphatase, 145 kd
12 12 AAAAGAAACT 172182 Poly(A)-binding protein-like 1
12 12 26 14 TCACAAGCAA 146763 Nascent polypeptide-associated complex α polypeptide
11 11 12 13 CTGGCCCGAG 83656 Rho GDP dissociation inhibitor (GDI) β
11 11 GATACAGCCA 1416 CD33
11 11 TGTGAACAAC 129771 ESTs
11 11 ACCCCCGGGC  Multiple match
11 11 10 13 GTCTGAGCTC 66915 ESTs
10 52 713 849 TGGCCCCAGG 132776 Apolipoprotein C-1
10 10 GCCTACCCGA 23582 GA733-1
10 10 11 ACCCAGGGTA 44234 ESTs
10 10 CCCTCGGTCC  No match
10 10 14 TCTCTGATGC 8441 cDNA DKF2pS86J021
10 10 GCCACTACCC 71475 ESTs
10 10 28 65 ACTATTTCCA 574 Fructose-bisphosphatase 1
10 10 AGGACACCGC 77783 c-src tyrosine kinase
10 10 CTGATCTCCA  Multiple match
10 10 TGATGTTTGA 75416 KIAA0058 gene product
28 47 17 11 TCTGTACACC 182740 Aldolase β, fructose-bisphosphate
27 15 TGGCGTACGG 159546 ATP-binding cassette, subfamily D (ALD), member 1
23 18 AAGATTGGTG 1244 CDS antigen (p24)
TGCAGAAGAA 75182 Mannose receptor, C type 1
CCTCACTACC 99307 ESTs
GGTGTGCTTG 155182 Homo sapiens mRNA for KIAA1036 protein, complete cds
GGTCCCCTAC 151761 KIAA0100 gene product
FoldnSAGE tagUniGene clusterDescription
IMDCMADCMoM-CSFGM-CSF
68 68 24 44 AGAAGTGTCC 85226 Lipase A, lysosomal acid, cholesterol esterase
39 38 10 CACCACGGTG 107325 α-1-antichymotrypsin
33 33 AGCTGTCCCC  No match
28 58 38 71 196 GGGGCAACAG 214742 CDW52 antigen (CAMPATH-1 antigen)
23 23 AGAAGCCGTG 172831 CD11b (p170)
23 23 15 15 31 CTGGCGCGAG 83656 Rho GDF dissociation inhibitor (GDI) β
22 22 66 19 25 ATGTGTAACG 61256 S100 calcium-binding protein A4
20 20 TTTGCTCTCC 75350 Vinculin
19 19 CCTCTGGGCA 167256 P460 (cytochrome) oxidoreductase
18 18 CCAAGACTTC  No match
18 35 58 107 167 GCGGTTGTGG 79358 Lysosomal-associated multiapanning membrane protein-5
17 52 AGCCACCGCA 242 Glucose-6-phosphatase, catalytic
17 17 24 CCGACGGGCG  No match
17 17 TGGCTGGCCA 174142 Colony-stimulating factor-1 receptor
16 16 TTGAGACCTC 80424 Coagulation factor XIII, A1 polypeptide
15 15 ACTGACTGCA 23262 Ribonuclease, RNase A family, k6
15 15 11 CGTGTGCCTG 108713 ESTs
15 15 15 12 TGGCCATCTG 184052 ESTs
14 14 17 TCTTGATTTA 74561 α2-macroglobulin
14 14 32 36 TGTCCCAGCC 1211 Acid phosphatase-β, tartrate resistant
14 14 11 CTGCTAACCC 170310 ESTs
14 14 14 14 23 CCAGGCAGGG 117339 cDNA DKFZp586C1522
13 13 GGGGGTGAAG 76171 CCAAT/enhancer-binding protein (C/EBP), α
13 13 AGTCTCTCTT  No match
13 25 12 13 CCACACAAGC 102737 ESTs
12 12 ATGGAAGTCT 155939 Inosilol polyphosphate-5-phosphatase, 145 kd
12 12 AAAAGAAACT 172182 Poly(A)-binding protein-like 1
12 12 26 14 TCACAAGCAA 146763 Nascent polypeptide-associated complex α polypeptide
11 11 12 13 CTGGCCCGAG 83656 Rho GDP dissociation inhibitor (GDI) β
11 11 GATACAGCCA 1416 CD33
11 11 TGTGAACAAC 129771 ESTs
11 11 ACCCCCGGGC  Multiple match
11 11 10 13 GTCTGAGCTC 66915 ESTs
10 52 713 849 TGGCCCCAGG 132776 Apolipoprotein C-1
10 10 GCCTACCCGA 23582 GA733-1
10 10 11 ACCCAGGGTA 44234 ESTs
10 10 CCCTCGGTCC  No match
10 10 14 TCTCTGATGC 8441 cDNA DKF2pS86J021
10 10 GCCACTACCC 71475 ESTs
10 10 28 65 ACTATTTCCA 574 Fructose-bisphosphatase 1
10 10 AGGACACCGC 77783 c-src tyrosine kinase
10 10 CTGATCTCCA  Multiple match
10 10 TGATGTTTGA 75416 KIAA0058 gene product
28 47 17 11 TCTGTACACC 182740 Aldolase β, fructose-bisphosphate
27 15 TGGCGTACGG 159546 ATP-binding cassette, subfamily D (ALD), member 1
23 18 AAGATTGGTG 1244 CDS antigen (p24)
TGCAGAAGAA 75182 Mannose receptor, C type 1
CCTCACTACC 99307 ESTs
GGTGTGCTTG 155182 Homo sapiens mRNA for KIAA1036 protein, complete cds
GGTCCCCTAC 151761 KIAA0100 gene product

The 50 transcripts displaying the largest decrease in expression are listed. MADCs are listed by fold reduction. n indicates the number of times the tag was identified. Conditions are described in Figure 2. More information is available on the Internet athttp://www.prevent.m.u-tokyo.ac/jp/SAGE.html/. In this table, each number of tags from IMDC (58 540), MADC (31 837), Mo (57 560, monocytes), M-CSF (55 856, M-CSF–induced macrophages), and GM-CSF (57 463, GM-CSF–induced macrophages) was normalized to 31 837.

RT-PCR of genes selected in the SAGE analysis

Although our data represent the average gene expression in cells obtained from 6 healthy donors, there could be differences in gene expression among individual donor-derived cells. To address this question, we arbitrarily selected 10 differently expressed genes and evaluated them in 4 donor-derived samples by RT-PCR (Figure3), and compared the expression of each transcript with the SAGE data. CAP was expressed almost equally in all cell types (IMDCs, tag number 11; MADCs, 9), but actin-bundling protein (IMDCs, 4; MADCs, 148), IFN-inducible protein (IMDCs, 0; MADCs, 46), HEM45 (IMDCs, 0; MADCs, 21), EBI3 (IMDCs, 0; MADCs, 31), and cystatin F (IMDCs, 1; MADCs, 66) were highly expressed in MADCs. On the other hand, CD23 (IMDCs, 11; MADCs, 1), lysosomal acid lipase (IMDCs, 68; MADCs, 0), CD11b (IMDCs, 23; MADCs, 0), IgGFcR (IMDCs, 9; MADCs, 1), and factor XIII (IMDCs, 16; MADCs, 0) were highly expressed in IMDCs. These results validate our SAGE data for IMDCs and MADCs and establish the general gene expression in these cells.

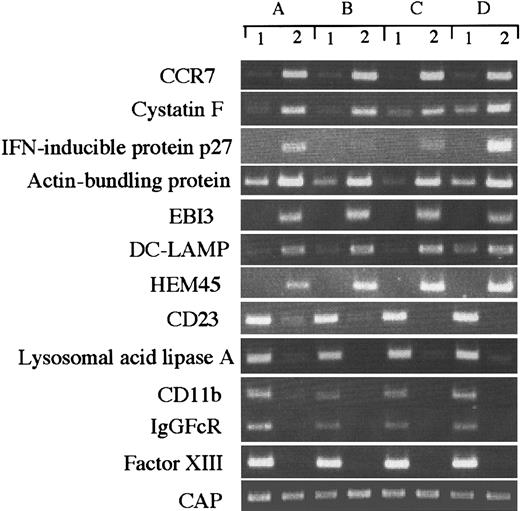

Fig. 3.

RT-PCR analysis of genes expressed differently in IMDCs and MADCs.

RT-PCR was performed on total RNA isolated from (1) IMDCs and (2) MADCs, as described in “Materials and methods.” A, B, C, and D indicate different donors.

Fig. 3.

RT-PCR analysis of genes expressed differently in IMDCs and MADCs.

RT-PCR was performed on total RNA isolated from (1) IMDCs and (2) MADCs, as described in “Materials and methods.” A, B, C, and D indicate different donors.

Close modal

Comparison of gene expression profile of MADCs with that of LPS-stimulated monocytes

It is well known that LPS modulates the expression of numerous genes encoding proteins such as cytokines, chemokines, and transcriptional factors in monocytes. Thus, a comparison between MADCs and LPS-Mo (manuscript in preparation) was conducted to identify specific genes expressed only in MADCs. The 57 560 and 35 874 tag sequences from the Mo30 and LPS-Mo libraries, respectively, were normalized to 31 837 and were compared with the transcripts increased in MADCs (Table 2). The expression levels of RANTES (IMDCs, 0; MADCs, 42; LPS-Mo, 11; Mo, 0), IFN-stimulated protein 15 kd (IMDCs, 2; MADCs, 82; LPS-Mo, 48; Mo, 4), IFN-inducible protein P78 (IMDCs, 1; MADCs, 30; LPS-Mo, 11; Mo, 1), superoxide dismutase 2 (IMDCs, 0; MADCs, 26; LPS-Mo, 54; Mo, 4), activating transcription factor 4 (IMDCs, 1; MADCs, 20; LPS-Mo, 8; Mo, 11), HEM45 (IMDCs, 0; MADCs, 21; LPS-Mo, 7; Mo, 0), MDC (IMDCs, 18; MADCs, 336; LPS-Mo, 12; Mo, 0), IFN-inducible protein (IFI-6-16) (IMDCs, 7; MADCs, 106; LPS-Mo, 24; Mo, 14), and TARC (IMDCs, 68; MADCs, 831; LPS-Mo, 16; Mo, 0) were increased in LPS-stimulated DCs as well as in LPS-Mo, as compared with Mo (Table2). On the other hand, the expression levels of genes encoding proteins such as cystatin C (IMDCs, 1; MADCs, 66; LPS-Mo, 0; Mo, 0), IFN-α–inducible protein p27 (IMDCs, 0; MADCs, 40; LPS-Mo, 0; Mo, 0), actin-bundling protein (IMDCs, 4; MADCs, 148; LPS-Mo, 0; Mo, 0), EBI3 (IMDCs, 0; MADCs, 31; LPS-Mo, 0; Mo, 0), ELC (IMDCs, 0; MADCs, 27; LPS-Mo, 0; Mo, 0), DC-LAMP (IMDCs, 1; MADCs, 25; LPS-Mo, 0; Mo, 0), MacMARCKS (IMDCs, 1; MADCs, 21; LPS-Mo, 0; Mo, 0), serine/threonine kinase 4 (IMDCs, 0; MADCs, 12; LPS-Mo, 0; Mo, 1),pim-2 oncogene (IMDCs, 1; MADCs, 40; LPS-Mo, 0; Mo, 1), and several genes in ESTs, were highly specific for MADCs.

Time course of the induction of MADC-specific genes

During DC activation and maturation, the expression of several genes has been described to be increased. For example, it is already known that CCR7 is highly expressed in activated DCs,15,31 and DCs activated by several stimuli can produce IL-12.32-34 Here, EBI3, IFN-α–inducible protein p27, and MacMARCKS were newly identified as the inducible genes during DC activation and maturation. The time course of the induction of these genes was analyzed together with that of the CCR7, DC-LAMP, and IL-12 (p35 and p40) genes (Figure 4). Although IMDCs barely expressed the genes for IFN-α–inducible protein, EBI3, CCR7, and MacMARCKS, the level of mRNAs of most of these genes sharply increased within 3 hours after the stimulation with LPS and reached a maximum at 24 hours. IL-12 p35 and p40 mRNAs were transiently induced from 3 hours to 12 hours.

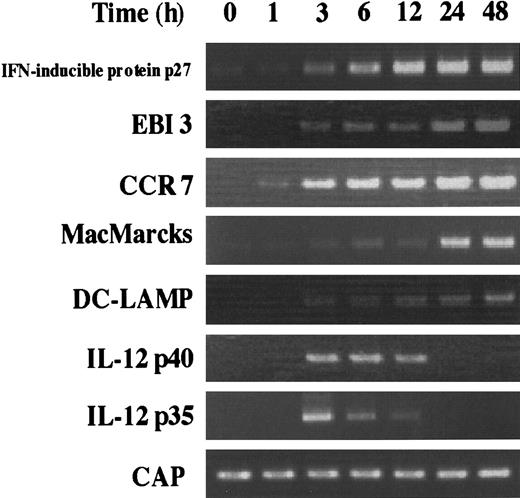

Fig. 4.

Kinetics of the induction of various mRNA expression by stimulating IMDCs with LPS.

RT-PCR was performed on total RNA isolated from IMDCs cultured in the presence of GM-CSF and IL-4 for 5 days, followed by 0, 1, 3, 6, 12, 24, and 48 hours of activation with LPS (100 μg/mL).

Fig. 4.

Kinetics of the induction of various mRNA expression by stimulating IMDCs with LPS.

RT-PCR was performed on total RNA isolated from IMDCs cultured in the presence of GM-CSF and IL-4 for 5 days, followed by 0, 1, 3, 6, 12, 24, and 48 hours of activation with LPS (100 μg/mL).

Close modal

Correlation coefficients for all pairwise comparisons of libraries

To estimate the extent of similarity between any 2 libraries (monocytes, GM-CSF–induced macrophages, M-CSF–induced macrophages, IMDCs, and MADCs), we calculated each bivariate correlation coefficient. The correlation coefficients for all comparisons are shown in Table 4. Pearson correlation coefficients between GM-CSF– and M-CSF–induced macrophage libraries showed a high similarity, at 0.938. However, the extent of similarity between any other 2 libraries ranged from 0.460 to 0.659.

Table 4.

Correlation coefficients between the different libraries

MoGMMIMDC
Mo
GM 0.518
0.561 0.938
IMDC 0.644 0.607 0.659
MADC 0.511 0.460 0.511 0.586
MoGMMIMDC
Mo
GM 0.518
0.561 0.938
IMDC 0.644 0.607 0.659
MADC 0.511 0.460 0.511 0.586

Correlation coefficients for each library comparison were calculated as described in “Materials and methods.”

Mo indicates monocytes; GM, GM-CSF–induced macrophages; M, M-CSF–induced macrophages.

In this study, we performed SAGE for LPS-stimulated mature DCs to obtain insights on the molecular level into the differentiation from IMDCs to MADCs.

Differential gene expression during DC maturation can be divided into 3 parts: a change of subcellular compartments to process antigens, a change of cell surface molecules to adhere to tissues and lymphocytes, and a change of molecules related to cell migration.

The differential gene expression of the multiple subcellular compartments that correlate with different stages of DC maturation may be involved in the loading of peptides on class I and class II molecules. The increased gene expression of several subcellular compartments, including enzymes such as cystatin F (IMDCs, 1; MADCs, 66), germinal center kinase–related protein kinase (IMDCs, 3; MADCs, 210), metallothionein 2A (IMDCs, 1; MADCs, 47), protein kinase C substrate, MARCKS 80K-L (IMDCs, 1; MADCs, 39) and DC-LAMP (IMDCs, 1; MADCs, 25), was also observed (P < .001). In contrast, many of the genes such as lipase A (IMDCs, 68; MADCs, 0), cystatin B (IMDCs, 58; MADCs, 15), cathepsin B (IMDCs, 104; MADCs, 45), and cystatin C (IMDCs, 243; MADCs, 74) were down-regulated significantly (P < .01). These regulations of gene expression may be related to the capability of antigen processing of IMDCs and MADCs. Moreover, many of the genes encoding IFN-inducible proteins were found to be increased. It is known that IFNs increase the expression of MHC antigens. In mice with a targeted disruption of the IFN-γ gene, reduced expression of macrophage MHC class II antigens has been observed.35 Furthermore, in IFN signal protein–deficient mice, IRF-1−/− mice, the expression of surface class I MHC is reduced.36 Therefore, the IFN-inducible proteins, which were found to be increased in MADCs, may be involved in the regulation of MHC class I and II.

The expression of the genes encoding cell surface molecules, such as class I molecules (IMDCs, 43; MADCs, 172), β2-microglobulin (IMDCs, 143; MADCs, 655), and Landinin (IMDCs, 0; MADCs, 10), was up-regulated (P < .01). In contrast, expression levels of the genes for class II molecules (IMDCs, 373; MADCs, 64), CD74 (IMDCs, 533; MADCs, 272), CD52 (IMDCs, 56; MADCs, 2), factor XIII (IMDCs, 16; MADCs, 0), CD9 (IMDCs, 9; MADCs, 0), CD23 (IMDCs, 11; MADCs, 1), CD11b (IMDCs, 23; MADCs, 0), and GA733-1 (IMDCs, 10; MADCs, 0) were down-regulated significantly (P < .05). The change in the expression of these genes encoding proteins related to cell surface molecules might be involved in adhesion to tissues and cells or capturing antigens. It is well known that bacterial products such as LPS increase the synthesis of MHC class I and II molecules in DCs. However, our data showed the down-regulation of genes of MHC class II–related molecules in MADCs as compared with IMDCs. Because it has been reported that the class II molecules are quickly synthesized and the expression is shut off in a short time after the synthesis of the class I molecules,37 this may be the reason for the apparent discrepancy.

Cell migration involves the coordinate activation of 2 classes of effector molecules, adhesion molecules and chemotactic factors.38 Many of the transcripts increased in MADCs consist of genes encoding chemokines such as TARC, MDC, RANTES, ELC, PARC, and a chemokine receptor CCR7 (Table 2). These results suggest that MADCs not only up-regulate the CCR7 to be recruited to secondary lymphoid organs to activate naive T lymphocytes as antigen-presenting cells, but also release chemotactic factors to attract memory-type Th1/Th2 polarized cells. In addition, these chemokines produced by MADCs at the inflammatory sites may also be involved in the recruitment of various types of leukocytes other than lymphocytes.

It is well known that LPS induces various types of genes encoding cytokines, chemokines, and transcriptional factors in monocytes. Thus, comparison of the gene expression profiles between MADCs and LPS-stimulated monocytes is important to negate the possibility that the identified genes are merely LPS-inducible genes. The expression of the genes of RANTES, IFN-inducible protein (IFI-6-16), IFN-inducible protein P78, superoxide dismutase 2, HEM45, activating transcription factor 4, MDC, IFN-α–inducible protein, and TARC was increased in MADCs as well as in LPS-stimulated monocytes as compared with monocytes. On the other hand, the genes for cystatin C, IFN-α–inducible protein p27, actin-bundling protein, EBI3, ELC, DC-LAMP, PARC, MacMARCKS, and several genes in ESTs were expressed in MADCs but not in monocytes stimulated by LPS. DC-LAMP is a lysosomal protein involved in remodeling of specialized antigen-processing compartments and in MHC class II–restricted antigen presentation, and its gene expression is known to be up-regulated in mature DCs induced by CD40L, TNF-α, and LPS.39 Therefore, DC-LAMP has been used as a DC maturation marker as CD83.40 Our results agree with these findings. Actin-bundling protein is known to be involved in the organization of the actin cytoskeleton in cytoplasmic extensions of nerve growth cones.41 Recently, it has been reported that actin-bundling protein plays a key role in forming dendritic processes in Langerhans cell maturation.42 Our data suggest that actin-bundling protein may also be involved in dendrite formation in monocyte-derived mature DCs, as in Langerhans cells. Interestingly, EBI3 has not been found to be expressed in any other types of cells or tissues available in the SAGE database so far, which suggests that EBI3 is a highly specific gene expressed in MADCs. Furthermore, we checked whether mature DCs induced by other stimuli express EBI3. TNF-α and anti-CD40 antibody also induced EBI3 mRNA expression in mature DCs, as LPS did (data not shown). These results indicate that mature DCs generally express EBI3. EBI3 is a soluble hematopoietic component related to the p40 subunit of IL-12 and has been reported to be expressed in Epstein-Barr virus–transformed B lymphocytes, tonsil, and spleen.43 Our results suggest that EBI3 may be expressed in mature DCs in tonsil and spleen. On the other hand, EBI3 forms a heterodimer with p35,44 and IL-12 production by DCs favors the differentiation of Th0 cells into Th1 cells.33,34,45,46 Therefore, the EBI3/p35 heterodimer is likely to be an important regulator for polarization into Th1 cells by mature DCs. On the other hand, kinetic analysis of IL-12 and EBI3 showed different expression patterns (Figure 4), suggesting that EBI3 gene expression is regulated independently from IL-12 gene expression. Establishment of the biologic role of EBI3 seems important.

In conclusion, SAGE allows both quantitative and simultaneous analysis of large numbers of transcripts. We investigated a total of 183 811 tags derived from 57 560, 58 540, 31 837, and 35 874 tags from monocytes, IMDCs, LPS-stimulated monocytes, and MADCs, respectively, and this allowed identification of 39 211 independent gene transcripts. The identification of the genes selectively expressed in human MADCs, including many novel genes, should provide molecular information to define different sets of resting and activated DCs and contribute to further understanding of the biologic function of DCs in the host defense system, and may also be useful for diagnosing or monitoring human diseases in which DCs play a role.

We are very grateful to Drs Victor E. Velculescu, Lin Zhang, Wei Zhou, Bert Vogelstein, and Kenneth W. Kinzler for their help in SAGE analysis.

The publication costs of this article were defrayed in part by page charge payment. Therefore, and solely to indicate this fact, this article is hereby marked “advertisement” in accordance with 18 U.S.C. section 1734.

1
Banchereau
J
Steinman
RM
Dendritic cells and the control of immunity.
Nature.
392
1998
245
252
2
Albert
ML
Sauter
B
Bhardwaj
N
Dendritic cells acquire antigen from apoptotic cells and induce class I-restricted CTLs.
Nature.
392
1998
86
89
3
Sornasse
T
Flamand
V
De Becker
G
et al
Antigen-pulsed dendritic cells can efficiently induce an antibody response in vivo.
J Exp Med.
175
1992
15
21
4
Zhong
G
Sousa
CR
Germain
RN
Antigen-unspecific B cells and lymphoid dendritic cells both show extensive surface expression of processed antigen-major histocompatibility complex class II complexes after soluble protein exposure in vivo or in vitro.
J Exp Med.
186
1997
673
682
5
Inaba
K
Turley
S
Yamaide
F
et al
Efficient presentation of phagocytosed cellular fragments on the major histocompatibility complex class II products of dendritic cells.
J Exp Med.
188
1998
2163
2173
6
MacPherson
GG
Jenkins
CD
Stein
MJ
Edwards
C
Endotoxin-mediated dendritic cell release from the intestine: characterization of released dendritic cells and TNF dependence.
J Immunol.
154
1995
1317
1322
7
Roake
JA
Rao
AS
Morris
PJ
Larsen
CP
Hankins
DF
Austyn
JM
Dendritic cell loss from nonlymphoid tissues after systemic administration of lipopolysaccharide, tumor necrosis factor, and interleukin 1.
J Exp Med.
181
1995
2237
2247
8
De Smedt
T
Pajak
B
Muraille
E
et al
Regulation of dendritic cell numbers and maturation by lipopolysaccharide in vivo.
J Exp Med.
184
1996
1413
1424
9
Winzler
C
Rovere
P
Rescigno
M
et al
Maturation stages of mouse dendritic cells in growth factor-dependent long-term cultures.
J Exp Med.
185
1997
317
328
10
Palucka
KA
Taquet
N
Sanchez-Chapuis
F
Gluckman
JC
Dendritic cells as the terminal stage of monocyte differentiation.
J Immunol.
160
1998
4587
4595
11
Reddy
A
Sapp
M
Feldman
M
Subklewe
M
Bhardwaj
N
A monocyte conditioned medium is more effective than defined cytokines in mediating the terminal maturation of human dendritic cells.
Blood.
90
1997
3640
3646
12
Sallusto
F
Nicolo
C
De Maria
R
Corinti
S
Testi
R
Ceramide inhibits antigen uptake and presentation by dendritic cells.
J Exp Med.
184
1996
2411
2416
13
Neumann
M
Fries
H-W
Scheicher
C
et al
Differential expression of Rel/NF-kB and octamer factor is a hallmark of the generation and maturation of dendritic cells.
Blood.
95
2000
277
285
14
Burkly
L
Hession
C
Ogata
L
et al
Expression of relB is required for the development of thymic medulla and dendritic cells.
Nature.
373
1995
531
536
15
Yanagihara
S
Komura
E
Nagafune
J
Watarai
H
Yamaguchi
Y
EBI1/CCR7 is a new member of dendritic cell chemokine receptor that is up-regulated upon maturation.
J Immunol.
161
1998
3096
3102
16
Reid
C
Fryer
P
Clifford
C
Kirk
A
Tikerpae
J
Knight
S
Identification of hematopoietic progenitors of macrophages and dendritic Langerhans cells (DL-CFU) in human bone marrow and peripheral blood.
Blood.
76
1990
1139
1149
17
Randolph
GJ
Inaba
K
Robbiani
DF
Steinman
RM
Muller
WA
Differentiation of phagocytic monocytes into lymph node dendritic cells in vivo.
Immunity.
11
1999
753
761
18
Caux
C
Dezutter-Dambuyant
C
Schmitt
D
Banchereau
J
GM-CSF and TNF-alpha cooperate in the generation of dendritic Langerhans cells.
Nature.
360
1992
258
261
19
Reid
C
Stackpoole
A
Meager
A
Tikerpae
J
Interactions of tumor necrosis factor with granulocyte-macrophage colony-stimulating factor and other cytokines in the regulation of dendritic cell growth in vitro from early bipotent CD34+ progenitors in human bone marrow.
J Immunol.
149
1992
2681
2688
20
Sallusto
F
Lanzavecchia
A
Efficient presentation of soluble antigen by cultured human dendritic cells is maintained by granulocyte/macrophage colony-stimulating factor plus interleukin 4 and downregulated by tumor necrosis factor alpha.
J Exp Med.
179
1994
1109
1118
21
Akagawa
KS
Takasuka
N
Nozaki
Y
et al
Generation of CD1+RelB+ dendritic cells and tartrate-resistant acid phosphatase-positive osteoclast-like multinucleated giant cells from human monocytes.
Blood.
88
1996
4029
4039
22
Hashimoto
S
Suzuki
T
Dong
HY
Nagai
S
Yamazaki
N
Matsushima
K
Serial analysis of gene expression in human monocyte-derived dendritic cells.
Blood.
94
1999
845
852
23
Velculescu
VE
Zhang
L
Zhou
W
et al
Characterization of the yeast transcriptome.
Cell.
88
1997
243
251
24
Zhang
L
Zhou
W
Velculescu
VE
et al
Gene expression profiles in normal and cancer cells.
Science.
276
1997
1268
1272
25
Velculescu
VE
Madden
SL
Zhang
L
et al
Analysis of human transcriptomes [letter].
Nat Genet.
23
1999
387
388
26
Lal
A
Lash
AE
Altschul
SF
et al
A public database for gene expression in human cancers.
Cancer Res.
59
1999
5403
5407
27
He
TC
Sparks
AB
Rago
C
et al
Identification of c-MYC as a target of the APC pathway.
Science.
281
1998
1509
1512
28
Velculescu
VE
Zhang
L
Vogelstein
B
Kinzler
KW
Serial analysis of gene expression.
Science.
270
1995
484
487
29
Madden
SL
Galella
EA
Zhu
J
Bertelsen
AH
Beaudry
GA
SAGE transcript profiles for p53-dependent growth regulation.
Oncogene.
15
1997
1079
1085
30
Hashimoto
S
Suzuki
T
Dong
HY
Yamazaki
N
Matsushima
K
Serial analysis of gene expression in human monocytes and macrophages.
Blood.
94
1999
837
844
31
Dieu
MC
Vanbervliet
B
Vicari
A
et al
Selective recruitment of immature and mature dendritic cells by distinct chemokines expressed in different anatomic sites.
J Exp Med.
188
1998
373
386
32
Macatonia
SE
Hosken
NA
Litton
M
et al
Dendritic cells produce IL-12 and direct the development of Th1 cells from naive CD4+ T cells.
J Immunol.
154
1995
5071
5079
33
Hilkens
CM
Kalinski
P
de Boer
M
Kapsenberg
ML
Human dendritic cells require exogenous interleukin-12-inducing factors to direct the development of naive T-helper cells toward the Th1 phenotype.
Blood.
90
1997
1920
1926
34
Kalinski
P
Schuitemaker
JH
Hilkens
CM
Wierenga
EA
Kapsenberg
ML
Final maturation of dendritic cells is associated with impaired responsiveness to IFN-gamma and to bacterial IL-12 inducers: decreased ability of mature dendritic cells to produce IL-12 during the interaction with Th cells.
J Immunol.
162
1999
3231
3236
35
Dalton
DK
Pitts-Meek
S
Keshay
S
Figari
IS
Bradley
A
Stewart
TA
Multiple defects of immune cell function in mice with disrupted interferon-gamma genes.
Science.
259
1993
1739
1742
36
White
L
Wright
K
Felix
N
et al
Regulation of LMP2 and TAP1 genes by IRF-1 explains the paucity of CD8+ T cells in IRF-1−/− mice.
Immunity.
5
1996
365
376
37
Rescigno
M
Citterio
S
Thery
C
et al
Bacteria-induced neo-biosynthesis, stabilization, and surface expression of functional class I molecules in mouse dendritic cells.
Proc Natl Acad Sci U S A.
95
1998
5229
5234
38
Springer
T
Traffic signals for lymphocyte recirculation and leukocyte emigration: the multistep paradigm.
Cell.
76
1994
301
314
39
de Saint-Vis
B
Vincent
J
Vandenabeele
S
et al
A novel lysosome-associated membrane glycoprotein, DC-LAMP, induced upon DC maturation, is transiently expressed in MHC class II compartment.
Immunity.
9
1998
325
336
40
Bell
D
Chomarat
P
Broyles
D
et al
In breast carcinoma tissue, immature dendritic cells reside within the tumor, whereas mature dendritic cells are located in peritumoral areas.
J Exp Med.
190
1999
1417
1426
41
Sasaki
Y
Hayashi
K
Shirao
T
Ishikawa
R
Kohama
K
Inhibition by drebrin of the actin-bundling activity of brain fascin, a protein localized in filopodia of growth cones.
J Neurochem.
66
1996
980
988
42
Ross
R
Ross
XL
Schwing
J
Langin
T
Reske-Kunz
AB
The actin-bundling protein fascin is involved in the formation of dendritic processes in maturing epidermal Langerhans cells.
J Immunol.
160
1998
3776
3782
43
Devergne
O
Hummel
M
Koeppen
H
et al
A novel interleukin-12 p40-related protein induced by latent Epstein-Barr virus infection in B lymphocytes.
J Virol.
70
1996
1143
1153
44
Devergne
O
Birkenbach
M
Kieff
E
Epstein-Barr virus-induced gene 3 and the p35 subunit of interleukin 12 form a novel heterodimeric hematopoietin.
Proc Natl Acad Sci U S A.
94
1997
12041
12046
45
Verhasselt
V
Buelens
C
Willems
F
De Groote
D
Haeffner-Cavaillon
N
Goldman
M
Bacterial lipopolysaccharide stimulates the production of cytokines and the expression of costimulatory molecules by human peripheral blood dendritic cells: evidence for a soluble CD14-dependent pathway.
J Immunol.
158
1997
2919
2925
46
Sousa
CR
Hieny
S
Scharton-Kersten
T
et al
In vivo microbial stimulation induces rapid CD40 ligand-independent production of interleukin 12 by dendritic cells and their redistribution to T cell areas.
J Exp Med.
186
1997
1819
1829

Author notes

Kouji Matsushima, Department of Molecular Preventive Medicine, School of Medicine, University of Tokyo, 7-3-1 Hongo, Bunkyo-ku, Tokyo 113-0033, Japan; e-mail:koujim@m.u-tokyo.ac.jp.

Sign in via your Institution
