Cellular origin and procoagulant properties of microparticles in meningococcal sepsis

Reptilase was obtained from Boehringer Mannheim (Mannheim, Germany), thrombin chromogenic substrate S2238 from Chromogenix AB (Mölndal, Sweden), and normal mouse serum and fluorescein isothiocyanate (FITC)-labeled anti-CD4 (anti-CD4–FITC) from the Central Laboratory of the Netherlands Red Cross Blood Transfusion Service (CLB, Amsterdam, The Netherlands). Anti–glycophorin A–FITC and anti-CD61–FITC were obtained from Dakopatts (Glostrup, Denmark). Mouse IgG₁-FITC, IgG_2a-FITC, IgG₁-phycoerythrin (PE; all used as controls), anti-CD14–PE, anti-CD8–FITC, and anti-CD20–FITC monoclonal antibody (mAb) were from Becton Dickinson (San Jose, CA). Annexin V–FITC was from Nexins Research B.V. (Hoeven, The Netherlands), anti–factor VII and anti–factor XII were from CLB, and anti–E-selectin–FITC (anti-CD62E–FITC) was from Serotec Ltd (Kidlington, UK). Anti-CD14–FITC was from Biosource (Camarillo, CA), anti-CD66b–FITC and IgG_2b-PE (control mAb) were from Immuno Quality Products (Groningen, The Netherlands), and anti–tissue factor–FITC and polyclonal rabbit anti-human tissue factor were from American Diagnostics (Greenwich, CT). Annexin V–PE was from PharMingen (San Jose, CA). F_1 + 2 was determined by enzyme-linked immunosorbent assay (Enzygnost F_1 + 2 micro) as described by the manufacturer (Behring Diagnostics GmbH, Marburg, Germany).

All patients included in the study had (1) a positive blood culture for Neisseria meningitidis; (2) signs and symptoms of septic shock; (3) a disease duration of less than 24 hours at study entry; and (4) a characteristic rash (macular, petechial, purpuric, or ecchymotic). Seven patients (age range, 1-29 years; male-female ratio, 2:5) were included. Patients had been included in an open, prospective study on the effects of leukaplasmapheresis in patients with meningococcal septic shock, and patient samples were collected between 1989 and 1993.17 Leukaplasmapheresis, an effective treatment that improves survival and reduces the chance of complications,18 was applied after admission and was repeated 4, 10, 16, 24, and 36 hours after initial treatment. The protocol was approved by the local hospital ethical committee. Informed consent for the blood collection was obtained from the patients or their relatives, as well as the attending physician.

EDTA-anticoagulated blood was collected at admission and before each leukaplasmapheresis procedure. Cells were removed by centrifugation for 15 minutes at 1550g at room temperature. Plasma samples were stored in aliquots at −70°C until use. All plasma samples from a single patient were tested in the same experiment to avoid day-to-day variation of the flow cytometer between samples from 1 patient. Healthy volunteer samples, collected in the same period and stored identically, were used for comparison.

For flow cytometry, 250 μL of plasma was centrifuged for 15 minutes at 17 500g and 20°C to obtain microparticle pellets. Subsequently, 225 μL of supernatant was removed, 225 μL of apopbuffer (10 mmol/L HEPES, 5 mmol/L KCl, 1 mmol/L MgCl₂, and 136 mmol/L NaCl; pH 7.4) was added, and the microparticles were recentrifuged. Finally, 225 μL of supernatant was removed and the pellets were resuspended with 75 μL of apopbuffer. From this suspension, 5-μL aliquots were diluted with 35 μL of apopbuffer containing 2.5 mmol/L CaCl₂ and 5 μL of microparticle-free normal mouse serum (1:5000, v/v, final concentration) and were incubated for 15 minutes at room temperature. Subsequently, to identify the total microparticle population and their cellular origin, we added 5 μL PE-labeled annexin V and 5 μL FITC-labeled mAb, respectively, and incubated the samples for 15 minutes in the dark. To identify monocyte-derived, tissue factor–expressing microparticles, we used anti-CD14–PE and anti–tissue factor–FITC. The following (final) concentrations were used: anti-CD4–FITC (0.5 μg/mL), anti-CD8–FITC (25 ng/mL), anti-CD20–FITC (0.5 μg/mL), IgG₁-FITC (0.5 μg/mL), IgG_2a-FITC (0.5 μg/mL), IgG₁-PE (0.5 μg/mL), anti-CD14–PE (0.25 μg/mL), anti-CD14–FITC (0.5 μg/mL), anti-CD61–FITC (1 μg/mL), anti-CD62E–FITC (1 μg/mL), anti–glycophorin A–FITC (0.25 μg/mL), anti-CD66b–FITC (0.25 μg/mL), IgG_2b-PE (0.5 μg/mL), anti–tissue factor–FITC (1 μg/mL), and annexin V–PE (40 pg/mL). The incubation with mAb and annexin V was terminated by the addition of 200 μL of apopbuffer containing 2.5 mmol/L CaCl₂, followed by recentrifugation. After removal of 200 μL of supernatant, another 300 μL of apopbuffer containing 2.5 mmol/L CaCl₂ was added and the pellets were resuspended. Samples were analyzed in a FACScan flow cytometer with CellQuest software (Becton Dickinson, San Jose, CA). Both forward scatter and sideward scatter were set at logarithmic gain. Microparticles were identified on forward scatter, sideward scatter, binding of annexin V, and binding of a cell-specific mAb. Annexin V measurements were corrected for autofluorescence, and binding of cell-specific mAbs was corrected with identical concentrations of control IgG antibodies.16 The number of microparticles per liter of plasma was calculated as: Number/L = N × [100/5] × [355/150] × [10⁶/250].

The thrombin generation assay as described by Kessels et al19 was used to assess the in vitro thrombin-generating capacity of microparticles. To prepare normal plasma, we collected citrate-anticoagulated blood from 40 healthy volunteers who had not taken any medication during the previous 10 days. Plasma was prepared by centrifugation for 15 minutes at 1550g at room temperature. The plasma samples were pooled and treated with reptilase (40 μL per 2 mL plasma) for 10 minutes at 37°C and then for 10 minutes on melting ice. Subsequently, fibrin and microparticles were removed by centrifugation for 1 hour at 17 500g (20°C), and plasma was stored in 1-mL aliquots at −70°C until use. Microparticles were prepared as described in flow cytometric analyses. At t = 0, thrombin generation was started by the addition of 30 μL CaCl₂ (17 mmol/L) to 120 μL of the prewarmed (37°C) normal plasma, to which 20 μL of buffer A (50 mmol/L Tris-HCl, 100 mmol/L NaCl; pH 7.35) and 10 μL of the washed microparticle suspension had been added. At fixed intervals after t = 0, 3 μL portions were removed from this mixture and added to prewarmed (37°C) buffer A containing 4 mmol/L of the chromogenic substrate S2238 and 20 mmol/L EDTA (to block further thrombin generation). After 180 seconds, the conversion of S2238 was stopped by the addition of 90 μL citric acid (1.0 mol/L), and the generated p-Nitroaniline was determined on a spectrophotometer at λ = 405 nm. For inhibition experiments, mAbs (anti–tissue factor, anti–factor VII, or anti–factor XII; 07-1.0 mg/mL) were added to both plasma (20 μL) and microparticles (10 μL), which were preincubated separately for 30 minutes at room temperature before the microparticles were added in the thrombin generation assay.

Data were analyzed with SPSS for Windows, release 8. Differences were considered statistically significant at P < .05. For direct comparison of the number of microparticles in blood samples, the Wilcoxon matched-pairs signed-rank test was used.

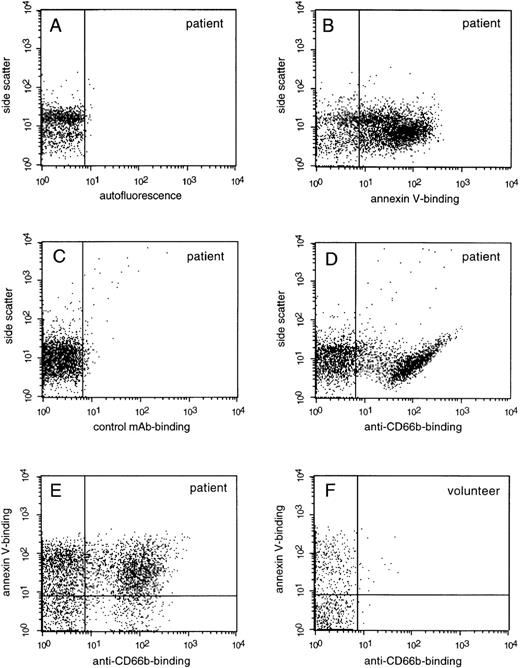

Microparticles were isolated from plasma samples, labeled, and analyzed by flow cytometry as described in “Materials and Methods.” Figure 1 shows a representative picture of microparticles stained with annexin V, which binds to negatively charged phospholipids and can be used to stain microparticles,16 and anti-CD66b, which labels granulocytes. To correctly identify annexin V–positive microparticles, we determined a threshold in a microparticle sample that was prepared without any additions to correct for intrinsic autofluorescence (Figure1A). This threshold is also depicted in panels B, E, and F. To identify microparticles that bound cell-specific mAbs, we also incubated microparticles with identical concentrations of control antibodies to set a threshold. This threshold is shown in Figure 1C and is also used in panels D, E, and F. Labeling with anti-CD66b revealed that part of the microparticles originated from granulocytes (Figure 1D) and that the microparticles also bound annexin V (Figure 1E, upper right). Figure 1F shows the virtual absence of granulocyte-derived microparticles in a representative dot plot of microparticles from a healthy volunteer.

Table 1 summarizes the numbers of circulating microparticles, identified by staining with annexin V–PE and anti-CD mAb-FITC, in patients at study entry (n = 7) and healthy volunteers (n = 5). For these experiments, a panel of mAbs was used directed against T_H cells (CD4), T_S cells (CD8), monocytes (CD14), B cells (CD20), platelets (CD61), endothelial cells (CD62E), granulocytes (CD66b), and erythrocytes (glycophorin A). Compared with healthy volunteers, the patients had significantly increased numbers of circulating platelet (CD61)-derived and granulocyte (CD66b)-derived microparticles at study entry. Monocyte (CD14)-, B cell (CD20)-, and endothelial cell (CD62E)-derived microparticles were also increased, although the difference was not statistically significant. Notably, the nonsurviving patient A, who died on admission after a disease course of less than 18 hours, had the highest plasma levels of microparticles derived from T_Hcells, monocytes, B cells, endothelial cells, platelets, granulocytes, and erythrocytes. The other nonsurvivor showed no marked differences in microparticle numbers when compared with patients who survived meningococcal sepsis.

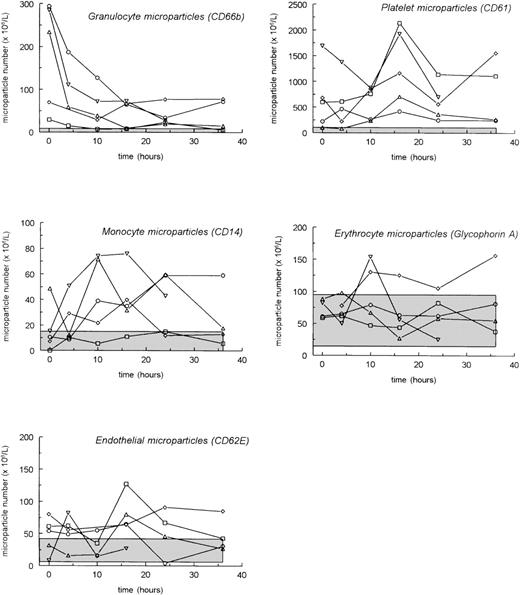

The time course of microparticle numbers in the patients is given in Figure 2. In all 5 survivors, the number of granulocyte-derived microparticles decreased during the first 10 hours after admission (Figure 2, upper left). During the first 10 hours, the number of monocyte-derived microparticles (CD14; Figure 2, middle left) increased slightly in 4 of the survivors, although this increase was not significant (P = .117 at 24 hours andP = .462 at 36 hours). In contrast, microparticles originating from platelets, erythrocytes, or endothelial cells (Figure 2; upper right, lower right, and lower left, respectively) showed no apparent changes during the observation period.

To investigate whether the microparticles detected in the patients promoted coagulation, we first measured the activation of the coagulation system in vivo by assessing the concentration of the prothrombin fragment F_1 + 2 in plasma during the course of the disease, which reflects the concentration of thrombin formed in vivo.20 Table 2 shows that the concentration of F_1 + 2 on admission was higher in the patients than in volunteers (P = .004). This difference was still present at 24 hours (P = .016), but not thereafter. The concentration of F_1 + 2 in survivors decreased slowly after admission, becoming significantly lower than baseline values at 36 hours (P = .016), indicating progressively less activation of coagulation in vivo. To substantiate a link between coagulation activation and microparticles, we studied the thrombin-generating capacity of isolated microparticles from patients and healthy volunteers in vitro. Virtually all microparticle preparations of the patients generated more thrombin than those of healthy controls (data are summarized in Table 2).

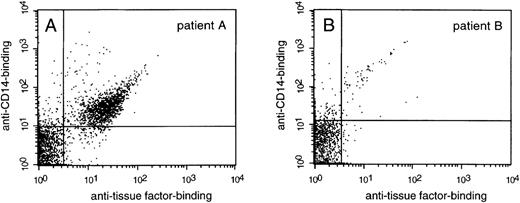

Microparticles released from monocytes in vitro express tissue factor,21,22 so we investigated whether such particles also circulate in vivo. Nonsurvivor A, who suffered from severe DIC as evidenced by a low platelet number (7 × 10⁹/L), a prolonged prothrombin time (> 60 seconds; normal range, < 14.5 seconds), a decreased fibrinogen level (< 0.1 g/L; normal range, 1.7-3.7 g/L), the presence of fibrin degradation products, and a prolonged activated partial thromboplastin time (> 120 seconds; normal range, < 36 seconds), had extremely high numbers of monocyte-derived microparticles (CD14 positive). These microparticles double stained for tissue factor (Figure3A). In contrast, microparticles of nonsurvivor B, with a less fulminant disease course (platelet number 258 × 10⁹/L, prothrombin time 17.1 seconds, fibrinogen 2.5 g/L, presence of fibrinogen degradation products, and activated partial thromboplastin time of 42.9 seconds), hardly stained for CD14 or tissue factor (Figure 3B).

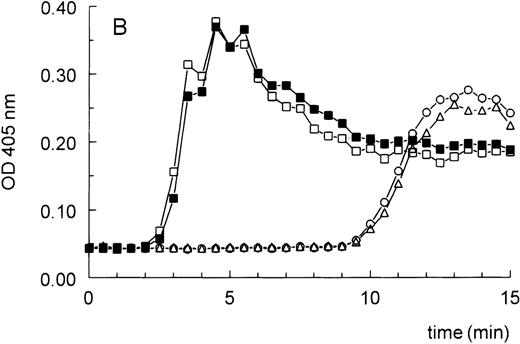

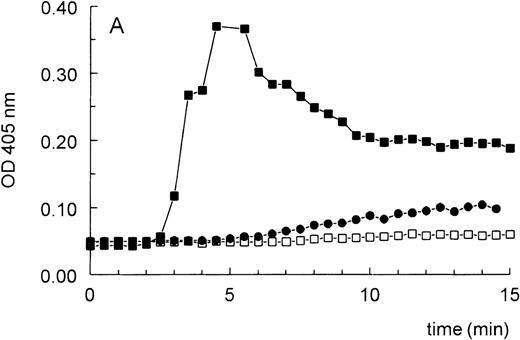

As indicated in Figure 4A, the addition of microparticles from nonsurvivor A to normal plasma resulted in a strong generation of thrombin, whereas those of nonsurvivor B induced only modest thrombin generation. The generation of thrombin in normal plasma by the microparticles from nonsurvivor A was extremely delayed when both microparticles and the normal plasma were preincubated with mAbs against tissue factor or factor VII (Figure 4B), indicating that the microparticle-associated tissue factor is active and stimulates the extrinsic pathway of the coagulation system. In contrast, preincubation with OT-2, a mAb that inhibits factor XIIa and blocks kaolin-induced thrombin generation in normal plasma (data not shown), had no effect.

This study shows that patients with meningococcal sepsis have elevated numbers of microparticles originating from various cell populations in their circulation. These microparticles evoked a stronger generation of thrombin in normal plasma than those from volunteers, suggesting that the elevated numbers of microparticles in the circulation or their cellular origin may be related to the increased activation of the coagulation system in vivo. It could be argued that the increased procoagulant activity of the patients' microparticle fractions is mainly due to the increased number of microparticles and not to their cellular origin or properties. Because we wished to estimate the total procoagulant activity of the fractions, the microparticles were not diluted to a standard concentration in the thrombin generation assay. In addition, dilution cannot be done easily because the cellular composition of microparticles varied among patients, by the course of the disease, and most likely also by the type of disease. We also demonstrated tissue factor on microparticles, especially in a patient with an extremely fulminant course of DIC, which was functional in the thrombin generation assay as established with specific activity-blocking antibodies to tissue factor, factor VII, and factor XII.

Tissue factor is a transmembrane protein, the extracellular domain of which functions as a receptor for factor VII.23 Binding of factor VII to tissue factor is a first step in a series of events in which soluble coagulation proteins become assembled on a phospholipid surface. Evidence that tissue factor is important for coagulation and inflammation in vivo comes from a number of animal studies. Infusion of recombinant activated factor VII into normal chimpanzees raised the plasma levels of activation peptides of factor IX, factor X, and prothrombin. This was blocked by the administration of an anti–tissue factor mAb.24 Infusion of endotoxin reduced the number of platelets in rabbits and decreased the concentrations of fibrinogen, antithrombin, and factor VIII, whereas it prolonged the activated partial thromboplastin time. These changes were counteracted by tissue factor pathway inhibitor.25 Infusion ofEscherichia coli into baboons caused sepsis with severe DIC, which could be prevented by concurrent infusion of tissue factor pathway inhibitor.26,27 Although these studies clearly indicate the importance of tissue factor for the development of DIC and sepsis, the location of functionally active tissue factor expression is not well known. Our results suggest that tissue factor exposed by microparticles, particularly those released by monocytes, may be important in this respect. However, another component required for the assemblage of the coagulation factor complexes on the phospholipid surface is phosphatidylserine, which is not exposed on normal cells but on, for example, activated platelets. In the present study, microparticles stained positive for annexin V, indicating the presence of phosphatidylserine on their surfaces.28 Presumably, this also explains in part the thrombin-generating capacity of circulating microparticles. The relative contributions of phosphatidylserine and tissue factor to coagulation activation remain to be established. Possibly, the presence of tissue factor may enhance the coagulation activation associated with phosphatidylserine.

Monocytes are the only cells found in peripheral blood currently known to be capable of expressing tissue factor.23 Isolated monocytes stimulated by endotoxin express tissue factor.29Under flow conditions, endotoxin-stimulated monocytes stimulate fibrin deposition and thrombus formation. Anti–tissue factor mAb inhibits both of these processes.30 Monocytes have been shown to express tissue factor in patients suffering from invasive tumors, leukemia, sepsis, myocardial infarction, and diabetes, and in patients requiring extracorporeal circulation.31 In addition to expressing tissue factor, monocytes can release tissue factor–exposing microvesicles in vitro upon stimulation with endotoxin.21,22 Mallat et al32 recently reported the presence of membrane vesicles of monocytic and lymphocytic origin that retained tissue factor activity in atherosclerotic plaques. Our present results extend these findings and demonstrate, for the first time, that procoagulant microparticles of monocyte, granulocyte, and endothelial cell origin can be detected in the circulation. It is interesting that of the 7 patients studied, only the patient with severe DIC had an extremely elevated (7-fold increase) number of endothelial cell–derived microparticles (244 × 10⁶/L) compared with controls. Although we cannot exclude the possibility that these microparticles also express tissue factor, 85% of the tissue factor–positive microparticles were CD14 positive. We therefore presume that the contribution of tissue factor to the overall procoagulant activity is especially due to the increased number of monocyte-derived microparticles.

The samples analyzed in the present study had been collected between 1989 and 1993. This may raise concerns about the validity of the present findings (i.e., the microparticle profile). Therefore, microparticles were also isolated immediately after blood collection from 2 patients with sepsis and multiple organ failure and 2 healthy controls. Both patients clearly showed granulocyte-derived microparticles, which were absent or present at low numbers in the controls. The numbers of monocyte- and endothelial cell–derived microparticles were not increased in these patients compared with the controls (data not shown). On the basis of these preliminary data, we cannot make definitive conclusions about the presence or absence of either monocyte- or endothelial cell–derived microparticles in other diseases, but we hypothesize that such microparticles may be especially prevalent in patients with severe DIC. Combes et al33recently showed the presence of endothelial cell–derived microparticles in blood from healthy individuals and their increased presence in blood obtained from patients with lupus anticoagulant. Thus, the presence of endothelial cell–derived microparticles is evidently not unique for patients with meningococcal sepsis. Combes et al,33 however, did not report the presence of tissue factor on these microparticles.

All patients studied had elevated numbers of microparticles. It is tempting to speculate that interference with the release of microparticles may be a target for therapeutic intervention. Recently, an mAb against the glycoprotein IIb-IIIa complex on platelets, which inhibits platelet–platelet interaction or aggregation, has been used successfully in patients undergoing stent implantation.34,35 In vitro, this mAb prevents the release of microparticles from platelets.36 Our findings imply that this mAb may inhibit clotting in vivo as well. Indeed, infusion of this mAb into baboons with lethal E. coli sepsis prevented fibrin deposition and renal insufficiency.37 Thus, therapeutic interference with microparticle release in general, and possibly of platelets in particular, seems a realistic option.

In conclusion, elevated levels of microparticles were observed in patients with meningococcal sepsis. These microparticles enhanced coagulation by providing a suitable phospholipid surface and, at least in part, by exposing tissue factor. We suggest that such microparticles are involved in the pathogenesis of DIC during meningococcal sepsis and may constitute a novel target for therapeutic intervention in this disease, and possibly also in other clinical conditions with enhanced coagulation activation.
