To the Editor:

In a recent issue of Blood, Pestalozzi et al1reported interesting data on computerized tomographic (CT)-scan examinations in chronic systemic candidiasis in leukemia patients that become invisible during neutropenia. CT-scan is known to be sensitive, as has been demonstrated for magnetic resonance imaging (MRI)-scan.2,3 However, only ultrasound can be repeated as often as needed. Data correlation to ultrasound findings in these patients are lacking. Ultrasound examinations are easy to perform, comfortable for the patient, and cost-effective. We have analyzed prospectively the value of serial ultrasound examination in the diagnosis and follow-up of chronic systemic candidiasis in leukemia patients.4 From November 1996 until October 1997, a total of 220 ultrasound examinations (Kranzbühler Logiq 500, 3.5 MHz-convex array; Solingen, Germany) were performed in 58 leukemia patients undergoing intensive chemotherapy. Initial ultrasound pictures were stored on a personal computer and compared with the live ultrasound at the time of re-evaluation in cases of persistent fever. Abdominal ultrasound detected microabscesses in 8 patients. Diagnosis was confirmed by autopsy/biopsy (n = 6), blood culture (n = 1), and a significant candida-antibody titer at the time of neutrophil recovery (n = 1). According to Pestalozzi et al,1 focal lesions representing microabscesses in liver or spleen were detected by ultrasound only after neutrophil recovery. None of our serially monitored patients (ranging from 1 to a maximum of 16 follow-up examinations) showed a disappearance of hepatic lesions within subsequent phases of aplasia with a reappearance after recovery of the neutrophil count. We point out that our experiences with ultrasound are different from the observed CT-scans in the study of Pestalozzi et al.1 Based on our data, we believe that ultrasound examinations should be performed in addition to CTscan, because this might provide helpful complementary information.

In addition to the reported CT-scan findings, a nonhomogenous micronodular parenchyma reflex pattern of liver and/or spleen was observed by ultrasound as a first sign in two of three patients who subsequently developed focal lesions, which persisted during febrile neutropenia (Table 1). A third patient developed a nonhomogenous parenchyma reflex pattern in the liver without evolving focal lesions subsequently. This patient had a proven septicemia with candida tropcalis and died in aplasia. A changing reflex pattern of the liver parenchyma has been also reported by Grois et al5 as a first sign in the course of chronic systemic candidiasis; however, this is not proven to be specific. New evolving focal lesions (wheel-in-wheel sign) in liver or spleen of small diameter are known to be ultrasound characteristics in chronic systemic candidiasis.6,7 Ultrasound proved to be as sensitive as CT-scan to detect these lesions in our study. Focal lesions detected in the liver and spleen ranged from 5 to 19 mm in diameter. The incidence of chronic systemic candidiasis was 13.8% in our study group, comparable to data in the literature.5 8 Because ultrasound was sensitive, follow-up of these patients with chronic systemic candidiasis was performed using ultrasound alone. One possible disadvantage of ultrasound examinations is a lack of sufficient documentation in serial ultrasound. However, we improved the reliability of ultrasound by computer-assisted documentation. Follow-up was easy to perform, because ultrasound pictures could be compared directly with live examinations on the screen (Fig1).

Table 1.

Ultrasound Features and Clinical Characteristics in Leukemia Patients With Chronic Systemic Candidiasis

Patient No. Diagnosis Treatment Focal Lesions in the Liver Focal Spleen LesionIrregular Pattern During Aplasia Autopsy or Biopsy Results (+ = microabscesses) CT-liver/ Spleen (+ = focal lesions) AP (J/L) GGT (J/L) (max) Blood Culture CandidaAntibody Titer (max) CandidaAntigen Titer (max) Outcome (+ = inf. related death)
1  AML  IVA  +  No  ND  +  AP 214 GGT107  Neg  1:40,960  Neg Alive
2  AML  DAV  +  No  No  Neg  AP 304 GGT170  Neg  1:640  Neg  Alive
CML blast crisis  ViDAP  +  +  No  +  AP 416 GGT 69  Neg  1:640  Neg  +
4  AML m-amsa/ida  No  No  ++L/−S  +  ND  AP 358 GGT 80  C tropicalis  1:640  Neg  +
5  AML  DA +  No  +L and +S (first)  +  ND  AP 738 GGT402  Neg  1:40,960  Neg  +
6  CML blast crisis  IVA  +  +  No  +  ND  AP 112 GGT 16 Neg  1:1,280  Pos 1:8  +
7  ALL  ViDAP  +  +L and +S  +  +  AP 960 GGT550  Neg 1:20,480  Neg  Alive
8  AML  IVA  +  +  No +  +  AP 311 GGT122  Neg  1:2,560  Neg Dead, due to AML
Patient No. Diagnosis Treatment Focal Lesions in the Liver Focal Spleen LesionIrregular Pattern During Aplasia Autopsy or Biopsy Results (+ = microabscesses) CT-liver/ Spleen (+ = focal lesions) AP (J/L) GGT (J/L) (max) Blood Culture CandidaAntibody Titer (max) CandidaAntigen Titer (max) Outcome (+ = inf. related death)
1  AML  IVA  +  No  ND  +  AP 214 GGT107  Neg  1:40,960  Neg Alive
2  AML  DAV  +  No  No  Neg  AP 304 GGT170  Neg  1:640  Neg  Alive
CML blast crisis  ViDAP  +  +  No  +  AP 416 GGT 69  Neg  1:640  Neg  +
4  AML m-amsa/ida  No  No  ++L/−S  +  ND  AP 358 GGT 80  C tropicalis  1:640  Neg  +
5  AML  DA +  No  +L and +S (first)  +  ND  AP 738 GGT402  Neg  1:40,960  Neg  +
6  CML blast crisis  IVA  +  +  No  +  ND  AP 112 GGT 16 Neg  1:1,280  Pos 1:8  +
7  ALL  ViDAP  +  +L and +S  +  +  AP 960 GGT550  Neg 1:20,480  Neg  Alive
8  AML  IVA  +  +  No +  +  AP 311 GGT122  Neg  1:2,560  Neg Dead, due to AML

Abbreviations: DA, daunorubicin/cytosine arabinoside; DAV, daunorubicin, cytosine arabinoside, vepesid; IVA, idarubicin/vepesid/cytosine arabinoside; m-amsa/ida, m-amsacrine/idarubicin; ViDAP, vincristin/daunorubicin/l-asparaginase/prednisone; ND, not done; candida-antibody, indirect haemagglutinin-test (Roche Co, Basel, Switzerland); candida-antigen, CanTec (Ramco-Lab 4507; MT, Mount Vernon, VA); L, liver; S, spleen.

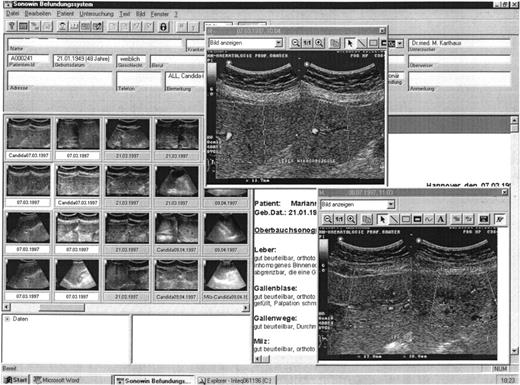

Fig. 1.

The ultrasound pictures of this patient show a nonresponse to antifungal therapy in the course of chronic systemic candidiasis. The micro-abscesses in the left lobe of the liver are documented to be nonresponding. All stored ultrasound pictures, in part demonstrated on the left side of the computer screen, can be enlarged for comparison.

Fig. 1.

The ultrasound pictures of this patient show a nonresponse to antifungal therapy in the course of chronic systemic candidiasis. The micro-abscesses in the left lobe of the liver are documented to be nonresponding. All stored ultrasound pictures, in part demonstrated on the left side of the computer screen, can be enlarged for comparison.

Close modal

In conclusion, we would recommend ultrasound examination in all patients with suspected or proven chronic systemic candidiasis, especially in those cases in which the lesions become invisible by CT-scans. In addition, a change in the parenchyma reflex pattern of liver and/or spleen during febrile neutropenia might be the first manifestation of an evolving chronic systemic candidiasis. Ultrasound proved to be sensitive and effective for the detection and follow-up of patients with chronic systemic candidiasis. Finally, ultrasound is comfortable for the patient and cost-effective.

1
Pestalozzi

BC
Krestin

GP
Schanz

U
Jacky

E
Gmür

J
Hepatic lesions of chronic disseminated candidiasis may become invisible during neutropenia.
Blood
90
1997
3858
2
Thaler

M
Pastakia

B
Shawker

TH
O'Leary

T
Pizzo

PA
Hepatic candidiasis in cancer patients: The evolving picture of the syndrome.
Ann Intern Med
108
1988
88
3
von Eiff

M
Essink

M
Roos

N
Hiddemann

W
Buchner

T
van de Loo

J
Hepatosplenic candidiasis, a late manifestation of Candida septicaemia in neutropenic patients with haematologic malignancies.
Blut
60
1990
242
4
Karthaus M, Elser C, Meran JG, Huebner G, Heil G, Ganser G: Detection of hepatosplenic candidiasis in febrile neutropenia—Incidence and features in ultrasound examinations. Toronto, Ontario, Canada, Proceedings 37th ICCAC, 368(LM-23a), 1997 (abstr)
5
Grois

N
Mostbeck

G
Scherrer

R
Chott

A
Schwarzinger

I
Muhm

M
Bettelheim

P
Forstinger

C
Laczika

K
Kyrle

PA
Lechner

K
Hepatic and splenic abscesses—A common complication of intensive chemotherapy of acute myeloid leukemia (AML).
Ann Hematol
63
1991
33
6
Gorg

C
Weide

R
Schwerk

WB
Koppler

H
Havemann

K
Ultrasound evaluation of hepatic and splenic microabscesses in the immunocompromised patient: Sonographic patterns, differential diagnosis, and follow-up.
J Clin Ultrasound
22
1994
525
7
Karthaus

M
Meier

NP
Manns

MP
Ganser

A
Hertenstein

B
Hepatische Komlikationen bei Stammzellstransplantationen (Hepatic complications of stem cell transplantation).
Dtsch Med Wochenschr
122
1997
1154
8
Blade

J
Lopez Guillermo

A
Rozman

C
Granena

A
Bruguera

M
Bordas

J
Cervantes

F
Carreras

E
Sierra

J
Montserrat

E
Chronic systemic candidiasis in acute leukemia.
Ann Hematol
64
1992
240
