CD148 Is a Membrane Protein Tyrosine Phosphatase Present in All Hematopoietic Lineages and Is Involved in Signal Transduction on Lymphocytes

Blood samples were obtained from healthy adult donors. Peripheral blood mononuclear cells (PBMCs) were isolated by centrifugation over Ficoll-Hypaque (Pharmacia LKB, Uppsala, Sweden) density-gradient sedimentation. The following cell lines were grown in RPMI plus 10% fetal calf serum (FCS): CEM, HPB-ALL, HSB2, JURKAT, MOLT-4, RAJI, KM3, NAMALWA, RAMOS, NALM-6, K562, U937, and HL-60.

The following MoAbs were produced in our laboratory and ascribed to their CDs through one of the International Workshop on Human Leukocyte Differentiation Antigens (WLDA): CRIS-7 (CD3, IgG2a), 72-5D3 (CD45, IgG2a), and 111-5A1 (CD41, IgG1). MoAbs were purified from ascitic fluid by protein A affinity chromatography. The 143-41 (IgG1) hybridoma was produced in accordance with a previously described method14 after immunization of BALB/c mice with PBMCs that had previously been stimulated with phytohemagglutinin (PHA) for 3 days. The following phycoerythrin (PE)-labeled MoAbs were used: HD-37 (CD19), Leu 4 (CD3), and mouse IgG2a control (Becton Dickinson, San Jose, CA).

The 143-41 MoAb was labeled with fluorescein following conventional techniques. Cells were washed with immunofluorescence buffer (phosphate-buffered saline [PBS] containing 0.02 mmol/L sodium azide and 1% bovine serum albumin [BSA]) and incubated with specific MoAb or isotype-matched control MoAb for 30 minutes on ice in immunofluorescence (IF) buffer containing 5% rabbit serum. For two-color analysis the simultaneous combination of 143-41 fluorescein isothiocyanate (FITC)-conjugated MoAb with a PE-conjugated MoAb, was used. Samples were run on a FACScan flow cytometer (Becton Dickinson). Where applicable, different cell populations (eg, lymphocytes, monocytes, and neutrophils) were identified based on 2-dimensional light scatter characteristics.

Adult human peripheral blood mononuclear cells were isolated from healthy donors by centrifugation over Ficoll-Hypaque. Cells were prepared for surface biotinylation by washing twice in PBS and resuspending at 5 × 10⁷ cells/mL in PBS containing 200 μg/mL Sulfo-NHS-Biotin (Pierce, Rockford, IL). Labeling was allowed to proceed for 30 minutes at 4°C and was quenched by incubation for 15 minutes at room temperature with an equal volume of RPMI 1640 medium supplemented with 10% FCS. Cells were then washed three times in cold PBS and lysed. After 20 minutes on ice, postnuclear extracts were added to CNBr-activated Sepharose 4B (Pharmacia LKB) that had been previously coupled to 143-41 antibody and blocked with 2% BSA (Sigma Chemical Co, St Louis, MO). After 60 minutes at 4°C, immunoprecipitates were washed five times in lysis buffer (0.5% Nonidet P-40, 10 mmol/L Tris-HCL, pH 7.40, 150 mmol/L NaCl, 1 mmol/L EDTA, 1 mmol/L EGTA, 1 mmol/L NaF, 20 mg/mL egg white trypsin inhibitor, 1 mg/mL leupeptin, 1 mg/mL pepstatin, 1 IU/mL aprotinin, and 1 mmol/L phenylmethyl sulfonyl fluoride [PMSF]) containing 0.05% sodium dodecyl sulfate (SDS). For deglycosylation, samples of immunoprecipitates were washed and, after boiling, resuspended in the corresponding buffers prepared according to manufacturer's instructions for Neuraminidase (150 mU/50 mL; Boehringer-Mannheim, Mannheim, Germany), O-Glycosidase (1.5 mU/50 mL, Boehringer-Mannheim) and recombinant N-glycosidase F (0.7 mU/100 mL, Boehringer-Mannheim). Overnight digestions at 37°C were usually used; however, for Neuraminidase treatment a shorter digestion time (2 hours) was used. The glycosidase-treated proteins were run on 5% sodium dodecyl sulfate-polyacrylamide gel electrophoresis (SDS-PAGE) and transferred to Immobilon-P (Millipore Corp, Bedford, MA) in 39 mmol/L glycine, 48 mmol/L Tris-base, 1.3 mmol/L SDS, and 5% methanol for 2 hours at 60 V. After incubating the filters with blocking solution (10% nonfat milk protein in PBS) for 2 hours at 4°C, blots were incubated with streptavidin-peroxidase (Sigma Chemical Co) at 1:2,000 in blocking solution for 1 hour at 20°C. Filters were washed again with 0.1% Tween-20 in PBS, and the Western blots were developed using substrate solution (0.6 mg/mL diaminobenzidine, 0.1% hydrogen peroxide (30%), and 0.3% (wt/vol) CoCl₂).

The molecule recognized by 143-41 MoAb was purified following previously described procedures15 with modifications. Buffy coats from normal healthy donors were obtained and erythrocytes separated by sedimentation in PBS-2% Dextran-500 (Pharmacia LKB). Leukocyte-rich supernatants were centrifuged, and about 20 × 10⁹ white blood cells were obtained and washed twice in PBS. Pellets were disrupted in lysis buffer for 30 minutes on ice. Insoluble material was removed by centrifugation at 50,000g for 30 minutes at 4°C and the supernatant was precleared by passing it sequentially through columns of CNBr-activated Sepharose-4B beads alone and CNBr-activated Sepharose 4B beads coupled with polyclonal mouse Ig or irrelevant IgG1 MoAb. The resulting lysate was then applied to a column of CNBr-activated Sepharose 4B beads (15 mL) derivatized with MoAb 143.41. The affinity column was washed extensively with modified lysis buffer containing 0.05% NP40 and then with two column volumes of PBS 0.5 mol/L MgCl₂. The bound material was eluted with 4 mol/L MgCl₂ in PBS and the sample concentrated to 150 μL using a Centriprep 30 membrane (AMICON, Beverly, MA) while the buffer was changed to PBS. Cyanogen bromide cleavage of the protein was performed according to a previously described protocol¹⁵: 400 mg of protein were resolved with SDS-PAGE (5%) and electroblotted onto nitrocellulose membrane. After transfer, a band visualized by Ponceau S (Sigma Chemical Co), was excised, transferred to a screwcap microvial, and incubated in 300 μL of 0.150 mol/L CNBr (Pierce Chemical Co) in 70% formic acid (vol/vol) (E. Merck, Damstadt, Germany) for 4 hours in the dark, at room temperature. After cleavage, membrane fragment was dried completely with N₂ and washed with 200 μL water and dried again. The protein fragments were redissolved in Laemmli's sample buffer containing 5% mercaptoethanol, and the SDS-PAGE for the separation of the peptides was 20% acrylamide (200:1, acrylamyde:bis), 10% (vol/vol) glycerol, 0.75 mol/L Tris pH 9.3, and 0.1% SDS. The gel was aged 2 days, and the running buffer contained 0.1 mmol/L thioglycolate. After the run, the proteins were blotted onto polyvinylidine difluoride membrane (ProBlott; Applied Biosystems, Inc, Foster City, CA) with transfer buffer (48 mmol/L Tris pH 9, 39 mmol/L Tricine, 1.3 mmol/L SDS, and 20% methanol). SDS-PAGE molecular weight standards (Bio-Rad Laboratories, Richmond, CA) were used. The membrane was stained with AmidoBlack (0.1% in 40% methanol, 1% acetic acid), washed thoroughly in H₂O, and dried. Two bands were cut out and stored in microvials filled with N₂. NH₂-terminal sequence analysis of the intact protein and the two protein fragments was performed on an Applied Biosystems 470A/120A microsequencer.

Substrate preparation and PTP assay were performed with the Malachite Green Phosphatase Assay (Upstate Biotechnology Inc, Lake Placid, NY) as described in the product manual. Affinity purified 143-41 and CD50 molecules (kindly provided by Dr C. Vilardell, H. Clinic, Barcelona, Spain) were diluted in assay buffer (10 mmol/L Tris-HCl, pH 7.4) and added to microtiter wells with or without the substrate phosphopeptide (2 mmol/L, TSTEPQpYQPGENL) allowing enzyme reaction to proceed for 30 minutes. One hundred microliters per well Malachite Green solution was added, and after incubation for 15 minutes the absorbance at 620 nm was determined with a Titertek Multiscan enzyme-linked immunosorbent assay reader (Flow Laboratories, Rockville, MD). The assay was performed in the presence or absence of 10-mmol/L sodium orthovanadate (Sigma Chemical Co).

A full-length cDNA (hp21) encoding the human protein-tyrosine phosphatase η (HPTP-η)12 was the kind gift of Drs H. Honda and H. Hirai, Faculty of Medicine, University of Tokyo, Japan. To examine whether MoAb 143-41 recognizes HPTP-η gene product, COS-7 cells were transfected by lipofection. Briefly, 1 × 10⁶ cells in log phase were washed twice with PBS and incubated in serum-free Dulbecco's modified Eagle's medium containing 30 μg/mL DOTAP (N-[1-(2,3-Dioleoyloxy)propyl]-N,n,n-trimethylammonium methylsulfate; Boehringer Mannheim GmbH, Mannheim, Germany) and 5 μg of the pSSRa expression vector with hp21 insert, or 5 μg of the pSSRa plasmid alone (mock transfection) at 37°C for 6 hours. After 2 days, cells were stained with 143-41 MoAb and FITC-labeled goat antimouse Ig and analyzed on a FACScan flow cytometer (Becton Dickinson).

[Ca²⁺]_i was measured in individual lymphocytes basically following the method described by Wacholtz and Lipsky.16 Briefly, peripheral blood lymphocytes (PBL) were resuspended at a final concentration of 30 × 10⁶ cells/mL in RPMI supplemented with 10% FCS. Cells were loaded with fura-2 acetoxymethyl ester (fura-2/AM; 2 mmol/L; Calbiochem, San Diego, CA) by incubation for 25 minutes at 37°C, with gentle shaking. After fura-2 loading, lymphocytes were incubated with MoAbs (CRIS-7: 10 mg/mL and 72-5D3, 143-41,111-5A1: 40 mg/mL) for 30 minutes at 4°C. After washing, fura-2-loaded PBL (10⁶ cells) were plated on the center of a 25-mm glass coverslip coated with Cell-Tak (Collaborative Biomedical Products, Bedford, MA) in 50 mL of RPMI medium without FCS. The cells were incubated for 20 minutes at 37°C under an atmosphere of 5% CO₂/air, and washed with incubation buffer composed of 121 mmol/L NaCl, 10 mmol/L HEPES, 5 mmol/L NaHCO₃, 4.7 mmol/L KCl, 1.2 mmol/L KH₂PO₄, 1.2 mmol/L MgSO₄, 2 mmol/L CaCl₂, 10 mmol/L glucose, and 0.01% BSA at pH 7.4 to remove unattached and nonviable cells. Coverslips with attached lymphocytes were transferred into an open flow chamber (1 mL, volume) mounted on the heated stage of a Nikon Diaphot-300 inverted epifluorescence microscope. The stage, 40 × fluor immersion objective (Nikon) and chamber were maintained at 37°C. Ca²⁺ mobilization was induced by the crosslinking of cell surface molecules after addition of a second step saturating amount of polyclonal affinity purified goat-antimouse antiserum (GAM; Tago Inc, Burlingame, CA). Cells were considered to respond when [Ca²⁺]_i increased more than 100% of the basal level. Fluorescence images were obtained by a CCD CH250 camera (Photometrics, Tucson, AZ) and were digitized, stored, and analyzed in an Apple-MacIntosh 840AV computer (Apple Computers Inc, Cupertino, CA). Images were collected alternately at excitation wavelengths of 340 and 380 nm (10 nm bandwidth filters) to excite the Ca²⁺-bound and Ca²⁺-free forms of this ratiometric dye, respectively. The emission wavelength was 510 nm (120 nm bandwidth filter). The integration time for each image was 100 ms, and individual pixels were binned into 2 × 2 superpixels at read out from the charge coupled device detector to improve signal to noise. To minimize photobleaching, a computer-controlled shutter was used to limit the exposure of the cells to excitation light. [Ca²⁺]_i values were calculated on a single-cell basis from the 340- to 380-nm fluorescence ratios at each time point as described previously.17,18 All images were checked for movement artifacts, and a reference point was used to obtain true coregistration of the 340- and 380-nm images. At the end of each experiment, cells were exposed to ionomicyn (10 mmol/L) and MnCl₂ for 20 minutes. This treatment quenches the fluorescence of the intracellular Ca²⁺-sensitive fura-2, leaving the residual fluorescence at each wavelength because of cell autofluorescence and any Ca²⁺-insensitive forms of the dye. The residual fluorescence was measured over the same region of each cell as the Ca²⁺-dependent fluorescence.

Standard statistical methods from SPSS Statistical Analysis System V4.0+ (SPSS, Chicago, IL) were used. Paired two-tailed t-tests were used to analyze the differences between conditions in each experiment. All variables were expressed as mean ± standard error (SE), and a significance level of P < .05 was used.

Cells (50 × 10⁶) were incubated with the different MoAbs (10 μg) for 15 minutes at 4°C followed by the addition of crosslinking rabbit antimouse Igs (5 μg). Incubation was terminated after different periods of time by the addition of 1 mL of ice-cold stop buffer (50 mmol/L HEPES, 150 mmol/L NaCl, 100 mmol/L NaF, 10 mmol/L EDTA, 10 mmol/L Na₄P₂O₇, 2 mmol/L sodium pervanadate, 2 mmol/L PMSF, 10 mg/mL aprotinin, 10 mg/mL pepstatin, 1 mg/mL leupeptin, 100 mmol/L PAO). Cells were pelleted and lysed with stop buffer containing 1% NP-40. Proteins were separated by SDS-PAGE and transferred to nitrocellulose membranes. Phosphotyrosine-containing proteins were probed with antiphosphotyrosine MoAb PY-20 from Santa Cruz Biotechnology (Santa Cruz, CA) and horseradish peroxidase-conjugated rabbit antimouse and visualized by fluorography with enhanced chemiluminescence reagent (Amersham, Buckinghamshire, UK).

For immunoprecipitation experiments, cell lysates of 25 × 10⁵ stimulated cells were prepared as described previously. Precleared lysates were incubated overnight with 1 μg of anti–PLC-g1 MoAb (UBI Inc, Lake Placid, NY). Immunoprecipitates were recovered by incubation with 20 μL of Protein A-Sepharose beads for 120 minutes at 4°C and washed three times in lysis buffer. The proteins were then eluted and dissolved by boiling for 5 minutes in Laemmli sample buffer and subsequently resolved by SDS-PAGE. Western blot analysis was then performed using PY20 antiphosphotyrosine antibody (UBI Inc), biotinylated goat antimouse (Sigma Chemical Co), and avidin-peroxidase (Sigma Chemical Co) as described above. Next, membranes were stripped of primary antibody with stripping buffer (100 mmol/L 2-ME, 2% SDS, Tris-Cl 65 mmol/L, pH = 7.5) washed and reprobed with anti–PLC-γ1 MoAb (UBI Inc).

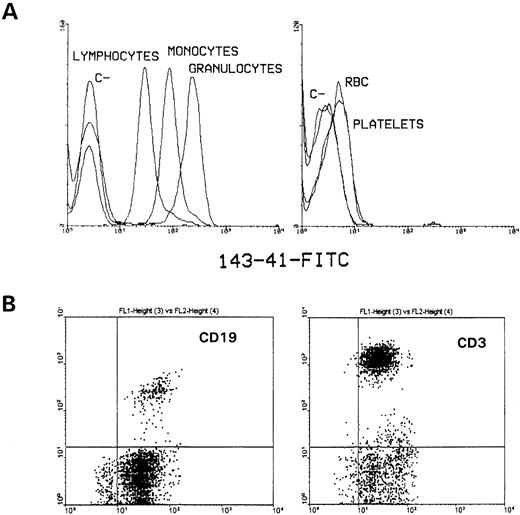

With the aim of producing MoAbs defining new membrane proteins, several MoAbs were obtained in our laboratory. One of them, MoAb 143-41, defined a molecule present on peripheral blood cells that shows its highest expression on granulocytes, being present at intermediate intensity on monocytes and lymphocytes (Fig1A, left). Its expression on red blood cells and platelets was even lower than the one observed on those cells (Fig 1A, right). This molecule was detected on both T and B lymphocytes as determined by double immunofluorescence with FITC-labeled 143-41 and PE-labeled CD3 and CD19 (Fig 1B). The reaction of 143-41 MoAb with different hematopoietic cell lines was also tested (Fig 2). Thus, CD148 showed a clear reaction with cell lines of myeloid origin (K562, U937, and HL-60) and with some B-cell lines (Raji, KM3, Nalm-6), whereas this was weakly expressed on Namalwa and Ramos, also of B-cell origin. Surprisingly, and in contrast with the clear expression observed on CD3⁺lymphocytes, it was not detected on T-cell lines (CEM, HPB-ALL, Jurkat, and MOLT-4) with the exception of HSB-2.

Although this MoAb was analyzed during the IV WLDA it could not be clustered. During the work of the VI WLDA held recently in Kobe, another MoAb (A3) with a similar pattern of reaction was detected. In basis of the comparative analysis of this antibody with our MoAb 143-41, a new cluster of differentiation could be defined: CD148.10

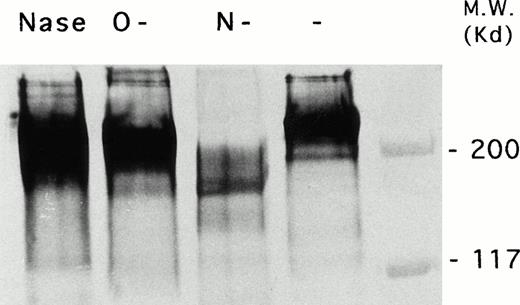

To further characterize this molecule a thoroughly biochemical characterization was performed. The molecule was immunoprecipitated, and before and after digestion with neuraminidase, O-glycanase, and N-glycanase it was subjected to electrophoresis in reducing conditions and analyzed by immunoblotting, as described in Materials and Methods. As can be observed in Fig 3, CD148 appeared before treatment as a broad band with an apparent molecular weight of 240 kD. Treatment of purified CD148 with the various glycosidases led to alterations in the electrophoretic mobility of the protein. Thus, after treatment with N-glycosidase F, the molecular weight of CD148 was shifted to a much smaller size in Western blot analysis, indicating that the molecule recognized by 143-41 was a glycoprotein containing Asn-linked carbohydrate and that the molecular weight of this molecule was, for the most part, modified by the N-glycosylation. O-Glycanase treatment also affected the electrophoretic mobility of the CD148 by decreasing its apparent molecular weight under reducing conditions. In addition, a slight decrease in the electrophoretic mobility was observed after treatment with neuraminidase suggesting the existence of sialic acid residues. The reaction of CD148 with Maackia amurensis and Sambucus nigra L biotinylated lectins, confirmed this presence and showed that they are linked in both α(2-3) and α(2-6) to galactose (data not shown).

CD148 was purified by immunoaffinity chromatography from leukocyte membranes and subjected to N-terminal sequencing. After digestion of CD148 with CNBr, several peptides were obtained, two of them being subjected to N-terminal sequencing. The sequences obtained are shown in Fig 4. A complete homology of these sequences with the recently described PTP HPTP-η¹² or DEP-113 was detected. As can be seen in Fig 4, in all the positions in which a clear sequence was obtained, an identity of sequence was observed. In both CNBr-derived peptides it was observed that the sequence started after a methionine residue in the sequence of the PTP, in agreement with the existence of a point of cleavage for CNBr. From the N-terminal sequence data we obtained, it should be noted that the mature N terminus corresponds to Ala 36 and not to Thr 39 (HPTP-η)12 or Gly 37 (DEP-1).13

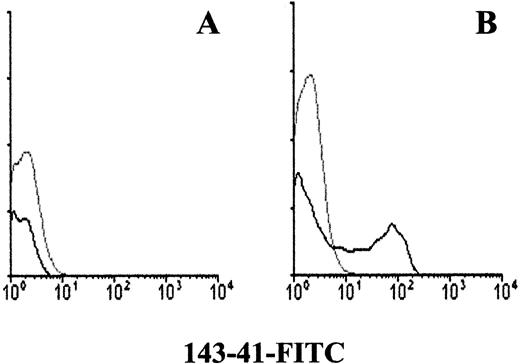

To confirm that the molecule recognized by 143-41 MoAb corresponds to the previously described protein tyrosine phosphatase HPTP-η/DEP-1 two different approaches were undertaken. First, hp21, a full length HPTP-η cDNA was used to transfect COS-7 cells. When stained with 143-41 MoAb, whereas mock-transfected COS-7 cells were negative (Fig 5A), the COS-7 cells transfected with the HPTP-η cDNA showed a clear positive reaction (Fig 5B). In addition, the phosphatase activity of CD148 was analyzed by testing its ability to release phosphate groups from a tyrosine phosphorylated peptide. As can be observed in Fig 6 a clear tyrosine phosphatase activity was observed when immunopurified CD148 was tested. This activity was clearly diminished in the presence of sodium orthovanadate, a PTP inhibitor. No PTP activity was detected when a similarly immunopurified molecule, CD50, was tested in the same assay.

Previous studies had shown that CD3-induced Ca²⁺mobilization is modulated by the tyrosine phosphatase activity of CD45 when both molecules were cocrosslinked.7 Based on the fact that CD148 was identified as a PTP expressed on the membrane of lymphocytes, we evaluated whether CD148 could modify the activation induced by CD3 crosslinking. Therefore, PBL were loaded with fura-2/AM, and Ca²⁺ mobilization after cell stimulation was analyzed by computer-aided fluorescence imaging. Figure 7 depicts the mean changes of [Ca²⁺]_i including all PBL populations after crosslinking the CD3 molecule. These data are normalized to the basal values before the addition of affinity purified GAM, and Ca²⁺ changes were measured in individual cells. Mean [Ca²⁺]_i increased from a baseline of 71 ± 4 nmol/L to 163 ± 15 nmol/L after addition of the CD3 crosslinking agent. In agreement with previous results,7 we observed a significant decrease in the CD3-induced response because of CD45 cocrosslinking. Moreover, when CD3 was cocrosslinked with CD148, we also observed a clear reduction in the mean peak [Ca²⁺]_i response (P < .05; n = 5 experiments; Fig 7), suggesting that the PTP activity of CD148 could modulate signals transduced through the CD3 complex, similarly to CD45. Interestingly enough, when CD148 alone was crosslinked, we observed an increase in the mean [Ca²⁺]_i, reaching a mean peak of 130 ± 8 nmol/L, which was delayed and significantly lower (P < .05, n = 6 in both experiments; Fig 7) when compared with CD3 crosslinking stimulation. In addition, to determine the role of tyrosine phosphorylation in [Ca²⁺]_iincrease induced by CD148 stimulation we tested whether the phosphatase activity of CD45 could abolish this effect when both molecules were cocrosslinked, as has been described in other tyrosine kinase-mediated activations.19 As can be observed in Fig 8, the [Ca²⁺]_i increase induced by CD148 crosslinking was inhibited when CD45 was cocrosslinked with CD148.

Because the mean [Ca²⁺]_i kinetics may be influenced either by the percentage of responding cells, appearance of unsynchronized responses, or variable intensity response,20individual cell measurements of the [Ca²⁺]_ichanges after CD3, CD45, and CD148 crosslinking were also evaluated (Fig 8). For the analysis of the single cell responses, we considered a response significant when the Ca²⁺ mobilization induced by crosslinking was at least twice the [Ca²⁺]_iof the basal level. In this sense, anti-CD3 induced a rapid and significant (within 1 minute) [Ca²⁺]_iincrease in 65% of cells, with these cells exhibiting a mean peak [Ca²⁺]_i of 414 ± 10 nmol/L. This was followed by smaller [Ca²⁺]_i oscillations, especially in those cells with a higher [Ca²⁺]_i peak (polytopic response). The asynchronous [Ca²⁺]_i oscillations observed at the single cell level are responsible for the sustained phase of the [Ca²⁺]_i changes identified in cell suspension experiments. The reduction in the mean [Ca²⁺]_i response observed after CD3+CD45 cocrosslinking was basically caused by a decrease in the immediate Ca²⁺ mobilization, affecting an average of 69% of the responding cells. As may also be observed in Fig 8, crosslinking of CD45 alone did not induce any significant modification of the [Ca²⁺]_i levels. With respect to the inhibitory effect of CD148 on CD3-induced stimulation, we observed a decrease in the immediate response in 35% of the cells.

Individual responses to CD148 crosslinking exhibited a synchronized, more than twofold increase in [Ca²⁺]_i in 39% of the cells (Fig 8). This increase, which was delayed (1 minute) if it was compared with the rapid response observed after CD3 crosslinking, was significantly different from the levels observed in the presence of an isotype matched control MoAb (111-5A1, CD41; data not shown). Likewise, no response was observed after adding GAM to the sample. The inhibitory effect of CD45 cocrosslinking was observed to affect 80% of CD148 responding cells, affecting especially the early phase of the response (Fig 8). These data suggest that the crosslinking of CD148 could induce Ca²⁺ mobilization through tyrosine phosphorylation processes. To better characterize this point, the response to CD148 crosslinking in the presence of a known protein tyrosine kinase inhibitor, genistein, was analyzed. The data presented in Fig 9A show that genistein clearly inhibits the Ca²⁺ mobilization induced by CD148 croslinking. When individual cell measurements of the [Ca²⁺]_i changes were analyzed after CD148 crosslinking in the absence (Fig 9B) or presence of genistein 75 μmol/L (Fig 9C) it was confirmed that the inhibition observed in the presence of genistein was real and not caused by the induction of unsynchronized responses. The inhibitory effect of genistein affected 70% of CD148 responding cells, mainly during the early phase of the response (Fig 9C).

The results of the CD45 cocrosslinking and genistein experiments led us to investigate whether specific tyrosine phosphorylation events were associated with anti-CD148–triggered Ca²⁺ mobilization. Thus, cells previously coated with CD3, CD148, or both were lysed in SDS sample buffer at various times after addition of rabbit antimouse antiserum and tyrosine-phosphorylated proteins were detected by immunoblotting. As shown in Fig 10, and as it has been exhaustively described, a rapid increase in the phosphotyrosine content of several proteins was observed after CD3 crosslinking (Fig 10A, lanes 2 and 3). In addition, phosphorylation of several substrates after CD148 crosslinking was also evident (Fig 10A, lanes 4 and 5). These results are in agreement with those that have been presented previously and suggest that the Ca²⁺mobilization induced by CD148 crosslinking could be mediated by tyrosine phosphorylation events.

On the other hand, and taking into account the tyrosine phosphatase activity of CD148, we were interested to know whether the CD148-induced inhibition of CD3-mediated Ca²⁺ mobilization was caused by specific dephosphorylation event(s). The pattern of protein tyrosine phosphorylation after activation of human lymphocytes with CD3 crosslinking was modified when CD148 was cocrosslinked to this receptor (Fig 10A, lanes 6 and 7). Thus, a selective inhibition of some substrate was detected, which could be related with the phosphatase activity of CD148. Taking into account the previously established relationship between calcium mobilization and tyrosine phosphorylation of phospholipase C γ (PLC-γ) we were interested in analyzing the phosphorylation status of this enzyme after cell stimulation. Cells coated with CD3, CD148, or both were stimulated with rabbit antimouse Ig and after cell lysis at different times, PLC-γ was immunoprecipitated. The immunoblotting with an antiphosphotyrosine antibody (Fig 10B) showed that, whereas after stimulating with CD3 and CD148 an increase in tyrosine phosphorylation of PLC-γ was observed, a clear decrease was detected when both CD3 and CD148 were cocrosslinked. By reprobing with an anti–PLC-γ it was observed that the same quantity of PLC-γ was loaded on each lane. These results are in agreement with the data provided by Ca²⁺ mobilization analysis.

In addition, it was observed that cotriggering of CD3 with CD148 resulted in an increase in protein tyrosine phosphorylation in some other proteins. This increase in the phosphorylation pattern was particularly evident on a 56-kD substrate.

During recent years there has been an increase in the description of new PTPs,3 although the majority of these PTPs have been mainly related to activities of the central nervous system. In contrast, although the number of PTKs involved in lymphocyte signal transduction has also grown, this has not been the case for the number of PTPs involved in this process. In addition to the cytoplasmic PTPs involved in lymphocyte signaling, just one membrane PTP, CD45, is known to influence the signaling process after antigen receptor engagement (see Streuli21 for review). In this paper, we have presented evidences showing that in addition to CD45, there is another PTP on the lymphocyte membrane that could be able to modulate the signaling process after CD3 crosslinking. Thus, we have observed that the cocrosslinking of the molecule recognized by the MoAb 143-41, together with CD3 inhibits the subsequent [Ca²⁺]_i increase. Our results show that this molecule is a membrane protein tyrosine phosphatase identical to a recently described HPTP called HPTP-η¹² or DEP-1.13 This phosphatase is present on the membrane of all the hematopoietic cells and it has been classified as CD148 during the last VI WLDA.10 Within the lymphoid cells, it is preferentially expressed on B cells, memory T lymphocytes, and mature thymocytes (A. Gayá, unpublished observations). In contrast, its expression on hematopoietic cell lines is heterogeneous. Thus, whereas it is clearly expressed on myeloid cell lines and on the majority of B-cell lines tested it is absent from the majority of T-cell lines analyzed. Although this pattern of distribution could seem contradictory there are other molecules that display a similar pattern of distribution. Thus, CD26, which is clearly present on all mature T lymphocytes is absent from T-cell lines with the exception of HSB-2.22

We have presented several pieces of evidence showing that CD148 is identical to HPTP-η¹² and DEP-1.13 First, the sequences we obtained by protein sequencing and the previously published cDNA sequences of HPTP-η¹² and DEP-113 are identical. These sequences include an N-terminal fragment of 18 amino acids as well as two different CNBr-derived peptides of 18 aa. We consider those sequences as identical at all of the resolved positions, and the nonresolved positions can be explained by technical problems inherent in the sequencing process. The most interesting aspect of these data is the determination that the N-terminal residue of the mature protein corresponds to an Ala and not to the previously proposed Thr12 or Gly.13 Second, when COS-7 cells were transfected with a plasmid (hp21) containing a HPTP-η encoding cDNA clone,12 a clear reaction with 143-41 MoAb was observed. Third, by using an immunopurified preparation of CD148 molecule, obtained from leukocyte membranes, it was possible to determine its capacity to release free phosphate groups from a tyrosine phosphorylated peptide, thus, confirming its tyrosine phosphatase activity. The immunochemical characterization of CD148 molecule confirmed that this molecule contains both O- and N-linked carbohydrates. From the analysis with glycosidases it could be deduced that the major part of carbohydrates are N-linked. This is in agreement with the 34 potential sites for N-linked glycosilation determined from the cDNA sequence10,11 and the data presented by Honda et al12 on N-glycosidase F treatment of HPTP-η. Concerning the apparent molecular weight of HPTP-η, differences have been described among several cell lines11,12 varying from 250 kD (HL60) to 230 kD (F-36P) or 220 kD (F-36E). Taking into account that CD148 molecule was obtained from a heterogeneous population of cells, the broad band around 240 kD we have observed both by immunoprecipitation and immunoafinity purification could include all the forms previously mentioned, suggesting the existence of a certain level of heterogeneity in the expression of this phosphatase among several cellular lineages.

HPTP-η or DEP-1 is a recently described receptor PTP, the extracellular portion of which is composed of 8¹³ or 10¹² FNIII domains, whereas the intracellular segment contains a single PTP domain spanning amino acids 1060 to 1296. Therefore, it joins an expanding group of such receptors classified as type III PTPs3 that includes PTP-β,23PTP-U2,24 GLEPP1,25 and SAP-126from humans and DPTP10D,27 DPTP99A,28 and DPTP4E29 from Drosophila, with HPTP-η being the unique type III PTP expressed on hematopoietic cells. These enzymes are characterized by a similar organization of their extracellular segments, which consist of a repeated array of FNIII motifs, and a single intracytoplasmic phosphatase domain. The FNIII repeats, in addition to being involved in adhesion processes,29 are also found in the extracellular regions of the receptors for interleukin-2 (IL-2), IL-4, IL-6, granulocyte-macrophage colony-stimulating factor, prolactin, erythropoietin, and growth hormone.30 The DEP-1 molecule has been implicated in contact inhibition of cell growth because it is upregulated in dense cell cultures although its upregulation is initiated before saturation density is reached. In addition, it has been described that the expression level of HPTP-η was altered when the HL-60 cells were exposed to differentiating compounds such as dimethyl sulfoxide and 12-O-tetra decanoyl phorbol 13-acetate, suggesting that this gene might be involved in the differentiating processes for granulocyte or monocyte/macrophage lineages in these cells.11

The CD45 molecule, the principal protein tyrosine phosphatase present on the membrane of hematopoietic cells, is capable of regulating signal transduction and functional responses,7-9 because in T lymphocytes, CD45 crosslinking inhibits inositol phosphate production, calcium flux, and proliferation.31 The ability of CD45 to modulate signals transduced by CD3 correlates with its ability to inhibit the tyrosine phosphorylation of some intracellular protein substrates.31,32 Once we showed that the molecule recognized by the 143-41 MoAb is a membrane protein tyrosine phosphatase, we were interested to know whether this molecule could influence the signal transduction through the antigen receptor. The most striking fact of this analysis was the observation that the crosslinking of CD148 alone was able to induce a clear increase in [Ca²⁺]_i. This phenomenon was not observed after CD45 crosslinking. The kinetic of the process was similar to the Ca²⁺ mobilization induced after CD3 crosslinking, although the lag time was clearly more prolonged in the case of CD148. Another difference was based on the intensity of the response. The CD148 crosslinking produced both a lower level of [Ca²⁺]_i mobilization and a lower number of responding cells (39% v 69%). In fact, CD148 crosslinking was able to decrease the Ca²⁺ mobilization in 35% of the cells responding to CD3 (69%), a percentage similar to the percentage of cells responding to CD148 crosslinking (39%).

Concerning the mechanisms involved in this process, we consider it plausible that tyrosine phosphorylation could be involved because the cocrosslinking with CD45 or the presence of genistein were able to abolish the response induced by CD148. This assumption was proven to be correct, because after CD148 crosslinking a clear pattern of tyrosine phosphorylation could be observed. Especially interesting was the observation that CD148 crosslinking was able to induce tyrosine phosphorylation of PLC-γ1. Although it may seem contradictory that a protein tyrosine phosphatase is able to induce tyrosine phosphorylation, a similar situation has been described for the molecule CD45.33-35 In this case, the association of p56lck with the cytoplasmic tail of CD4535,36 results in an increase in the catalytic activity of the PTK after CD45 crosslinking.37 In a similar way, the existence of an association of CD148 with some PTK able to mediate the observed increase in Ca²⁺, could be considered. This PTK could be activated through dephosphorylation by the tyrosine phosphatase domain of CD148, similar to the way in which CD45 dephosphorylates Y505 on p56lck, turning the inactive protein into an active PTK.38

In addition, we have also observed that CD148 was able to inhibit the Ca²⁺ mobilization induced by CD3 MoAb when both molecules were cocrosslinked. This could have occurred by bringing the PTP domain of CD148 into close proximity with the cytoplasmic domain of a signaling molecule. In this way its activity could be triggered by changing the phosphorylation status of critical tyrosine residues used in signal transduction, as has been described with CD45.31,32 Although Shivnan et al39 have suggested that some of the results of coclustering experiments with CD45 may have to do with interfering with CD3 clustering, we have observed no interference in our experimental model when CD3 was cocrosslinked with lymphocyte function-associated antigen (data not shown), thus discarding an unspecific effect. However, whether the inhibition of CD148 on CD3 signaling is based on the phosphorylation or the dephosphorylation of some substrate(s) remains to be determined. In spite of the tyrosine phosphatase activity of CD148 no general dephosphorylation was observed after CD3 and CD148 cocrosslinking. In fact, only a very selective inhibition of a few substrates was detected, the most significant being the dephosphorylation of PLC-γ. This dephosphorylation could account for the inhibition of Ca²⁺ mobilization, in a way similar to CD45.31,32 In this case also few very selective dephosphorylation events have been related by CD3 signaling inhibition.33,34 It could seem contradictory that the cocrosslinking of CD148 and CD3 results in no signal whereas engagement of either molecule by itself causes significant signal transduction events to occur. Although we have no definitive data to explain these facts, a possible explanation could be that the kinase activity activated through CD148 crosslinking would be modified after cocrosslinking CD148 with CD3, whereas the own phosphatase activity of CD148 would remain intact. If this were the case, the activation of PLC-γ by CD3 would be decreased by the phosphatase activity of CD148 and it would not be compensated by the activation through CD148. The net result of this process would be a diminished activation of PLC-γ and consequently the inhibition of Ca²⁺ mobilization. On the other hand, our results also show an increase in the phosphorylation of some substrates after CD3 and CD148 cocrosslinking. This fact was particularly evident in a 56-kD substrate. Corvaı̈a et al40 have also described an increase in protein tyrosine phosphorylation of some substrates after cotriggering human monocytes with FcγRI or FcγRII with CD45. Thus, the possibility that a specific phosphorylation of some substrate could be responsible for the inhibition of the signaling process through CD3 could not be ruled out.

In conclusion, in the present report we have shown a functional role for a recently described membrane protein tyrosine phosphatase, which is involved in the signaling pathways of T lymphocytes, opening a new avenue of research into the signal transduction pathways of these cells.

We thank Drs Honda and Hirai for kindly providing the hp21 cDNA clone, Dr P. Engel for his collaboration in the transfection assays and Dr M. Simarro for her help in the tyrosine phosphorylation analysis.
