Erythrocyte microparticles can induce kidney vaso-occlusions in a murine model of sickle cell disease

Sickle cell disease (SCD) is a form of hemolytic anemia that results from a point mutation (HbS) in the gene of the globin β-chain. The mutation makes HbS susceptible to polymerize during hypoxic stress, producing long intracellular fibers that are responsible for drastic membrane and cytoskeletal remodeling. The HbS fibers polymerize and depolymerize in response to blood oxygenation and deoxygenation cycles. The repeated changes in red blood cell (RBC) shape cause a permanent loss of the biconcave phenotype, producing condensed cells with diverse degrees of crenation, and covered in cone-shaped membrane figures known as spicules.^1-3  The remodeled erythrocytes become progressively dehydrated and rigid. Fully and irreversibly remodeled erythrocytes are termed sickle erythrocytes with respect to their ultimate shape.

Sickle erythrocytes display a strong predisposition to adhere to the endothelium, get trapped in small capillaries and reduce blood flow. Highly vascularized organs, such as kidneys, bones, and lungs are the seat of disseminated vascular occlusions and recurrent ischemic injury.⁴  In some of these organs, ischemia causes extremely painful episodes termed vaso-occlusive crises (VOCs). These crises are attributed to stress factors, such as hypoxia, physical exercise, infection, trauma, or stress. However, the molecular basis for the development of vaso-occlusions in SCD has yet to be explained and several different triggers of VOCs may exist.

After getting trapped in capillaries, rigid sickle erythrocytes are thought to break apart in a process generally termed intravascular hemolysis, resulting in anemia. VOCs and hemolysis are associated with the release of submicron erythrocyte membrane vesicles called microparticles (MPs) into the bloodstream.¹  Steady-state SCD patients display circulating levels of MPs that are 3- to 10-fold higher than those of healthy subjects, as revealed by the detection of phosphatidylserine-positive (PS⁺) MPs.^5-8  Circulating MP levels in SCD patients may also increase 0.3- to 3-fold during VOCs versus steady-state.^9-11  In steady-state SCD, MPs are mostly of erythrocyte origin, but they can also originate from platelets,⁵  endothelial cells, and leukocytes during VOCs.^6,8,9,11  Erythrocyte MPs are generally assumed to be a consequence of intravascular erythrocyte vesiculation in SCD, in possible connection with hemolysis, but the precise molecular regulation of intravascular hemolysis and MP shedding remains unknown. On the other hand, the impact of circulating erythrocyte MPs on the physiopathology of SCD is unclear. Fundamental studies have suggested that circulating MPs may enhance erythrocyte aggregation⁵  and possibly favor blood coagulation.¹¹

SCD patients also display abnormal platelet biology with elevated circulating levels of the major platelet protein thrombospondin-1 (TSP1). TSP1 increases sharply during VOCs (+80% average; up to +400%).¹²  Indeed, SCD platelets show dilated, open canalicular systems and empty secretory α-granules,^5,13  coherent with chronic platelet activation, particularly during VOCs. TSP1 is a large trimeric protein stored in platelet α-granules, that accounts for 25% of proteins secreted during thrombosis, when it generates steep and local gradients.^14,15  TSP1 can also be secreted by vascular cells challenged with thrombin,¹⁶  hypoxia,^17,18  mechanical injury,¹⁹  or abnormal blood flow.^20-22  TSP1 has been found to trigger SCD erythrocyte adhesion in vitro.^23-26  Moreover, activated platelet supernatant induces strong adhesion of sickle erythrocytes to cultured vascular endothelium.²³

In this report, we postulated that TSP1 facilitates vaso-occlusive events and participate in intravascular erythrocyte vesiculation. We investigated the links between TSP1, vascular occlusions and the formation of circulating erythrocyte MPs in transgenic SAD mice, an experimental model of SCD.²⁷  We also aimed to clarify the role of circulating erythrocyte MPs in the formation of vascular occlusions.

For more information on materials and methods, see supplemental Methods (available on the Blood Web site; see the Supplemental Materials link at the top of the online article).

Human recombinant TSP1 was produced by EMP-Genetech. Synthetic peptides²⁸  4N1-1 (RFYVVMWK) and 4N1-2 (RFYVVM) were obtained from Bachem, and 4NGG (RFYGGMWK) is manufactured by Genecust. Di-aminidophenylindol (DAPI), RNase A and propidium iodide were from Sigma-Aldrich.

We used 10- to 14-week-old SAD transgenic male mice on C57bl6J background obtained from Dr Beuzard²⁷  and carrying the human βS β⁶Val, βS-Antilles β²³Ile, and D-Punjab β¹²¹Glu globin β-chain transgene. All procedures for study animal care and euthanasia followed the European Community standards (authorization No. 00577) and were validated by the local Inserm ethics committee.

We characterized renal vaso-occlusions in SAD transgenic mice according to our previously published method,^29,30  in response to the intravenous administration of TSP1 or purified erythrocyte MPs. Briefly, anesthetized and shaved mice were placed on a heating blanket (38°C). A pulsed Doppler spectrum was recorded with a Vivid 7 echograph (GE Medical Systems) equipped with a 12-MHz linear transducer (12L). Data were transferred to an EchoPAC ultrasound image analysis workstation (GE Medical Systems). Peak systolic, end-diastolic and time-average mean blood flow velocity were measured. Cardiac output was calculated with the following formula:

(CO = cardiac output in mL/min, V^mean = mean time-averaged blood flow velocity in cm/s, Dpa = pulmonary artery diameter in cm; n = 5 to 8 measurements). Kidney sections were stained by Masson trichrome to assess vascular congestion by phase-contrast microscopy, as erythrocyte aggregates occluding kidney vessels. TSP1 (1 mg/kg) was injected. After 5 minutes, whole blood was collected, centrifuged (400g, 15 minutes), and double centrifuged (12 500g, 5 minutes) to eliminate cells and generate platelet-free plasma (PFP) with minimal platelet activation. Blood flow velocity was also measured in the basilar artery, and careful monitoring of pain was performed between MP injection and euthanasia.

To purify erythrocytes, mouse blood was obtained through retro-orbital sinus puncture, mixed with anticoagulant heparin buffer (5 UI/mL), and collected on citrated tubes. Blood was centrifuged on Histopaque-1083 (Sigma-Aldrich) density gradients (600g, 25 minutes). Erythrocyte surface CD47 expression was assessed by FACS. Fresh erythrocytes were immuno-reacted with mouse-specific anti-CD47 monoclonal antibody (clone mIAP301; BD Bioscience), or matched irrelevant isotype. Erythrocyte phenotypes were analyzed by scanning electronic microscopy. Briefly, mouse erythrocytes were fixed and embedded in Epon epoxy resin. Contrasted sections were examined with a JEOL JEM 1010 microscope. Average apparent spicule number was determined by direct counting. Crenation and sickle cell formation were confirmed by phase contrast microscopy.

Erythrocytes were suspended in polyvinylpyrrolidone (31 mPa/s) and placed in a rotating type LORCA ektacytometer (R&R Mechatronics), in the absence or presence of TSP1 (25 μg/mL), or TSP1-derived peptides 4N1-1 or 4N1-2 (25μM). Shear rate was applied (1500 seconds⁻¹; 2.5 minutes). Supernatant PS⁺ MPs were labeled with FITC-conjugated annexin-V (Roche Diagnostics) diluted in reaction buffer with 5mM CaCl₂ and quantified as previously described³¹  on an EPICS XL flow cytometer (Beckman Coulter). MPs were identified in forward light scatter (FSc) and side-angle light scatter (SSc) as events of 0.1 to 1 μm in diameter. MP-size events were analyzed with respect to calibrated fluorescent microbeads (Flowcount). To determine erythrocyte origin, MPs were double-labeled with rat mouse-specific anti-Ter119 antibody (Biolegend via Ozyme), or matched irrelevant isotype.

SV40-transformed mouse lymph node endothelial cells (SVEC4-10; ATCC) were grown to confluence and incubated with 25 MPs/μL for up to 2 hours. 5-(6-)carboxy-2′,7′-difluorodihydrofluorescein diacetate (H₂DFF-DA; 10μM) was then added to determine ROS production. Fluorescence was read in an automated plate reader. For adhesion experiments, MP-primed SVEC monolayers were washed and incubated with RBC suspensions (1.10⁶ RBC/mL). After 30 minutes, adherent erythrocytes were counted by phase contrast microscopy in 5 random fields per well (400×), n = 3 to 6 in triplicates. For cell cycle analysis, SVEC were cultured up to 70% confluence and placed in DMEM with 0.05% NCS with or without RBC MPs. After 36 hours, SVEC were fixed and incubated in 0.05% Triton X100, 100 μg/mL RNase A, 50 μg/mL propidium iodide. DNA profiles were collected by FACS and divided as sub-G₁ (apoptosis), G₀/G₁ (rest) and G₂/M (proliferation) phases. Data shown as mean percentage of cells, n = 3.

Mouse mesenteric arterial segments were canulated and mounted in a video-monitored perfusion system as described.³²  Arterial segments were bathed in physiologic salt solution (PSS) maintained at pH 7.4, with pO₂ and pCO₂ of 160 mmHg and 37 mmHg, respectively. Arterial diameter was continuously recorded by video (Living System Instrumentation) with intraluminal pressure was set at 75 mmHg, using a Biopac MP 100 acquisition system and Acknowledge Version 3.7.3 software (Biopac). Arterial segments were preconstricted with phenylephrine (PE). ACH (10⁻⁷-10⁻⁴M) was then gradually applied. Sodium nitroprusside (SNP, 100μM) was tested after ACH. After de novo PE-induced preconstriction, MPs were then perfused through the segments and ACH was applied again. SNP (100μM) was then tested. Finally, passive diameter was determined with Ca²⁺-free PSS containing ethylenebis-(oxyethylenenitrolo) tetra-acetic acid (2mM), SNP (10μM), and papaverine (10μM).

For in vivo vaso-occlusions and ex vivo vasodilation experiments, inter-group comparisons (5-6 animals/group) were performed by variance analysis (1- or 2-way ANOVA), completed by posthoc Bonferroni test, or/and Student t test (MedCalc Version 9.3 software). In vitro experiments were repeated at least 3 times and statistical analysis was performed with paired or unpaired Student t tests as appropriate. Results were expressed as mean ± SEM. Statistical significance was achieved when P value < .05.

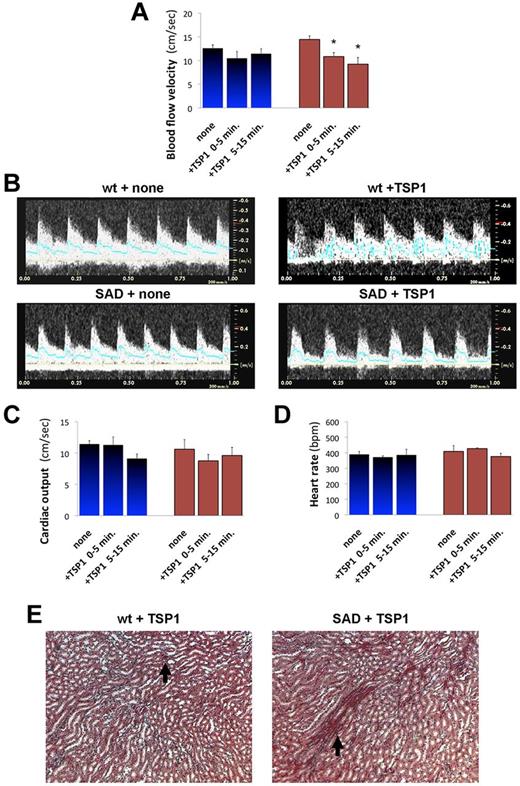

In SAD mice, raising plasma TSP1 by intravenous injection (1 mg/Kg) induced a rapid 20% reduction in the mean blood flow velocity in right renal arteries, progressing to 35% after 5 minutes (Figure 1A; P < .05 vs control), as shown in representative echo-Doppler waveforms (Figure 1B). In SAD mice, systolic blood flow velocity was unchanged after TSP1 injection, but diastolic and mean blood flow velocities were dramatically decreased. TSP1 did not affect cardiac output (Figure 1C) or heart rate (Figure 1D). Histologic assessment by Masson trichrome staining revealed red blood cells aggregates and renal capillary congestion in the medula (Figure 1E). TSP1 did not modify kidney blood flow velocities, cardiac parameters, or histology in wild-type mice.

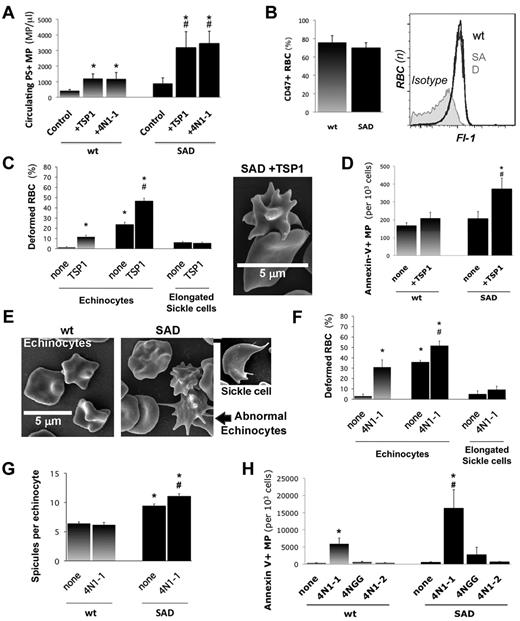

We collected platelet-free plasma (PFP) after TSP1 injection to mice and quantified circulating PS⁺ MPs (Figure 2A). At rest, SAD PFP contained twice as many MPs than wild-type PFP (880 vs 400 MPs/μL, respectively; P < .05). TSP1 injections triggered a 3-fold rise in plasma PS⁺ MPs within 5 minutes in both wild-type and SAD mice (P < .05 for treated vs control SAD, or vs treated wild-type mice). Moreover, we found that Ter119+ erythrocyte MPs jump from 3% to 20% PS+ MPs in WT mice injected with TSP1, whereas Ter119+ erythrocyte MPs increase from 18% to 26% in SAD mice (P < .05 vs basal levels; supplemental Figure 1).

In erythrocytes and reticulocytes, highly conserved VVM sequences in the TSP1 carboxyterminus are thought to modulate the activation of CD47,^33-36  also known as integrin-associated protein (IAP) in platelets and leukocytes, a key constituent of the Rhesus protein complex. CD47 activation enhances integrin avidity and mediate the pro-adhesive effects of TSP1 on sickle erythrocytes.^23-26  Synthetic carboxyterminal peptides including 4N1-1²⁸  reproduce some functions of TSP1. The peptides may also have additional effects.^33-36  Injecting peptide 4N1-1 to mice induced a 3-fold rise in circulating PS⁺ MPs (P < .05 vs control mice), similar to TSP1 injection. FACS experiments showed that the majority of wild-type and SAD erythrocytes expressed cell-surface CD47 (85%; Figure 2B).

We asked whether TSP1 could directly modify the phenotype and vesiculation of fresh purified erythrocytes in vitro. We placed erythrocytes in a Lorca ektacytometer, in dynamic conditions matching arteriolar shear rates.

Scanning electron microscopy confirmed that fresh wild-type erythrocytes are nearly all biconcave discocytes (> 95%; Figure 2C), which was confirmed by phase-contrast microscopy (100×). TSP1 induced rapid erythrocyte crenation and the formation of cone-shaped membrane spicules by more than 10-fold, up to 10% (P < .05 vs control). In resting SAD erythrocytes, only 5% cells were typical elongated sickle cells, but 30% displayed a variety of shapes with elongated, crenated, and spicule-covered bodies (Figure 2C). Addition of TSP1 further increased the proportion of SAD echinocytes carrying a highly heterogeneous number of long and thin spicules, reaching 50% (P < .05 vs control; Figure 2C image). TSP1 increased the proportion of spicule-covered echinocytes, but did not affect the proportion of sickle-shaped cells. Concurrently, TSP1 induced a doubling in PS+ MP shedding in SAD cells (P < .05 vs SAD or wt controls; Figure 2D). This effect of TSP1 was significant above 10 μg/mL (supplemental Figure 1).

Next, we evaluated the effects of TSP1 carboxyterminal peptide 4N1-1, truncated control 4N1-2 and mutated control 4NGG (no VVM motif). Scanning electron microscopy revealed that 4N1-1 triggered phenotypic changes like TSP1 (Figure 2E-F), with a drastic 10-fold increase in wild-type echinocytes and a 50% increase in SAD echinocytes (P < .05; Figure 2F). Elongated sickle cells remained unaffected. SAD echinocytes showed an abnormal multiplication of thin, long and apparently fragile spicules (+15%; P < .05 vs SAD and WT controls). Spicule numbers and dimensions remained homogenous in wild-type cells (Figure 2G). Concurrently, 4N1-1 triggered a 40-fold rise in SAD erythrocyte MP shedding and a 30-fold increase in wild-type erythrocytes (P < .05 vs control 4N1-2). 4N1-2 and 4NGG had no effect. SAD erythrocytes shed more MPs than healthy erythrocytes (P < .05 vs wild-type; Figure 2D-H).

To investigate the impact of erythrocyte MPs on vascular occlusions in SAD mice, we administered purified erythrocyte MPs intravenously, at concentrations selected on the basis of our measurements in WT and SAD mice and those reported in humans (400 MPs/μL in health and 3- to 10-fold higher in steady state SCD^5,7,8 ). PS⁺ MP levels in SCD patients increase up to 3-fold during VOCs^9-11  and these MPs are predominantly of erythrocyte origin (20%-75%), whereas erythrocyte MPs represent less than 5% of circulating MPs in health.^6,8,9,11  Erythrocyte MPs were injected into mice at 8 × 10³ MPs/mouse to induce a 20% increase in circulating erythrocyte MPs (supplemental Methods). In other experiments, we injected 300 × 10³ MPs/mouse to increase total circulating PS+ MP levels by one-third compared with wild-type mice.

At 8 × 10³ MPs/mouse, wild-type erythrocyte MPs had no significant impact on blood flow velocity in wild-type renal arteries (Figure 3A-B). However, SAD erythrocyte MPs induced a 30% reduction in blood flow velocity in SAD renal arteries (Figure 3A; P < .05 vs none). Systolic blood flow velocity was unchanged after MP injection, but diastolic and mean blood flow velocities were dramatically decreased, as shown in representative echo-Doppler waveforms (Figure 3B). None of the MPs injections affected cardiac output (Figure 3C) or heart rate significantly (Figure 3D). Interestingly, SAD erythrocyte MPs had moderate effects in wild-type recipient mice, and so had wild-type erythrocyte MPs administered to SAD mice with 15% to 20% reductions in blood flow velocities (P < .05 vs controls; Figure 3). Moreover, Masson trichrome analysis of renal histology revealed cell aggregates and vascular congestion in the medulla of SAD kidneys but not in wild-type kidneys (Figure 3E). These aggregates consisted mainly of erythrocytes, with very few nucleated cells (supplemental Figures 2-3).

At 300 × 10³ MPs/mouse, SAD RBC MPs induced a 35% reduction in mean blood flow velocity in SAD renal arteries (Figure 3A; P < .05 vs none). Diastolic and mean blood flow velocities were dramatically decreased (Figure 3B) without significant change in cardiac output (Figure 3C), heart rate (Figure 3D), or blood pressure (supplemental Figure 4).

In other experiments, purified SAD RBC MPs were pre-incubated with annexin-V to saturate surface PS. Annexin-V–saturated MPs injected into SAD mice (300 × 10³ MPs/mouse) failed to modify renal blood flow velocity or histology (Figure 3; P < .05 vs SAD RBC MPs; P > .5 vs controls).

We investigated the impact of erythrocyte MPs on murine endothelial monolayers cultured in 0.2 μm-filtered medium supplemented with wild-type or SAD RBC MPs. We analyzed ROS production, RBC adhesion, and endothelial apoptosis. Fresh wild-type RBC MPs (25 MPs/μL) stimulated significant but modest endothelial ROS production over basal levels, detected by H₂DFF-DA fluorescence after 2 hours (+10%; P < .05; Figure 4A). In contrast, SAD RBC MPs doubled endothelial ROS generation (P < .05 vs wild-type MPs). This was entirely inhibited when the MPs PS was previously saturated with recombinant annexin-V (1 μg/mL for 1 hour), and prevented when endothelial NADPH oxidase was inhibited with 10μM DPI or 100μM apocynin for 30 minutes, or when endothelial PKC activity was inhibited with 1μM Ro-31-8220 or 1μM Gö-6976 (P < .05 vs MPs alone).

Healthy wild-type erythrocytes did not adhere to confluent endothelial monolayers (less than 5 cells/field; Figure 4B-C). SAD erythrocytes adhered to endothelium twice more than wild-type cells, with or without pretreatment (P < .05). Priming endothelium with wild-type erythrocyte MPs (25 MPs/μL for 2 hours) had limited effects on wild-type and SAD erythrocyte adhesion (+20%; P < .05; Figure 4B). However, SAD RBC adhesion was increased approximately 3-fold on endothelium primed with SAD erythrocyte MPs (P < .05 vs control).

In other experiments (Figure 4D-E), we primed endothelial monolayers with erythrocyte MPs for 36 hours in 0.05% NCS only. Wild-type MPs had did not modulate cell cycling, neither proliferation (G₂/M phase) nor apoptosis (sub-G₁ fraction). However, SAD MPs doubled endothelial apoptosis versus wild-type MPs (P < .05).

In other experiments, mesenteric resistance arteries were perfused with PSS in a pressure myograph. Initial diameter was measured as control. Arteries were preconstricted with phenylephrine and we assessed endothelium-dependent vasodilation in response to increasing doses of ACH (10⁻⁷M to 10⁻⁴M). The arteries were washed and preconstricted again. PSS, SAD, or wild-type erythrocyte MPs were then perfused. Vasodilation was measured again in response to the increasing ACH concentrations (Figure 4F). Perfusing erythrocyte MPs strongly reduced the sensitivity of resistance arteries to ACH-mediated vasodilation. SAD erythrocyte MPs blocked vasodilation even further than wild-type erythrocyte MPs (P < .05), resulting in near complete abrogation of vasodilation.

Alternatively, vasodilation was evaluated in response to saturating concentrations of NO donor SNP. PE and ACH treatments had no impact on subsequent SNP-induced vasodilation, consistent with intact smooth muscle (90% ± 3% of maximal vessel diameter). In contrast, wild-type and SAD erythrocyte MPs reduced SNP vasodilation down to 69% ± 5% and 59% ± 6%, respectively (P < .05 vs control; supplemental Figure 5).

Saturating MPs PS with recombinant annexin-V (1 μg/mL; 1 hour), or treating the vessels with the superoxide dismutase mimetic Tempol (10μM; 30 minutes) reduced the deleterious effects of SAD MPs (−20% and −50% of their respective effects; P < .05 vs MPs alone; Figure 4G). Tempol alone had little effects on vasodilation (−5% vessel diameter, P < .05 vs control).

We addressed the concept that TSP1 favors vascular occlusions in SCD. We injected TSP1 intravenously at 1 mg/Kg to mimic a 5-fold increase in plasma, representing maximal platelet degranulation. In healthy wild-type mice, Hoylaerts and colleagues reported basal plasma TSP1 levels of 1.8 μg/mL.¹⁵  Moreover, plasma TSP1 increases sharply during human VOCs (up to 5-fold).¹²  In transgenic SAD mice, raising plasma TSP1 induced a dramatic 35% reduction in the diastolic and mean blood flow velocities within minutes, without concurrent impact on systemic hemodynamic parameters. The drop in kidney perfusion is thus consistent with increased renal vascular resistance and vascular occlusions, as confirmed by the histologic assessment of red blood cells aggregates and vascular congestion. TSP1 had little impact on kidney perfusion or systemic hemodynamic parameters in wild-type mice. The deleterious effects of TSP1 were only revealed in transgenic SAD mice, in territories susceptible to vaso-occlusions.^29,30  Within 5 minutes of TSP1 injection, SAD PFP contained 3 times as many PS⁺ MPs. SAD mice at rest also contained at least twice as many circulating MPs as wild-type mice. We found the proportion of Ter119+ MPs (15%-30%) in SAD mice consistent with an over-representation of erythrocyte MPs versus wild-type mice (less than 5%), as observed in human SCD. The increase in plasma MPs coincided with vascular occlusions in SAD kidneys. The CD47 agonist 4N1-1 also induced a 3-fold rise in circulating PS⁺ MPs, and the majority of wild-type and SAD erythrocytes expressed cell-surface CD47. The data agree with a release of MPs in response to CD47 activation.

Because human VOCs are associated with drastic erythrocyte remodeling, we wondered whether TSP1 triggered direct erythrocyte modifications as observed during VOCs in humans. The microscopic analysis of mouse erythrocytes showed that adding TSP1 to wild-type discocytes induced crenation within 2 minutes and produced 10% of deformed cells (nondiscocyte). Scanning electron microscopy showed that the deformed erythrocytes were covered in cone-shaped membrane spicules and their phenotype was consistent with previously described echinocytes.^1,3  This pattern of short spicules corresponded to that predicted by surface tension analyses in WT erythrocytes,^37,38  and to that reported in response to Ca²⁺ ionophore A23187³⁹  or ATP depletion.³  TSP1-CD47 signaling was previously reported to include rapid cytosolic Ca²⁺ mobilization,⁴⁰  cytoskeletal remodeling^41,42  and membrane PS externalization in various cell types.^42-44  CD47 may thus mediate similar effects in erythrocytes to enable those phenotypic changes.

At rest, SAD erythrocytes displayed only 5% of elongated sickle cells. Echinocytes with some degree of crenation or presenting spicules accounted for up to one-third of all erythrocytes. Adding TSP1 further increased SAD echinocytes with abnormal shapes and unpredictable numbers of longer and thinner spicules. Abnormal echinocytes exist in SCD patient blood at steady-state, and they are particularly present during VOCs.²

The CD47 agonist 4N1-1 induced echinocytes, such as TSP1, whereas control peptides did not. 4N1-1 also increased the numbers of thin, long, and apparently fragile spicules in SAD cell, whereas spicule numbers and dimensions remained homogenous in wild-type echinocytes.

TSP1 and 4N1-1 also triggered intense MP shedding in SAD and wild-type cells. MP shedding was concurrent to discocyte conversion into echinocytes, PS externalization, and spicule formation. This is consistent with reports on the correlation of PS externalization with spicule formation^39,45  and the suggested role of spicules in erythrocyte vesiculation.^1,46  The induction of erythrocyte vesiculation by TSP1 was significant at the near-physiologic levels of 10 μg/mL.

SAD and wild-type erythrocytes all respond to TSP1-CD47 signals by forming spicules, but SAD responses exceeded that of wild-type erythrocytes, and SAD cells were more prone to vesiculate. Some intrinsic characteristics of SAD erythrocytes, which we can relate to mutated hemoglobin, affect the phenotype to produce these abnormally thin and elongated spicules, and increase vesiculation. MP shedding may thus be associated with the relative fragility of echinocyte spicules. In contrast, TSP1 and 4N1-1 did not affect the proportion of elongated sickle cells, which bear very few spicules. We assume that sickle cell formation is ruled by different mechanisms or kinetics.

One difference between TSP1 and 4N1-1 is that shear rate was necessary to unmask the effects of TSP1, whereas 4N1-1 remained active at rest. Shear rate may synergize with the TSP1 carboxyterminus to facilitate CD47 activation. Indeed, CD47 has already been proposed as a mechanosensor, and CD47 signaling is strongly enhanced by shear in SCD erythrocytes.²⁵  Furthermore, the amplitude of MP shedding was much enhanced when erythrocytes were placed in RPMI-1640 medium instead of PVP. It is possible that decreased viscosity may sensitize erythrocytes to vesiculation, whereas PVP may preserve erythrocyte membranes. Dedicated molecular studies will be needed to determine precisely how shear rate and viscosity influence CD47 activation by TSP1 and MPs shedding. Next, we aimed to establish the functional significance of these erythrocyte MPs.

We investigated the impact of erythrocyte MPs on vascular occlusions in SAD mice. MPs derived from erythrocytes treated with 4N1-1 peptide in vitro were concentrated and purified. MPs were administered intravenously at low dose (8 × 10³ MPs/mouse) to induce a 20% increase relative to circulating Ter119+ erythrocyte MPs compared with wild-type mouse levels, or at high dose (300 × 10³ MPs/mouse) to increase total circulating PS+ MP levels by one-third compared with wild-type mice. At low dose, wild-type erythrocyte MPs had no significant impact on blood flow velocity in wild-type renal arteries (Figure 3A-B), nor on cardiac parameters nor on blood pressure. However, SAD erythrocyte MPs induced a 35% reduction in perfusion and vascular congestion in the medulla of SAD kidneys (supplemental Figure 2), without changing cardiac parameters or blood pressure. Similar results were obtained regarding brain perfusion, with a reduction of 20% after SAD erythrocyte MP injection in SAD mice. Raising SAD erythrocyte MPs increased local vascular resistance and produced severe vaso-occlusions in our mouse model.

The effects of SAD erythrocyte MPs were mainly similar in amplitude at low and high dose, underlying the pathophysiologic significance of moderate increases in circulating MP levels. However, the duration of vaso-occlusive events appeared much longer (more than 30 minutes) with high doses versus low doses (return to normal velocities within 20 minutes), although this was not precisely documented.

We and others exposed transgenic SAD mice to hypoxia-reoxygenation to try and reproduce some of the clinical manifestations of SCD. SAD mice were found to recapitulate multiple features of human vaso-occlusive crises,⁴  including erythrocyte dehydration, oxidative stress, tissue damage, and death.³⁰  SAD mice are thought to be less anemic than human patients, but their erythrocytes do mimic their human SCD counterparts. Hence, SAD mice have been widely used in pathophysiology reports. Other mouse models are devoid of murine hemoglobin and express human α, γ, or βS globins only.^47,48  These models display increased anemia, enhanced vascular damage, and shorter life expectancy compared with SAD mice. Their increased break down is expected to generate more erythrocyte-derived MPs and these mice may be well suited for experiments demonstrating that erythrocyte MPs are linked to vascular lesions. Indeed, knock-in homozygous HbS and Berkeley mice are prone to unpredictable spontaneous vaso-occlusive events.

It is critical to distinguish microvascular occlusive events in mice from the bundle of symptoms that characterize human VOCs (ie, hemolysis, ischemic tissue injury, and intense pain). Here, injecting MPs created an acute rise in plasma MPs, but circulating MPs are thought to be rapidly cleared by the spleen, liver, and lungs.⁴⁹  Our model is more appropriate to demonstrate the vascular impact of MPs than it is to represent chronic exposure. The drop in renal perfusion induced with MPs injection was rapid but temporary, and lasted approximately 20 to 30 minutes. SAD erythrocyte MPs injected to SAD mice did sometimes trigger prostration and rough hair coat, which paralleled the drop in renal perfusion. This sign of pain might be compared with the acute pain felt by SCD patients during VOCs, although the comparison is difficult to uphold because we did not observe widespread oxidative injury in the kidneys or creatinine hyperfiltration (supplemental Figures 3-4) within 2 hours of the injection.

We investigated the impact of erythrocyte MPs on cultured endothelium and isolated microvessels. We found that SAD erythrocyte MPs compromised vasodilation in perfused microvessels, favored SAD erythrocyte adhesion, and caused endothelial injury in the long-term. These effects are thought to be critical to vaso-occlusions in mouse and human SCD. In all cases, wild-type erythrocyte MPs had much reduced effects versus SAD at similar concentrations. Erythrocyte MPs will be particularly deleterious in SAD mice where they are present in greater numbers. Endothelial activation by erythrocyte MPs may thus represent a critical step to trigger erythrocyte adhesion, block vasodilation, and favor vaso-occlusion.

Erythrocyte MPs may target vascular endothelial cells and compromise primarily endothelial-dependent function. However, we also found that exposure of microvessels to erythrocyte MPs reduced SNP-induced vasodilation (−15% and −25% for wild-type and SAD MPs, respectively; P < .05), consistent with some additional injury to the smooth muscle (supplemental Figure 4D).

Fresh wild-type erythrocyte MPs only stimulated modest endothelial ROS production over basal levels, but SAD erythrocyte MPs more than doubled ROS production at similar concentrations. These superior effects on endothelial ROS production paralleled those on erythrocyte adhesion, apoptosis, and vasodilation in vitro, as well as vaso-occlusion in vivo. In perfused microvessels, the deleterious effects of SAD erythrocyte MPs were blocked and the ACH-mediated vasodilation was preserved by the superoxide dismutase mimetic Tempol. The effects of SAD MPs were not entirely blocked by Tempol. This implies that other mechanisms of erythrocyte MPs toxicity may be at play, even if endothelial ROS production seems particularly targeted by SAD erythrocyte MPs. In vitro, endothelial ROS generation was prevented with specific NADPH oxidase and PKC inhibitors, suggesting that erythrocyte MPs activate these enzymes to generate excess superoxide.

ROS generation induced by SAD erythrocyte MPs was entirely inhibited when PS was previously saturated with recombinant annexin-V. The deleterious effects of erythrocyte MPs were mediated by ROS in both isolated microvessels and cultured endothelium, in a manner partially dependent on PS. The saturation of PS with annexin-V at the surface of SAD erythrocyte MPs also abrogated their impact on kidney perfusion in vivo. This suggested that externalized PS is a key functional feature of circulating erythrocyte MPs that could mediate excess endothelial ROS production and vaso-occlusions in SCD. The inhibitory effects of recombinant annexin-V may open novel therapeutic possibilities to treat SCD patients.

Interestingly, the reduction of kidney perfusion in vivo was maximal when erythrocyte MPs and recipient mice were all of SAD genotype. Moreover, maximal stimulation of erythrocyte adhesion to endothelial cells was obtained when erythrocyte MPs and adherent erythrocytes were of SAD genotype; This suggested a synergy between the MP populations and altered vascular function. Hence, SAD erythrocyte MPs may synergize with intrinsic SAD erythrocyte and vascular features to maximize adhesion, compromise vasodilation, and induce vaso-occlusions. It is also possible that endothelial activation by erythrocyte MPs triggers the secretion of endothelial vasoconstriction factors such as endothelin-1,³⁰  enhancing further vaso-occlusions.

Moreover, the mechanisms of cell activation by erythrocyte MPs seem to progress through PS pathways potentially recognized by multiple cell types. Although our results did not point toward a particularly high representation of leukocytes in our MP-induced vaso-occlusions in kidneys (supplemental Figure 3), it would be interesting to study the effects of MPs on inflammatory cells and more particularly on neutrophils, which may participate in vaso-occlusive events.

Increased plasma TSP1 stimulated the shedding of erythrocyte MPs in the bloodstream. These erythrocyte MPs are sufficient to induce vaso-occlusions in a mouse model of SCD, and enhance several processes thought to facilitate vaso-occlusions, namely impaired vasodilation, RBC adhesion, and endothelial damage. Our data place erythrocyte MPs in a key position to participate in the manifestations of SCD. Further experiments will be necessary to determine the importance of the TSP1 pathway in human SCD and the role of erythrocyte MPs in the development of painful VOCs and the vasculopathy associated with SCD in humans.
