Quantitative immunofluorescence mapping reveals little functional coclustering of proteins within platelet α-granules

α-Granules, the major storage and secretory organelle of human platelets,¹  contain hundreds of proteins.²  The apparently conflicting functions of the proteins stored in α-granules raises the important question of how release of opposing activities is physiologically balanced. An attractive proposal resolving this paradox is that functionally antagonistic (eg, proangiogenic and antiangiogenic) factors are packaged into different α-granule populations,^3-6  which are preferentially released in response to different stimuli. Electron tomography of thick plastic and cryosections provides evidence for both morphologic and molecular heterogeneity in the α-granule population.⁷  The major α-granule class by tomography consists of a large ovoid granule containing an electron dense core and eccentrically localized von Willebrand factor (VWF). VWF can be recognized morphologically as long, tubular strands with a characteristic diameter in electron tomograms.⁷  Morphologically, long, tubular α-granules are also present.⁷  These are reported to be a separate class of α-granules composing approximately 16% of the total. Remarkably, these are found in only about half the platelet population. In no case is the section examined sufficiently thick to encompass the entire organelle⁷ ; and hence, the morphologic record to date is based on inferences from organelle fragments. In sum, there are qualitative data but little to no quantitative data on which to assess the coclustering of α-granule proteins into possible distinct granule populations in whole platelets.

Here, we applied the quantitative, whole platelet approach of protein codistribution mapping based on 3-dimensional (3D), confocal fluorescence microscopy datasets to test for the presence of distinct α-granule populations in human platelets.^6,8  Our expectation was that quantitative pair-wise comparisons of 15 α-granule stored proteins would identify sets of α-granule proteins exhibiting high colocalization indices (ie, a strong indication of distinct α-granule populations) and would reveal preferential clustering of physiologically synergistic, α-granule proteins. Instead, little, if any, patterns of coclustering were apparent by quantitative fluorescence microscopy. These results raise the possibility that there are either many individual α-granule populations or a major population of large granules in which proteins are differentially segregated in a zonal manner. We favor the later interpretation as the simplest explanation of the data.

Freshly drawn, citrated human blood was fixed immediately with room temperature paraformaldehyde and platelets then purified by centrifugation.⁴  All experiments were approved by the University of Arkansas for Medical Sciences Institutional Review Board.

Supplemental Figure 1 contains the pertinent data (available on the Blood Web site; see the Supplemental Materials link at the top of the online article).

Based on visual, nonquantitative fluorescence microscopy, proangiogenic and antiangiogenic α-granule proteins appear to distribute to separate α-granule populations in human platelets.^6,8  However, to test definitively this hypothesis, quantitative data are required.

To test quantitatively protein coclustering, we used antibodies to 15 different human α-granule proteins and quantified 28 different pair-wise comparisons (Figures 1–2). Proteins were stratified for proangiogenic versus antiangiogenic properties (Figure 1) or megakaryocyte synthesized versus endocytized (supplemental Figure 1) based on the literature with proangiogenic and antiangiogenic functionalities color-coded as green and red, respectively. All results were corrected for a small pixel shift and normalized against positive and negative controls.

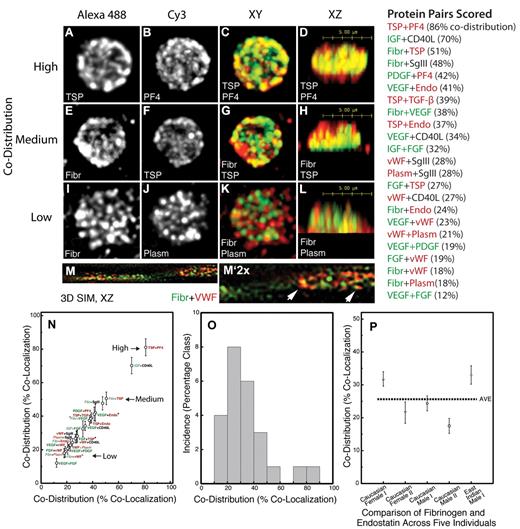

As shown in Figure 1A through L, visually by confocal microscopy, α-granule content proteins showed considerable variation in their codistribution patterns whether viewed in XY (columns 1-3) or XZ projections (column 4) with thromobospondin and platelet factor 4 showing extensive codistribution (high), fibrinogen and thromobospondin showing less (medium), and fibrinogen and plasminogen showing little codistribution (low). The number of structures labeled appeared constant from pairing to pairing. When examined qualitatively at the 8-fold higher voxel resolution of 3D structured illumination microscopy (3D-SIM),⁹  a resolution approximately 2 times better than that of an α-granule, platelets stained for fibrinogen and VWF showed, as expected, little overlap (Figure 1M, 2× higher magnification; Figure 1M′). However, strikingly, we did observe the occurrence within apparently continuous structures of adjacent immunofluorescence zones that were either red and yellow or green and red (Figure 1M′ arrows), suggestive of distinct zones of protein packaging within an individual α-granule. When compared quantitatively by confocal microscopy (Figure 1N-P), there was no obvious clustering of the 13 α-granule content proteins based on proangiogenic versus antiangiogenic function (green vs red labeling of the pairs). Indeed, there was no obvious coclustering across the entire set of pair-wise comparisons (Figure 1N). Rather, the data suggested a Gaussian distribution indicative of stochastic protein delivery to α-granules of proteins present in limited amounts (Figure 1O). Consistent with previous studies, VWF appeared to show little intermixing with other α-granule content proteins in multiple pair-wise comparisons. VWF is know to self-polymerize and would be expected to show limited codistribution because of its location, by thin section immunoelectron microscopy, in an eccentric zone within α-granules.¹¹  Visually, the range of staining intensities observed in the gray scale images presented in Figure 1 suggested that there was considerable variation in the concentration per unit volume of any given protein within an α-granule. Finally, to control for the possibility of donor-to-donor variation, we prepared platelets from 5 donors and determined the extent of codistribution of a fibrinogen and endostatin pairing. In all cases, the quantitative result was approximately 25% codistribution with no statistically significant variation being noted (Figure 1P).

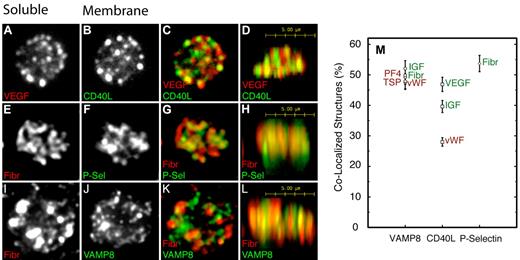

We expected at the resolution of confocal microscopy that every α-granule content protein would be associated with membrane proteins known to localize to α-granules. As shown in Figure 2A through L, this frequently was not the case. Visual pair-wise comparisons of VEGF with CD40L (also known as CD154), fibrinogen with p-selectin, and fibrinogen with VAMP8 (a v-SNARE protein involved in membrane fusion) showed that many content positive staining areas were membrane protein marker negative. Because α-granule membrane proteins are also associated with the membranes of other organelles (ie, dense granules),^11,12  to obtain a quantitative assessment for colocalization, we chose to score for the frequency of α-granule content proteins associated with the marker membrane protein rather than making a pixel-by-pixel comparison. Quantitatively, we found that approximately 50% of the content-stained areas were also positive for the membrane protein. By electron tomography, we found that the frequency of dense granules in human platelets relative to α-granules is low, < 10% (B.S., J.K., and C. Gilpin, unpublished data 2010). Hence, we consider that membrane protein signal is predominantly from α-granules. There is probably significant clustering of these proteins within the granule membrane.

In conclusion, we propose that the simplest interpretation of our quantitative data are that α-granule content proteins are packaged into distinct zones, perhaps in a manner similar to VWF within large, relatively homogeneous α-granules in humans. Electron tomography points to such a population being the major α-granule population in humans.⁷  Furthermore, we suggest that examples from other systems may give models to resolve the apparent physiologic paradox raised by copackaging within α-granules of proteins with conflicting function. One possibly instructive example is the chromaffin granule in which the proteins, copackaged within the same granule, can be differentially released by kiss-and-run exocytosis.^13-15  A second and alternative rationale comes from Caenorhabditis elegans where the copresence of agonists and antagonists are important physiologic regulators of the differentiation process by dampening and balancing activated signaling responses.¹⁶  By analogy, dampening and balancing of angiogenic responses may be a significant regulatory mechanism of platelets.
