Potent HIV-specific responses are enriched in a unique subset of CD8⁺ T cells that coexpresses CD4 on its surface

CD8⁺ T cells mount protective immune responses against viruses by killing infected cells or secreting antiviral cytokines. In HIV infection, loss or dysregulation of CD8⁺ T cells is correlated with disease progression.^1-3  Although expression of CD8 or CD4 on mature T cells is thought to be mutually exclusive, defining cytotoxic and helper cells, respectively, considerable evidence from our laboratory^4-6  and others^7-12  has shown that CD4 is coexpressed on a subset of CD8⁺ T cells. In the periphery, CD4-expressing CD8⁺ T cells constitute 3% to 5% of CD8⁺ T cells and 1% to 3% of lymphocytes.^13,14  Within these cells is a CD4^dimCD8^bright T-cell subpopulation, whose CD4 expression is dim (lower than CD4 expression on CD4⁺ helper T cells) and the CD8 expression is bright (equal to or greater than CD8 expression on conventional CD8⁺ cytotoxic T cells).

Several lines of evidence have shown that CD4^dimCD8^bright T cells are not an artifact but represent a genuine, mature subset of CD8⁺ T cells. (1) CD4-depeleted CD8⁺ T cells after anti-CD3/CD28 or superantigen staphylococcus enterotoxin B (SEB) stimulation up-regulate CD4 on their surface, as evaluated by mRNA and protein expression.^4,7,8  This level of CD4 induction on CD8⁺ T cells in vitro is substantial because 30% to 60% of purified CD8⁺ T cells re-express CD4 after anti-CD3/CD28 or SEB stimulation.⁴  (2) CD4^dimCD8^bright T cells are not prematurely released thymocytes, because they are negative for thymocyte marker CD1a.⁴  (3) The T-cell receptor (TCR) of CD4^dimCD8^bright T cells is αβ and their CD8 molecule is αβ,⁴  which confirms that CD4^dimCD8^bright T cells are not gut-derived CD8⁺ T cells, which are predominantly TCRγδ and CD8αα. (4) These T cells do not express CD16, CD56, or 6B11 and therefore are not natural killer T (NKT) cells.⁶

CD4^dimCD8^bright T cells are not unique to humans. They are prominent in animal species including swine, rodent, chicken, and monkey.¹⁵  Their frequency is also elevated in clinical conditions, including human T lymphotropic retrovirus type 1,¹⁶  chronic T lymphoid leukemia,¹⁷  Sjögren syndrome,¹⁸  myasthenia gravis,¹⁹  multiple sclerosis,²⁰  idiopathic thrombocytopenic purpura,²¹  and Behçet syndrome.²²

Although the exact role of CD4^dimCD8^bright T cells in these conditions is not clear, their up-regulation suggests a significant role in host immunity. We have previously demonstrated that CD4^dimCD8^bright T cells are more activated than CD4⁻CD8⁺ T cells.⁴  Others have shown that CD4 expression on CD8⁺ T cells enhances their IFNγ and Fas ligand expression,¹⁰  whereas, inversely, lack of CD4 expression on CD8⁺ T cells from CD4-knockout mice leads to decreased CD8⁺ T-cell responses against lymphocytic choriomeningitis virus (LCMV).¹¹  The contribution of CD4^dimCD8^bright T cells to anti-HIV immunity, however, is not clear.

We evaluated here the role of CD4^dimCD8^bright T cells in anti-HIV immunity. We demonstrate that, although CD4^dimCD8^bright T cells represent a minor percentage of the total CD8⁺ T cells, they are enriched for anti-HIV–specific responses. This phenomenon is not restricted to HIV, because these cells are also enriched for cytomegalovirus (CMV)–specific responses in CMV⁺HIV⁻ persons. The interaction of CD4 on CD4^dimCD8^bright T cells with major histocompatability complex II (MHC-II) on antigen-presenting cells (APCs) is integral to the increased antigen recognition and functional response of CD4^dimCD8^bright T cells. These studies show that CD4 expression on CD8⁺ T cells defines an enriched antiviral cytotoxic population, a critical finding that advances the current paradigm of antiviral cytotoxic lymphocyte (CTL) responses.

This research was conducted in accordance with institutional guidelines on human research and received institutional review board approval from Rush University Medical Center. Donor informed consent was obtained in accordance with the Declaration of Helsinki.

Peripheral blood mononuclear cells (PBMCs) were isolated by density-gradient centrifugation from human donor venous blood or obtained from frozen samples. CMV donors were identified by CMV IgG testing (Rush Medical Laboratories). Long-term nonprogressor (LTNP) HIV⁺ donors were recruited through the Section of Infectious Diseases at Rush University Medical Center.

Nonspecific binding of antibodies to cell Fc receptors was blocked using 20 μL/10⁷ cells of FcR blocker (Miltenyi Biotec Inc). Fluorochrome-conjugated antibodies purchased from BD Biosciences PharMingen; Beckman Coulter, Caltag included the following: CD3-fluorescein isothiocyanate (FITC), CD3–Pacific Blue, CD4-phycoerythin (PE), CD4-allophycocyanin (APC*), CD8-FITC, CD8-PE, CD8–peridinin chlorophyll protein (PerCP), CD8-APC*, CD8-APC*-H7, CD8-PerCP-Cy5.5, CD19-PerCP, CD19-APC*-Cy7, CD27-FITC, CD27-APC*, CD28-FITC, CD28-PE, CD38-PE-Cy7, CD45RA-FITC, CD45RA-PE-Cy5, CD45RO-FITC, CD45RO-PE, CD45RO-PE-Cy7, CD57-FITC, CD62L-FITC, CD62L-PE, CD107ab-PE-Cy5, CD107ab-FITC, CCR7-FITC, CCR7-APC*, HLA-A2–FITC, HLA-DR–PerCP, mouse IgG-FITC, mouse IgG-PE, mouse IgG-PerCP, mouse IgG-APC*, A2 CMV pp65-tetramer-PE and APC*, A2 EBV tetramer-PE, A2 HIV Gag-tetramer-PE and APC*, A2 HIV Gag-tetramer-APC, B27 HIV Gag-tetramer-PE, or negative tetramer-PE, Aqua Live/Dead (Invitrogen). Conventional surface immunostaining was performed.

Cells were treated with 10 μg/mL Brefeldin A (Sigma-Aldrich), incubated at 37°C 5% CO₂ for up to 6 hours with or without stimulation, and stained for surface markers. Cells were then permeabilized using fluorescence-activated cell sorting Permeabilizing Solution 2 (Becton Dickinson) and immunostained for 30 minutes at 4°C with antibodies to intracellular cytokines. Cells were washed with 1× PBS and fixed in 2% formaldehyde.

Cells were stained ex vivo using the IOTest Beta Mark kit (Beckman Coulter) according to the manufacturer's instructions.

Four-color and 8-color flow cytometric analyses were performed using a FACSCalibur cytometer with CellQuest (Becton Dickinson) and LSR-II cytometer with Diva software (Becton Dickinson), respectively. Live cells were gated based on negative Aqua Live/Dead staining and lymphocytes based on FSC-A versus SSC-A. When CD3 antibody was used, a gate encompassing CD3⁺ or CD3⁺CD8⁺ cells was created. Next, gates were created encompassing CD8⁺ populations expressing dim levels of CD4 or not expressing CD4. The percentage of expression of endpoint markers was calculated by the flow analysis software.

Placement of the CD4^dimCD8^bright T-cell gate was based on factors visible on a CD4 versus CD8 plot. (1) Beginning point of the gate was based on unstained but compensated samples and samples stained with isotypes (showing endpoint of CD4⁻CD8⁺ T-cell population), and (2) endpoint of the gate was based on a line drawn between the endpoint of CD4 staining on monocytes expressing CD4 dimly and the beginning point of CD4 staining on CD4⁺CD8⁻ T cells expressing CD4 brightly. Sample acquisition was 200 000 to 2 000 000 events.

PBMCs were stained with CD4-FITC and CD8-PE, as described for flow cytometry, placed on a glass slide, and analyzed using an Olympus Flowview Laser Scanning Microscope (Model-1X81 FVBFUV; Olympus Optical Co) equipped with Fluoview Version 4.3 software. Images were captured using a 20×/0.7 numerical aperture and a 60×/1.4 numerical oil objective.

For activation, cells were cultured with 1 μg/mL SEB (Sigma-Aldrich) or 1 μg/mL soluble anti-CD3/anti-CD28 antibodies (PharMingen). Cells from human leukocyte antigen (HLA)–A2*0201⁺ CMV IgG⁺ donors were primed with 10 μg/mL of the CMVpp65 peptide NLVPMVATV (Sigma-Aldrich), the immunodominant epitope recognized by CD8⁺ T cells. Cells from HIV⁺ donors were primed with pooled HIV peptides (15 amino acids long with 11-amino acid overlaps) spanning the nef, env, gag, and pol regions at 2 μg/peptide/mL (AIDS Research and Reagent Program). HLA typing was performed using Luminex multiplex DNA analysis (Rush University Medical Center Histocompatability and Immunogenetics Laboratory). Unless otherwise noted, cells were cultured in RPMI 1640 medium (BioWhittaker) supplemented with 10% FBS (Gemini Bio-Products) and 1% penicillin/streptomycin (Sigma-Aldrich).

Detection of antigen-specific cells was performed using fluorochrome-conjugated CMVpp65 (HLA-A2: NLVPMVATV) or HIVgag (HLA-A2: SLYNTVATL; HLA-B57: KAFSPEVIPMF) MHC-I tetramers. Cells were peptide stimulated or left untreated for 6 days. Cells from CMV⁺ and HIV⁺ LTNP donors were primed with CMVpp65 peptide or overlapping HIVgag peptides (4 μg/mL/peptide), respectively, or left untreated. Day 0 fresh and day 6 cells were immunostained for tetramer, CD38, and HLA-DR and analyzed by flow cytometry. Irrelevant (EBV peptide-loaded) and negative (without peptide) MHC-I tetramers were used as controls.

PBMCs were isolated from CMV⁺ and LTNP HIV⁺ donors, stimulated with CMVpp65 peptide or HIV pooled peptides, respectively, SEB, or left untreated, and stained with Carboxy fluorescein succinimidyl ester (CFSE; Invitrogen). After a 7-day culture, PBMCs were evaluated by flow cytometry for CFSE fluorescent intensity reduction.

The CD107ab assay was performed as described by the manufacturer (Becton Dickinson). Briefly, on day 0 effector cells (PBMCs) from CMV⁺ and HIV⁺ LNTP donors were isolated and cultured overnight in Aim V serum-free media (Invitrogen). On day 0, T1 and T2 targets (ATCC) were loaded overnight with 40 μg/mL CMVpp65 peptide or HIV pooled peptides at 2 μg/peptide/mL (with the aid of β2-microglobulin; Sigma-Aldrich). Target loading was verified by HLA-A2 up-regulation. On day 1, neutralizing antibodies were added after appropriate stains (ie, CD4 blocker after CD4 stain) to allow for visualization and blocking of the same molecules. Neutralizing antibodies were incubated with appropriate cells for 1 hour and washed. Effectors were stained with CD107ab. Primed effectors and loaded targets were coincubated at 37°C. At 1 hour of coculture, Golgi-block (Becton Dickinson) and Brefeldin A (Sigma-Aldrich) were added to eliminate internalization/degradation of surface CD107ab. The culture was incubated for an additional 4 hours at 37°C. Cells were then immunostained and evaluated by flow cytometry. CD19 was used to distinguish effectors (CD19⁻) form targets (CD19⁺). Similar experiments assessed cytotoxic ability of effectors in the presence of CD4-neutralizing antibody (R&D Systems Inc) cultured with effectors or MHC-II blocking antibody (HLA-DP, DQ, DR antibody; Beckton Dickinson) cultured with APCs.

Data were analyzed using Prism 4.0 and InStat 3.0 software (GraphPad Software). Two-tailed paired and unpaired t tests were used as indicated. Descriptive statistics and graphical analyses were used where appropriate.

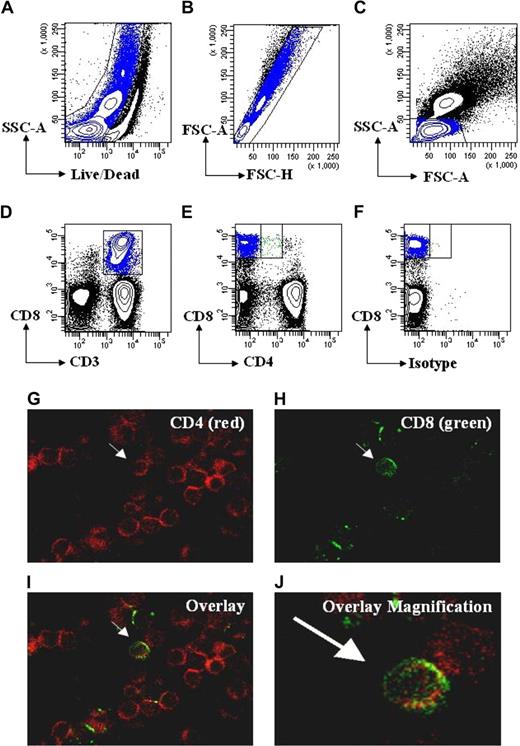

Studies have shown that CD4^dimCD8^bright T cells represent a genuine, mature, peripheral blood T-cell population.^4,5,7-9,12  With advances in multiple parameter flow cytometry we further show that CD4^dimCD8^bright T cells are live singlet cells and not doublets/debris. We used SSC-A versus Aqua Live/Dead staining and FSC-A versus FSC-H to exclude dead cells (Figure 1A) and doublets (Figure 1B), respectively. We then used FSC-A versus SSC-A to gate on lymphocytes (Figure 1C) and then gated on CD3⁺CD8⁺ T cells or all CD3⁺ T cells (Figure 1D). Finally, we gated on CD4⁻CD8⁺ and CD4^dimCD8^bright T cells (Figure 1E). CD4 staining on CD4^dimCD8^bright T cells was shown to be not a result of nonspecific antibody binding because (1) panels stained with alternative fluorophore combinations for CD4 and CD8 yielded similar results for CD4^dimCD8^bright T-cell expression, and (2) CD4^dimCD8^bright T did not stain with makers not associated with T cells, including CD19, CD56, and CD206 (data not shown). We also visualized these cells using immunocytochemistry staining and confocal microscopy. As seen in Figure 1G-J, CD4^dimCD8^bright T cells are singlet cells with high (bright) CD8 expression and low (dim) CD4 expression. Taken together, these data lend further evidence that CD4^dimCD8^bright T cells are a genuine T-cell subpopulation.

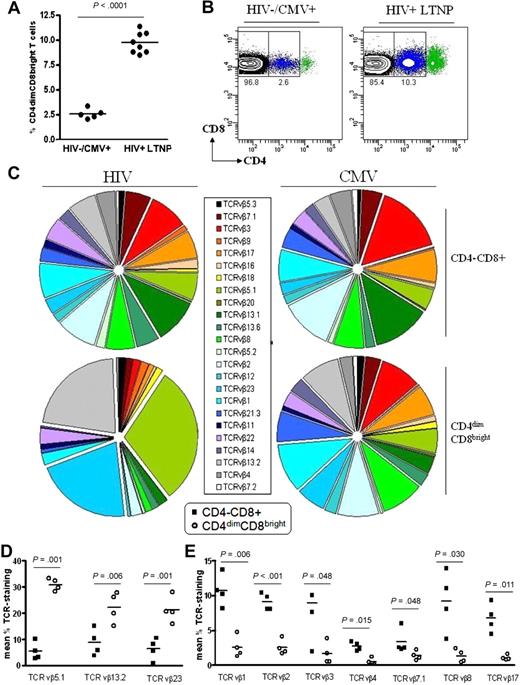

Previous studies from our laboratory have shown that CD4^dimCD8^bright T cells exhibit higher recognition of CMV-loaded tetramer than do single-positive CD4⁻CD8⁺ (SP8) T cells⁵ ; however, their contribution to anti-HIV immunity is not clear. To evaluate the role of CD4^dimCD8^bright T cells in anti-HIV immunity, we evaluated their frequency among HIV⁺ patients who are LTNPs, defined as patients with documented HIV infection for at least 5 years, CD4⁺ T-cell counts greater than 500 cells/mm³, plasma HIV-1 RNA at low/undetectable levels, and without history of antiretroviral therapy for any extended period. Peripheral blood was obtained from HIV⁻ and LTNP HIV⁺ donors (Table 1) and evaluated for the percentage of CD4^dimCD8^bright T-cell expression (Figure 2). Frequency of CD4^dimCD8^bright T cells was approximately 4-fold higher among HIV⁺ LTNPs than among HIV⁻ donors (10% versus 2.5%; Figure 2A-B). On the basis of our previous retrospective study of more than 150 chronically infected HIV⁺ patients whose CD4^dimCD8^bright T-cell frequency was 0.4% to 3.4%, the frequency of CD4^dimCD8^bright T cells in HIV⁺ LTNPs is also consistently higher than in chronically infected HIV⁺ patients.⁵  These data show that CD4^dimCD8^bright T cells are increased in HIV⁺ LTNPs compared with HIV⁻ and chronically infected HIV⁺ donors.

To further characterize CD4^dimCD8^bright T cells and determine whether this population constitutes an invariant T-cell subset, ex vivo PBMCs from HIV⁺ LTNPs and CMV donors were stained for a set of 24 TCR vβ clonotypes (Beckman Coulter). Although CD4^dimCD8^bright and CD4⁻CD8⁺ T cells from all donors stained for most of the 24 clonotypes, 3 clonotypes (vβ5.1, 13.2, 23) in CD4^dimCD8^bright T cells of HIV⁺ LTNPs were significantly increased compared with CD4⁻CD8⁺ T cells. These 3 clonotypes constitute greater than 74% of the vβ repertoire of CD4^dimCD8^bright T cells in HIV⁺ LTNPs but less than 21% of CD4⁻CD8⁺ T cells (Figure 2C-D). Further, 7 clonotypes (vβ1, 2, 3, 4. 7.1, 8, 17) in CD4^dimCD8^bright T cells of HIV⁺ LTNPs were significantly decreased in comparison to CD4⁻CD8⁺ T cells (Figure 2C,E). The preferential expression of these clonotypes was not seen within CD4^dimCD8^bright T cells of CMV⁺ donors, possibly because of differences in viral control between HIV and CMV. These data show a dominant expression of TCRVβ repertoire in CD4^dimCD8^bright T cells of HIV⁺ LTNPs, which is not observed within their CD4⁻CD8⁺ T-cell counterparts nor among CMV⁺ donors.

Because of the higher frequency of CD4^dimCD8^bright T cells among LTNPs and because of the dysregulation of CD4⁺ and CD8⁺ T cells in chronically infected HIV patients, we used blood from LTNPs throughout our functional studies to determine the relevance of this population in mounting anti-HIV responses. We used several complementary approaches to evaluate anti-HIV responses, including evaluation of HIV peptide recognition, polyfunctional cytokine production, and cytotoxic potential response to pooled HIV peptide stimulation. Parallel studies were conducted to evaluate anti-CMV responses in CMV IgG-positive HIV⁻ donors.

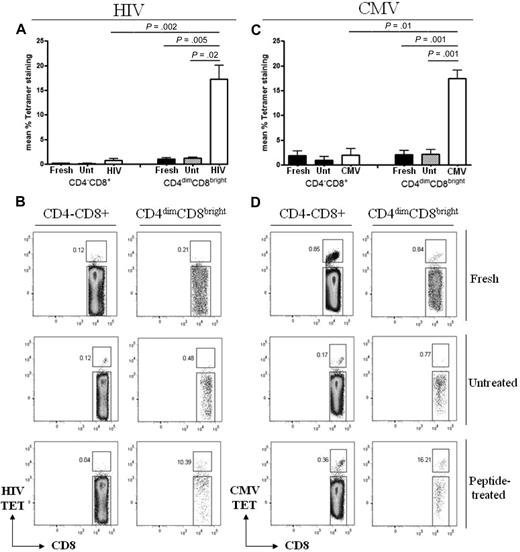

To evaluate antigen recognition by CD4^dimCD8^bright T cells in comparison to CD4⁻CD8⁺ T cells, PBMCs from the respective donors were stimulated with CMVpp65, HIV pooled peptides, or left unstimulated for 6 days then immunostained with HIVgag-loaded, CMVpp65-loaded, irrelevant (EBV), or negative (peptide-free) tetramers. All donors used were HLA typed to ensure compatibility for tetramer staining and target loading (Table 1). After peptide stimulation, respective CD4^dimCD8^bright T cells bound HIVgag or CMVpp65 tetramer more than 15- and 9-fold higher, respectively, than did CD4⁻CD8⁺ T cells (Figure 3). Interestingly, although tetramer recognition by CD4^dimCD8^bright T cells increased with respective peptide stimulation (compared with no stimulation for the same amount of time), no increase in CD4 expression (percentage or fluorescent intensity) was visualized (data not shown).

On the basis of HLA-DR and CD38 coexpression, CD4^dimCD8^bright T cells from HIV⁺ LTNP and CMV⁺ donors are more activated than are CD4⁻CD8⁺ T cells after respective peptide stimulation (supplemental Figure 1, available on the Blood website; see the Supplemental Materials link at the top of the online article). Likewise in the context of tetramer-positive cells, CD4^dimCD8^bright T cells from HIV⁺ LTNPs are also more activated than CD4⁻CD8⁺ T cells. There was, however, no significant difference between activation status of tetramer-positive CD4^dimCD8^bright and CD4⁻CD8⁺ T cells after CMV peptide stimulation, possibly because CMV stimulation relied on a single epitope (pp65), whereas HIV stimulation was based on pooled peptides.

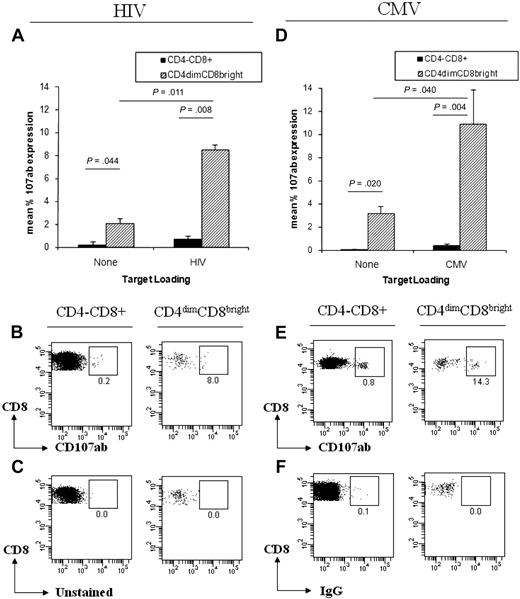

Given that tetramer binding shows antigen recognition that does not always translate to cytotoxic response,²³  we used surface lysosome-associated membrane protein (CD107ab) expression as a marker of cytotoxic potential.²⁴  CD107ab translocates to the cell surface in response to activation-induced degranulation.²⁴  PBMCs from LTNP HIV⁺ and CMV donors were stained with anti-CD107ab antibodies and cocultured with targets (T1 cells) preloaded with pooled HIV (2 μg/peptide/mL) or CMVpp65 peptides. T1 cells are T:B cell hybrids that express both MHC-I (HLA-A2) and MHC-II (HLA-DR7) and are used here as targets/APCs. PBMCs were cultured alone or with unloaded targets, and background CD107ab expression from CD4⁻CD8⁺ and CD4^dimCD8^bright T cells was used to create a cutoff for CD107ab positivity. Expression of CD107ab was 13-fold and 29-fold higher, respectively, in CD4^dimCD8^bright T cells than in CD4⁻CD8⁺ T cells in response to HIV-loaded and CMV-loaded targets (Figure 4). This higher cytotoxic potential of CD4^dimCD8^bright T cells was shown at all peptide concentrations used for HIV and CMV-loading of T1 targets (data not shown). These data indicate that CD4^dimCD8^bright T cells exert a greater cytotoxic potential against CMV and HIV antigens than CD4⁻CD8⁺ T cells.

In addition to the interaction between the TCR of T cells and MHC molecules of APCs, CD4 on helper T cells and CD8 on cytotoxic T cells, function as a coreceptor by binding to MHC-II or MHC-I, respectively. This binding leads to enhanced T-cell recognition of cognate antigen by enhancing the avidity of the T cell–APC interaction and increasing T-cell signaling. Given that CD4^dimCD8^bright T cells express both CD4 and CD8 on the same cell, we evaluated if CD4–MHC-II interaction contributes to their potent cytotoxic potential by neutralizing CD4 or MHC-II in the CD107ab assay described above. In our studies, T1 targets were loaded with either CMVpp65 or pooled HIV peptides and treated with MHC-II blocking antibody or left untreated. These cells were then cocultured with PBMCs that were treated with CD4 neutralizing antibody or left untreated. Five hours after coculture of targets and effectors, cells were evaluated for CD107ab expression. Because T1 and T2 cells are a T:B lymphoblastic hybrid, CD19 staining was used to exclude targets in the determination of CD107ab expression by effectors.

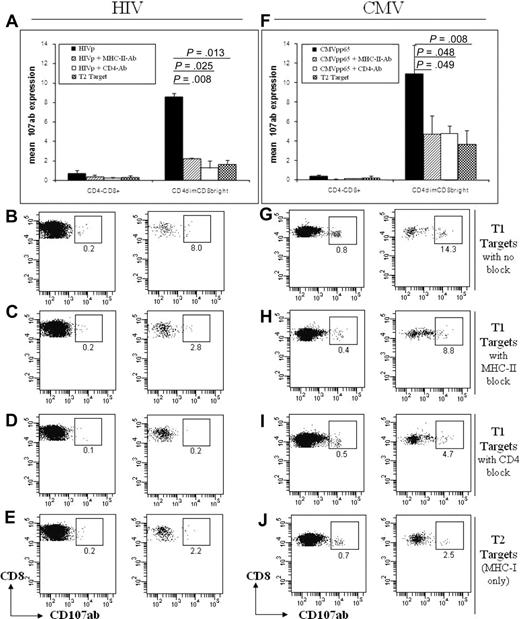

Neutralization of the CD4 or MHC-II molecule dramatically diminished the cytotoxic potential of CD4^dimCD8^bright T cells in response to CMV-loaded and HIV-loaded targets (Figure 5). In CD4^dimCD8^bright T cells, CD107ab expression in response to HIV antigen-loaded T1 targets was reduced by 85% (from 8.0% to 1.3%) after CD4 neutralization and by 74% (from 8.0% to 2.2%) after treatment with a MHC-II blocker (Figure 5A) Similarly, CD107ab expression in response to CMV-loaded T1 targets was reduced by 57% (from 10.9% to 4.7%) after CD4 neutralization and by 56% (from 10.9% to 4.8%) after MHC-II blocking (Figure 5F). No significant decrease in CD107ab expression was measured in CD4⁻CD8⁺ T cells presented with antigen (CMV or HIV) by T1 targets after blocking with MHC-II or CD4 antibodies (Figure 5A,F).

To further evaluate the contribution of the CD4–MHC-II interaction to the effector function of CD4^dimCD8^bright T cells, their cytotoxic potential was compared when cocultured with CMV or pooled HIV peptide-loaded targets that express MHC-II (T1 targets) or that do not express MHC-II (T2 targets).²⁵  CD107ab expression by CD4^dimCD8^bright T cells was reduced by 80% (from 8.6% to 1.6%) when HIV peptide–loaded targets lacked MHC-II (Figure 5A). Similarly, when CMV-loaded T2 targets were cocultured with effector cells, the CD107ab expression by CD4^dimCD8^bright T cells was reduced by 66% (from 10.9% to 3.7%; Figure 5F). Treatment with neither MHC-II nor CD4 neutralizing antibody had any significant affect on CD4^dimCD8^bright T cells or CD4⁻CD8⁺ T cells presented with antigen by T2 targets (data not shown). These data show that the CD4 molecule on CD4^dimCD8^bright T cells and MHC-II on APCs plays a major role in enhancing the cytotoxic potential of CD4^dimCD8^bright T cells.

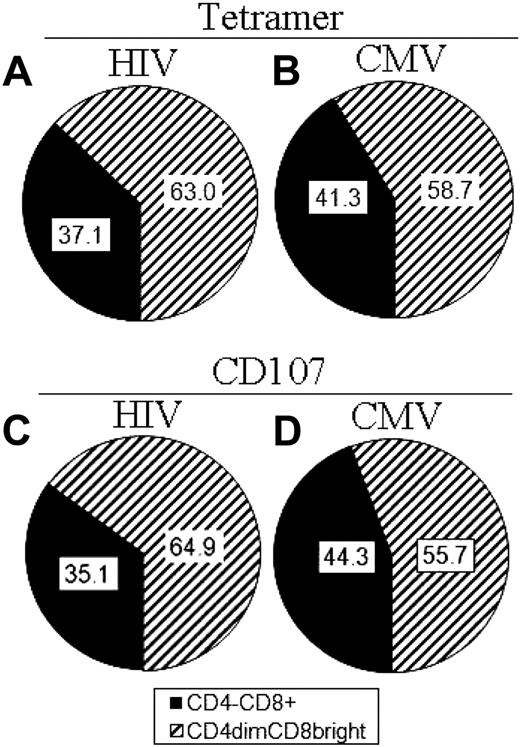

Given that CD4^dimCD8^bright T cells are less than 3% of CD8⁺ T cells but generate considerable antigen recognition (Figure 3) and cytotoxic potential (Figures 4–5), we determined the contribution of CD4^dimCD8^bright T cells to the overall antigen-specific response of CD8⁺ T cells. We initially gated on all CMV or HIV tetramer⁺ cells or all CD107ab⁺ cells and then determined the percentage of these that are CD4^dimCD8^bright or CD4⁻CD8⁺ T cells. Strikingly CD4^dimCD8^bright T cells constituted greater than 58% of CD8⁺ tetramer-recognizing T cells (Figure 6A-B) and greater than 55% of CD107ab⁺ cells (Figure 6C-D) in the context of both HIV and CMV, respectively, after antigen presentation. These dramatic data show that, although CD4^dimCD8^bright T cells constitute less than 5% of the CD8⁺ T-cell population, they are highly enriched for antiviral specific responses.

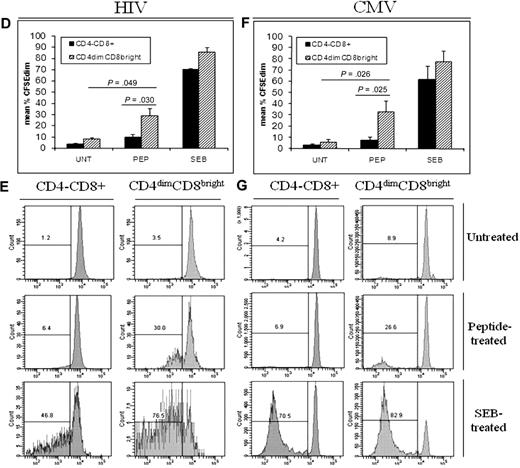

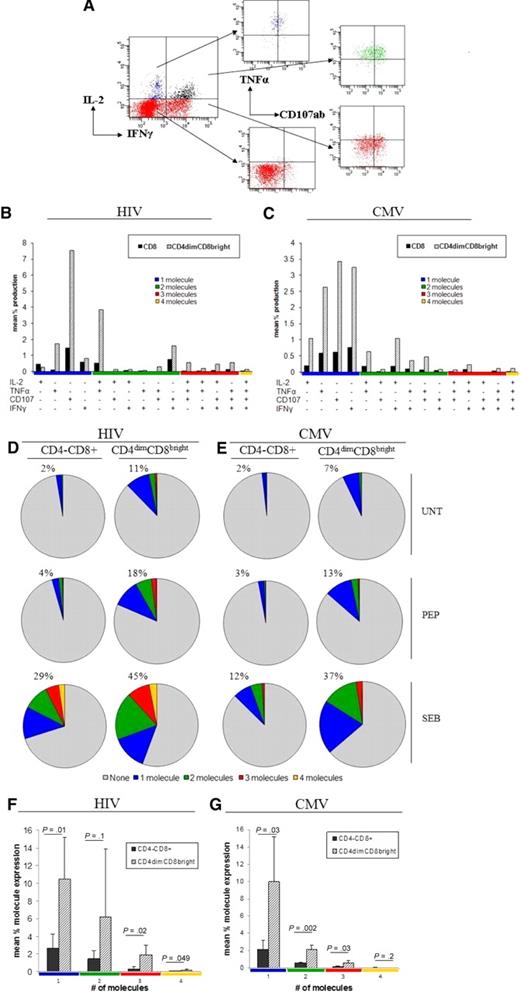

Recent evidence suggests that potent effector responses are mediated by polyfunctional T cells capable of secreting multiple effector molecules.^26,27  Retention of polyfunctional T cells is strongly correlated with increased capacity for proliferation and viral control.²⁸  Given that CD4^dimCD8^bright T cells generate most of the effector responses to HIV and CMV, we determined whether these cells are polyfunctional in response to antigenic challenge. PBMCs from HIV⁺ LTNP or CMV⁺ donors were cultured with HIV pooled peptides or CMVpp65, respectively, for up to 6 hours or left untreated, stained with appropriate surface antibodies, permeabilized, and stained with antibodies to intracellular IL-2, IFNγ, TNFα, and surface CD107ab. CD4^dimCD8^bright T cells produced considerable levels of cytokines and CD107ab either alone or in combination in response to HIV (Figure 7A-B) and CMV (Figure 7C) stimulation. The percentage of expression of total effector molecules (cytokines and CD107ab) was 4-fold higher in CD4^dimCD8^bright T cells in response to CMV or HIV peptide stimulation and at least 2-fold higher in response to SEB simulation than CD4⁻CD8⁺ T cells (Figure 7D-E). Further, significantly higher levels of 1, 3, and 4 molecules per cell were produced by CD4^dimCD8^bright than by CD4⁻CD8⁺ T cells in response to HIV stimulation (Figure 7F) and significantly higher levels of 1, 2, and 3 molecules per cell were produced by CD4^dimCD8^bright than by CD4⁻CD8⁺ T cells in response to CMV stimulation (Figure 7G). These data show that CD4^dimCD8^bright T cells have significantly higher polyfunctional responses than CD4⁻CD8⁺ T cells.

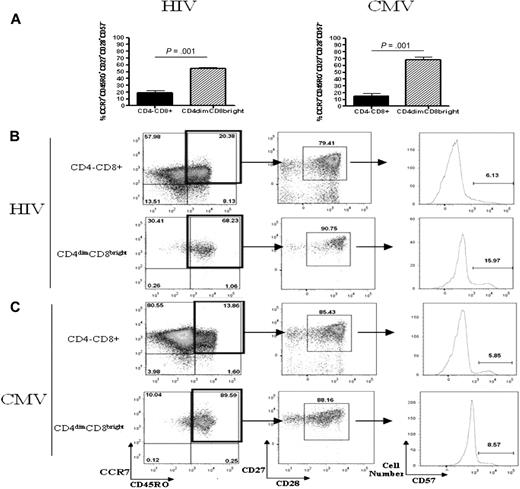

Current knowledge of CD8⁺ T-cell differentiation indicates that at least 3 memory subsets exist: central memory, effector memory, and terminally differentiated memory. These subsets can be distinguished by surface marker expression and proliferation capability (as reviewed by Sallusto et al²⁹ ). On the basis of surface maker staining, most CD4^dimCD8^bright T cells from both HIV and CMV donors were CCR7⁺CD45RO⁺CD27⁺CD28⁺ and CD57⁻, identifying them as central memory T cells (Figure 8A). CD4⁻CD8⁺ T cells were more evenly distributed among the numerous memory subsets (Figure 8B-C). CD4^dimCD8^bright T cells also proliferated to a greater extent in response to HIV and CMV peptide stimulation than did CD4⁻CD8⁺ T cells (Figure 8D,F). Specifically, PBMCs were stained with CFSE and cultured for 7 days with HIV pooled peptides, CMVpp65, SEB, or left untreated and stained with surface antibodies to relevant markers. CD4^dimCD8^bright T cells proliferated at a rate approximately 5-fold and 4-fold higher in response to HIV and CMV peptide stimulation, respectively, than did CD4⁻CD8⁺ T cells (Figure 8D,F). Therefore, on the basis of surface marker expression and proliferative capability, most CD4^dimCD8^bright T cells are central memory cells.

Despite significant compelling evidence for the existence of CD4^dimCD8^bright T cells and their potential role in antiviral immune responses,^5,10,11  this population is often neglected in the analysis of antiviral CTL responses. CD4^dimCD8^bright T cells are either gated out from conventional flow cytometric analyses or grouped together with CD4⁻CD8⁺ T cells without identification or recognition of their contribution to the overall CD8⁺ T-cell antiviral response. We demonstrate here that CD4^dimCD8^bright T cells are highly enriched in antiviral responses in comparison to CD8⁺ T cells that do not express CD4 on their surface. This finding promotes a new paradigm for the evaluation of CD8⁺ T-cell antiviral responses. By neglecting this subset, evaluations of antiviral vaccine responses are compromised whereby potential vaccines may be deemed not to elicit potent CTL responses, when in fact they may once CD4^dimCD8^bright T-cell subsets are included in the analysis.

It is especially striking that CD4^dimCD8^bright T cells are less than 5% of CD8⁺ T cells, yet they generate greater than 55% of cytotoxic responses to CMV and HIV antigens. Expression of CD4 on effector cells and MHC-II on APCs is critical for this higher effector response from CD4^dimCD8^bright T cells. Adoptive transfer of CD8⁺ T cells from CD4-knockout mice to LCMV-infected mice also results in diminished immune responses.¹¹  These studies highlight a biologic role for CD4 on CD8⁺ T cells in the enhancement of immunologic responses to viral infections. The exact mechanism by which CD4 exerts this heightened antiviral response on CD8⁺ T cells is not clear. Given our finding that CD4^dimCD8^bright T-cell antiviral responses are diminished by blocking CD4 on CD4^dimCD8^bright T cells or MHC-II on APCs, we propose a “double-arm” model by which CD4^dimCD8^bright T cells exert a more potent antiviral response. In our model, CD4 on CD4^dimCD8^bright T cells binds MHC-II on APCs, whereas TCR and CD8 conventionally bind MHC-I:peptide on APCs. This double-arm contact may enhance antigen avidity or signal transduction for CD8⁺ T-cell activation. Indeed, the CD4 molecule on CD4^dimCD8^bright T cells is associated with Src-family kinase Lck, which promotes T-cell activation.⁷  CD4 on CD4^dimCD8^bright T cells may also enhance their chemotaxis ability, as was shown by the their ability to migrate toward IL-16 (a ligand for CD4) in a CD4-dependent manner.⁹

CD4^dimCD8^bright T cells probably represent a distinct subpopulation of CD8⁺ T cells rather than a transient phenotype of CD8⁺ T-cell activation. In fact, expression of CD4 on CD8⁺ T cells may be an early marker for CD8⁺ T-cell differentiation, especially identifying CD8⁺ T cells that respond to a cognate antigen. Several findings lend support to this hypothesis. (1) Naive CD8⁺ T cells up-regulate CD4 to a greater degree than do memory CD8⁺ T cells,⁸  and expression of CD4 is stable over time both in vitro and ex vivo.^4,5  (2) CD4^dimCD8^bright T cells are inherently more activated than CD4⁻CD8⁺ T cells, because they express elevated levels of classic T-cell activation markers (CD95, CD25, CD38, CD69, CD28, CD45RO) to higher degrees than do CD4⁻CD8⁺ T cells.⁴  In addition, despite their activation state, they are protected from activation-induced cell death.⁵  (3) Greater antigen recognition and immune response of CD4^dimCD8^bright T cells compared with CD4⁻CD8⁺ T cells are not restricted to HIV and CMV. CD4^dimCD8^bright T cells also recognized hepatitis C virus more potently than do their SP8 T-cell counterparts.³⁰  (4) We demonstrate here that most of the CD4^dimCD8^bright T cells are central memory, a long-lived memory subset. Collectively, these findings suggest that CD4 up-regulation on CD8⁺ T cells is an initial response that tags the CD8⁺ T cells that first recognize cognate antigen. CD4^dimCD8^bright T cells then become activated, exert their effector responses, and differentiate into central memory T cells.

Elevated expression of CD4^dimCD8^bright T cells among LTNPs suggests that they may contribute to the ability of these patients to control HIV replication in the absence of antiretroviral therapy. Conversely, dysregulation or loss of CD4^dimCD8^bright T cells may be linked to HIV disease progression. Ironically, CD4 expression on CD8⁺ T cells may also enhance their susceptibility to HIV infection. HIV is detected within a minor population of CD8⁺ T cells and may be attributed to CD4 expression on these cells.³¹  However, we have previously demonstrated that CD4^dimCD8^bright T cells are productively infected by T-tropic and not M-tropic HIV because they secret β-chemokines that sequester CCR5 away from HIV gp120.⁵  In early HIV disease, as M-tropic HIV predominates, it is probable that CD4^dimCD8^bright T cells remain viable and contribute to anti-HIV immune responses. In late HIV disease, as T-tropic HIV predominates, CD4^dimCD8^bright T cells may become infected and dysregulated or lost. Contrary to our findings that CD4^dimCD8^bright T cells are preferentially infected by T-tropic and not M-tropic HIV, others have shown that they are infected by M-tropic HIV.¹²  These differences are probably due to the mechanism by which CD4 is induced on CD8⁺ T cells. Anti-CD3/CD28 costimulation led to potent β-chemokine production and thus resistance to M-tropic HIV infection while anti-CD3 mobilization may have not.⁸

We previously demonstrated that CD4^dimCD8^bright T cells generated in vitro through stimulation of CD4-depleted CD8⁺ T cells with SEB or anti-CD3/CD28 secrete predominately IL-4.⁵  However, blood CD4^dimCD8^bright T cells in a recall response (antigen stimulation) secret polyfunctional Th1 and Th2 cytokines. These data indicate that the cytokine profile of these cells may differ depending on the mode of stimulation.

Double-positive cells have been described in the intestine of rhesus macaques³²  and were shown to be highly activated and responsive to mitogen stimulation.³²  However, it is unclear if these intestinal macaque double-positive cells are the same cells described in our studies. In the intestine, the CD8 molecule can be αα or αβ. CD4^dimCD8^bright T cells described here are αβ and not αα.⁴  Further, the analysis of the intestinal macaque cells has included all double-positive cells, including CD4 T cells that express CD8. In our studies, it is the CD4^dimCD8^bright T cells that exert higher antigen specificity and not the CD4^brightCD8^bright or CD4⁺CD8^dim T cells. Therefore, contradictory results from various groups may be due to the manner in which the term “double-positive” is defined because several subpopulations of double-positive cells exist based on differences in CD4 and CD8 expression intensity.⁶

A population that is CD4^brightCD8^bright T cells also exists. We concentrated on CD4^dimCD8^bright T cells rather than on CD4^brightCD8^bright T cells for several reasons. (1) When CD4⁻CD8⁺ T cells are stimulated, they up-regulate CD4 dimly on their surface, and further stimulation has not yielded the CD4^brightCD8^bright population. (2) Previous investigation of CD4^brightCD8^bright T cells have shown them to not exhibit the effector responses (antigen recognition and cytokine production) attributed to CD4^dimCD8^bright T cells, which may be due to their status of exhaustion or senescence because they express higher levels of CD57 and PD-1, respectively (data not shown). (3) CD4⁺CD8⁻ T cells have also been shown to up-regulate CD8 on stimulation; therefore, CD4^brightCD8^bright T cells may represent a combination of cells derived from CD4⁺ and CD8⁺ T cells and not a homogenous population as are CD4^dimCD8^bright T cells, which are only derived from CD8⁺ T cells.

Expression of otherwise unconventional molecules on lymphocyte subsets is not unique to CD4^dimCD8^bright T cells. NK T cells express molecules that are reflective of both NK and T cells. Further, a unique lymphocyte population expressing both phenotypic and functional properties of NK and dendritic cells, namely NK dendritic cells have been shown to exist.^33,34  Because the contribution of CD4^dimCD8^bright T cells to immunity is not limited to anti-HIV responses, as they exert potent responses to CMV, LCMV, HIV, and HCV, understanding the mechanism by which CD4 induces higher CD8⁺ T-cell responses is beneficial for understanding CD8⁺ T-cell biology, which can be harnessed for antiviral vaccine strategies.
