In this issue of Blood, Nervi and colleagues and Zeng and colleagues independently report similar findings in both in vitro and in vivo AML models, showing chemosensitization by blocking CXCR4/CXCL12 (SDF-1α:stromal cell–derived factor 1) signaling using novel CXCR4 antagonist bicyclams, namely AMD3100 (plerixafor) and AMD3465.

CXCR4 and its ligand SDF-1/CXCL12 have been identified as key participants in many pathways including cell movement, HIV entry into permissive cells, leukemic and normal stem cell trafficking, and remodeling of marrow niches. The impact of CXCR4-SDF-1/CXCL12 signaling has recently been linked to cell survival and chemosensitization in several cancer models including breast, lung, prostate cancer, multiple myeloma and chronic lymphocytic leukemia as well.1,2  SDF-1/CXCL12 and stem cell factor / kit ligand (SCF/KL) are elaborated by marrow osteoblasts/ stromal cells and specialized endothelial cells and are essential components of hematopoietic marrow niches (see figure).3  Recently, leukemic cells were shown to suppress normal hematopoiesis by down-regulating CXCL12 within these niches while neutralization of SCF/KL improved migration of normal progenitors within these areas,4  hinting at new mechanisms of leukemia-mediated suppression of normal hematopoiesis. Similarly, granulocyte colony-stimulating factor (G-CSF)–mediated stem/progenitor cell mobilization involves secretion of proteases, attenuation of integrin adhesive function, and disruption of CXCL12/CXCR4 signaling in the marrow. The same principle applies to other mobilizing cytokines, such as FLT3 ligand and SCF, which down-regulate CXCL12 expression within the marrow, and decrease CXCR4 expression on hematopoietic progenitor cells, which underscore the central role of the CXCR4/ CXCL12 axis in mobilization processes.5  AMD3100 (plerixafor) has now received FDA approval to boost G-CSF–mediated CD34 stem cell mobilization in lymphoma and myeloma.6

Using a murine acute promyelocytic leukemia (APL) model, Nervi et al show convincingly that AMD3100 can mobilize leukemic cells from intramedullary (but not intraperitoneal) niches into the peripheral circulation and the spleen.7  They also show that stromal cells interacting with leukemic cells confer chemoresistance. The dislodgement of APL cells from their marrow microenvironment and/or the interruption of CXCR4 signaling by AMD3100 may explain the increased cell kill observed with cytarabine and anthracyclines. Stromal APL protection can be mediated by direct cell-to-cell contact as well as via soluble stromal-derived factors. These events were tracked in vivo using novel imaging techniques and provide the underpinning of a proof of concept clinical trial in which relapsed AML patients are treated with MEC plus escalating doses of plerixafor.8  While CXCR4/CXCL12 interactions are the focus of these 2 manuscripts, the dominant role of VLA-4/VCAM-1 integrin-mediated adhesion to matrix components in stem cell homing and peripheralization should not be forgotten.9  A more optimal dislodgement of leukemic cells from their niches might be attained by combining the CXCR4/CXCL12 blockade with agents that disrupt VLA-4/VCAM-1 interactions such as natalizumab (anti–VLA-4 monoclonal antibody) or Bio5192, a small peptide that also blocks VLA-4 mediated adhesion (see figure).10-12

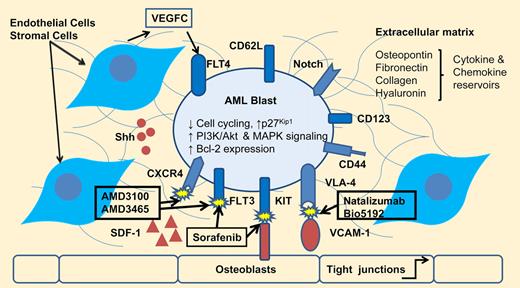

Protective effect of marrow microenvironment. The Hematopoietic Inductive Microenvironment (HIM) niches include osteoblasts, stromal/mesenchymal cells, endothelial cells and extracellular matrix components. AML blast quiescence, proliferation and apoptosis are influenced by receptor kinases, adhesive receptors and signaling via matrix mediated/bound chemokines and cytokines. AMD3100 and AMD3465 CXCR4 antagonists +/− sorafenib or inhibitors of VLA-4/VCAM-1 interactions chemosensitize AML blasts within the HIM niches. Shh: sonic hedgehog, Notch, vascular endothelial factor and other adhesion receptors signals promote leukemic stem cell survival and expansion and can be targeted to overcome AML chemoresistance.

Protective effect of marrow microenvironment. The Hematopoietic Inductive Microenvironment (HIM) niches include osteoblasts, stromal/mesenchymal cells, endothelial cells and extracellular matrix components. AML blast quiescence, proliferation and apoptosis are influenced by receptor kinases, adhesive receptors and signaling via matrix mediated/bound chemokines and cytokines. AMD3100 and AMD3465 CXCR4 antagonists +/− sorafenib or inhibitors of VLA-4/VCAM-1 interactions chemosensitize AML blasts within the HIM niches. Shh: sonic hedgehog, Notch, vascular endothelial factor and other adhesion receptors signals promote leukemic stem cell survival and expansion and can be targeted to overcome AML chemoresistance.

Close modal

Besides abnormal cytogenetics, recently recognized high-risk features in AML include FLT3-ITD/ mutations and prominent CXCR4 surface expression.13,14  In the other paper addressing leukemic niches in this, Zeng et al focus on AML cell lines as well as patient-derived AML cells and determine that the CXCR4 antagonist AMD3465 blocked signaling of the CXCL12/CXCR4 axis by suppressing stroma-activated PI3K/AKT and MEK/ERK survival pathways.15  CXCR4 inhibition partially abrogated the protection conferred by stromal cells, rendering these leukemic cells more susceptible to apoptosis when exposed to cytarabine. AMD3465 led to down-regulation of FLT3 receptor expression and inhibition of KIT signaling when used in conjunction with sorafenib, a permissive tyrosine kinase inhibitor in FLT3-ITD–expressing AML cell lines (see figure). The latter observations are very intriguing and may explain in part the successful treatment of a relapsed FLT3-ITD–positive AML patient with sorafenib in the posttransplantation setting.16

Finally, while both reports open new avenues for overcoming in vivo drug resistance in AML, it is yet unclear whether durable complete remissions can ensue from this strategy. AML is indeed a very heterogenous disease, and successful eradication of leukemic stem/progenitor cells will require blocking multiple receptors/pathways as shown in the figure, with targeted agents focused on CD44, VLA-4, CXCR4, sonic Hedgehog (shh), vascular endothelial factors VEGF, and interleukin 3 receptor alpha CD123, in addition to many factors likely not yet discovered.17-20  Progress in whole genome sequencing approaches may uncover novel target genes and signaling pathways that may radically alter our approach to therapy.21

Conflict-of-interest disclosure: The author declares no competing financial interests. ■

1
Broxmeyer

HE
Chemokines in hematopoiesis.
Curr Opin Hematol
2008
, vol.
15
 (pg.
49
-
58
)
2
Burger

JA
Peled

A
CXCR4 antagonist: targeting the microenvironment in leukemia and other cancers.
Leukemia
2009
, vol.
23
 (pg.
43
-
52
)
3
Raaijmakers

MHGP
Scadden

DT
Evolving concepts on the microenvironmental niche for hematopoietic stem cells.
Curr Opin Hematol
2008
, vol.
15
 (pg.
301
-
306
)
4
Colmone

A
Amorim

M
Pontier

AL
et al.
Leukemic cells create bone marrow niches that disrupt the behavior of normal hematopoietic progenitor cells.
Science
2008
, vol.
322
 (pg.
1861
-
1865
)
5
Christopher

MJ
Liu

F
Hilton

MJ
Long

F
Link

DC
Suppression of CXCL12 production by bone marrow osteoblasts is a common and critical pathway for cytokine-induced mobilization.
Blood

Prepublished on January 13, 2009, as DOI 10.1182/blood-2008-10-18754
6
Stewart

DA
Smith

C
MacFarland

R
et al.
Pharmakokinetics and pharmacodynamics of plerixafor in patients with non-Hodgkin lymphoma and multiple myeloma.
Biol Blood Marrow Transpl
2009
, vol.
15
 (pg.
39
-
49
)
7
Nervi

B
Ramirez

P
Rettig

MP
et al.
Chemosensitization of acute myeloid leukemia (AML) following mobilization by the CXCR4 antagonist AMD3100.
Blood
2009
, vol.
113
 (pg.
6206
-
6214
)
8
Uy

GL
Rettig

MP
McFarland

KM
et al.
Mobilization and chemosensitization of AML with the CXCR4 antagonist plerixafor (AMD3100): A phase I/II study of AMD3100+MEC in patients with relapsed or refractory disease [abstract].
Blood
2008
, vol.
112
 pg.
678

Abstract 1944
9
Papayannolpoulou

T
Scadden

D
Stem cell ecology and stem cells in motion.
Blood
2008
, vol.
111
 (pg.
3923
-
3930
)
10
Zohren

F
Toutzaris

D
Klärner

V
et al.
The monoclonal anti-VLA-4 antibody natalizumab mobilizes CD34+ hematopoietic progenitor cells in humans.
Blood
2008
, vol.
111
 (pg.
3893
-
3895
)
11
Bonig

H
Wundes

A
Chang

K-H
et al.
Increased numbers of circulating hematopoietic stem/progenitor cells are chronically maintained in patients treated with the CD49d blocking antibody natalizumab.
Blood
2008
, vol.
111
 (pg.
3439
-
3441
)
12
Theien

BE
Vanderlugt

CL
Nickerson-Nutter

C
et al.
Differential effects of treatment with a small-molecule VLA-4 antagonist before and after onset of relapsing EAE.
Blood
2003
, vol.
102
 (pg.
4464
-
4471
)
13
Small

D
Targeting FLT3 for the treatment of leukemia.
Semin Hematol
2008
, vol.
45
 (pg.
S17
-
S21
)
14
Spoo

AC
Lübbert

M
Wierda

WG
et al.
CXCR4 is a prognostic marker in acute myelogenous leukemia.
Blood
2007
, vol.
109
 (pg.
786
-
791
)
15
Zeng

Z
Shi

YX
Samudio

IJ
et al.
Targeting the leukemia microenvironment by CXCR4 inhibition overcomes resistance to kinase inhibitors and chemotherapy in AML.
Blood
2009
, vol.
113
 (pg.
6215
-
6224
)
16
Safaian

NN
Czibere

A
Bruns

L
et al.
Sorafenib (Nexavar®) induces molecular remission and regression of extramedullary disease in a patient with FLT3-ITD+ acute myeloid leukemia.
Leuk Res
2009
, vol.
33
 (pg.
348
-
350
)
17
Jin

L
Hope

KJ
Zhai

Q
et al.
Targeting of CD44 eradicates human acute myeloid leukemia stem cells.
Nat Med
2006
, vol.
12
 (pg.
1167
-
1174
)
18
Matsunaga

T
Takemoto

N
Sato

T
et al.
Interaction between leukemic-cell VLA-4 and stromal fibronectin is a decisive factor for minimal residual disease of acute myelogenous leukemia.
Nat Med
2003
, vol.
9
 (pg.
1158
-
1165
)
19
Jordan

CT
Upchurch

D
Szilvassy

SJ
et al.
The interleukin-3 receptor alpha chain is a unique marker for human acute myelogenous leukemia stem cells.
Leukemia
2000
, vol.
14
 (pg.
1777
-
1784
)
20
Misaghian

N
Ligresti

G
Steelman

LS
et al.
Targeting the leukemic stem cell: the Holy Grail of leukemia therapy.
Leukemia
2009
, vol.
23
 (pg.
25
-
42
)
21
Ley

TJ
Mardis

ER
Ding

L
et al.
DNA sequencing of a cytogenetically normal acute myeloid leukemia genome.
Nature
2008
, vol.
456
 (pg.
66
-
72
)
