Steady-state dendritic cells expressing cognate antigen terminate memory CD8⁺ T-cell responses

Upon antigen stimulation, naive T cells rapidly undergo a program of expansion and terminal differentiation that leads to generation of effector and memory T cells. Whereas most of the clonally expanded T cells die, apparently through selective death of effector cells,^1,2  a small number (5%-10%) survive to generate memory cells.²  Activation of this terminal differentiation program generates a population of cells that, compared with naive T cells, exhibit faster response kinetics,³  increased avidity,⁴  and reduced or no dependence on costimulation.^3,5  During this programming, antigen-specific T cells are therefore transformed from a naive population, possessing a highly malleable differentiation potential, to specialized committed memory and effector populations with little or no plasticity

Because of the high degree of plasticity exhibited by naive T cells, their end-stage differentiation is readily “educated” for a variety of effector functions in response to antigen-presenting cell (APC)– or environment-derived signals. In the absence of strong costimulatory signals, they are abortively activated, and naive CD8⁺ T cells that interact with resting dendritic cells (DC) presenting cognate antigen are deleted or inactivated.^6,7  Although this is one pathway to CD8⁺ T-cell inactivation, studies of chronic viral infection or of transgenically targeted antigen expression have indicated that persistent antigenic stimulation is another route through which naive CD8⁺ T cells are inactivated. The molecular mechanisms that lead to, or maintain, naive CD8⁺ T-cell inactivation appear similar for both routes, with inhibitory signaling molecules such as CD5 and programmed death 1 (PD-1) being implicated as critical regardless of whether antigen is chronically expressed or targeted to resting DC.^7,,,–11

Loss of costimulation dependence and developmental plasticity implies that memory T cells will not be subject to the same regulatory checkpoints as naive T cells, and it is unclear whether traits imposed by the terminal differentiation program active in memory and effector T-cell populations render these cells impervious to cell-intrinsic inactivation. CD8⁺ T-cell inactivation has invariably been studied under conditions in which “inactivated” or “tolerant” CD8⁺ T cells have differentiated from populations of naive T cells^6,12  and in many systems, when the influence of “tolerising” antigen remains present^13,14  thereby preventing acquisition of memory.^15,16  Consequently, our knowledge of CD8⁺ T-cell inactivation reflects that of naive T-cell populations, and it is unknown whether fully differentiated memory cells are susceptible to inactivation in a fashion similar to naive T cells.

Memory T cells develop rapidly after antigen challenge during viral and other microbial infections.^2,17  Similarly, upon initiation of autoimmune disease, autoaggressive memory and effector T cells develop rapidly and are readily detectable early in the preclinical phase of autoimmune diseases such as type 1 diabetes.^18,19  Because the immunotherapeutic goal for autoimmune disease is restoration of antigen-specific tolerance, the presence of autoaggressive memory/effector T-cell populations present in ongoing autoimmune disease could represent a significantly greater hurdle for immunotherapy than autoreactive naive T cells. Indeed, memory CD8⁺ T-cell populations are reported to present a potent barrier to transplant tolerance induction.^20,21  Therefore, it is imperative that we gain understanding of how established populations of memory and effector T cells can be inactivated. In the present study, we directly test, by transferring fully differentiated memory and effector CD8⁺ T cells, the outcome of tolerogenic antigen presentation by steady-state DC to memory T cells.

Mice were bred and maintained at the Biologic Research Facility, Princess Alexandra Hospital, Woolloongabba, or purchased from Animal Resources Center, Perth. OT-I mice carry a major histocompatibility complex (MHC) class I–restricted transgenic T-cell receptor (TCR) for the ovalbumin (OVA) peptide OVA_257–264²²  and were crossed with CD45.1 congenic C57Bl/6.SJL-Ptprc^a mice to generate mice bearing CD45.1⁺ OT-I cells. OT-II mice carry an MHC class II–restricted transgenic TCR specific for OVA_323–339.²³  OT-I.bim^−/− mice have been described²⁴  and were provided by Drs P. Bouillet and W. Heath (Walter and Eliza Hall Institute). 11c.OVA mice express a membrane-bound OVA construct under the control of the CD11c promoter, which targets OVA expression to CD11c^hi conventional DC.⁷  11c.OVA mice were backcrossed to C57Bl/6.SJL-Ptprc^a to obtain 11c.OVA mice expressing CD45.1. Nontransgenic controls for 11c.OVA mice were C57Bl/6 or C57Bl/6.SJL-Ptprc^a as appropriate. Mice were sex matched within experiments, and OT-I donor mice were used at 6 to 12 weeks of age. Animal studies were approved by an institutional ethics committee.

For in vivo generation of memory CD8⁺ T cells, OVA-specific CD45.1⁺ OT-I mice were injected with OT-II T cells (5 × 10⁶) to provide “help” and immunized subcutaneously (s.c.) with OVA/QuilA (100 μg OVA [grade 5; Sigma-Aldrich, St Louis, MO], 20 μg QuilA [Soperfos Biosector DK-Vedback, Denmark]). Forty to 60 days later, CD8⁺/CD44^hi memory T cells were recovered from spleens and lymph nodes of these animals by fluorescence activated cell sorter (FACS). For in vitro generation of effector/memory T cells, lymph node cells from CD45.1⁺ OT-I mice were cultured in 6-well plates (2 × 10⁶/mL) in 3 mL of complete RPMI (RPMI 1640 supplemented with 1 mM sodium pyruvate, 0.1 mM nonessential amino acids [all from Invitrogen, Carlsbad, CA], 50 μM 2-mercaptoethanol [Sigma-Aldrich]) with 1% normal mouse serum, 0.1 μg/mL OVA_257–264 (Mimotopes, Melbourne, Australia) and 10 ng/mL interleukin-2 (IL-2; PeproTech, Rocky Hill, NJ). After 3 days, cells were harvested and washed (3×) with RPMI 1640 and recultured in 6-well plates at 2 × 10⁶/mL in the absence of antigen but with 10 ng/mL IL-15 (PeproTech) for an additional 2 days. Cells were then harvested and washed (3×) in phosphate-buffered saline (PBS) before transfer to experimental mice. In all experiments, 2 × 10⁶ OT-I T cells were transferred intravenously (i.v.). In some experiments, CD45.2⁺ OT-I.bim donors were used with CD45.1⁺ recipient mice. Anti-CD40 (FGK-45) was administered intraperitoneally (100 μg on days 0, 5, 10, 15, and 20 after injection) where indicated.

ELISpots and intracellular cytokine staining (ICS) were performed as described.⁷  Cytotoxic T lymphocyte (CTL) degranulation in vitro was measured as mobilization of the lysosomal markers CD107a and CD107b to the cell surface as described.²⁵  To assess proliferation in vivo, in vitro–generated OVA-specific effector/memory CD8⁺ T cells were labeled with carboxyfluorescein diacetate succinimidyl ester (CFSE) as described²⁶  and injected i.v. into 11c.OVA or nontransgenic control mice. Three days later, recipient spleens were harvested and CFSE dilution in CD45.1⁺/CD8⁺ cells was assessed by FACS. To determine responsiveness to antigen challenge, mice were immunized s.c. at the tail base with OVA/QuilA. In vivo CTL activity was determined as described previously,⁷  with the modification that antigen-pulsed cells were labeled with 0.5 μM CFSE, and unpulsed cells were labeled with 2.5 μM CFSE. For retransfer studies, CD45.1⁺ OT-I effector/memory cells were transferred i.v. to 11c.OVA, and 42 days later, CD8⁺ cells were isolated from pooled spleens and lymph nodes by magnetic cell sorting separation and transferred to 11c.OVA or nontransgenic secondary recipients, which were challenged with OVA/QuilA or left unchallenged 21 days later.

Monoclonal antibodies (mAb) against CD8 (53-6.7), CD44 (IM7), CD45.1 (A20), CD62L (MEL-14), CD69 (H1.2F3), and PD-1 (RMP1–30) were purchased from BioLegend (San Diego, CA). mAb against CD127 (B12-1), TCR Vα2 (B20.1), CD107a (1D4B), and CD107b (ABL-93) were obtained from BD Pharmingen (San Diego, CA). For cytometric analysis of OVA-specific T-cell frequency and phenotype, spleens and lymph nodes were passed through 70-μm nylon mesh cell strainers, washed in PBS/2.5% fetal calf serum (FCS) and erythrocytes (for spleen cells) lysed in NH₄Cl/Tris buffer. Livers and lungs were removed from PBS-perfused mice. Livers were pressed through 100-μm nylon mesh and lymphocytes enriched over a 30% to 35% discontinuous Percoll gradient. The hepatocyte-rich supernatant was aspirated and the pellet washed with RPMI plus 10% FCS. Erythrocytes (for spleen cells) were lysed with NH₄Cl/Tris buffer. Lungs were chopped finely and digested with 1 mg/mL collagenase type III (Worthington Biochemicals, Freehold, NJ) and 1000 U/mL DNase (Roche Diagnostics, Indianapolis, IN) in 10 mL RPMI/2% FCS for 1 hour at 37°C. The resulting cell suspension was passed through a 70-μm nylon mesh cell strainer and washed with PBS/2.5% FCS. Immunofluorescence staining for flow cytometry was performed as described previously.²⁷  Cytometric data were acquired on a FACScalibur or FACScanto (BD Biosciences). Absolute cell numbers were determined by a bead-based procedure.²⁸

Comparison of means was performed using Student t test, and multiple groups were compared using 1-way analysis of variance followed by Newman–Keuls post test (GraphPad Software, San Diego, CA).

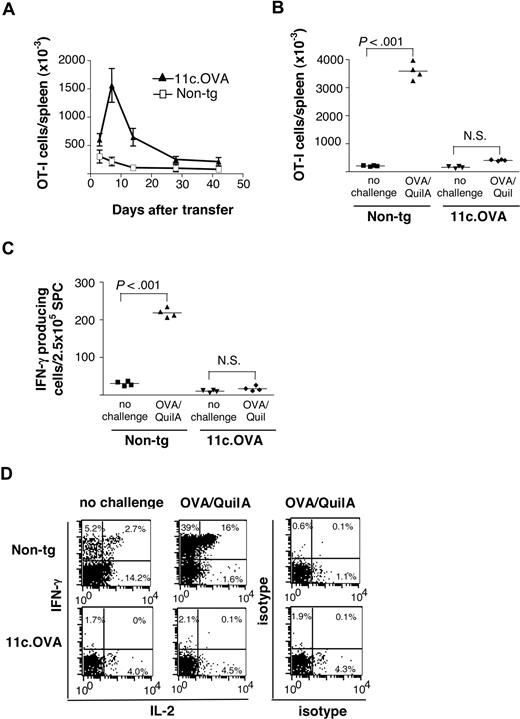

Memory T cells are largely costimulation-independent, and activation by steady-state DC might be expected to lead to expansion and acquisition of effector function. Alternatively, activation of memory CD8⁺ T cells by steady-state DC could lead to abortive activation, as seen for naive CD8⁺ T cells. To test these alternate possibilities, long-lived CD8⁺ memory T cells (OT-I) displaying a CD62L^hi central memory (T_CM) phenotype (data not shown) specific for OVA were isolated from immunized mice and transferred to transgenic (11c.OVA) mice expressing OVA in DC under control of the CD11c promoter⁷  or to nontransgenic controls. After transfer, a large population of OT-I cells, which peaked in number 1 week after transfer, accumulated in the spleen of 11c.OVA recipients (Figure 1A). The number of OT-I T cells then diminished gradually, and by 28 days after transfer, a relatively stable population was established (Figure 1A). In contrast, in nontransgenic recipients, OT-I T cells showed no rapid expansion in spleen but declined in number gradually for 14 days after transfer, after which a relatively stable population was established (Figure 1A). From 28 days after transfer, the number of residual OT-I T cells remained approximately 4-fold greater in 11c.OVA than in nontransgenic recipients (Figure 1A).

Because population expansion and contraction is characteristic of T-cell responses generating either memory²  or tolerance,⁷  we next determined whether the residual OT-I T cells in 11c.OVA recipients comprised a population of secondary memory cells derived from the OT-I memory T cells that were initially transferred. Nontransgenic and 11c.OVA recipients were challenged with a highly immunogenic regimen of OVA/QuilA immunization 35 days after OT-I memory cell transfer and the resultant OT-I- T-cell expansion measured. In distinct contrast to extensive OT-I- T-cell expansion observed in nontransgenic recipients (18-fold; P < .001), no OT-I expansion occurred after OVA challenge of 11c.OVA recipients (Figure 1B). Furthermore, in vivo OVA/QuilA challenge failed to elicit an increase in the frequency of interferon-γ (IFN-γ)–producing OVA_257–264-responsive T cells in spleens of 11c.OVA recipients in contrast to the substantial increase (P < .001) observed in nontransgenic recipients (Figure 1C). ICS showed that few OT-I T cells recovered from 11c.OVA recipients produced IFN-γ or IL-2, hallmark cytokines produced by memory CD8⁺ T cells, whereas a substantial proportion of those in nontransgenic recipients did, and this was substantially increased by antigen challenge (Figure 1D). Taken together, the data indicate that in contrast to nontransgenic recipients that maintained a strong memory response for at least 42 days in 11c.OVA mice, the in vivo responsiveness of OVA-specific memory CD8⁺ T cells to OVA challenge was ablated.

In the previous experiments, we used long-lived memory cells that displayed a T_CM phenotype isolated from immunized mice. Because CD8⁺ memory populations normally comprise mixtures of T_CM and effector memory (T_EM) cells that exhibit contrasting effector and survival characteristics, we pondered whether such mixed populations would be similarly inactivated when antigen is targeted to DC. To address this question, we adapted widely used protocols^29,30  and generated a mixed population of CD8⁺ T_CM and T_EM for transfer and analysis. OT-I T cells were first cultured with OVA_257–264 and IL-2 for 3 days. Under these conditions, OT-I T cells expressed CD69 and high levels of CD44 but were largely CD62L^lo, indicating CD8⁺ effector T-cell differentiation. Cells were then washed to remove antigen and IL-2 and cultured with IL-15 to promote T_CM differentiation.^31,32  On transfer to IL-15, OT-I T cells converted to a predominantly CD44^hi/CD69⁻/CD62L^hi T_CM phenotype within 4 days (Figure 2A). Based on these findings, we used OVA_257–264/IL-2 activated OT-I cells transferred to IL-15 for 2 days, which comprised equal proportions of CD8⁺ T_EM and T_CM, for further analysis. These are referred to as OT-I effector/memory cells. After transfer to B6 mice, OT-I effector/memory cells efficiently killed syngeneic OVA_257–264-pulsed targets in vivo and mounted strong recall responses to in vivo OVA challenge for at least 42 days after transfer (data not shown).

When OT-I effector/memory cells were transferred to 11c.OVA or nontransgenic recipients, the kinetic pattern of OT-I expansion and contraction (Figure 2A) was similar to that of transferred long-lived memory (Figure 1A). To determine whether proliferation contributed to OT-I accumulation CFSE-labeled OT-I effector/memory cells were transferred to 11c.OVA or nontransgenic mice. Three days later, when recovered from spleens of nontransgenic mice, few OT-I cells had divided, whereas almost all had undergone between one and several rounds of division in 11c.OVA recipients (Figure 2B). Therefore, we concluded that activation and expansion induced by OVA-expressing DC was followed by an extended period of population contraction in both long-lived T_CM (Figure 1) and a mixed population comprised of T_EM/effector cells and T_CM (Figure 2).

Partial deletion of antigen-specific T cells after antigen-driven expansion is a normal component of immune homeostasis and tolerance induction. To ascertain the contribution of deletion to OT-I population contraction in 11c.OVA recipients, OT-I effector/memory cells derived from wild-type and deletion-resistant bim-deficient³³  T-cell donors were compared. Seven days after transfer, at the peak of the expansion phase, the number of splenic OT-I T cells in 11c.OVA recipients was identical regardless of whether wild-type or bim-deficient OT-I effector/memory cells were transferred (Figure 2C). In contrast, late in the contraction phase, the number of OT-I T cells had diminished in 11c.OVA recipients of wild-type but not bim-deficient OT-I effector/memory cells (Figure 2C). Therefore, we conclude that bim-dependent deletion is induced in effector/memory T cells activated by antigen targeted to steady-state DC.

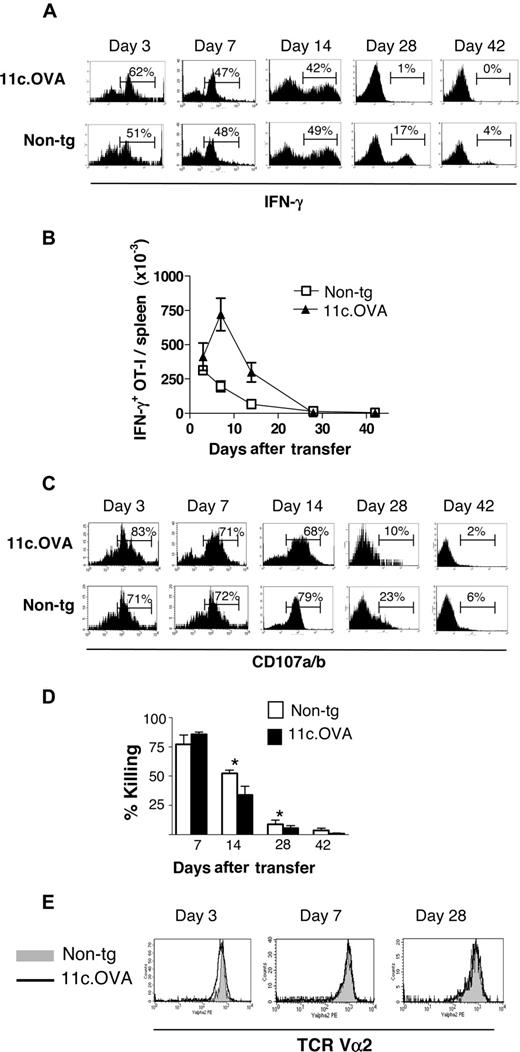

Because OT-I effector/memory cells were activated by antigen-expressing DC, we next tested whether this elicited effector function. Because rapid production of IFN-γ in response to antigen restimulation is a hallmark of CD8⁺ effector T cells, we first used ICS to track OT-I activation. Three days after transfer, the proportion of OT-I cells in 11c.OVA recipients that produced IFN-γ in vitro in response to OVA_257–264 (Figure 3A) was modestly increased over that in nontransgenic recipients (62% ± 4% vs 53% ± 3%; P < .05). However, when coupled with the large increase in OT-I T cell number in 11c.OVA mice, the total number of IFN-γ–producing OT-I T cells was substantially higher in 11c.OVA than nontransgenic recipients 7 and 14 days after transfer (Figure 3B). However, 28 days after transfer, IFN-γ production by OT-I T cells had waned somewhat in nontransgenic recipients compared with early time points (3, 7, and 14 days after transfer) but was virtually undetectable in 11c.OVA recipients (Figure 3A). Similarly, the proportion of OT-I cells that degranulated in vitro in response to OVA_257–264 peaked 3 days after transfer and then declined more rapidly in 11c.OVA relative to nontransgenic recipients. As a consequence, the proportion of OT-I T cells from 11c.OVA recipients that degranulated in vitro in response to OVA_257–264 (69% ± 5%) was reduced relative to nontransgenic recipients (81% ± 7%; P < .05) by 14 days after transfer and remained lower at later time points.

To determine whether effector function was modulated in vivo, we next determined OVA_257–264-specific CTL activity using a standard in vivo CTL assay. Substantial CTL activity was present in both nontransgenic and 11c.OVA recipients 7 days after OT-I effector/memory cell transfer (Figure 3D) but diminished more rapidly in 11c.OVA recipients and was significantly reduced relative to nontransgenic recipients 14 and 28 days after OT-I effector/memory transfer despite the larger number of OT-I T cells (Figure 2A), IFN-γ–producing OT-I T cells (Figure 3B) or OT-I T cells that degranulated in vitro in response to OVA_257–264 (data not shown) in 11c.OVA mice at these times. However, by 42 days after transfer, CTL activity was barely detectable and did not differ between 11c.OVA and nontransgenic recipients (Figure 3D). TCR Vα2 expression on transferred effector/memory OT-I T cells did not differ between 11c.OVA and nontransgenic controls, indicating that the inability of these cells to respond to antigen was not attributable to TCR down-regulation (Figure 3E).

Collectively, the data indicate that in 11c.OVA recipients, despite substantial expansion and induction of activation-induced surrogate effector markers, no significant increase in overall CTL activity was seen, but CTL activity was significantly damped by 14 days after transfer. These paradoxical results indicate that despite activation, as indicated by IFN-γ production and in vitro degranulation in mice bearing antigen-expressing DC, the effector function of OT-I effector/memory cells was rapidly damped.

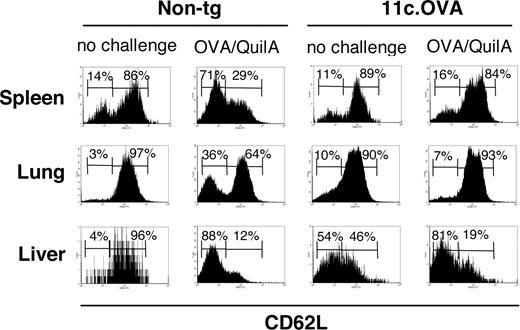

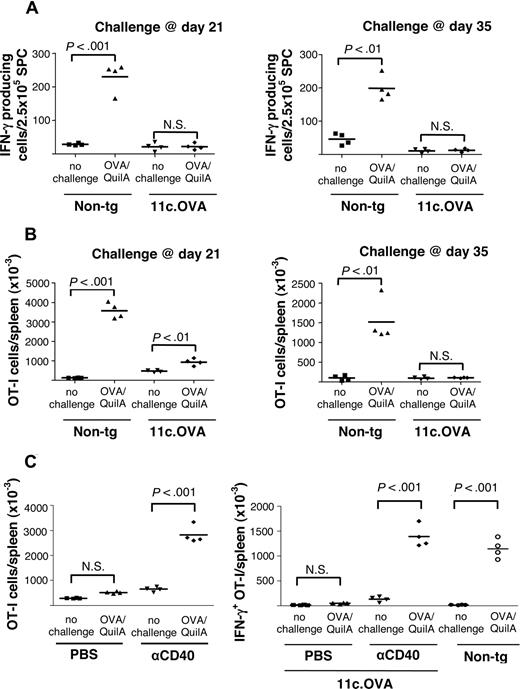

Loss of CD8⁺ effector activity in 11c.OVA mice after transfer of OT-I effector/memory cells probably reflected loss of T_EM or effector cells, but T_CM with the ability to mount a recall response could have remained. Although the data presented in Figure 1 indicated this was unlikely, we next tested whether this was the case by challenging with OVA/QuilA. In nontransgenic recipients, OVA/QuilA challenge 21 or 35 days after OT-I effector/memory transfer elicited a substantial increase in both the frequency of IFN-γ–producing OVA_257–264-responsive T cells (Figure 4A) and the total number of splenic OT-I T cells (Figure 4B) 1 week later, indicating expansion and induction of effector function. No increase in the frequency of IFN-γ–producing OVA_257–264–responsive T cells was detected in 11c.OVA recipients challenged with OVA at either time point (Figure 4A). In contrast, OVA challenge of 11c.OVA recipients 21, but not 35, days after OT-I effector/memory transfer (Figure 4B) induced a small but consistent expansion of OT-I T cells, indicating that some proliferative capacity remained at this time point. To determine whether DC activation altered the outcome of OT-I effector/memory responses in 11c.OVA mice OT-I effector/memory, recipients were treated with agonistic anti-CD40 mAb or PBS (days 0, 5, 10, 15, and 20 after transfer) and left unchallenged or challenged with OVA/QuilA 21 days after transfer. In 11c.OVA recipients treated with anti-CD40, but not PBS, OVA challenge led to a substantial increase in the number of splenic OT-I T cells (Figure 4C) and IFN-γ production by these cells (data not shown) that resulted in a large, approximately 10-fold, increase in the total number of splenic IFN-γ–producing OT-I T cells compared with the approximately 90-fold increase seen in OVA-challenged untreated nontransgenic recipients (Figure 4C). Therefore, the presence of steady-state antigen-expressing DC sequentially damped the induction of effector cytokine production and proliferative capacity that would normally be characteristic components of a CD8⁺ memory T-cell recall response. In contrast, upon anti-CD40 activation, damping of the memory response was impaired, and memory was more sustained.

Our data suggested that after transfer of OT-I effector/memory cells, attrition of OVA-specific effector CD8⁺ T cells occurred rapidly in 11c.OVA mice and that a population of inactivated OT-I T cells remained. In contrast, in nontransgenic recipients, transferred effector cells persisted for longer periods in addition to the establishment of fully functional memory. Consistent with this, OT-I T cells in unchallenged nontransgenic recipients acquired predominantly CD44^hiCD62L^hi phenotype by 42 days after transfer (Figure 5), indicating establishment of a long-lived T_CM population. Notably, this phenotype predominated in lung and liver, indicating substantial loss of T_EM (Figure 5). Similarly, in 11c.OVA recipients, despite the lack of functional recall responses, OT-I T cells in spleen and lung also exhibited a CD44^hiCD62L^hi T_CM phenotype. Interestingly, OT-I T cells in the livers of 11c.OVA recipients exhibited a predominantly CD62L^lo phenotype, possibly reflecting clearance of apoptotic postactivated cells in this site.³⁴  In nontransgenic recipients, OVA/QuilA challenge converted a large proportion of OT-I T cells to a CD44^hiCD62L^lo effector/T_EM phenotype consistent with recruitment of T_CM into the T_EM pool (Figure 5). No change was observed in the T_CM/T_EM phenotype of OT-I T cells in response to OVA/QuilA challenge of 11c.OVA recipients, confirming our previous data that residual OT-I T cells in 11c.OVA mice were refractory to antigen challenge.

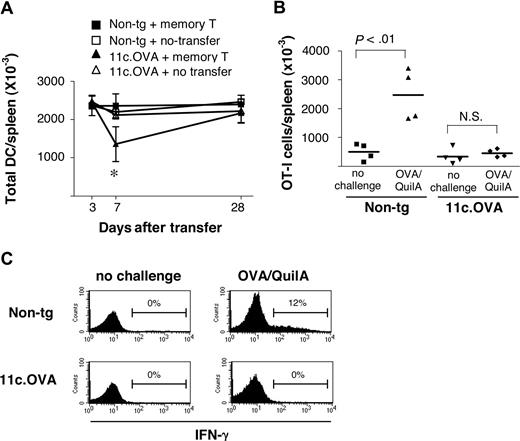

We next investigated whether inactivation of memory CD8⁺ T cells in mice bearing antigen-expressing DC was an adaptive process that required persistent antigenic stimulation to maintain the unresponsive state. We first determined whether antigen-expressing DC persisted after effector/memory T-cell transfer. Although a slight reduction in the number of splenic DC occurred in 11c.OVA mice (Figure 6A), coinciding with the peak effector response 7 days after memory T-cell transfer (Figure 3), suggestive of some CTL-mediated DC killing, DC were present in substantial numbers throughout the experimental period examined and returned to normal levels at the time of T-cell inactivation. Congenically marked (CD45.1⁺) OT-I effector/memory cells were then transferred to 11c.OVA mice, and 42 days later, CD8⁺ T cells, containing the inactivated population of OT-I cells, were isolated and a secondary transfer to 11c.OVA mice or OVA-free nontransgenic controls performed. Twenty-one days later, secondary transfer recipients were challenged with OVA/QuilA or left unchallenged, and 7 days later, the total number of splenic OT-I T cells and their ability to produce IFN-γ determined. In nontransgenic secondary transfer recipients, OVA/QuilA challenge induced a substantial expansion in the number of splenic OT-I T cells. Significantly, in 11c.OVA recipients, OVA/QuilA challenge did not lead to expansion of OT-I T cells (Figure 6B). Furthermore, OVA/QuilA challenge induced IFN-γ production detectable by ICS in OT-I T cells only in nontransgenic and not in 11c.OVA secondary recipients (Figure 6C). The data demonstrate that removal of CD8⁺ memory T cell from the environment containing antigen-expressing DC resulted in reinstatement of antigen responsiveness in vivo.

After exiting the thymus, naive T cells exist as a relatively undifferentiated and highly plastic pool of cells awaiting the appropriate cues for terminal development. Individual naive T cells can follow several alternate terminal differentiation programs, including acquisition of effector function, deletion, inactivation, or conversion to regulatory or suppressive cells, depending on the accessory signals provided during activation. Naive T cells, by virtue of their highly plastic differentiation potential, are abortively activated by resting DC or other APCs that provide only weak accessory signals. Memory T cells, on the other hand, are terminally “programmed,” and it is unclear whether fully differentiated CD8⁺ memory T cells can be inactivated in a similar fashion. Here, using adoptive transfer of long-lived memory CD8⁺ T cells or a mixed population of memory and effector CD8⁺ T cells, we demonstrate that constitutive expression of cognate antigen by DC results in termination of memory CD8⁺ T-cell responses.

Although it has been shown recently that the CTL function of effector CD8⁺ T cells is inhibited by CD4⁺/CD25⁺ natural regulatory T cells,^35,36  little is known of whether memory CD8⁺ T cell responses are regulated or terminated in other, cell-intrinsic ways, such as through T-cell inactivation. In fact, CD8⁺ T-cell inactivation has been studied almost exclusively under conditions in which “inactivated” or “tolerant” CD8⁺ T cells have differentiated from populations of naive T cells and mostly under conditions in which the influence of the “tolerising” antigen remains present, thereby preventing acquisition of memory.^6,12,,,–16  Although in vivo administration of large doses of cognate peptide induces a program of cell death in naive and postactivated antigen-specific T cells,^37,,–40  this process is unlikely to occur under normal physiologic conditions. Although evidence suggestive of deletion of postactivated CD4⁺ or CD8⁺ T cells after exposure to parenchymal antigen has been reported,^40,41  our knowledge of CD8⁺ T-cell inactivation reflects that of naive T-cell populations, and it is unknown whether fully differentiated memory cells are susceptible to inactivation in a fashion similar to naive T cells; however, some studies conclude that memory T cells are resistant to inactivation.^3,42  In our studies, when long-lived CD8⁺ memory T cells were activated in mice bearing steady-state DC expressing cognate antigen, they underwent a phase of expansion followed by partial deletion that left a population of residual T cells rendered unresponsive to further antigen stimulation. Thus, in response to antigen targeted to DC, CD8⁺ memory T cells undergo a process of abortive activation and peripheral tolerance induction remarkably similar to that described for naive CD4⁺ or CD8⁺ T cells.^7,43  However, notably, inactivation of memory CD8⁺ T cells was somewhat slower than reported for naive CD8⁺ T cells.⁷  Strikingly, during this process, CD8⁺ memory T cells activated in 11c.OVA mice appeared to exert limited CTL activity relative to those in nontransgenic controls, suggesting this encounter inhibited CTL activity. Consistent with this, OT-I effector/memory cells divided more slowly than naive OT-I T cells after transfer to 11c.OVA mice (data not shown). Therefore, memory CD8⁺ T cells appear to undergo a limited program of effector differentiation and fail to fully acquire CTL activity before deletion and inactivation. Population contraction through deletion was a major contributor to termination of memory CD8⁺ T-cell responses in the present study. Consistent with previous studies on CD8⁺ T cells, deletion occurred via a pathway dependent on the proapoptotic bcl-2 family member bim and highlights the importance of the “intrinsic” or mitochondrial death pathway not only in contraction of primary CD8⁺ T cell responses after immunogenic⁴⁴  or tolerogenic activation²⁴  but also in termination of memory CD8⁺ T-cell responses.

Here, we found that both long-lived CD8⁺ T_CM and a mixed population of CD8⁺ T_CM and T_EM were inactivated when antigen was targeted to DC, leading to the accumulation of a residual population of T_CM-like cells with acquired unresponsiveness. These findings demonstrate that CD8⁺ memory T cells display a greater degree of functional plasticity than previously assumed, indeed, a level of plasticity sufficient to permit inactivation of the ability to acquire effector phenotype and function upon antigen challenge in vivo, a feature for which T_CM would normally be considered “programmed.”

Chronic antigen stimulation of naive CD8⁺ T cells leads to functional inactivation⁸  and may be responsible for inactivation of virus-specific T cells resulting from chronic viral infection,⁴⁵  in which the differentiation program of naive CD8⁺ T cells is diverted and CD8⁺ T cell memory fails to establish.^15,16  Effector function of CD8⁺ T cells inactivated by chronic antigen stimulation can be restored by transfer to an antigen-free environment.^8,14  Here, we show that persistent antigen presentation is required to maintain inactivation of residual antigen-specific CD8⁺ T cells that are derived from transferred effector/memory cells, indicating that T-cell intrinsic adaptive processes regulate not only naive but also memory CD8⁺ T cells. Expression of antigen genetically targeted to DC is maintained through DC renewal from differentiating hematopoietic progenitors. Under these circumstances, presentation of the targeted antigen can be maintained, even if some killing of antigen-expressing DC were to be mediated by activated antigen-specific CTL, as our data suggest, before their inactivation. However, our previous studies indicated that the presence of unresponsive OVA-specific CD8⁺ T cells does not prevent continued OVA presentation by DC.⁷  It is possible that killing of cognate antigen-expressing DC by antigen-specific CD8⁺ T cells contributes substantially to the inactivation of OVA-specific memory responses in 11c.OVA mice. It is also unclear whether persistent antigen presentation leads to an ongoing process of partial activation and deletion of residual antigen-specific CD8⁺ T cells or acts solely to maintain these cells in a globally unresponsive way. The preferential accumulation of T_EM-phenotype OT-I cells in liver suggests this may be a site of clearance for postactivated apoptotic CD8⁺ T cells as proposed by others³⁴  and would be consistent with a low rate of activation in the residual OVA-specific CD8⁺ T cells. However, it is also possible that OT-I could be locally activated in the liver,⁴⁶  and this has not been ruled out here.

The relative roles of direct antigen presentation by nonhematopoietic parenchymal cells and cross-presentation by DC or other APC in CD8⁺ T-cell inactivation to ubiquitous self-antigens or during chronic viral infection is unclear. For CD4⁺ T cells, it is reasonable to assume that presentation mediated by DC or other specialized APC is required. In contrast, for CD8⁺ T cells, either direct presentation, for example, as shown for alloantigen presentation by keratinocytes,⁴⁷  or cross-presenting APC could be responsible. Our data clearly demonstrate that expression of cognate antigen by DC alone is sufficient to terminate fully differentiated memory CD8⁺ T-cell responses as we have shown previously for naive CD8⁺ T cells;⁷  however, the role of costimulatory molecule-deficient parenchymal cells that might also be expected to drive CD8⁺ T-cell inactivation remains undetermined. Defining which cells are capable of “tolerogenic” antigen presentation will be important in understanding how CD8⁺ memory T-cell responses are potentially regulated.

Here, we show for the first time that constitutive expression of cognate antigen targeted to DC in the steady state inactivates fully differentiated memory CD8⁺ T cells in vivo through deletion and inactivation. Whereas persistent presentation of cognate antigen by steady-state DC, achieved here by genetic-targeting, inactivates memory CD8⁺ T cells, our data suggest other approaches used to target steady-state DC in vivo that lead to transient antigen presentation, such as antibody-antigen conjugates,⁶  would be unlikely to effectively silence memory CD8⁺ T-cell responses unless administered chronically. However, if used transiently, these approaches would be expected to boost CD8⁺ T-cell memory. Thus, our findings provide insight into potential approaches for therapeutic manipulation of CD8⁺ memory T-cell responses. Therapeutic application of antigen-expressing DC for autoimmune disease has been shown previously,^48,49  and our findings suggest such an approach would be effective for targeting memory and effector T cells in established autoimmune disease.
