Vaccination regimens incorporating CpG-containing oligodeoxynucleotides and IL-2 generate antigen-specific antitumor immunity from T-cell populations undergoing homeostatic peripheral expansion after BMT

The T-cell–dependent graft-versus-malignancy effect that occurs after allogeneic stem cell transplantations demonstrates that clinically important anticancer immunity can be achieved.^1,,–4  Recent advances in tumor immunology offer hope that potent tumor-antigen–specific T-cell responses can also be generated in the autologous setting.^5,,–8  One way to decrease relapse rates after autologous stem cell transplantations (ASCTs) may be to administer vaccines that are capable of generating potent T-cell responses against tumor-associated antigens as soon as possible after transplantation, when disease burden is lowest.

Cytotoxic cancer therapies such as chemotherapy and radiotherapy cause depletion of T cells.^9,,,–13  After T-cell depletion, T-cell reconstitution takes place by 2 different pathways.^14,15  One pathway is generation of naive T cells by the thymus.^11,14  The second pathway is homeostatic peripheral expansion (HPE), which is defined as the dramatic mitotic expansion of mature T cells present in T-cell–depleted hosts.^14,–16  T-cell repertoires produced by HPE can be skewed toward antigens present in T-cell–depleted hosts.^14,16

Most cancer patients are middle aged or older, and thymopoiesis dramatically decreases with increasing age.^10,17  As determined by measurement of T-cell receptor excision circles (TRECs) in healthy humans, production of T cells by the thymus decreases by approximately 95% between age 25 years and age 60 years.¹⁷  Within the first 6 to 12 months after ASCT or T-cell–depleting chemotherapy, T-cell recovery in adult patients primarily occurs by HPE.^10,11  If anticancer vaccines are to be effective for most cancer patients within the first year after ASCT, the vaccines must be able to elicit responses from T-cell populations undergoing reconstitution by HPE.

Many factors might limit the effectiveness of anticancer vaccination in hosts undergoing T-cell reconstitution by HPE. T cells undergoing HPE might have a greater than normal susceptibility to apoptosis.^18,19  T-cell populations generated by HPE from a limited starting number of T cells have restricted T-cell receptor (TCR) diversity and might be limited in the variety of antigens to which they can respond.^10,20  T cells from patients after ASCT have impaired function as measured by in vitro assays.^9,19  Clinically, numerous investigators have reported prolonged immunodeficiency after ASCT manifested by an increased incidence of viral infection,^21,–23  and patients who have undergone ASCT have a decreased ability to respond to certain types of vaccination.^9,24,25

Despite the potential obstacles to vaccination after ASCT, relapse is the most common cause of death after ASCT,^13,26  and development of anticancer vaccination strategies that are effective in the setting of immunodeficiency after ASCT is an important goal. There is a lack of previous work aimed at optimizing vaccine-elicited CD8⁺ T-cell responses in thymus-deficient hosts undergoing T-cell reconstitution by HPE. One way to model the middle-aged or elderly patient with severely limited thymic function^10,17  is to conduct experiments with thymectomized mice.¹⁴  As in middle-aged and elderly cancer patients in the first year after ASCT, T-cell reconstitution in thymectomized mice that receive lethal-dose irradiation followed by syngeneic bone marrow transplantation (BMT) takes place primarily by HPE.¹⁴

Oligodeoxynucleotides containing unmethylated CpG motifs (CpGs) are potent vaccine adjuvants that can increase vaccine-elicited CD8⁺ T-cell responses in mice^5,6,27,–29  and in humans.³⁰  The use of CpG-containing vaccines in hosts undergoing T-cell reconstitution by HPE has not previously been studied. Although IL-2 can induce T-cell proliferation,³¹  IL-2 has been only modestly effective as a single-agent vaccine adjuvant in mice,^32,,–35  and IL-2 has not been effective at enhancing CD8⁺ T-cell responses elicited by peptide vaccines in humans.^36,37  Tyrosinase-related protein 2 (TRP-2) is expressed by normal murine melanocytes and the poorly immunogenic B16F1 melanoma cell line. Amino acids (aa's) 180 to 188 of TRP-2 form an immunogenic MHC class I–presented epitope.^8,38  We previously reported that synergism between CpG and IL-2 dramatically increased vaccine-elicited TRP-2_180-188–specific CD8⁺ T-cell responses in T-replete mice.³⁹  In addition, a vaccination regimen containing both CpG and IL-2 inhibited growth of B16F1 in an epitope-specific manner while omission of either CpG or IL-2 from this regimen abrogated the epitope-specific tumor growth inhibition.³⁹  Based on this work, we hypothesized that peptide vaccination regimens incorporating CpG and IL-2 would generate large epitope-specific CD8⁺ T-cell responses that could eradicate tumor cells in thymectomized mice undergoing T-cell reconstitution by HPE after syngeneic BMT. We found that peptide vaccination regimens containing the combination of CpG and IL-2 could elicit large numbers of tumor-antigen–specific CD8⁺ T cells from T-cell populations that were undergoing reconstitution by HPE and that these CD8⁺ T cells were effective therapy for 2 different murine tumors in the early posttransplantation period. These results indicate a potential clinical role for anticancer vaccination during HPE and demonstrate the ability of vaccination with MHC class I–presented epitopes to shape the T-cell repertoire during HPE.

C57BL/6 mice that had undergone suction thymectomy at 4 to 6 weeks of age (Taconic, Germantown, NY) were used for all experiments described in this paper. Thymectomy was confirmed by visual inspection after all experiments. C57BL/6 mice that had not undergone thymectomy were the source of donor cells for BMT. All animal studies were approved by the National Cancer Institute Center for Cancer Research Animal Care and Use Committee. B16F1 melanoma (H-2^b) and EL4 lymphoma cells (H-2^b) were purchased from ATCC (Manassas, VA). The TC-1 tumor cell line (H-2^b) was a gift from Dr TC Wu (Johns Hopkins University).⁴⁰

Thymectomized bone marrow transplant recipient mice were lethally irradiated with 10 Gy ¹³⁷Cesium γ-radiation using a Gamma Cell 40 irradiator (MDS Nordion, Ottawa, ON). The next morning, spleens and bone marrow cells were collected. CD3⁺ splenocytes were enriched from donor splenocytes by negative selection using mouse T-cell enrichment columns (R&D systems, Minneapolis, MN). After the enrichment process, a mean of 88% (range, 80%-91%) of the cells were CD3⁺ (data not shown). Recipient mice that had been irradiated the previous day were injected by tail vein with 1 × 10⁶ CD3-enriched splenocytes and 5 × 10⁶ BM cells.

In some experiments, mice were reconstituted with transplant grafts that were depleted of CD8⁺ T cells. CD4-enriched splenocytes were obtained by passing splenocytes over a CD4-enrichment column (R&D systems). The resulting CD4-enriched splenocytes averaged 95% CD3⁺CD4⁺ with 0.3% CD3⁺CD8⁺ cells. CD8⁺ cells were depleted from BM cells using CD8a microbeads (Miltenyi, Auburn, CA). After this treatment, a mean of 0.15% of BM cells were CD3⁺CD8⁺. In CD8-depleted BMT experiments, mice were irradiated, and the next day they were injected with 644 000 CD4-enriched splenocytes and 5 × 10⁶ CD8-depleted BM cells. The chosen number of CD4-enriched splenocytes (644 000) were injected because this was the average number of non-CD3⁺CD8⁺ cells contained in the CD3-enriched splenocytes used to reconstitute mice in the standard BMT experiments.

Amino acids (aa's) 180 to 188 of TRP-2 (TRP-2_180-188)^6,8,38  and aa's 257 to 264 of the ovalbumin protein (OVA_257-264)⁵  form immunogenic epitopes that are presented by H-2 K^b. Aa's 49 to 57 of the human papillomavirus E7 protein (E7_49-57)⁴¹  and aa's 366 to 374 of the influenza A nucleoprotein (NP_366-374)³³  form epitopes that are presented by H-2 D^b. Peptides were synthesized and purified to 95% purity (Biopeptide LLC, San Diego, CA). Human recombinant IL-2 with a specific activity of 5 × 10⁶ international units (IU)/mg was obtained from the National Cancer Institute Biological Resources Branch. Sterile CpG 1826⁴²  in Tris-EDTA (TE) buffer purchased from Coley Pharmaceutical Group (Wellesley, MA) was used in our experiments. Incomplete Freund adjuvant (IFA) was purchased from Sigma (St Louis, MO).

Each vaccine injection consisted of 25 μg CpG and 50 μg TRP-2_180-188 in IFA. The volume of all vaccine injections was 100 μL. When CpG was eliminated in experiments, it was replaced with TE buffer. When IL-2 was administered, 40 000 IU was injected 2 times per day intraperitoneally. This regimen of IL-2 has been shown by others to increase the antitumor efficacy of dendritic cell vaccines.⁴³  In some experiments, control buffer that contained human serum albumin and mannitol in PBS was injected in place of IL-2 as a control.

All vaccination regimens used in our experiments consisted of a series of priming vaccinations followed by a boost vaccination. Priming vaccinations were given as a series of 3 injections with 3 days between injections. The first and third priming vaccines were given subcutaneously at the base of the tail; the second priming vaccination was administered subcutaneously on the left side. Boost vaccinations were given at the base of the tail subcutaneously 8 days after the final priming vaccination.

These antibodies from BD Pharmingen (San Diego, CA) were used: anti-CD44 (clone IM7). anti-CD3ϵ (clone 145–2C11), anti-IFNγ (clone XMG1.2), anti-CD11c (clone HL3), anti-I A/E (clone 2G9), and purified anti-CD16/CD32 (clone 2.4G2). Anti-CD8 clone KT-15 (Coulter, Birmingham, United Kingdom) was used in tetramer experiments, and anti-CD8α (clone CT-CD8a) from Caltag (Burlingame, CA) was used in all other experiments.

The percentage of splenic CD8⁺ T cells that were specific for TRP-2_180-188 was determined by stimulating splenocytes with peptides followed by intracellular cytokine staining (ICCS). Mice were killed; splenocytes were red blood cell (RBC) depleted and suspended at 3.5 × 10⁶ live cells/mL. For each mouse, 2 tubes were prepared, one tube contained 1 × 10⁶ EL4 cells that had been pulsed for 3 hours with 20 μg/mL TRP-2_180-188, and the other tube contained 1 × 10⁶ EL4 cells that had been pulsed for 3 hours with 20 μg/mL OVA_257-264. Next, 3.5 × 10⁶ splenocytes and 1 μL Golgi Plug (BD Pharmingen) were added to each tube. All tubes were incubated at 37°C for 6 hours. The cells were then washed and surface staining for CD3 and CD8 was performed. The cells were then permeabilized and stained for intracellular IFNγ according to the instructions for the Cytofix/Cytoperm kit (BD Pharmingen). For each mouse, a tube containing splenocytes stimulated with TRP-2_180-188–pulsed EL4 cells and another tube containing splenocytes stimulated with OVA_257-264–pulsed EL4 cells were acquired. Analysis was performed with Cellquest software (Becton Dickinson, Mountain View, CA). The percentage of CD8⁺ T cells that were specific for TRP-2_180-188 was calculated as the percentage of CD3⁺CD8⁺IFNγ⁺ events with TRP-2_180-188 stimulation minus the percentage of CD3⁺CD8⁺IFNγ⁺ events with OVA_257-264 stimulation. ICCS assays to measure E7_49-57–specific responses were performed in the same manner except that the EL4 cells were pulsed with 0.1 μg/mL of either E7_49-57 or NP_366-374.

RBC-depleted splenocytes from vaccinated mice were prepared. Trypan blue was used for dead cell discrimination, and live cells were counted. The cells were stained with anti-CD3 and anti-CD8. 7-AAD (7-amino actinomycin D; BD Pharmingen) was added for dead cell exclusion. A region enclosing all live cells was analyzed for dual expression of CD3 and CD8. The percentage of live cells expressing both CD3 and CD8 was multiplied by the total number of live splenocytes to determine the absolute number of splenic CD3⁺CD8⁺ cells. The absolute number of splenic CD8⁺ T cells that were specific for TRP-2_180-188 was determined by multiplying the absolute number of CD3⁺CD8⁺ splenocytes by the percentage of splenic CD8⁺ T cells that were specific for TRP-2_180-188, which was determined during the ICCS assay.

To measure TRP-2_180-188–specific CD8⁺ T-cell responses, single cell suspensions of splenocytes were stained with TRP-2_180-188-K^b tetramers (Coulter) along with anti-CD8 (clone KT15; Coulter). Cells were also stained with anti–I-A/I-E, anti-Ly6G, and 7-AAD to exclude MHC class II–bearing cells, granulocytes, and dead cells, respectively.

B16F1 or TC-1 tumor cells were used in tumor therapy experiments. Tumor cells were rapidly proliferating with a viability of greater than 95% at the time of injection. Mice were injected with tumor cells subcutaneously on the right side. The total number of mice needed for both the treatment and control groups was injected with tumor cells, and the mice were randomly distributed to either the treatment group or the control group. Tumor size was measured with calipers every 3 days. The longest length and the length perpendicular to the longest length were multiplied to obtain the tumor size (area) in mm². When the tumor size reached 200 mm² or ulceration developed, the mice were killed.

Mice underwent BMT and were injected with B16F1. Mice were vaccinated with CpG plus either TRP-2_180-188 or OVA_257-264 in IFA, and IL-2 was administered. Twenty days after initiation of vaccination, tumors were excised, and a single cell suspension of tumor cells was formed. The tumor suspension was RBC-depleted with ACK lysis buffer. Cells were suspended in CM at 3.5 × 10⁶ live cells/mL. For each mouse, one stimulation culture was prepared by adding 20 μg TRP-2_180-188 to 1 mL cell suspension, and another stimulation culture was prepared by adding 20 μg OVA_257-264 to 1 mL cell suspension. Golgi plug was added to each stimulation culture. Stimulation cultures were incubated for 5 hours. Intracellular cytokine staining for IFNγ was performed, and the percentage of CD8⁺ T cells that was specific for TRP-2_180-188 was calculated as described under ICCS experiments.

Some experiments assessed therapy of TC-1 in mice that had been depleted of CD8⁺ cells. Anti-CD8 antibody 2.43 (500 μg; National Cell Culture Center, Minneapolis, MN) was injected on days 14, 15, 16, 23, 30, and 37 after BMT. Day 14 after BMT was the day of tumor injection. This regimen eliminated 95% of CD3⁺CD8⁺ splenocytes. In experiments that used 2.43 for CD8 depletion, a control group was included that received injections of ChromPure rat IgG (Jackson Immunoresearch Laboratories, Bar Harbor, ME) in place of 2.43.

Groups were compared using the 2-tailed Mann-Whitney test. In cases in which 3 or 4 groups were compared (Figure 3), P < .01 should be considered statistically significant according to the Bonferroni correction. Otherwise, P < .05 should be considered statistically significant. Unless otherwise stated, graphs show the mean and standard error of the mean. Two to 3 experiments of each type were conducted, and the results of all experiments were combined for graphical presentation and statistical analysis.

To model T-cell reconstitution by homeostatic peripheral expansion (HPE), we conducted bone marrow transplantations (BMTs) by lethally irradiating thymectomized mice on day −1 and then reconstituting the mice with 1 × 10⁶ T cells and 5 × 10⁶ bone marrow cells on day 0. The T-cell dose of 1 × 10⁶ T cells was selected because it is comparable on a weight adjusted basis with the dose of T cells contained in human peripheral blood stem cell transplant grafts.^44,45  Fourteen days after BMT, splenic CD3⁺CD8⁺ cells had recovered to 25% of the levels detected in nonirradiated thymectomized mice (Figure 1A). In contrast, by day 14 after BMT splenic dendritic cells recovered to levels equivalent to those found in nonirradiated thymectomized mice (Figure 1B). Expression of the memory marker CD44 was dramatically increased on the CD3⁺CD8⁺ cells of mice that underwent BMT compared with mice that did not undergo transplantation (Figure 1C).

We administered TRP-2_180-188 + CpG–containing vaccines and IL-2 to B16F1 tumor-bearing thymectomized mice that had undergone BMT to test our hypothesis that epitope-specific CD8⁺ T-cell responses could be elicited from T-cell populations undergoing reconstitution by HPE after BMT. Large, functional, epitope-specific CD8⁺ T-cell responses were elicited by TRP-2_180-188 + CpG–containing vaccines combined with IL-2 when vaccination was initiated 14 days after BMT (Figure 2A-B). The CD8⁺ T-cell responses elicited by TRP-2_180-188 + CpG–containing vaccines combined with IL-2 were epitope specific because when splenocytes from vaccinated mice were tested in ICCS assays on day 33 after BMT, a mean of 9.3% of CD8⁺ T cells produced IFNγ in response to TRP-2_180-188 while only 0.1% of CD8⁺ T cells produced IFNγ in response to the negative control peptide OVA_257-264. TRP-2_180-188–specific CD8⁺ T-cell responses were also detected by TRP-2_180-188-K^b tetramers in mice that received TRP-2_180-188 + CpG–containing vaccines combined with IL-2 after BMT (Figure 2C). When we administered TRP-2_180-188 + CpG–containing vaccines combined with IL-2 beginning on the same day as BMT (day 0) and measured T-cell responses on day 19 after BMT by ICCS, 5.5% of CD8⁺ T cells were TRP-2_180-188 specific (n = 8 mice, data not shown). CD8⁺ T-cell responses generated by TRP-2_180-188 + CpG–containing vaccines combined with IL-2 persisted for at least 25 days after the final vaccination (Figure 2D). When B16F1 tumor-bearing mice were vaccinated with OVA_257-264 + CpG and treated with IL-2 they did not generate TRP-2_180-188–specific CD8⁺ T-cell responses despite the fact that B16F1 expresses TRP-2 (Figure 2E). In addition, the presence of B16F1 did not affect the number of TRP-2_180-188–specific CD8⁺ T cells generated by TRP-2_180-188 + CpG–containing vaccines combined with IL-2 (Figure 2F).

We administered TRP-2_180-188 + CpG–containing vaccines combined with systemic IL-2 or this regimen with either CpG or IL-2 omitted. The regimen that included both IL-2 and CpG elicited a mean TRP-2_180-188–specific CD8⁺ T-cell response that was greater than the sum of the mean responses elicited by the regimen containing CpG without IL-2 and the regimen containing IL-2 without CpG. Synergism between IL-2 and CpG was evident whether TRP-2_180-188–specific CD8⁺ T-cell responses were measured as a percentage of total CD8⁺ T cells or as an absolute number (Figure 3). The antitumor activity of the different regimens correlated with the number of TRP-2_180-188–specific CD8⁺ T cells that each regimen generated. The TRP-2_180-188 vaccination regimen containing both CpG and IL-2 was more effective than regimens with either CpG or IL-2 omitted at inhibiting growth of B16F1 (Figure 3D).

After demonstrating that IL-2 and CpG synergized to generate large TRP-2_180-188–specific CD8⁺ T-cell responses after BMT, we hypothesized that these CD8⁺ T-cell responses could mediate antitumor immunity in mice undergoing T-cell reconstitution by HPE. Because CpG is known to inhibit tumor growth by an NK-cell–dependent mechanism⁴²  and because our aim was to study CD8⁺ T cells, our tumor therapy experiments were designed to measure epitope-specific antitumor effects. We injected mice with tumor cells and then divided the mice into 2 groups. One group was treated with TRP-2_180-188 + CpG–containing vaccines and IL-2; another group was treated with vaccines containing the negative control peptide OVA_257-264 and CpG along with IL-2. Aside from the different peptides, both groups were treated identically; therefore, differences in tumor growth between the 2 groups are epitope specific.

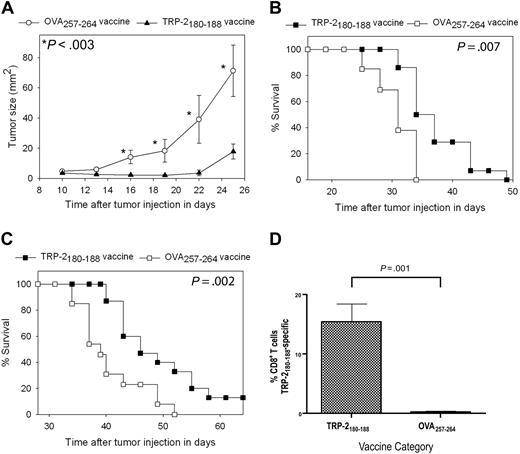

For our first series of tumor therapy experiments, we used the poorly immunogenic and rapidly proliferating B16F1 melanoma. B16F1 expresses almost undetectable levels of cell surface H-2 K^b, the MHC class I molecule that presents TRP-2_180-188^46,47 ; therefore, B16F1 is a very difficult test for a vaccination regimen that elicits CD8⁺ T-cell responses. This tumor arose spontaneously in a C57BL/6 mouse, and it has not been genetically altered, so it may be a more realistic model of human malignancy than many murine tumor lines.^33,38  Mice underwent BMT and then 14 days later they were injected with 100 000 B16F1 cells subcutaneously. Next, the mice were treated with TRP-2_180-188 + CpG–containing vaccines combined with IL-2 or vaccines containing the negative control peptide OVA_257-264 and CpG along with IL-2. Mice that received TRP-2_180-188–containing vaccines had a decreased rate of tumor growth (Figure 4A) and increased survival (Figure 4B) compared with mice that received OVA_257-264–containing vaccines. In the next series of experiments, mice were injected with 10 000 B16F1 tumor cells (a 10-fold lower dose than in previous experiments) 14 days after BMT and then treated with either TRP-2_180-188 + CpG–containing vaccines combined with IL-2 or regimens that were identical except that the negative control peptide OVA_257-264 replaced TRP-2_180-188. Survival was increased in mice that received TRP-2_180-188–containing vaccines compared with mice that received OVA_257-264–containing vaccines, and a fraction of TRP-2_180-188–vaccinated mice survived tumor-free for more than 6 months (Figure 4C). To measure CD8⁺ T-cell responses at tumor sites, we established B16F1 tumors in mice after BMT and then administered TRP-2_180-188 + CpG–containing vaccines combined with IL-2 or OVA_257-264 + CpG–containing vaccines combined with IL-2. When we measured TRP-2_180-188–specific CD8⁺ T-cell responses at tumor sites, 15.4% of intratumoral CD8⁺ T cells were specific for TRP-2_180-188 in mice that received TRP-2_180-188–containing vaccines while negligible TRP-2_180-188–specific CD8⁺ T-cell responses were detected in mice that received OVA_257-264–containing vaccines (Figure 4D).

The epitope-specific inhibition of B16F1 tumor growth and increased survival demonstrated in our experiments depended on the presence of the MHC class I–presented peptide TRP-2_180-188 in vaccines. This finding indicated that CD8⁺ T cells were important in causing the antitumor effect. To confirm that CD8⁺ T cells contained in the transplant graft were responsible for the epitope-specific inhibition of tumor growth, we conducted BMT on thymectomized mice in which CD8⁺ T cells were depleted from the transplant grafts (Figure 5A). When CD8⁺ T cells were depleted from the transplant grafts, epitope-specific tumor growth inhibition was abrogated (Figure 5B). When thymectomized mice that had undergone CD8-depleted BMT were killed 42 days after transplantation, minimal numbers of splenic CD8⁺ T cells were present (Figure 5C).

We compared the ability of post-BMT mice and mice that did not undergo BMT to generate epitope-specific CD8⁺ T-cell responses. Both groups were injected with B16F1, and both groups then received identical vaccination regimens that consisted of TRP-2_180-188 + CpG + IFA vaccines and systemic IL-2. In mice that underwent BMT, vaccination was initiated 14 days after BMT. When the T cells of vaccinated mice were analyzed 19 days after initiation of vaccination, mice that did not undergo transplantation had a larger number of CD3⁺ T cells than mice that underwent BMT (Figure 6A). Because CD8⁺ T cells made up a larger fraction of total T cells in mice that underwent BMT than in mice that did not undergo BMT (Figure 6B) and because of a statistically not significant trend toward a larger percentage of TRP-2_180-188–specific CD8⁺ T cells in mice that underwent BMT compared with mice that did not undergo BMT (Figure 6C), the mean absolute number of TRP-2_180-188–specific CD8⁺ T cells was equivalent in mice that underwent BMT and mice that did not undergo BMT (Figure 6D). Consistent with this result, there was not a statistically significant difference in B16F1 growth in mice that underwent BMT and mice that did not undergo BMT (Figure 6E).

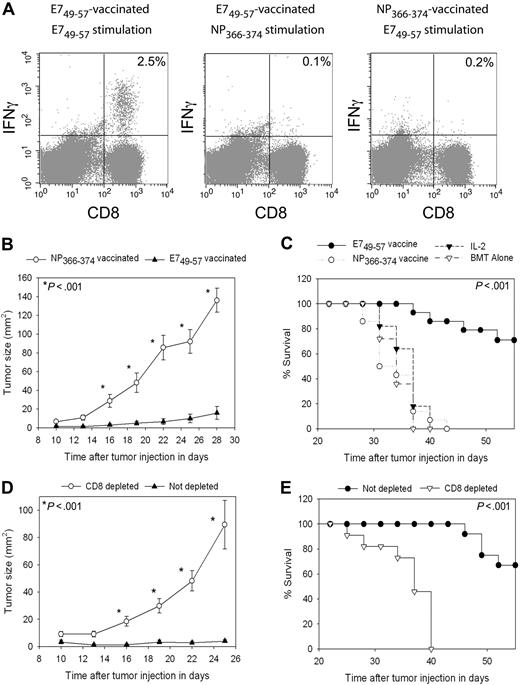

To test the antitumor efficacy of vaccination in the setting of HPE after BMT with a different tumor than B16F1, we used the TC-1 tumor cell line.⁴⁰  TC-1 expresses the human papillomavirus E7 protein. When we vaccinated TC-1 tumor-bearing mice with the E7_49-57 peptide plus CpG in IFA and administered IL-2, epitope-specific CD8⁺ T-cell responses were elicited against E7_49-57 that were detected ex vivo (Figure 7A). In TC-1 tumor-bearing mice that were vaccinated with the negative control peptide NP_366-374 plus CpG in IFA and treated with IL-2, minimal E7_49-57–specific CD8⁺ T-cell responses were detected (Figure 7A). Two groups of mice were injected with TC-1 tumor cells, and 3 days later treatment was initiated with regimens containing either E7_49-57 and CpG in IFA or the negative control peptide NP_366-374 and CpG in IFA. Both groups also received IL-2. Potent epitope-specific inhibition of tumor growth (Figure 7B) and increased survival (Figure 7C) occurred in mice that received E7_49-57–containing vaccines compared with mice that received NP_366-374–containing vaccines. This inhibition of tumor growth was epitope specific because both groups of mice were treated identically except for the different peptides in their vaccines. To conclusively demonstrate that the anticancer effect observed with E7_49-57 + CpG–containing vaccines combined with IL-2 was dependent on CD8⁺ cells, we conducted BMT on 2 groups of mice and challenged both groups with TC-1. CD8⁺ cells were depleted from one of the groups, while the second group was not depleted. Both groups of mice were vaccinated with E7_49-57 + CpG + IFA vaccines, and both groups received IL-2. Inhibition of tumor growth depended on CD8⁺ cells (Figure 7D), and depletion of CD8⁺ cells decreased survival (Figure 7E).

To study T cells undergoing HPE, we conducted syngeneic BMT on thymectomized mice. After BMT, we injected the mice with tumor cells and then administered a therapeutic vaccination regimen to the mice. We initiated vaccination 14 days after BMT when CD8⁺ T-cell reconstitution was quantitatively (Figure 1A) and qualitatively (Figure 1C) incomplete. Administration of peptide + CpG–containing vaccines combined with IL-2 generated very large epitope-specific CD8⁺ T-cell responses that were detected ex vivo by intracellular staining for IFNγ and by tetramer staining (Figures 2 and 7). Our results are consistent with previous work that demonstrated the ability of T cells undergoing HPE to respond to stimulation with peptide-MHC complexes.^14,16  The absolute number of epitope-specific CD8⁺ T cells generated by vaccination of T-cell–depleted mice undergoing T-cell reconstitution by HPE was equivalent to the absolute number of epitope-specific CD8⁺ T cells generated by vaccination of T-cell–replete mice despite the lower number of total T cells in the T-cell–depleted mice (Figure 6D).

B16F1 is very poorly immunogenic and it expresses very low levels of MHC class I molecules.^46,47  The poor immunogenicity of B16F1 is demonstrated by the data presented in Figure 2E. B16F1 tumor-bearing mice did not generate CD8⁺ T-cell responses against TRP-2_180-188 when the mice were vaccinated with the negative control peptide OVA_257-264 plus CpG and treated with IL-2 despite the expression of TRP-2 by B16F1. These results show that the immunogenic peptide is a critical component of the vaccine regimens used in these experiments. Similar findings were evident in experiments with the TC-1 tumor (Figure 7A).

Despite the obstacles of T-cell depletion, a poorly immunogenic tumor, and self-tolerance, TRP-2_180-188 + CpG–containing vaccines combined with IL-2 could consistently inhibit tumor growth and increase survival of mice that were injected with B16F1 on the same day as initiation of vaccination 14 days after BMT (Figure 4). TRP-2_180-188--specific CD8⁺ T cells were present at the tumor sites of mice that received TRP-2_180-188 + CpG–containing vaccines (Figure 4D). The epitope-specific inhibition of B16F1 tumor growth observed with TRP-2_180-188 + CpG–containing vaccines combined with IL-2 was dependent on CD8⁺ T cells contained in the transplant graft (Figure 5B). As expected, there was no significant source of CD8⁺ T cells in thymectomized mice after BMT except the T cells contained in the transplant graft (Figure 5C). Potent CD8⁺ T-cell–dependent antitumor immunity was also generated against the TC-1 tumor cell line after BMT (Figure 7).

Although others have successfully treated tumors by adoptive transfer of tumor-specific T cells after lymphocyte depletion,^7,48  our results demonstrate that peptide + CpG–containing vaccines combined with IL-2 can elicit large, functional, tumor-antigen–specific CD8⁺ T-cell responses from polyclonal T-cell populations undergoing HPE without adoptive transfer of tumor-specific T cells.

Many studies of vaccination after ASCT in humans and syngeneic BMT in mice have focused on CD4⁺ T-cell and antibody responses.^25,49,–51  While anticancer therapies that elicit CD4⁺ T-cell and antibody responses are promising, substantial evidence exists that CD8⁺ T-cell responses can cause regression of poorly immunogenic tumors in mice^6,8,33  and humans.⁷  Importantly for cancer therapy, CD8⁺ T-cell reconstitution is much more rapid than CD4⁺ T-cell reconstitution after T-cell–depleting chemotherapy^19,52  or ASCT.^9,53  As in the thymectomized mouse model used in our work, when adult humans recover from T-cell depletion, CD8⁺ T cells make up a larger than normal fraction of total T cells.^9,19,52,53  Within 3 months after ASCT in adult humans, CD8⁺ T-cell numbers return to normal^9,53  while CD4⁺ T-cell recovery to normal levels takes more than one year and is often incomplete.^9,10,53

Some previous investigators have studied anticancer vaccination in lymphocyte-depleted mice; however, these investigators used young mice with intact thymic function.^49,54,55  Because production of naive T cells by the thymus within the first year after ASCT is minimal in adults older than 50 years, it is important to study vaccination in mice that lack thymic function.^10,17  Our work makes an important contribution by demonstrating that potent CD8⁺ T-cell–mediated antitumor immunity can be generated in the absence of thymic function.

This is the first report of CpG as a vaccine adjuvant in the setting of T-cell reconstitution. The CpG used in our work, CpG 1826, has been shown previously to be a potent T-cell vaccine adjuvant and to have multiple effects that include inducing maturation of dendritic cells and elevating levels of IL-6, IL-12, and TNFα.^27,42  Synergism between CpG and IL-2 dramatically increased TRP-2_180-188–specific CD8⁺ T-cell responses in T-cell–depleted mice undergoing T-cell reconstitution by HPE (Figure 3). CpG 7909 is an oligodeoxynucleotide that is similar to CpG 1826.^27,30  CpG 7909 is undergoing clinical trials as a vaccine adjuvant in melanoma patients.³⁰  Peptide vaccines incorporating CpG 7909 have elicited some of the largest vaccine-elicited CD8⁺ T-cell responses ever reported in humans.³⁰

Because most cancer patients are middle aged or older, they will often have greatly diminished thymic function.^10,17  Many cancer patients receive T-cell–depleting chemotherapy or undergo ASCT. The feasibility of administering IL-2 after ASCT^26,56  or nonmyeloablative chemotherapy^7,57  has been demonstrated. We used IL-2 in our experiments rather than other promising cytokines such as IL-7 or IL-15 because a large amount of clinical experience has been acquired with IL-2 and because IL-2 is already an approved drug. These factors should expedite translation of our findings to clinical trials. Our results that demonstrated the effectiveness of peptide + CpG–containing vaccines combined with IL-2 at mediating antitumor immunity in T-cell–depleted mice undergoing T-cell reconstitution by HPE should encourage clinical trails of vaccination with CpG-containing vaccines combined with IL-2 in T-cell–depleted cancer patients.
