Up to 30% of patients with hemophilia A given therapeutic factor VIII (fVIII) can make inhibitory antibodies, the majority of which are reactive with its C2 and A2 domains. We have previously demonstrated that antigen-specific tolerance to several antigens can be induced by lipopolysaccharide (LPS)-activated B-cell blasts transduced with immunoglobulin (IgG)-antigen fusion constructs. To apply this system to hemophilia A inhibitor formation, we created retroviral vectors expressing fVIII amino acids S2173-Y2332 (C2 domain) and S373-R740 (A2 domain) in frame with an IgG heavy chain backbone. These vectors were transduced into B-cell blasts to induce tolerance in both naive and fVIII-primed hemophilic (E16 fVIII-/-) mice. Thus, treatment of E16 fVIII-/- mice with B cells expressing fVIII C2 and A2 domains led to tolerance in terms of specific humoral response (including inhibitory antibody titers) and cellular responses to fVIII and its C2 or A2 domains. Moreover, a significant reduction in immune responses to fVIII could be achieved in immunized hemophilic mice with existing anti-fVIII titers. This hyporesponsive state persisted for at least 2 months and withstood additional challenge with fVIII. Further experiments, in which mice were treated with a depleting monoclonal anti-CD25, suggested that a regulatory T cell may be required for the tolerogenic effect of transduced B cells. These findings demonstrate that B-cell presentation of fVIII domains on an Ig backbone specifically prevents or decreases existing antibodies in hemophilia A mice. (Blood. 2005;105:4865-4870)

Hemophilia A is a bleeding disorder caused by a decrease or dysfunction of blood coagulation factor VIII (fVIII). Bleeding episodes can be prevented or treated by replacement therapy using plasma-derived or recombinant fVIII. A major complication in replacement therapy is that patients can develop an inhibitory antibody response to transfused fVIII.1  In addition to high-dose tolerance protocols (which are extremely expensive), a variety of methods to block inhibitor formation have been developed, albeit with variable success in preclinical animal models. These include using peptide decoys mimicking the anti-fVIII antibody,2  bypassing immune recognition with human/porcine fVIII hybrids,3  neutralizing fVIII-reactive CD4 T cells with anticlonotypic antibodies,4  attempting to induce tolerance to fVIII with the use of universal CD4 epitopes,4  and blocking costimulation with CTLA-4-Ig or anti-CD40L.5-7  Nonetheless, novel approaches toward induction of specific tolerance to fVIII remain a desirable goal to treat patients with hemophilia A with inhibitors.

Our laboratory has used a gene therapy approach for tolerance in which we have engineered retroviral constructs to drive expression in B cells of different antigens in frame at the N-terminus of a murine immunoglobulin G1 (IgG1) heavy chain.8,9  These studies were based on the well-established tolerogenicity of IgG carriers and tolerogenic antigen presentation by B cells.10-12  We have shown that recipients of B-cell blasts, transduced with an Ig fusion of a variety of model antigens or autoimmune targets constructs, are tolerant to the protein epitopes of the expressed genes and that this therapy can lead to striking modulation of clinical disease.8,13-16  Importantly, tolerance is more effective and of longer duration in the presence of the IgG backbone9  (T.C.L., Yan Su, and D.W.S., manuscript in preparation).

It is known that most inhibitory antibodies are reactive with conformational epitopes on the exposed surfaces of C2 and A2 domains of fVIII,1,3,4,17,18  and that immunodominant T-cell epitopes can be found in the C2 region.17  In this study, we inserted the coding sequences for residues S2173-Y2332 (C2 domain) and S373-R740 (A2 domain) in frame with the IgG heavy chain backbone in a retroviral vector to induce tolerance in hemophilic mice. Herein, we show that effective suppression of immune responsiveness to fVIII can be achieved when lipopolysaccharide (LPS)-activated B-cell blasts are transduced with a fusion IgG containing the C2 or A2 domains and injected into naive hemophilic mice. Importantly, reduction of ongoing responsiveness and inhibitory antibody titers was accomplished by this treatment in fVIII primed recipients with significant anti-fVIII titers.

Animals

Factor VIII-deficient mice carrying a stop mutation in exon 16 of the fVIII gene (E16 mice)19  were used as a model for hemophilia A. These mice have been backcrossed for at least 8 generations onto a C57BL/6 background.5  E16 hemophilic mice were used in this study at 8 to 20 weeks of age. The genotypes of hemophilic mice were confirmed by polymerase chain reaction (PCR) analysis of genomic DNA extracted from tail segments, as described previously.5  All animals were housed in pathogen-free microisolator cages at the animal facilities of the Holland Laboratory, operated by the University of Maryland. Blood samples were obtained by orbital plexus bleeding, and venous blood samples were anticoagulated (9:1) with 0.105 M citrate for plasma separation. All samples were centrifuged immediately at 3600g for 10 minutes at room temperature, divided into aliquots, and frozen at -80°C until analyzed.

Retroviral constructs and generation of packaging cell lines

Molecular cloning of retroviral vectors was similar to those described previously.13-15  Briefly, cDNAs encoding the C2 (S2173-Y2332) or A2 (S373-R740) domains of human fVIII were cloned from SIN-CMV/R/U5-FMU3-fVIII DB-SW vector (kindly provided by Dr Ali Ramezani, George Washington University, Washington, DC) using PCR. A mock control cDNA containing an unrelated antigen (SAG, arrestin) was the kind gift of Dr Wei Liang (TolerGenics, Rockville, MD). The targeted sequences were inserted at NotI/XhoI sites into the BSSK-IgG plasmid, which contains a full-length secretory murine IgG1,9  and these IgG cDNA fragments were then subcloned into a bicistronic MSCV-IRES-GFP vector (obtained from Dr Kevin Bunting, Case Western Reserve University, Cleveland, OH) using the SalI and XhoI compatible sites.

To generate packaging cell lines that stably produce retrovirus, 293T cells were cotransfected with MSCV-C2-IgG (or A2-IgG)-IRES-GFP, the helper plasmid pSRα-G, and pEQPAM3e (kindly supplied by Dr Bunting) by standard calcium phosphate precipitation. The supernatant was collected 48 hours after transfection, filtered, and frozen at -80°C. To confirm transfection, the 293T cells were analyzed for green fluorescent protein (GFP) expression. Subsequently, the retroviral supernatants were used to stably transduce the GPE-86 packaging cell line.8,9,11  The transfected cells were expanded and the GFP-positive cells were selected after fluorescence-activated cell sorting assay. The viral titer of transfected GPE-86 packaging cell lines were tested using NIH3T3 cells and the titer calculated by Poisson analysis. Preparations with a titer of more than 1 × 106 colony-forming units (CFUs)/mL were used for transduction of B cells.

Retroviral-mediated gene transfer protocols

The transduction of splenic B lymphocytes for gene therapy was performed as described earlier.13-15  Briefly, splenic B cells were stimulated with bacterial LPS at 10 μg/mL for 24 hours, and cocultured with irradiated (2000 rad) viral packaging cells in the presence of 6 μg/mL polybrene and 10 μg/mL LPS for an additional 24 hours. The virally infected B cells were washed and injected into syngeneic recipients at designated intervals before or after challenge, as described in “Immunologic challenge and assay methods.” On the basis of GFP expression level in B cells, the percentages of productively transduced cells were estimated to be about 50% for C2-IgG/MSCV and 25% to 35% for A2-or SAG-IgG/MSCV.

Antigens

Plasma-derived human fVIII was obtained from Baxter Healthcare (Glendale, CA). Recombinant human C2 V2169-Y2332 (rC2), was generously provided by Dr Kate Pratt (University of Washington, Seattle, WA).17,18  This was expressed in Pichia pastoris and purified by ammonium sulfate fractionation and anion exchange chromatography. The purified protein was characterized by both ion exchange and gel filtration columns as a single peak. It also was detected as a single 19-kDa band by Western blotting using monoclonal Ab ESH8. C2 protein was dissolved in 50 mM HEPES (N-2-hydroxyethylpiperazine-N′-2-ethanesulfonic acid; pH 7.6)/25 mM NaCl buffer and stored at -80°C, and used within 3 months. Recombinant A2 protein was provided by Dr Andrei Sarafanov (Department of Biochemistry, University of Maryland School of Medicine, Baltimore, MD).20  Briefly, the sequence S373-R740 of human fVIII A2 was expressed in Bac-to Bac baculovirus expression system (Invitrogen, Carlsbad, CA) and purified by a Ni-nitrilotriacetic acid-HisSorb column via His-tags. The expressed A2 protein was detected as a single 43-kDa band by Western blotting using monoclonal Ab 413. The final A2 protein was dissolved in phosphate-buffered saline (PBS; pH 7.2)/1% bovine serum albumin and stored at -80°C and used within 3 months. Absorbance assay at 280 nm was used for the measurement of A2 or C2 concentrations, using extinction coefficients of 1.8 for C2 and 1.5 for A2 based on a standard algorithm (http://us.expasy.org/tools/protparam.html).

Immunologic challenge and assay methods

In our pretreatment protocol, E16 mice (5 mice per group) were injected intraperitoneally with 10 × 106 to 20 × 106 transduced B cells. One week later, they were immunized with fVIII using a modification of the protocol of Qian et al5  in which higher doses of fVIII were used to achieve more rapid and consistent immune responses. Thus, these E16 knockout mice were initially injected intravenously with fVIII (4 μg) and then boosted 3 times at 5-day intervals with 2 μg fVIII intraperitoneally to avoid anaphylactic shock. At 5 to 7 days after the last fVIII injection, mice were bled from the orbital venous plexus and serum evaluated for fVIII and C2 antibody levels using an enzyme-linked immunosorbent assay (ELISA), and plasma was analyzed for fVIII inhibitor titer (as described later in this section). Spleen cells from individual mice were collected for T-cell assays as described later in this section. Due to death of some experimental animals, the final group size was 3 to 5 mice in a given experiment.

To mimic the development of inhibitors in patients with hemophilia A, groups of 5 E16 knockout mice were primed via 4 weekly injections of therapeutic doses of fVIII, starting as described earlier in this section with an intravenous injection and followed by intraperitoneal boosts. One week after the last fVIII injection, mice were bled as described earlier in this section and serum evaluated for fVIII and C2 antibody levels using ELISA. Two weeks later, recipients were injected (10 × 106-20 × 106 cells/mouse, intraperitoneally) with C2-Ig plus A2-Ig-transduced B cells. A booster immunization with fVIII was given 7 days after gene therapy, and recipients bled as described earlier in this section and individual spleens harvested one week later. To test for the persistence of tolerance, this protocol was repeated but the interval after B-cell treatment extended for an additional 2 months, with a second booster injection of fVIII.

Antibody titers were measured by ELISA, as described by Qian et al,5,6  using 5 μg/mL of rC2 or 1 μg/mL fVIII-coated plates. The concentrations of anti-fVIII were estimated from the standard curves obtained using monoclonal mouse IgG anti-A2 antibody (mAb413), obtained from Dr Eugene Saenko, University of Maryland, and anti-C2 antibody (ESH4; American Diagnostica, Stamford, CT).

T-cell proliferation analysis was carried out by standard methods as previously described.13-15  In brief, splenic T cells from individual mice were cultured in triplicate at 5 × 105/well in 96-well plates with multiple doses of C2, A2, or fVIII in RPMI1640 (Gibco, Grand Island, NY) containing 0.5% murine hemophilia (E16) serum and 2% fetal bovine serum. After 48 hours at 37°C, 3H-thymidine (Perkin-Elmer, Boston, MA) was added and the cultures harvested 16 hours later using a Packard Matrix96 harvester. The mean counts per minute (cpm) of triplicate wells from each mouse was used for statistical calculations and the data expressed as the mean plus or minus the standard error of the mean (SEM) cpm incorporated into insoluble DNA minus background.

The fVIII inhibitor titer was determined by Bethesda assay using a previously published protocol with minor modification.21,22  In brief, one part of pooled normal human citrated plasma (purchased from DiaPharma, West Chester, OH) was mixed with one part of murine plasma from immunized animals (usually diluted from 5-fold to 40-fold with 0.05 M imidazole buffer). The mixtures were incubated at 37°C for 2 hours. A control mixture consisted of equal parts of normal pooled plasma and imidazole buffer. Factor VIII activity was measured by a chromogenic functional assay (COATEST VIII:C/4; DiaPharma). Normal pooled human plasma containing 1.0 IU fVIII/mL or 100% activity was used to generate a standard curve. Residual fVIII activity in the test mixture was divided by the fVIII activity in the control mixture to determine the percent residual fVIII activity. The inhibitor titer was established from a semilogarithmic plot of residual fVIII activity (logarithimic) and units of inhibitor activity (linear).22  The dilution of test plasma giving a residual fVIII activity of 50% is said to contain one Bethesda unit fVIII inhibitor activity per milliliter. We also used human fVIII-deficient plasma with varying levels of fVIII inhibitor activity (purchased from George King BioMedical, Overland Park, KS) to validate the standard curve.

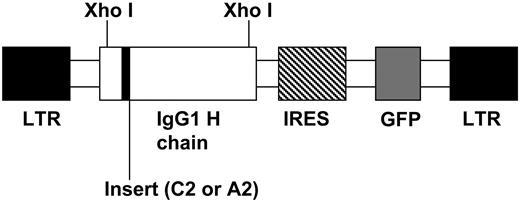

Figure 1.

Linear map of C2-Ig/ or A2-IgG/MSCV retroviral vector.

Figure 1.

Linear map of C2-Ig/ or A2-IgG/MSCV retroviral vector.

Close modal

Treatment with anti-CD25

To remove natural T-regulatory cells, mice were injected with anti-CD25 monoclonal (1 mg intraperitoneally) or with an equivalent amount of purified normal rat IgG on days -1, +4, and +8 relative to B-cell gene therapy. The success of PC61 treatment was verified by standard flow cytometry of peripheral blood leukocytes on day 9 using control Ig-stained viable cells to set the negative gate. Animals were then immunized as above in the pretreatment protocol.

Statistical analysis

The significance of the differences for each immunologic experiment was evaluated using the Student t test with a level of P less than .05 being considered significant.

Prevention of fVIII inhibitors development in naive hemophilic mice

Factor VIII replacement therapy can lead to the formation of inhibitory antibodies in a significant number of patients with hemophilia A. Most of these inhibitors are directed toward the A2 or C2 domain of fVIII, and they neutralize clotting activity by either interfering with the interaction of fVIIIa with factor IXa or blocking the binding of fVIII to phospholipid surfaces.5,17,23  In this study, we applied a gene therapy approach for tolerance induction8,9  to block or reverse inhibitor formation in fVIII knockout mice, a model for hemophilia A.5,19  Thus, the retroviral constructs containing the C2 or A2 domains of human fVIII in frame with a murine IgG1 (Figure 1) were prepared and used to transduce B cells as tolerogenic antigen-presenting cells. LPS-activated B-cell blasts were transduced with these C2- and/or A2-IgG fusion constructs and injected into fVIII-/- (E16) mice to induce specific hyporesponsiveness to immunogenic doses of fVIII. As shown in Figure 2A-B, a single injection of C2-IgG or A2-IgG-transduced LPS-activated B-cell blasts resulted in specific T-cell hyporesponsiveness to C2 or A2 protein. While only a modest reduction in the T-cell response to full-length fVIII was affected by tolerance to either domain alone, treatment with a combination of B cells expressing A2 and C2 domains led to statistically significant hyporesponsiveness to fVIII (P < .01; Figure 2C).

Similarly, specific tolerance to the C2 domain in terms of the humoral response was induced with B-cells expressing C2-Ig. Antibody responsiveness full-length fVIII was significantly lower in C2-IgG plus A2-IgG B-cell-treated recipient mice than in mock controls (P < .05, Figure 2D-E). Importantly, the combination of C2-IgG with A2-IgG transduced B cells also afforded striking tolerance in terms of inhibitory antibody titers (P < .001). Indeed, C2-Ig or A2-Ig B cells alone did lead to a significant reduction in inhibitory antibody titers (P < .01, Figure 2F). Together, these results reveal that B-cell presentation of both fVIII domains on an Ig backbone is an effective therapeutic to block the total response to fVIII in naive animals presumably because of the immunodominance of these domains in inhibitory antibodies.

Figure 2.

Recipients of B-cell blasts transduced with C2-IgG/MSCV, A2-IgG/MSCV, or both are hyporesponsive to fVIII and its C2 or A2 domains in naive E16 mice. (A-C) Naive hemophilia A mice were injected with B cells transduced with retroviral vectors expressing C2-IgG (□), A2-IgG (▵), both (▪), or control SAG-IgG (♦) and challenged repeatedly with human fVIII. Animals were euthanized at 5 days after final fVIII injection. T-cell proliferation of spleen cells from individual mice was measured in triplicate against C2 (A), A2 (B), and fVIII (C). Data represent the mean plus or minus SEM for individual mice of the cpm incorporated minus background. *P < .05 versus mock control (SAG-Ig B cells). **P < .01. Serum anti-C2 (D) and anti-fVIII (E) antibody (total IgG) titers were determined by ELISA. One set of 2 similar experiments is shown. Factor VIII inhibitor titers (F) were evaluated with a chromogenic assay as described in “Materials and methods.” Two independent experiments; *P < .05, **P < .01, ***P < .001 versus mock control.

Figure 2.

Recipients of B-cell blasts transduced with C2-IgG/MSCV, A2-IgG/MSCV, or both are hyporesponsive to fVIII and its C2 or A2 domains in naive E16 mice. (A-C) Naive hemophilia A mice were injected with B cells transduced with retroviral vectors expressing C2-IgG (□), A2-IgG (▵), both (▪), or control SAG-IgG (♦) and challenged repeatedly with human fVIII. Animals were euthanized at 5 days after final fVIII injection. T-cell proliferation of spleen cells from individual mice was measured in triplicate against C2 (A), A2 (B), and fVIII (C). Data represent the mean plus or minus SEM for individual mice of the cpm incorporated minus background. *P < .05 versus mock control (SAG-Ig B cells). **P < .01. Serum anti-C2 (D) and anti-fVIII (E) antibody (total IgG) titers were determined by ELISA. One set of 2 similar experiments is shown. Factor VIII inhibitor titers (F) were evaluated with a chromogenic assay as described in “Materials and methods.” Two independent experiments; *P < .05, **P < .01, ***P < .001 versus mock control.

Close modal

Suppression of inhibitor formation in fVIII-primed hemophilic mice

Patients with hemophilia A who have received repeated infusions of fVIII are likely to be primed, regardless of their inhibitor status. To test whether B-cell-delivered retroviral gene therapy would be able to suppress inhibitor formation in fVIII-primed subjects, a clinically important goal, we infused LPS-activated B-cell blasts transduced with C2-IgG and A2-IgG or a mock control construct into E16 recipients that had been immunized multiple times with fVIII. Therefore, to more accurately mimic the state of patients with hemophilia A with inhibitor titers, E16 mice received 4 weekly injections of therapeutic doses of fVIII and anti-fVIII titers determined one week later (day 28). Mice were randomized, then rested for 2 weeks at which time they received B-cell gene therapy with C2-Ig and A2-Ig. One week later, they were boosted with another dose of fVIII. After 7 days, they were euthanized and T-cell proliferation, anti-fVIII ELISA, and inhibitory antibody titers determined.

As shown in Figure 3A-C, injection of C2-IgG plus A2-IgG-transduced B-cell blasts resulted in significant T-cell hyporesponsiveness to fVIII and its domains, compared with mice treated with the mock control. Specific antibody responses to C2 or full-length fVIII were clearly evident on day 28 (Figure 3D-E) and this titer increased upon boosting when measured at day 56. The anti-C2 and anti-fVIII antibody titers in recipients of C2-Ig plus A2-Ig-transduced blasts were reduced significantly compared with the mock control B-cell-injected mice on day 56. Indeed, the ELISA titers were actually lower than on day 28 in this treatment group (P < .05; Figure 3D-E).

Most importantly, the inhibitor titers in terms of Bethesda units (Figure 3F) were reduced more than 10-fold in the C2-Ig plus A2-Ig B-cell-treated group (P < .001). Together, these results indicate that specific tolerance induction to fVIII could be effectively achieved in fVIII-primed recipients using this retroviral gene therapy-based protocol.

To determine the persistence of the tolerance state induced by B-cell gene therapy, we modified this experimental protocol as follows. Hemophilic mice received 4 weekly injections with fVIII and were treated on day 42 with C2-Ig and A2-Ig-transduced B cells. These animals were boosted on day 49 and again on day 102 with fVIII. They were euthanized on day 109 and analyzed for immune responsiveness to fVIII. As shown in Figure 4A-B, humoral hyporesponsiveness to C2 and to fVIII persisted at least to day 109, more than 2 months after a single treatment. Inhibitory antibody titers (Figure 4C) were still more than 90% suppressed.

Figure 3.

Immunized E16 recipients of B-cell blasts transduced with C2-IgG/MSCV and A2-IgG/MSCV are hyporesponsive to fVIII and its C2 or A2 domain. Recipient E16 mice were primed by 4 weekly injections of human fVIII. LPS blasts were transduced with the indicated retroviral vectors, and then used as a source of B cells for tolerance induction on day 42. Mice were then boosted with 2 μg of human fVIII on day 49 and the animals euthanized 7 days later. T-cell proliferation was measured against C2 (A), A2 (B), and fVIII (C) as described in Figure 2. (A-C) ♦ indicates control SAG-Ig; □, C2-IgG plus A2-IgG. Total serum IgG anti-C2 (D) and anti-fVIII (E) antibody titers were determined by ELISA on days 28 and 56. One of 2 similar experiments is shown. Data represent the mean plus or minus SEM. *P < .05 or **P < .01 versus mock SAG-Ig control. Factor VIIII inhibitor titers are shown in panel F. *P < .05, **P < .01, or ***P < .001 versus mock control or before gene therapy on day 28.

Figure 3.

Immunized E16 recipients of B-cell blasts transduced with C2-IgG/MSCV and A2-IgG/MSCV are hyporesponsive to fVIII and its C2 or A2 domain. Recipient E16 mice were primed by 4 weekly injections of human fVIII. LPS blasts were transduced with the indicated retroviral vectors, and then used as a source of B cells for tolerance induction on day 42. Mice were then boosted with 2 μg of human fVIII on day 49 and the animals euthanized 7 days later. T-cell proliferation was measured against C2 (A), A2 (B), and fVIII (C) as described in Figure 2. (A-C) ♦ indicates control SAG-Ig; □, C2-IgG plus A2-IgG. Total serum IgG anti-C2 (D) and anti-fVIII (E) antibody titers were determined by ELISA on days 28 and 56. One of 2 similar experiments is shown. Data represent the mean plus or minus SEM. *P < .05 or **P < .01 versus mock SAG-Ig control. Factor VIIII inhibitor titers are shown in panel F. *P < .05, **P < .01, or ***P < .001 versus mock control or before gene therapy on day 28.

Close modal

Requirement for CD25+ T cells for tolerance induced by B-cell gene therapy

To gain insight to the mechanism of tolerance induction and a potential role for T-regulatory cells, E16 mice were injected with PC61 monoclonal anti-CD25 or normal rat IgG just prior to and after B-cell gene therapy with C2-Ig plus A2-Ig-transduced B cells. The results in Figure 5A indicate that PC61 treatment led to depletion of CD25+ T cells. However, the number of CD25+ cells in peripheral blood returned to normal by day 25 (data not shown). These mice were immunized with fVIII on days 10, 15, and 20. On day 25, we measured the T-cell responses (Figure 5B-C) and ELISA titers (Figure 5D-E) to C2 and to fVIII, as well as the inhibitory antibody titers (Figure 5F). Confirming the data in Figure 2, treatment with B cells expressing C2-Ig and A2-Ig led to tolerance to C2 and to fVIII by all parameters in mice given control rat IgG. Treatment of mice with anti-CD25 eliminated the tolerogenic effects of B-cell gene therapy. These data suggest that a CD25+ T-regulatory cell is required for the tolerogenic effect of transduced B cells, although the specificity and mode of action of these cells is unknown.

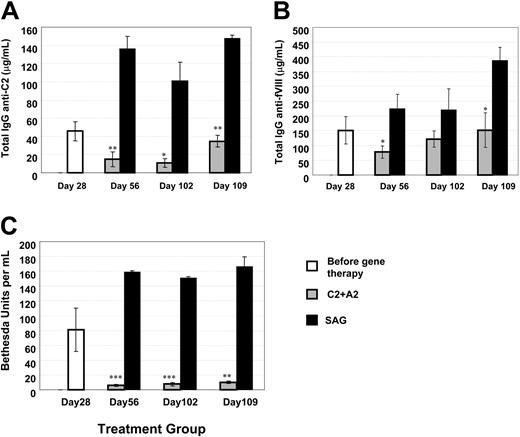

Figure 4.

Persistence of tolerance induced by B-cell blasts transduced with C2-IgG-MSCV and A2-IgG-MSCV in immunized E16 recipients. Protocol was as in Figure 3, except that mice received an additional booster with fVIII on day 102 and were euthanized on day 109. Recipient E16 mice were primed by 4 weekly injections of human fVIII. Total serum IgG anti-C2 (A) and anti-fVIII (B) antibody titers were determined by ELISA on days 28, 56, 102, and 109. Factor VIIII inhibitor titers are shown in panel C. The data represent the mean plus or minus SEM; *P < .05, **P < .01, P < .001 versus mock SAG-Ig control.

Figure 4.

Persistence of tolerance induced by B-cell blasts transduced with C2-IgG-MSCV and A2-IgG-MSCV in immunized E16 recipients. Protocol was as in Figure 3, except that mice received an additional booster with fVIII on day 102 and were euthanized on day 109. Recipient E16 mice were primed by 4 weekly injections of human fVIII. Total serum IgG anti-C2 (A) and anti-fVIII (B) antibody titers were determined by ELISA on days 28, 56, 102, and 109. Factor VIIII inhibitor titers are shown in panel C. The data represent the mean plus or minus SEM; *P < .05, **P < .01, P < .001 versus mock SAG-Ig control.

Close modal

In our laboratory, we have used a gene therapy approach to induce tolerance via retroviral expression in B cells of different antigens in frame at the N-terminus of a murine IgG1 heavy chain. This is based on the well-established tolerogenicity of IgG carriers, which provided the strategy for our approach.8,9,13-16  Our group has previously shown that recipients of B-cell blasts, transduced with an Ig fusion of a variety of model antigens or autoimmune targets constructs, are tolerant to the protein epitopes of the expressed genes and that this therapy can lead to modulation of clinical disease.13-16  In the current study, we have extended this approach to induce tolerance to fVIII and demonstrate that tolerance to 2 important immunodominant domains is sufficient to modulate inhibitor formation in naïve and even in immunized hemophilia mice with significant inhibitory antibody titers.

Figure 5.

Treatment with monoclonal anti-CD25 prevents the tolerogenic effects of B-cell gene therapy. E16 mice were treated with PC61 anti-CD25 antibody or normal rat IgG and injected with B cells transduced with retroviral vectors expressing C2-IgG plus A2-IgG or control SAG-IgG. The efficacy of PC61 depletion was validated by flow cytometric analysis of peripheral blood leukocytes obtained from treated mice on day 9. The percentage of CD25+ cells is indicated in the top right quadrant. (A). Mice were challenged repeatedly with human fVIII as in Figure 2. Animals were euthanized at 5 days after final fVIII injection and measures of cellular and humoral immunity were taken as described in “Materials and methods.” T-cell responses are depicted in panels B and C (B: ♦, C2-IgG + A2-IgG; ○, SAG-Ig; C: ▵, C2-IgG + A2-IgG; ▪, SAG), and ELISA titers are shown in panels D and E. Inhibitory antibody titers are shown in panel F. *P < .05 or **P < .01 versus mock control. Error bars indicate mean ± SEM for individual mice of the cpm incorporated minus background.

Figure 5.

Treatment with monoclonal anti-CD25 prevents the tolerogenic effects of B-cell gene therapy. E16 mice were treated with PC61 anti-CD25 antibody or normal rat IgG and injected with B cells transduced with retroviral vectors expressing C2-IgG plus A2-IgG or control SAG-IgG. The efficacy of PC61 depletion was validated by flow cytometric analysis of peripheral blood leukocytes obtained from treated mice on day 9. The percentage of CD25+ cells is indicated in the top right quadrant. (A). Mice were challenged repeatedly with human fVIII as in Figure 2. Animals were euthanized at 5 days after final fVIII injection and measures of cellular and humoral immunity were taken as described in “Materials and methods.” T-cell responses are depicted in panels B and C (B: ♦, C2-IgG + A2-IgG; ○, SAG-Ig; C: ▵, C2-IgG + A2-IgG; ▪, SAG), and ELISA titers are shown in panels D and E. Inhibitory antibody titers are shown in panel F. *P < .05 or **P < .01 versus mock control. Error bars indicate mean ± SEM for individual mice of the cpm incorporated minus background.

Close modal

Evidence has accumulated that many “inhibitors” are directed against exposed regions in the C2 and A2 domain. We and others have identified major T-cell epitopes in the C2 region of fVIII17  and mutagenesis of the A2 domain can lead to significant reduction of immunogenicity of fVIII.23  In this study, we first created the fusion IgG construct comprised of residues S2173-Y2332 of the C2 domain and S373-R740 of the A2 domain, respectively, and then inserted them into our retroviral cassette vector. Our data demonstrate that a combination of B-cell blasts expressing these domains induced tolerance to fVIII in hemophilic mice. Importantly, this tolerant state persisted for over 2 months and withstood booster injections of fVIII.

With the present regimen, we do not need to know the precise peptide epitopes within each of these immunodominant domains to use for tolerance induction since presentation by the host's own APCs expressing the fusion IgG peptides eliminates the issue of epitope selection due to HLA polymorphism of the patients.9,24  Our previous studies showed that it is possible to induce immune tolerance to multiple epitopes in a protein when a full-length construct was used for expression in B cells.9  The current findings further support the notion that full-length autoantigen or its domains can be processed and presented appropriately by B-cell blasts to induce immune tolerance.

It may be assumed that a variety of immunogenic epitopes on the surface of fVIII macromolecules are potentially recognized by the immune system when exposed to wild-type fVIII, and the resultant antibodies may or may not be inhibitory, depending on their specificity. We have not attempted to express full length or B-domain-deleted fVIII due to the large size of this protein. However, our results suggest that tolerance to epitopes contained in the C2 and A2 domains of fVIII may be sufficient. Indeed, T-cell tolerance to dominant epitopes within C2 and A2 is sufficient to block inhibitor titers of most specificities, although one might expect that other domains would also contain T-cell epitopes.

It is noteworthy that inhibitory antibody titers showed a more significant reduction than the ELISA titers of antibodies against C2 domain or full-length fVIII protein as measured by ELISA (Figure 1F). The most likely interpretation of this result is that antibody titers measured by ELISA do not reflect the level of the inhibitory response because of the presence of noninhibitory anti-fVIII antibodies.

What is the mechanism by which B-cell presentation of Ig fusion proteins leads to tolerance? We know that B-cell blasts express increased levels of costimulatory molecules, like B7.1 and B7.2, in an evanescent fashion (M. Litzinger and D.W.S., unpublished data, 2004). Indeed, our results and those of others25  suggest that B7 engagement of CTLA-4 may be required for tolerance. Moreover, the apparent need for CD25+ T cells for tolerance induction (Figure 4), coupled with their increased presence in long-term tolerized mice,16  suggests a mechanism by which increased B7 expression may recruit T-regulatory cells bearing CTLA-4 to down-regulate the immune response. Further studies involving demonstration of active suppression by regulatory T cells in an adoptive transfer model and analysis of their specificity and cytokine profiles are needed to explore the role of these regulatory T cells in tolerance.

In sum, we have demonstrated that B-cell presentation of both fVIII domains on an Ig backbone via a retroviral gene therapy protocol is a very effective therapeutic to block the total immune response to fVIII in naive as well as in fVIII-primed recipients. This approach may offer a great promise for prevention and treatment of this serious complication of fVIII replacement therapy.

Prepublished online as Blood First Edition Paper, March 15, 2005; DOI 10.1182/blood-2004-11-4274.

Supported by National Institutes of Health grant R01 HL61883 and a Lab Grant from the National Hemophilia Foundation.

An Inside Blood analysis of this article appears in the front of this issue.

The publication costs of this article were defrayed in part by page charge payment. Therefore, and solely to indicate this fact, this article is hereby marked “advertisement” in accordance with 18 U.S.C. section 1734.

We are grateful to Dr Kathleen P. Pratt (University of Washington) for gifts of recombinant C2, and Dr Andrei Sarafanov (Department of Biochemistry, University of Maryland) for providing recombinant A2. We thank Yan Su, Linda Jin, Nadia Soukharena, and Damaris Lopez for assistance and valuable discussions, and Drs Jay Lozier, Yufei Jiang, and Biying Xu for reading the manuscript.

1
Jacquemin MG, Saint-Remy JM. FVIII alloantibodies in hemophilia.
Curr Opin Hematol.
2004
;
11
:
146
-150.
2
Villard S, Lacroix-Desmazes S, Kieber-Emmons T, et al. Peptide decoys selected by phage display block in vitro and in vivo activity of a human anti-fVIII inhibitor.
Blood.
2003
;
102
:
949
-952.
3
Barrow RT, Healey JF, Gailani D, Scandella D, Lollar P. Reduction of the antigenicity of fVIII toward complex inhibitory antibody plasmas using multiply-substituted hybrid human/porcine fVIII molecules.
Blood.
2000
;
15
;
95
:564-568.
4
Ananyeva NM, Lacroix-Desmazes S, Hauser CA, et al. Inhibitors in hemophilia A: mechanisms of inhibition, management and perspectives.
Blood Coagul Fibrinolysis.
2004
;
15
:
109
-124.
5
Qian J, Collins M, Sharpe AH, Hoyer LW. Prevention and treatment of factor VIII inhibitors in murine hemophilia A.
Blood.
2000
;
95
:
1324
-1329.
6
Qian J, Burkly LC, Smith EP, et al. Role of CD154 in the secondary immune response: the reduction of pre-existing splenic germinal centers and anti-fVIII inhibitor titer.
Eur J Immunol.
2000
;
30
:
2548
-2554.
7
Rossi G, Sarkar J, Scandella D. Long-term induction of immune tolerance after blockade of CD40-CD40L interaction in a mouse model of hemophilia A.
Blood.
2001
;
97
:
2750
-2757.
8
Zambidis ET, Kurup A, Scott DW. Genetically transferred central and peripheral immune tolerance via retroviral-mediated expression of immunogenic epitopes in hematopoietic progenitors or peripheral B lymphocytes.
Mol Med.
1997
;
3
:
212
-224.
9
Kang Y, Melo MEF, Scott DW. Induction of hyporesponsiveness to intact foreign protein via retroviral-mediated expression: the IgG scaffold is important for induction and maintenance of immune hyporesponsiveness.
Proc Natl Acad Sci U S A.
1999
;
96
:
8609
-8614.
10
Gilbert KM, Weigle WO. Tolerogenicity of resting and activated B cells.
J Exp Med.
1994
;
179
:
249
-258.
11
Fuchs E, Matzinger P. B cell turn off virgin but not memory T cells.
Science.
1992
;
258
:
1156
-1159.
12
Eynon EE, Parker DC. Small B cells as antigen-presenting cells in the induction of tolerance to soluble protein antigens.
J Exp Med.
1992
;
175
:
131
-138.
13
Agarwal RK, Kang Y, Zambidis E, Scott DW, Chan CC, Caspi RR. Retroviral gene therapy with an immunoglobulin-antigen fusion construct protects from experimental autoimmune uveitis.
J Clin Invest.
2000
;
106
:
245
-252.
14
Melo M, Qian J, El-Amine M, et al. Gene transfer of immunoglobulin-fusion proteins into B cells prevents and treats autoimmune diseases.
J Immunol
2002
;
168
:
4788
-4795.
15
Xu B, Scott DW. A novel retroviral gene therapy approach to inhibit specific antibody production and suppress experimental autoimmune encephalomyelitis induced by MOG and MBP.
Clin Immunol.
2004
;
111
:
47
-52.
16
Song L, Wang J, Wang R, et al. B-cell delivery of GAD-Ig fusion construct induces specific tolerance and prevents diabetes in NOD mice: role of CD4 regulatory cells and TGF-β.
Gene Therapy.
2004
;
11
:
1487
-1496.
17
Pratt KP, Qian J, Ellaban E, et al. Immunodominant T-cell epitopes in the factor VIII C2 domain are located within an inhibitory antibody binding site.
Thromb Haemost.
2004
;
92
:
522
-528.
18
Takeshima K, Smith C, Tait J, Fujikawa K. The preparation and phospholipids biding property of the C2 domain of human factor VIII.
Thromb Haemost.
2003
;
89
:
788
-794.
19
Bi L, Lawler AM, Antonarakis SE, High KA, Gearhart JD, Kazazian HH Jr. Targeted disruption of the mouse factor VIII gene produces a model of haemophilia A.
Nat Genet.
1995
;
10
:
119
-121.
20
Sarafanov A, Saenko E. High-throughput optimization of protein expression in the baculovirus system based on determination of relative expression efficiency of viral stocks.
Anal Biochem.
2004
;
328
:
98
-100.
21
Kasper CK, Aledort L, Aronson D, et al. Proceedings: a more uniform measurement of factor VIII inhibitors [abstract].
Thromb Diath Haemorrh
.
1975
;
34
:
612
.
22
Villard S, Piquer D, Raut S, Leonetti JP, Saint-Remy JM, Granier C. Low molecular weight peptides restore the procoagulant activity of fVIII in the presence of the potent inhibitor antibody ESH8.
J Biol Chem.
2002
;
277
:
27232
-27239.
23
Parker ET, Healey JF, Barrow RT, Craddock HN, Lollar P. Reduction of the inhibitory antibody response to human fVIII in hemophilia A mice by mutagenesis of the A2 domain B-cell epitope.
Blood.
2004
;
104
:
704
-710.
24
El-Amine M, Melo M, Kang Y, Nguyen H, Qian J, Scott DW. Mechanisms of tolerance induction by a gene-transferred peptide-IgG fusion protein expressed in B lineage cells.
J Immunol.
2000
;
165
:
5631
-5636.
25
Lohr J, Knoechel B, Kahn EC, Abbas AK. Role of B7 in T cell tolerance.
J Immunol.
2004
;
173
:
5028
-5035.
