MDR1 gene–related clonal selection and P-glycoprotein function and expression in relapsed or refractory acute myeloid leukemia

Classic multidrug resistance (MDR) encoded by theMDR1 gene is characterized by expression of P-glycoprotein (P-gp), which acts as a drug efflux pump in the plasma membrane. Expression of MDR1 has been identified as an independent adverse prognostic factor for complete remission (CR) and survival in patients with acute myeloid leukemia (AML), especially in adults.1-11 Little is known about possible changes inMDR1 gene expression during the development to relapse or refractory disease, especially in paired analyses of clinical samples of patients with AML. It is conceivable that MDR1 positive clones develop by clonal selection during chemotherapy or byMDR1 gene activation. This phenomenon has been described for Burkitt lymphoma, in which single allelic MDR1 expression was found to be up-regulated during the development of disease.12

In the present study, we investigated whether clonal selection of oneMDR1 allele contributes to drug resistance in AML, by studying the genetic polymorphism of the MDR1 gene at position 2677.13 This study was performed in paired samples of patients with AML at time of diagnosis and at first relapse or refractory disease. In addition, an analysis was performed of the expression and function of P-gp. To the best of our knowledge, no previous studies have been reported in which the P-gp levels were measured in the allelic variants of the MDR1 gene.

Bone marrow samples from 30 patients with AML (9 children, 21 adults) were obtained from the iliac crest at diagnosis and at time of first relapse (n = 27) or refractory disease (n = 3) (Table 1). Written informed consent was obtained from each patient and/or their parents to perform these studies. AML classification, according to the French-American-British (FAB) criteria14 was M1 (n = 8), M2 (n = 11), M4 (n = 2), M5 (n = 7), and M6 (n = 2). Cytogenetic analysis was carried out by standard techniques, and the findings were described according to the international nomenclature.15 Patients with a deletion or loss of chromosome 7 were not included in the study, because of the (possible) loss of one MDR1 gene which is located on 7q21.1, which complicates the analysis of polymorphism in these patients. All patients were treated according to the Helsinki agreement and were included in treatment protocols of the Dutch-Belgian Hemato-Oncology Collaborative Group (protocol HOVON 4/4a resp. HOVON 29) for young adults (n = 17), European Organisation for Research and Treatment of Cancer (EORTC protocol LAM 9) (n = 1) for patients 60 years or older, and the Dutch Childhood Leukemia Study Group (DCLSG: protocol ANLL 87 and 94) (n = 9) for children (younger than 18 years old). After relapse or in case of refractory disease after induction therapy, adults were treated according to the HOVON 30 protocol. The pediatric patients received treatment according to institutional protocols (Table2). For some patients, individual therapy choices were made (Table 1). CR status was defined as normocellular marrow with < 5% blasts in a bone marrow (BM) smear and normal peripheral blood cell counts.

Bone marrow aspirates were obtained in heparinized tubes. Mononuclear bone marrow cells (MNCs) were collected by Ficoll Hypaque density gradient centrifugation (density 1.077g/m³) (Pharmacia, Uppsala, Sweden). To obtain purified samples with more than 85% blasts, T-cell depletion and adherence depletion were performed.16 Cells were cryopreserved in Iscoves modified Dulbecco medium (IMDM; Gibco, Paisley, United Kingdom) supplemented with 10% dimethyl sulfoxide (DMSO; Merck, Darmstadt, Germany) and 20% fetal calf serum (FCS; Gibco) and stored in liquid nitrogen. On the day of the experiments bone marrow cells were thawed. For flowcytometry experiments, cells were washed and resuspended in IMDM supplemented with 10% FCS and gentamycin at a concentration of 4 × 10⁶ cells/mL. Total RNA was isolated using Trisolv extraction (Biotecx, Houston, TX).

Both DNA and RNA were used as templates in the polymerase chain reaction (PCR). One microgram of genomic DNA was used as a template in the PCR for 40 cycles to investigate the genetic polymorphism at the DNA level. One microgram of total RNA was reverse transcribed and the cDNA template was subjected to 40 cycles of PCR. The following primers were used as described by Mickley12,13: 5′ ²⁵²¹ GCAAATCTTGGGACAGGAAT; 3′ RNA, ²⁷⁹⁶ CTCCTTTCGTGTGTAGAAAC; 3′, DNA,²⁶⁸¹CCTTC²⁶⁸⁷ CACTCAGTTTGATTT.

Reverse transcriptase treatment preceded amplification in order to evaluate RNA expression. All PCR experiments included controls without DNA or RNA. After amplification of 1 μg template, 30% of the PCR product was loaded in each of 2 adjacent wells of a slot-blot apparatus. The Zeta Probe nylon filter (Biorad, Hercules, CA) was cut out into 2 halves and each half was hybridized with a different oligonucleotide. Two 19-bp allele-specific oligonucleotide probes (HMO7 and HMO8) were 5′-phosphorylated with [γ³²P]-ATP and T₄ polynucleotide kinase. HMO7 and HMO8 cover residues 2667 to 2685 and were used for hybridizations. HMO7 possessess a G at position 2677 and HMO8 contains a T at the same position. Internal controls for hybridization and specificity were included in all experiments. For this purpose, two 30-bp oligonucleotides, designated HMC3 and HMC4, were used. These oligonucleotides cover residues 2656 to 2685 of the MDR1 gene with HMC3 possessing a G at position 2677 and HMC4 a T at the same position. Equal amounts of each control were spotted on both sides of the filter. Because the hybridizations were performed under identical conditions, with probes labeled to similar specific activities, the signals from the control oligonucleotides were similar. For quantification of the hybridization spots, the blots were exposed to a Phosfor Imager screen (Molecular Dynamics, Sunnyvale, CA).

For measurement of the expression of P-gp, cells were incubated at room temperature with the monoclonal anti–P-gp antibodies MRK1617 (Kamiya Biomedical, Tukwila, WA) at a concentration of 10 μg/mL and also, in separate tubes, with UIC218(Immunotech, Marseille, France) at a concentration of 12.5 μg/mL or with an isotype-matched mIgG2a control antibody (Sigma, St Louis, MO) at a concentration of 10 μg/mL. Cell-bound antibodies were detected by fluorescein isothiocyanate (FITC)–labeled rabbit antimouse immunoglobulin antibodies (Dako, Glostrup, Denmark). Results are given as the ratio of the mean fluorescence of cells incubated with the anti–P-gp antibody divided by the mean fluorescence of cells incubated with the control mIgG2a antibody. To measure the expression of P-gp in CD34-positive cells, cells were labeled with phyco-erythrin-Cy5–labeled CD34 antibody or a phycoerythrin-Cy5–labeled matched mIgG1 antibody (Immunotech).

For measurement of the function of P-gp, the fluorescent molecule Rhodamine 123 (Rho 123) (Sigma) was used as a P-gp substrate.19,20 Cells were incubated for 1 hour at 37°C at 5% CO₂ in the absence or presence of 2 μM of the P-gp modulator PSC 833 (Novartis, Basel, Switzerland). After this incubation, 200 ng/mL Rho 123 was added to the cells. A sample was taken at t = 0 minutes to correct for background fluorescence and at t = 75 minutes to measure intracellular Rho 123 retention. Results were calculated as the PSC/Rho 123 retention ratio of the mean intracellular Rho 123 fluorescence of cells exposed to PSC 833 divided by the mean intracellular Rho 123 fluorescence of cells not exposed to PSC 833. As controls, the drug-sensitive human myeloma cell line 8226 S and the drug-resistant P-gp expressing variant 8226 D6 cells21 were included in each experiment. Taking all experiments together, the mean ratio of P-gp function of the negative control cell line 8226 S was 0.91 ± 0.07 (mean ± SD). The mean ratio of P-gp function of the positive control cell line 8226 D6 was 7.03 ± 4.69 (mean ± SD).

For analysis of the function of P-gp in CD34-positive cells, cells were labeled with phyco-erythrin-Cy5–labeled CD34 antibody or as a control phycoerythrin-Cy5–labeled mIgG1 antibody (Immunotech). Fluorescence was measured using a FACScalibur flowcytometer (Becton Dickinson, San José, CA). Cells were incubated with 0.1 μM TO-PRO-3 (Molecular Probes, Eugene, OR) to exclude nonviable cells in the fuctional and expression studies.

Expression and functional levels of P-gp, either at diagnosis or at relapse or refractory disease, were compared between subgroups using the Mann-Whitney test in case of 2 subgroups, and the Kruskal-Wallis test in case of 3 subgroups. Moreover, MDR1 expression at relapse or refractory disease was compared with that at diagnosis using the Wilcoxon matched-pairs signed-ranks test, which was restricted to patients with data available both at diagnosis and at relapse or refractory disease. All P values are 2-sided and a significance level α = .05 was used.

Thirty patients with AML were studied at diagnosis and during the course of their disease. Twenty-seven patients developed a relapse after reaching CR with induction chemotherapy. Three patients were primary refractory to induction chemotherapy (Table 1).

Oligonucleotide hybridization studies of position 2677 of theMDR1 gene revealed 7 patients with a G variant, 6 patients with a T variant, and 17 patients with a GT variant. The 17 patients with heterozygous expression at diagnosis also showed GT expression at relapse. In these patients, no up-regulation of either allele was noticed during the development of disease at RNA level. Consequently, in this group of patients no evidence of a MDR1 gene–associated selection of a resistant clone was found.

MRK16 expression (n = 27) and UIC2 expression (n = 25) revealed no differences in P-gp expression at relapse or refractory disease as compared with diagnosis (P = .14 andP = .22, respectively) (Table3). No difference of MRK16 expression in the CD34-positive subpopulation was found (n = 11) (P = 1.0) in the paired analysis. The analysis of UIC2/CD34 in matched pairs showed a trend to a lower expression level (P = .07) in relapsed/refractory disease as compared with diagnosis, although the number of patients that could be analyzed for UIC2/CD34 was small (n = 8) (Table 3; Figure1C). The CD34 expression was not different at relapse as compared to diagnosis (P = .31).

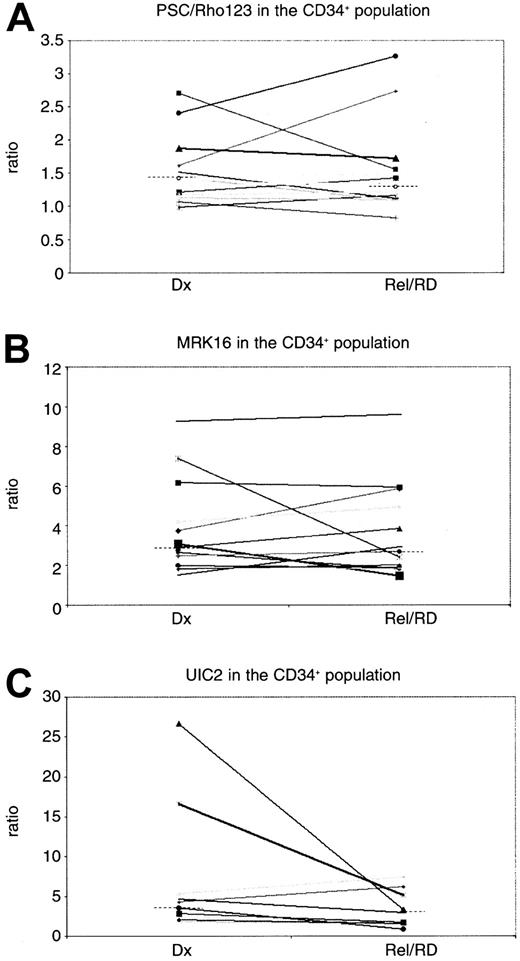

The PSC/Rho 123 retention ratio (n = 27) was not significantly different between diagnosis and relapsed/refractory AML (P = .26). When analyzed in the CD34-positive subpopulation of blasts (n = 12), comparable results were found (P = .39) (Table 3; Figure 1A). No difference was found in P-gp expression (P = .67 for MRK16 expression,P = .82 for UIC2 expression) or PSC/Rho ratio (P = .09) at diagnosis nor at relapse/refractory disease (P values of .42, .67, and .11, respectively) between adults and children.

As the functional meaning of the genetic polymorphism of theMDR1 gene has not been established as yet, we analyzed P-gp in patients with expression of the G, T, and GT variants. The median MRK16 expression ratio was not significantly different in the various allelic variants (P = .72 at diagnosis andP = .34 at relapse). Also, no difference was found with monoclonal antibody UIC2 (P = .81 at diagnosis andP = .25 at relapse) and the PSC/Rho 123 retention ratio (P = .26 at diagnosis, P = .11 at relapse). No difference was found in P-gp expression or function when homozygous patients were compared with heterozygous patients (Table4). Similarly, in the CD34-positive fraction we did not find differences in P-gp expression and function between the different MDR1 allelic variants at diagnosis nor at relapse and/or refractory disease. The results show that there is no difference in P-gp expression and function in AML blast cells between the different specific allelic variants of the MDR1 gene. The therapeutic outcome of patients with the different allelic variants showed a significant difference, that is, homozygosity was associated with a shorter time from diagnosis to relapse (P = .002) and a shorter overall survival from relapse (P = .02) (Figure 2A,B).

Clinical resistance to chemotherapy is a major problem in relapsed and/or refractory AML. MDR1 expression in de novo AML is an adverse prognostic factor for CR and survival.3-7,11,22 It is conceivable that up-regulation of the MDR1 gene is involved in the development of relapse and/or refractory disease, although this has not been investigated in paired analyses of respectable numbers of clinical samples of patients with AML.12 In the present study we analyzed whether clonal selection associated with the MDR1 gene is involved in the development of relapsed AML. This is the first study that examined the allelic expression of MDR1 in AML, using the genetic polymorphism of the MDR1 gene. Our data show that there is no evidence of a MDR1 gene–related clonal selection in the evolution of AML to relapse or refractory disease.

This is consistent with our observation that P-gp expression and function did not increase from diagnosis to relapsed/refractory state. Several studies have reported a higher MDR1 expression at time of relapse as compared to diagnosis.23-29 However, most studies compared patients who were not matched and studies in paired patient samples are scarce and generally they were performed in small numbers of patients. Most studies suggest an identical expression or even lower level of MDR1 in relapsed/refractory AML.29-32 Only the sequential analysis by Wood, who used immunocytochemistry techniques, showed a higher percentage of P-gp–positive samples in 14 relapsed patients with AML as compared with diagnosis.33 In pediatric patients, only 3 case reports are available.25,34,35 Therefore, although many studies have suggested that MDR1 is up-regulated in relapsed and/or refractory AML, sequential studies do not support this theory (Table 5 and Table6). The present analysis, which is the largest paired study in AML thus far, is an attempt to quantify MDR1 expression at genomic and protein level during the development toward resistant disease. In the 9 children and 21 adults studied, we did not find evidence that MDR1, although being a strong prognostic factor at the time of diagnosis, is up-regulated at time of relapse and/or refractory disease in AML. We suggest that similar sequential studies of other mechanisms of drug resistance should be performed in patients with AML during the course of their disease in order to determine which drug resistance proteins are associated with clonal selection at relapse. In these studies it will be important to analyze children and younger adults separately from elderly patients with AML, since different mechanisms might be important in different age groups.6 Until now, the only study that analyzed P-gp expression in a large group of children with AML showed that in contrast to adult AML, MDR1 expression was not of prognostic significance.39 In the present study no difference was found in P-gp expression and function between adults and children.

Our study emphasizes that it is important to study MDR1 expression in clinical samples from patients with AML. In many cell lines, including even AML cell lines, MDR expression may be up-regulated as a direct response of cells to antineoplastic drugs. However, it seems apparent that this does not occur in patients with AML.40-48 This is the first analysis of the functional significance of the genetic polymorphism of MDR1 in highly purified samples of AML. P-gp function and expression were similar in any one of the specific allelic variants (G, T, and GT). These findings suggest that the genetic polymorphism of the MDR1 gene (at position 2677) lacks functional importance in AML. However, we found that patients with homozygous expression of the MDR1gene (GG or TT) had a shorter time to relapse and overall survival from relapse/refractory disease than heterozygous patients. This finding warrants further studies on the role of genetic polymorphisms ofMDR1 in AML.

MDR1 expression at diagnosis is a strong adverse prognostic factor in AML. However, our sequential analysis reveals that there is no higher function or expression of P-gp at relapse or refractory disease, and that specific allelic expression is not related to increased P-gp expression or function. Since no loss of a specificMDR1 allele has been observed in these patients with AML,MDR1 gene–related clonal selection plays no role in the development of resistant disease. These data suggest that mechanisms other than MDR1 might be responsible for the development of clinical resistance in these patients.

We thank the Dutch Childhood Leukemia Study Group for bone marrow samples of pediatric patients with AML.
