Direct oral anticoagulants for treatment of HIT: update of Hamilton experience and literature review

Heparin-induced thrombocytopenia (HIT) is an acquired prothrombotic disorder that usually requires treatment with a rapid-acting, non-heparin anticoagulant.^1-3  To date, treatment options during acute HIT have focused on parenteral anticoagulants, either on-label, such as argatroban or (in non-US jurisdictions) danaparoid, or off-label, such as fondaparinux or bivalirudin.^1-6  When longer-term anticoagulation is required, usually because of the presence of HIT-associated thrombosis, transition is often made from parenteral anticoagulation to a vitamin K antagonist (VKA) such as warfarin after platelet count recovery. (Earlier transition to VKA therapy is avoided because of increased risk of warfarin-induced microthrombosis during acute HIT.^3,7 )

Direct oral anticoagulants (DOACs) such as the direct factor Xa inhibitors (rivaroxaban, apixaban, edoxaban) or the direct thrombin inhibitor dabigatran are attractive treatment options for HIT^8-11  for several reasons. First, there is no potentially deleterious immunologic interaction between these agents and HIT antibodies.^12-14  Second, unlike VKAs, DOACs have a rapid onset of action and do not cause reductions in protein C natural anticoagulant activity, suggesting that they may be useful during the acute phase of HIT.¹⁵  Third, DOACs should also be effective during longer-term anticoagulation after platelet count recovery, thus avoiding the risk and expense of transition from parenteral to oral VKA anticoagulation. Transition to VKA therapy increases cost¹⁶  because of the need to await platelet count recovery,³  and thus a longer hospitalization to administer an intravenous anticoagulant such as argatroban.

We recently reported a prospective observational study¹⁷  that described the use of rivaroxaban for treatment of serologically confirmed HIT. Although the results were encouraging, the trial was closed prematurely because of slow patient recruitment. On the basis of our positive trial experience, some clinicians in our medical community have continued to use rivaroxaban for treating patients with acute HIT. This gave us the opportunity to report on the subsequent posttrial experience with this agent in additional patients.

HIT treatment can be divided into sequential but distinct phases,¹⁸  including acute HIT (HIT with thrombocytopenia) and subacute HIT (HIT soon after platelet count recovery), because the high initial prothrombotic risk (initial thrombosis rate, up to 5% per day) progressively lessens during platelet count recovery.^19,20  Accordingly, we evaluated HIT treatment outcomes with DOAC therapy on the basis of whether the DOAC was the initial non-heparin anticoagulant selected to treat HIT (ie, primary therapy of acute HIT) or whether a switch was made from initial treatment with a standard HIT drug to DOAC therapy while the patient was still thrombocytopenic (ie, secondary therapy of acute HIT), or whether transition to a DOAC occurred only after platelet count recovery (ie, secondary therapy of subacute HIT). In theory, the risk of poor outcomes and adverse events of DOAC therapy for treating HIT, whether thrombotic (new, progressive, recurrent) or hemorrhagic, would be expected to be highest during acute HIT. Therefore, we were mainly interested in patients who received a DOAC for primary or secondary treatment of HIT during acute thrombocytopenia, although we also analyzed outcomes in patients who received a DOAC for subacute HIT.

The risk of thrombosis is highest among patients who have a true diagnosis of HIT vs non-HIT thrombocytopenia.²¹  Thus we used a clinical-pathological approach (defined below) for local patients to confirm their diagnosis of HIT on the basis of laboratory detection of anti-PF4/heparin antibodies with platelet-activating properties. Although such strict laboratory criteria could not always be used for patients in our literature review, we sought to ensure that analyzed patients could be classified as having probable HIT.

The purpose of our study was first to determine the frequency of thrombotic events and major bleeding events for patients with a probable diagnosis of HIT who were treated with rivaroxaban in Hamilton, and second to review the literature on DOAC therapy for patients with a probable diagnosis of HIT, focusing on patients who received DOAC therapy during acute HIT. In addition, we analyzed these data separately for the different DOACs (rivaroxaban, apixaban, edoxaban, dabigatran).

We used records from the McMaster Platelet Immunology Laboratory to identify patients at 4 Hamilton acute care hospitals who tested positive for HIT antibodies after January 1, 2015, on the basis of (1) positive immunoglobulin G–specific anti-PF4/heparin enzyme immunoassay²²  and (2) positive serotonin-release assay (SRA), with at least 50% serotonin release (means at 0.1 and 0.3 U/mL heparin).²³  Medical and laboratory records of these patients were reviewed to determine whether they had a clinical picture consistent with HIT (ie, 4Ts score of at least 4 points) and with no diagnosis more compelling than HIT. This clinical-pathological framework for diagnosis of HIT follows the recommendations of a working group of the International Society on Thrombosis and Haemostasis.²⁴  The choice of agent used to treat HIT in Hamilton was at the discretion of the individual physician.

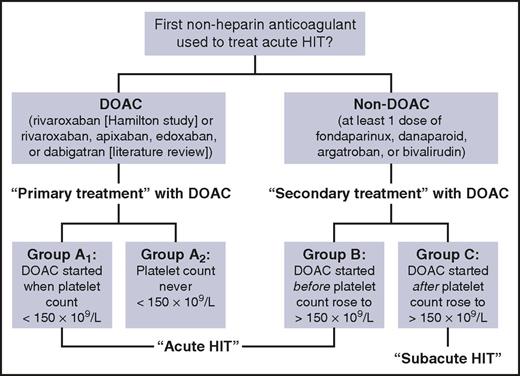

We used the following classification of patient treatment groups for the Hamilton patients who received rivaroxaban to treat HIT and for the patients in our literature review (Figure 1). Patients were classified as treatment group A if a DOAC was used as primary therapy for HIT (ie, the DOAC was the first non-heparin anticoagulant used for treatment of acute HIT). Patients were further subclassified into subgroup A₁ if the DOAC was started while the patient was still thrombocytopenic (platelet count <150 × 10⁹/L) or subgroup A₂ if the DOAC was started as the primary anticoagulant but the platelet count never fell below 150 × 10⁹/L. Note that patients in subgroup A₂ include 3 Hamilton patients in whom HIT was suspected because of adrenal hemorrhagic necrosis, which is an indicator of potential HIT-associated adrenal vein thrombosis,¹  despite the absence of thrombocytopenia as conventionally defined by a threshold platelet count of 150 × 10⁹/L. Such patients presumably still have a degree of hypercoagulability, so it seemed reasonable to classify these patients as a subgroup of group A.

Patients were classified as group B if during treatment of acute HIT at least 1 dose with 1 or more non-heparin anticoagulants other than a DOAC was given (eg, fondaparinux, danaparoid, argatroban, bivalirudin) but in whom transition to secondary treatment with a DOAC occurred before the platelet count increased to above 150 × 10⁹/L. We also classified as group B 1 patient (literature review) whose platelet count (154 × 10⁹/L) was only marginally above 150 × 10⁹/L and in whom the preceding non-heparin anticoagulant (argatroban) was given for only 2 days. We used the descriptive term “acute HIT” to describe patients within groups A₁, A₂, or B.

Patients were classified as group C if they received treatment with 1 or more non-heparin anticoagulants other than a DOAC and in whom transition to secondary treatment with a DOAC occurred only after the platelet count had recovered to ≥150 × 10⁹/L; all of these patients had received initial non-DOAC/non-heparin anticoagulation for at least 3 days. The descriptive term “subacute HIT” was used to describe patients in group C.

For Hamilton patients within groups B and C, we recorded the dosing and duration of the initial non-heparin anticoagulant(s) prior to starting rivaroxaban as well as the platelet count at transition. We also recorded dosing of rivaroxaban.

Approval for this study was provided by the Hamilton Integrated Research Ethics Board in accordance with the Declaration of Helsinki.

Similar to our previous study,¹⁷  the primary outcome measure was the 30-day incidence of new symptomatic, objectively confirmed venous and arterial thromboembolism in the cohort of patients with confirmed HIT within group A₁, A₂, or B. (In our previous prospective cohort study, there were no patients included with confirmed HIT who would have been classified as group C). Secondary objectives included the incidence of symptomatic thromboembolism while being treated with rivaroxaban and the following outcomes while being treated with rivaroxaban: incidence of venous and arterial thromboembolism, incidence of major bleeding, and time to platelet recovery. Major bleeding was defined per International Society on Thrombosis and Haemostasis criteria.²⁵  Time to platelet count recovery was defined as days to achieve platelet count ≥150 × 10⁹/L determined directly (from daily in-patient measurements) or indirectly (through extrapolation when the platelet count normalized during out-patient follow-up).

We performed a systematic review of the literature for published reports on the use of DOACs for the treatment of 1 or more patients with HIT. We searched the MEDLINE electronic database (English and non-English language) from January 2007 to March 2017 using the terms “heparin-induced thrombocytopenia,” “rivaroxaban,” “apixaban,” “dabigatran,” “edoxaban,” and “direct oral anticoagulants.” We also manually reviewed the reference lists of all review articles that discussed DOAC therapy of HIT. We contacted corresponding authors to clarify details regarding diagnosis or treatment if those were not reported. Wherever possible, we tried to analyze data at the patient level. When patients were reported in aggregate form, we included them only if the study methods indicated that all or most of the included patients were probable HIT. We excluded patients who did not seem to have HIT on the basis of the information provided, or when insufficient data were available. In almost all separately assessed patients, a diagnosis of probable HIT could be made on the basis of the 4Ts score (4 points or greater) together with corroborating laboratory detection of HIT antibodies, but we also accepted patients whose clinicians practiced in a setting in which laboratory testing for HIT antibodies was not available, but sufficient clinical details were presented to make the diagnosis of HIT probable (ie, 4Ts score of 6 points or greater, and an alternate non-HIT diagnosis was unlikely). We also excluded patients who were SRA positive but enzyme immunosorbent assay (EIA) negative, given that such patients most likely represent false-positive SRA results.²⁶  All patients, including the Hamilton patients and those reported in the literature review, were reviewed by all 3 authors, and any discrepancies were resolved by consensus.

We determined the 30-day thrombotic event rate (or until last follow-up indicated, if less than 30 days), the thrombotic event rate while receiving DOAC therapy, and the major bleeding rate (while receiving DOAC therapy) for patients who received a DOAC for primary treatment of acute HIT (ie, groups A₁ and A₂) or for secondary treatment of acute HIT (group B). Our main analysis was for patients who received a DOAC for acute HIT (ie, analysis of combined groups A₁, A₂, and B), but we also reviewed the experience for patients with subacute HIT (group C).

Sixteen patients were identified in Hamilton who were treated with rivaroxaban for HIT (of a total of 43 SRA-positive patients with probable HIT) since January 15, 2015 (Table 1). All patients treated with rivaroxaban had a 4Ts score of 4 points or greater (median, 6 points), a positive immunoglobulin G–specific EIA (median, 2.26 optical density [OD] units; range, 1.11-3.07 OD units), and a strongly positive SRA (>80% serotonin release). Six of the patients (37.5%) had HIT-associated thrombosis; if thrombosis before HIT occurrence was also included, then 10 (62.5%) of the 16 patients had thrombosis. Eight of the patients (50.0%) received rivaroxaban as primary anticoagulant therapy for HIT, 7 of whom were thrombocytopenic at the start of rivaroxaban (median platelet count, 56 × 10⁹/L; range, 25 to 107 × 10⁹/L) and thus were classified as group A₁; an eighth patient who received rivaroxaban as primary therapy never had thrombocytopenia as conventionally defined and had HIT recognized during investigations of bilateral adrenal hemorrhages (group A₂).

Two additional patients were classified as group B, because they began treatment with rivaroxaban while they were thrombocytopenic but after initially receiving a brief treatment course of fondaparinux. One patient received a single 7.5-mg injection of fondaparinux, with rivaroxaban started the next day when the platelet count was 64 × 10⁹/L. Another post–cardiac surgery patient who was diagnosed as an outpatient with delayed-onset HIT²⁷  complicated by pulmonary embolism (based on the timing and clinical course of thrombocytopenia, pleuritic chest pain with high-probability ventilation-perfusion lung scanning, and the laboratory detection of autoimmune-like HIT antibodies featuring strong serum-induced platelet activation even in the absence of heparin) was re-admitted and given four 10-mg injections of fondaparinux (patient weight >100 kg); because the patient desired out-of-hospital treatment with an oral anticoagulant, she was discharged to home and was given rivaroxaban (platelet count at discharge, 74 × 10⁹/L). Her clinical course (summarized in Figure 2) showed gradual platelet count recovery that inversely paralleled the decline in serum-induced platelet activation (percent serotonin release at 0 U/mL heparin [buffer control]). She remained thrombosis and hemorrhage free while receiving rivaroxaban (last follow-up, 136 days after starting rivaroxaban).

The remaining 6 patients began rivaroxaban only as secondary therapy and after recovery of the platelet count to at least 150 × 10⁹/L (ie, they were classified as group C). Each of these 6 patients received at least 1 month of rivaroxaban therapy.

Remarkably, none of the 16 patients developed a thrombotic event at the 30-day follow-up or while receiving rivaroxaban (median duration of rivaroxaban treatment, 3 months; range, 17 days to >1 year). None of the 16 patients required limb amputation, none developed major hemorrhage while receiving rivaroxaban, and none died (up to the 3-month follow-up).

Excluding the 16 patients reported in this study, our literature review identified 73 patients from 25 articles reported as having received a DOAC for treatment of acute or subacute HIT.^17,28-51  However, 9 patients^30,48-51  were excluded because they did not seem to have a probable diagnosis of HIT; 5 patients tested negative for anti-PF4/heparin antibodies^30,40 ; 1 patient had subclinical anti-PF4/heparin antibody seroconversion (as acknowledged by the authors)⁴⁸ ; 1 patient had onset of thrombocytopenia too early to be a result of HIT (and testing for HIT antibodies was not performed)⁴⁹ ; and 2 other patients had insufficient information available to conclude that HIT was the probable diagnosis.^50,51  The remaining 64 patients were included in our analysis.

For all but 1 article (which described 20 patients with antibody-positive HIT),³⁰  the patients were presented individually, allowing evaluation of whether HIT was likely present or not. However, in the report describing 20 patients (each of whom had either a positive EIA or a positive SRA) for whom the data were presented in aggregate fashion, all 20 patients received secondary treatment with a DOAC but after receiving a mean of only 32 hours of argatroban; moreover, the mean platelet count at initiation of DOAC therapy was approximately 90 × 10⁹/L (Mohsen Sharifi, personal communication) and thus we classified the 20 patients as group B.

Of the 80 patients identified as having received a DOAC for treatment of probable HIT (including the 16 Hamilton patients newly reported here), we were primarily interested in the 69 patients who were classified as either group A₁ (n = 25), group A₂ (n = 5), or group B (n = 39), of which 46 patients (66.6%) were treated with rivaroxaban, 12 (17.4%) with apixaban, none with edoxaban, and 11 (15.9%) with dabigatran.

Table 2 summarizes the experience with rivaroxaban for treatment of acute HIT, including the Hamilton experience, for patients who received this DOAC as primary therapy (groups A₁ and A₂) or as secondary therapy in which transition occurred while the patient still had HIT-associated thrombocytopenia (group B). The data are organized per article. We identified 46 patients with probable HIT who were treated with rivaroxaban: 25 as primary therapy (A₁, n = 21; A₂, n = 4) and 21 as secondary therapy started during thrombocytopenia (B, n = 21). Only 1 (2.2%) of the 46 patients developed a possible progression of thrombosis (central venous catheter-associated DVT that resolved completely after removal of the catheter and during continued therapy with rivaroxaban). None (0%) of the 46 patients experienced a major bleed while receiving rivaroxaban.

For the 21 patients in group B who received rivaroxaban after transition from another non-heparin anticoagulant, the median duration of preceding non-heparin anticoagulant was only 2 days (range, 1-16 days), with 18 of 21 patients receiving 3 days or fewer of preceding non-heparin anticoagulation; for the 3 patients who received longer preceding non-heparin anticoagulation (for 4 days [Table 1], 10 days,²⁸  and 16 days³⁴ ), the platelet counts were all <75 × 10⁹/L at DOAC start, and in 2 of the patients (Figure 2),²⁸  the presence of strong autoimmune-like HIT antibodies was documented, which produced strong platelet activation even in the absence of heparin (persisting HIT).

Table 3 lists probable HIT patients treated with apixaban or dabigatran as primary treatment or as secondary treatment during thrombocytopenia (none of the patients were treated with edoxaban). A total of 23 patients were treated with either apixaban (n = 12) or dabigatran (n = 11). Only 1 patient had a possible thrombotic event while receiving a DOAC (multiple strokes, which might have been present before starting dabigatran).⁴⁵  None of the patients experienced major bleeding.

Including the 6 Hamilton patients in group C (Table 1), we identified a total of 11 patients who received a DOAC after platelet count recovery from HIT (rivaroxaban, n = 7; apixaban, n = 3; edoxaban, n = 0; dabigatran, n = 1).^40,47  None of the patients developed a thrombotic problem. One patient had a major bleed secondary to known varices.

We found that the continuing use of rivaroxaban in Hamilton further supports the efficacy of this DOAC for treating acute HIT. We identified 10 patients with strong clinical and laboratory evidence for HIT who received rivaroxaban for treatment of acute HIT. None of these 10 patients developed recurrent thrombosis, limb amputation, major bleeding, or died (up to the 3-month follow-up). In our previous study, 1 of 12 patients who received rivaroxaban for HIT had a questionable thrombotic event. Of note, this patient had central venous catheter-associated right upper-limb DVT that may have extended while receiving rivaroxaban; however, after subsequent removal of the central venous catheter and during continuing treatment with rivaroxaban, the patient’s HIT resolved completely, and follow-up ultrasound showed complete resolution of DVT. Thus, all 22 patients in Hamilton with acute HIT who were treated with rivaroxaban (ie, 12 in our prospective study; 10 in our retrospective follow-up study reported here) had successful outcomes. Although 1 (4.5%) of the 22 Hamilton patients underwent limb amputation, this patient was judged to have had irreversible limb ischemia before rivaroxaban was initiated. Furthermore, this frequency of HIT-associated limb amputation (∼5%) is similar to that reported in the literature for patients treated with fondaparinux (∼6%),²  danaparoid (∼5%),⁵²  and argatroban (∼8%).⁵³

Our favorable experience with rivaroxaban is supported by our review of the literature. Including the new patients in Hamilton (this study), as well as our previous published experience with the DOACs,¹⁷  there have now been 46 patients with probable HIT who received rivaroxaban during acute thrombocytopenia as either primary or secondary treatment (Table 2). The only reported thrombotic event was the aforementioned Hamilton patient with questionable DVT progression (who ultimately had complete resolution of thrombosis on continued rivaroxaban treatment). Thus, the frequency of new, progressive, or recurrent thrombosis is only 2.2% (95% CI, 0.4%-11.3%; 1 of 46 patients). The major bleeding rate was 0%. Although there are fewer data for apixaban and dabigatran, the experience with these DOACs is also favorable (Table 3).

Moreover, the favorable experience was seen in different clinical settings of HIT: of the 49 patients for whom the clinical setting was reported (see legends for Tables 2 and 3), 11 (22.4%) were post–cardiovascular surgery or post–percutaneous coronary intervention, 11 (22.4%) were post–orthopedic surgery, 14 (28.6%) were being treated for venous thromboembolism, 5 (10.2%) had complicated use of heparin given for hemodialysis, and 8 (16.3%) were receiving heparin thromboprophylaxis, including heparin flushes for catheter maintenance. Although most patient groups likely represented a selected subgroup of patients deemed suitable for DOAC therapy, for the study from Singapore of 9 patients,^29,36  treatment with rivaroxaban represented their main therapeutic option, because standard HIT agents (fondaparinux, argatroban) were not available in that jurisdiction.

The consistency of efficacy of DOAC therapy for acute HIT, despite the relatively small published numbers, is strikingly reminiscent of what was observed with fondaparinux several years ago. For example, in 2011, one of us (T.E.W.) presented a tabular summary of the experience with fondaparinux in patients with clinical and laboratory evidence of HIT (all of the patients were at least EIA positive); there were 52 patients reported (from 4 studies), of whom 34 (65%) had HIT-associated thrombosis.²  Remarkably, none of the 52 patients had evidence of new, progressive, or recurrent thrombosis, data similar to what we observed with rivaroxaban (0 of 52 vs 1 of 46). In 2008, the American College of Chest Physicians Evidence-Based Clinical Practice Guidelines suggested that fondaparinux was a reasonable treatment option for HIT, albeit as a weak (ie, grade 2C) recommendation based on retrospective observational data.⁵⁴  Today, fondaparinux has emerged as the most widely used non-heparin anticoagulant for treatment of HIT in several jurisdictions.^4,5  And although a more recent retrospective study of fondaparinux therapy for HIT reported a somewhat higher frequency of thrombotic events (7 [16%] of 44), those authors found that this frequency was not higher than that observed in propensity score–matched HIT patients treated in their institution with either danaparoid or argatroban (5 [25%] of 20). They thus concluded that fondaparinux had effectiveness and safety similar to that of the other 2 standard treatments for HIT.⁵  Given the fixed-dose oral administration of DOACs and the simplicity of transition from in-patient to longer-term out-patient anticoagulation with these agents, it seems likely that DOAC therapy, like fondaparinux, could become a common off-label treatment for HIT.

Ironically, despite the status of argatroban as an approved anticoagulant treatment for HIT, data supporting its efficacy in patients with probable HIT on the basis of laboratory confirmation of HIT antibodies is lacking. The argatroban approval trials^55,56  performed in the 1990s enrolled patients on the basis of clinical suspicion of HIT alone (without requirement for a positive test for HIT antibodies), and although the frequency of antibody-positive status was reported to be only 57% in 1 of the studies,⁵⁵  the thrombotic event rate has not (to the best of our knowledge) been reported for the subgroup of patients likely to have had HIT on the basis of serologic detection of HIT antibodies. The aforementioned study by Kang et al⁵  reported a thrombotic rate of 25% for patients treated with either danaparoid or argatroban but did not specify which patients with laboratory-confirmed HIT were treated with argatroban. The thrombosis rate was reported to be 10 (21%) of 47 for patients treated with argatroban in a larger group classified as having suspected HIT. However, similar data are not available for patients with rigorously confirmed HIT. Thus, despite the small numbers of patients with DOAC-treated HIT described in the literature, we believe that the published experience with these drugs may already exceed that published for argatroban. Moreover, there are several reports describing failure of argatroban therapy in patients with severe HIT complicated by coagulopathy in whom inappropriate dose interruption or reductions occurred because of partial thromboplastin time (PTT) confounding.^57,58  This problem of PTT confounding is not seen with DOACs, because DOAC dosing is not adjusted according to PTT, international normalized ratio, or other global coagulation assays.

Strengths of our study include the rigorous definition of HIT for the Hamilton patients (including the detection of platelet-activating antibodies by SRA), as well as a review of the literature conducted at the individual patient level. In addition, we focused our analysis on patients with acute HIT on the basis of starting DOAC therapy when the patient was thrombocytopenic. A major limitation of our study is the possibility that patients treated with DOAC represent a selected subgroup of HIT patients with an unusually favorable prognosis. We acknowledge that patients in the intensive care unit or those who have renal insufficiency are unlikely to receive DOAC therapy. Furthermore, there may be reporting bias for the literature review (especially case reports). Nonetheless, the favorable experience with DOACs suggests that these agents are able to control the hypercoagulability of HIT and could be considered as an off-label option for treating this condition.

In conclusion, DOACs seem to be safe and effective for treatment of acute HIT, with the most experience reported for rivaroxaban. We recommend that clinicians consider reporting their experience with DOAC therapy for acute HIT, including detailed clinical and laboratory evidence supporting the diagnosis, to add to the emerging evidence.

A new single-center retrospective study reporting on 12 patients with probable HIT who were treated with a DOAC (apixaban, n = 9; rivaroxaban, n = 3) during or soon after recovery from acute thrombocytopenia (5 as primary therapy, 7 as secondary therapy after initial argatroban) was recently published (Davis KA, Davis DO. Eur J Haematol. doi:10.1111/ejh.12921 [published ahead of print 3 July 2017]). All 12 patients had successful outcomes, including normal platelet counts at discharge and no thrombotic or bleeding complications; postdischarge follow-up information was not available.
