Small molecule Toll-like receptor 7 agonists localize to the MHC class II loading compartment of human plasmacytoid dendritic cells

Since the discovery of type I IFN (IFN-I) in 1957 and its potential for treatment of viral infections and cancer,¹  several small molecule inducers of this factor have been identified. Many of these compounds are now known to be TLR7 or TLR8 or both agonists. Among them are imidazoquinolines,^2,3  such as resiquimod (R848) that activates both TLR7 and TLR8 in humans, and imiquimod (R837) that activates TLR7 only.^4,5  Imidazoquinolines have been largely tested in humans, and R837, formulated as a cream (Aldara), is licensed for topical treatment of genital warts, basal cell carcinoma, and actinic keratosis.⁶  Similar to R837, purine-like molecules, such as 9-benzyl-8-hydroxy-2-(2-methoxyethoxy) adenine (SM360320 or 1V136), are TLR7 agonists.⁷  TLR7 and TLR8 are phylogenetically related, located on the X chromosome in most mammals, and probably derive from a gene duplication event. TLR7 and TLR8 are both activated by various single-stranded RNAs (ssRNAs) from viruses,⁸  synthetic guanosine- or uridine-rich ssRNAs,⁹  and synthetic small molecules. TLR9, together with TLR7 and TLR8, form a subfamily of TLRs that is based on genomic structure and sequence homology.¹⁰  The natural agonist of TLR9 is unmethylated, CpG-containing DNA of bacterial or viral origin that can be mimicked by synthetic ssCpG oligonucleotides that can be classified as A-type (CpG-A), B-type (CpG-B), or C-type (CpG-C) on the basis of their different sequence motifs and biologic activities.¹¹  Several reports have suggested that TLR7, TLR8, and TLR9 can interact directly with nucleic acids^12-15 ; however, structural evidence confirming this hypothesis is not available yet. No convincing evidence of direct binding of imidazoquinolines or purine-like molecules to TLR7 or TLR8 exists either.

TLR7 and TLR9 are the only TLRs expressed by plasmacytoid dendritic cells (pDCs), which are a rare subset of circulating DCs that are considered as a frontline defense against viral infections. pDCs produce most of the systemic IFN-I (ie, IFN-α and -β) after viral infection and rapidly activate T cells with the use of presynthesized MHC class I and II molecules stored in their early and late endosomal compartments, respectively.^16,17

Although nucleic acid sensing provides protection from intracellular infection, nucleic acids are not exclusively from pathogens; therefore, a balance between self versus foreign responsiveness is necessary. Indeed, recognition of self nucleic acids by TLR7 and TLR9 and the resultant IFN-I production have been linked to autoimmune disorders such as lupus.¹⁸  To avoid autoimmunity driven by recognition of self nucleic acids, TLR3, which binds double-stranded RNA,¹⁹  TLR7, TLR8, and TLR9 are sequestered in intracellular compartments. In particular, TLR7 and TLR9 localize to the endoplasmic reticulum and the endolysosomal compartment, which is a still incompletely understood vesiculotubular network of sorting and degradative organelles that accept, redirect, and process molecules from the exterior or interior of the cell.²⁰  TLR7 and TLR9 translocation from the endoplasmic reticulum to the endolysosomal compartment depends on the chaperone protein UNC93B and is required for TLR7 and TLR9 signaling.^21,22  Recent evidence shows that TLR9 becomes competent for signaling on proteolytic cleavage of its ectodomain in the endolysosomal compartment.^23-26  The need for proteases in intracellular TLR activation may be a common phenomenon because cleaved TLR7 has been found in RAW264.7 cells,²³  and Sepulveda et al²⁵  claimed that human TLR7 is cleaved in DCs on R837 stimulation, possibly by asparagine endopeptidase, such as TLR9. Furthermore, several reports have shown that CpG concentrates in the endolysosomal compartment,^13,27,28  supporting the idea that the productive encounter between TLR9 and its ligand occurs there. In particular, localization of CpG-A to transferrin receptor–positive (TfR⁺) endosomes was associated with IFN-α production, whereas localization of CpG-B in lysosome-associated membrane protein 1–positive (LAMP-1⁺) endosomes was associated with costimulatory molecule (eg, CD80 and CD86) up-regulation in human pDCs.²⁸

Unlike CpG, the intracellular localization of small molecule TLR7/8 agonists has not been characterized. Thus, we labeled R848, R837, and SM360320 with fluorophores to track them in human pDCs. All 3 fluorescently labeled compounds were TLR7 agonists and induced IFN-α, TNF-α, and IL-6 production as well as CD80 and CD86 up-regulation by human pDCs, like their unlabeled parent compounds and CpG-B, as described.^28-30  Fluorescently labeled compounds colocalized with CpG-B in LAMP-1⁺, CD63⁺, and HLA-DR⁺ endosomes, which belong to the MHC class II loading compartment (MIIC) of pDCs, independently of their chemotype and of the fluorophore used to label them. Bafilomycin A (BafA), an antagonist of the vacuolar type proton ATPase responsible for endosomal acidification,³¹  strongly inhibited the localization of the TLR7 agonist small molecules while leaving unaltered the localization of CpG-B. We conclude that the acidic pH present in the MIIC is the driving force for small molecule TLR7 agonist localization and a key requirement for their immunostimulatory activity.

Synthesis of R848, R837, and SM360320, fluorescently labeled or not, is described in supplemental Methods (available on the Blood Web site; see the Supplemental Materials link at the top of the online article). CpG-B (2006): 5′-tcg tcg ttt tgt cgt ttt gtc gtt-3′ and CpG-A (D19): 5′-ggTGCATCGATGCAGggggg-3′, labeled or not at the 3′-end with 5(6) carboxytetramethylrhodamine (TAMRA), were from Primm. CpG-B–FITC was from Invivogen. Bases shown in capital letters are phosphodiester and those in lowercase letters are phosphorothioate.

The following mouse mAbs were from BD PharMingen: FITC-conjugated anti–LAMP-1, FITC-conjugated anti-CD63, allophycocyanin (APC)–conjugated anti–HLA-DR, BD–Horizon V450–conjugated anti-CD80, APC–conjugated anti-CD86, APC-conjugated anti–BDCA-2, FITC-conjugated anti-CD123 (IL-3R), biotin-conjugated anti–HLA-DR, and purified anti-TfR. Purified rabbit mAb anti-EEA1 was from Cell Signaling Technology. Purified rabbit polyclonal anti–LAMP-1 Ab was from Abcam. Alexa Fluor 488 (AF488)–, AF568-, and AF647-conjugated goat anti–rabbit F(ab′)₂ IgG, AF488-conjugated goat anti–mouse F(ab′)₂ IgG, and APC-conjugated streptavidin were from Molecular Probes (Invitrogen). Live-Dead Fixable Aqua Dead Cell Stain kit was from Invitrogen. BafA was from Sigma-Aldrich.

HEK293T cells stably transfected with the firefly luciferase gene under the transcriptional control of NF-κB together with human TLR7, TLR8, or TLR9 (TLR-DST) were made in our laboratory. TLR-DST cells were cultured overnight at 5 × 10⁴ cells/well in microclear 96-well plates (Greiner Bio-One). Cells were stimulated with serial dilutions of compounds in duplicate for 6 hours and then lysed with cell culture lysis reagent (Promega), according to the manufacturer's instructions. Luciferase assay substrate (Promega) was added, and luciferase activity was measured by SpectraMax L microplate reader (Molecular Devices). Luciferase activity was expressed as fold induction over nonstimulated cells.

Buffy coats from healthy HIV-, hepatitis B virus–, and hepatitis C virus–negative donors were obtained from the Blood Transfusion Section, Alta Val D'Elsa Hospital, Poggibonsi, Italy. Informed consent was obtained before all blood donations. The study protocol was approved by the Novartis Research Center Ethical Committee and conformed to the ethical guidelines of the 1975 Declaration of Helsinki.

PBMCs were isolated from fresh buffy coats by Ficoll-Hypaque (Amersham Biosciences) density gradient centrifugation, following standard procedures. Highly purified pDCs (≥ 98% BDCA-2⁺CD123⁺) were obtained with Diamond Plasmacytoid Dendritic Cell Isolation Kit (Miltenyi Biotec), which consists of magnetic depletion of non-pDCs followed by positive selection of pDCs with anti–BDCA-4 Ab. pDCs were cultured at 5 × 10⁴ per well in 96-roundbottom plates in RPMI 1640 medium (Gibco) supplemented with 10% FCS (HyClone), glutamine, penicillin, and streptomycin. Human rIL-3 (100 ng/mL; R&D Systems) was added to the cultures for 16-24 hours before stimulation with TLR7 agonist small molecules or CpGs to keep pDCs alive.³²

pDCs were stimulated with different concentrations of TLR7 agonist small molecules or CpGs overnight. IFN-α was quantified with human IFN-α multiple subtype ELISA kit (PBL Biomedical Laboratories). TNF-α and IL-6 were measured with the human proinflammatory 7-plex (TNF-α, IL-6, IFN-γ, IL-10, IL-12p70, IL-1β, IL-8) tissue culture kit (MSD Technology). Other cytokines were produced at low concentrations, except IL-8 that was produced constitutively and poorly induced on stimulation (data not shown). pDCs were washed twice with ice-cold PBS, stained with anti-CD80 HorizonV450 and anti–CD86-APC, and analyzed for CD80 and CD86 expression as well as for the fluorescence compound resulting from uptake by FACS LSRII instrument (Becton Dickinson) with the use of the BD FACSDiva v6.1.3 software (Becton Dickinson). Data were analyzed with FlowJo software (TreeStar Inc).

pDCs were incubated with fluorescent compounds (TLR7 agonist small molecules or CpG) for 90 minutes. Cells were washed, fixed with 1% paraformaldehyde in PBS at room temperature for 15 minutes, and permeabilized with saponin buffer (0.5% saponin, 1% BSA in PBS). Samples were blocked for 30 minutes with Image-iT FX signal enhancer (Invitrogen) and stained with the indicated antibodies in saponin buffer. Cells were cytocentrifuged on glass slides and mounted with SlowFade Gold antifade reagent with 4,6 diamidino-2-phenylindole (DAPI; Invitrogen), as described.²⁸  Images were acquired sequentially with separate laser excitations to avoid cross talks between different fluorophores with the use of either a Nikon Eclipse TE2000, Radiance 2100 Confocal System (Bio-Rad) with the acquisition software Lasersharp 2000 (Zeiss) and processed with Volocity 3.6 (Improvision Inc) or with a LSM 710 confocal microscope System (Zeiss) and processed with Zen2008 software (Zeiss). An oil-immersion objective (63×/1.4 numerical aperture [NA]), with the pinhole set for a section thickness of 0.8 μm (pinhole set to 1 airy unit in each channel) was used. Unless otherwise stated, the images show one representative cell, as checked by DAPI staining of the nucleus, of ≥ 30 cells analyzed for each sample.

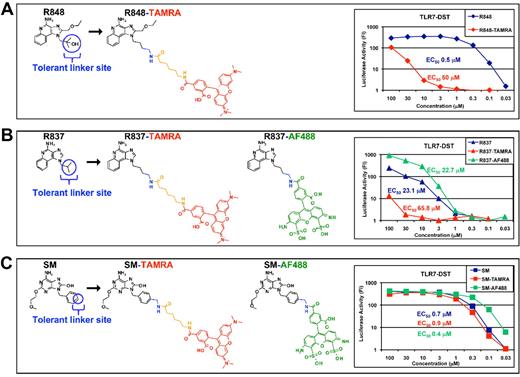

Structure-activity relationship analysis of R848 led us to the identification of a “tolerant” linker site. We used this site to conjugate R848, R837, and SM360320 (SM) with TAMRA or AF488 fluorophores (Figure 1). We then assessed the biologic activity of these fluorescent molecules on HEK293T cells stably transfected with the luciferase gene under the transcriptional control of NF-κB and TLR7 (TLR7-DST) and compared them with their unlabeled parent molecules. R848 (Figure 1A) activity on TLR7-DST was strongly decreased on conjugation with TAMRA (EC₅₀, 50 μm for R848-TAMRA vs 0.5 μm for R848), R837 (Figure 1B) activity was slightly decreased on TAMRA conjugation (EC₅₀, 65.8 μm vs 23.1 μm for R837) and unaltered on AF488 conjugation (EC₅₀, 22.7 μm vs 23.1 μm for R837), whereas SM (Figure 1C) activity was not affected by conjugation with either fluorophore (EC₅₀, 0.9 μm for SM-TAMRA, 0.4 μm for SM-AF488 vs 0.7 μm for SM). All fluorescent compounds were inactive on TLR8-DST (supplemental Figure 1).

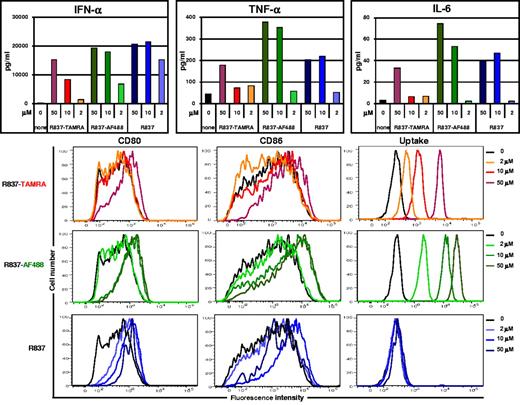

The activity of the fluorescently labeled TLR7 agonists was tested on human pDCs that express TLR7 and TLR9. For practical reasons in this study pDCs were cultured with IL-3 for 18-24 hours before stimulation with TLR7 agonist small molecules or CpG to prevent them from dying.³²  pDCs were stimulated overnight with labeled or unlabeled R848, R837, or SM360320. Cytokine concentrations in the supernatants were measured while cells were stained for CD80 and CD86 and analyzed by flow cytometry for costimulatory molecule expression and for compound uptake (TAMRA or AF488 fluorescence). R837-TAMRA and R837-AF488 induced the production of IFN-α, TNF-α, and IL-6 and the up-regulation of CD80 and CD86 in a dose-dependent manner (Figure 2). Internalization of R837-TAMRA and R837-AF488 was readily detected by flow cytometry. Similar experiments were performed with fluorescent R848 and SM (supplemental Figure 2A-B). All the fluorescent compounds tested induced mainly IFN-α, although production of TNF-α and IL-6 and up-regulation of CD80 and CD86 were also observed, similar to the parent compounds and CpG-B (supplemental Figure 2C). The ability of each fluorescent compound to activate human pDCs with respect to its parent compound was in good agreement with the EC₅₀ measured on TLR7-DST (Figure 1).

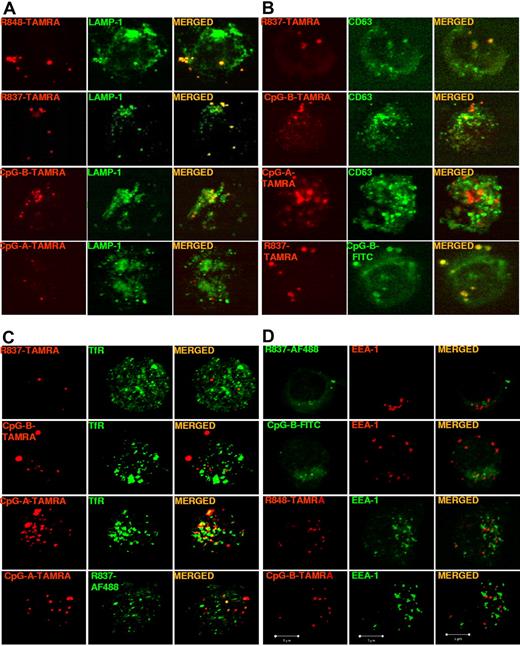

The localization of fluorescent TLR7 agonists in pDCs was determined with the protocol applied by Guiducci et al²⁸  to assess the localization of CpG-A and CpG-B in these cells. pDCs were incubated with fluorescent TLR7 agonists or CpGs and stained for LAMP-1, CD63, or TfR to identify distinct classes of endosomes.^33,34  As shown by confocal microscopy (Figure 3A-B), both imidazoquinolines labeled with TAMRA colocalized with CpG-B in LAMP-1⁺CD63⁺ endosomes but not with CpG-A. As a control, the ethanol amine-capped TAMRA fluorophore when used alone did not localize in any intracellular compartment (data not shown). However, neither R837-TAMRA nor CpG-B–TAMRA localized to TfR⁺ endosomes, whereas CpG-A–TAMRA showed a partial colocalization with TfR and almost no colocalization with R837-AF488 (Figure 3C). The ability of CpGs to induce IFN-α production by freshly isolated human pDCs has been correlated with their localization in TfR⁺ endosomes (early/recycling endosomes).²⁸  However, we found that fluorescently labeled TLR7 agonist small molecules, like their parent compounds and CpG-B, induced pDCs precultured in IL-3 to produce high amounts of IFN-α, yet neither R837-TAMRA nor CpG-B–TAMRA colocalized with TfR. To confirm the absence of localization in early endosomes we analyzed fluorescent TLR7 agonist small molecules and CpG-B for colocalization with EEA1. None of the fluorescent TLR7 agonist small molecules and CpG-B localized to EEA1⁺ endosomes (Figure 3D; data not shown).

Collectively, these data show that imidazoquinolines do not diffuse randomly inside pDCs but concentrate in LAMP1⁺CD63⁺ endosomes despite that they are cell permeable and thus able to spread readily throughout the cell.

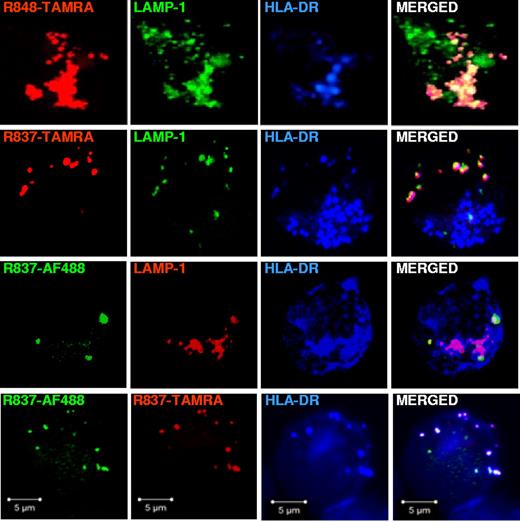

LAMP-1 and CD63 are markers of late endosomes and lysosomes, which are characterized by an acidic pH.³⁴  Because in pDCs, like in other antigen-presenting cells, the endolysosomal compartment is specialized in antigen presentation onto MHC class II molecules (MHC II),¹⁶  we stained for HLA-DR, which is a MHC II receptor, and LAMP-1 to check whether the endosomes where imidazoquinolines concentrated belonged to the MIIC. As shown in Figure 4, we found that R848-TAMRA, R837-TAMRA, and R837-AF488 localized to endosomes that were positive not only for LAMP-1 but also for HLA-DR. In addition, R837-TAMRA and R837-AF488 colocalized with each other in HLA-DR⁺ endosomes. As a control, the ethanol amine-capped AF488 fluorophore alone did not localize in any intracellular compartment (data not shown).

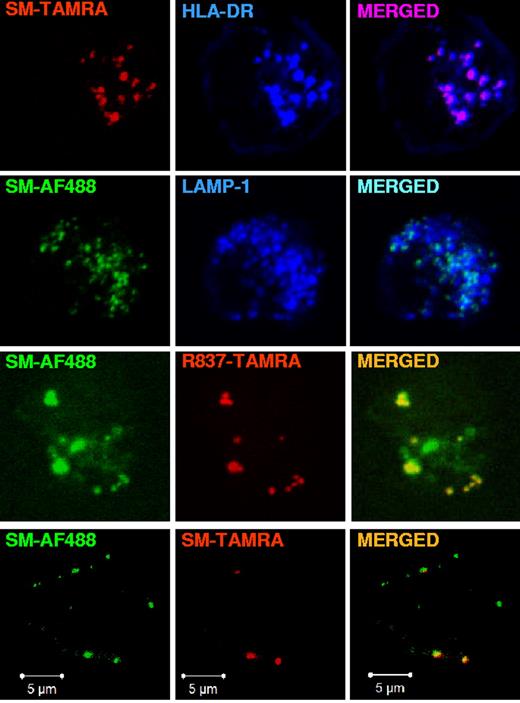

To assess if localization in the MIIC is a general feature of TLR7 agonists, we looked at fluorescent SM, a purine-like compound that is structurally distinct from imidazoquinolines. As shown in Figure 5, SM labeled with TAMRA colocalized with HLA-DR and SM-AF488 colocalized with LAMP-1. Moreover, SM-AF488 colocalized with SM-TAMRA and with R837-TAMRA. Thus, TLR7 agonists concentrated in LAMP-1⁺CD63⁺HLA-DR⁺ endosomes of pDCs independently of the compound chemical scaffold and the fluorophore used for labeling. While we were writing this article, Shukla et al³⁵  described the synthesis of yet another imidazoquinoline conjugated with different fluorophores. Those investigators observed an intracellular localization of these compounds in the murine J774 macrophage cell line that, although not characterized further, was compatible with our observations.

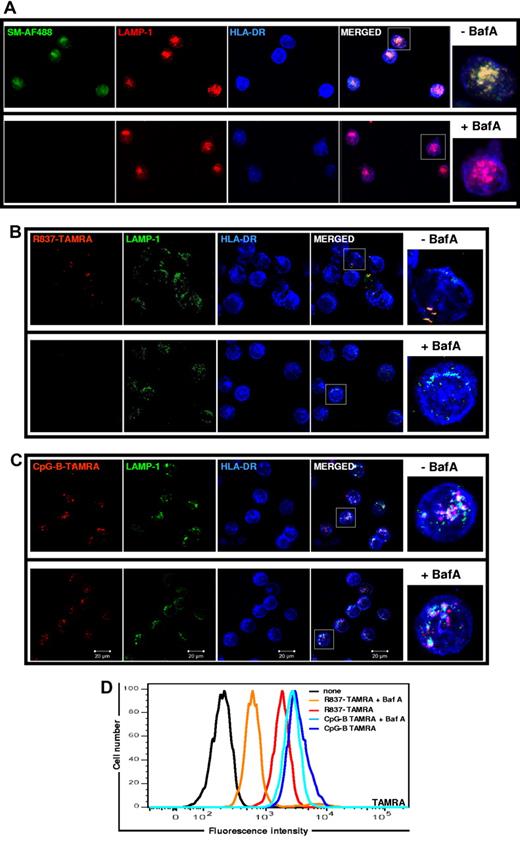

The pH of the MIIC is acidic for optimal protease activity necessary for the generation of peptides to be complexed with MHC II molecules.³⁶  The acidic luminal environment is maintained by v-ATPase, which pumps protons into the MIIC lumen. To investigate whether the acidic pH plays a role in the concentration of TLR7 agonist small molecules in the MIIC we used BafA to block v-ATPase and raise the MIIC pH.³¹  As shown in Figure 6, pretreatment of pDCs with BafA resulted in the near complete inhibition of SM-AF488 (Figure 6A) and R837-TAMRA (Figure 6B) localization in LAMP1⁺HLA-DR⁺ endosomes. By contrast, CpG-B–TAMRA localization in the BafA-treated and untreated cells were indistinguishable (Figure 6C). Moreover, BafA strongly inhibited R837-TAMRA uptake while leaving CpG-B–TAMRA uptake unaltered (Figure 6D), confirming what we observed by confocal microscopy (Figure 6B-C). In line with the fact that BafA is a well-known inhibitor of TLR7- and TLR9-induced signaling,²⁶  in our experiments BafA blocked the production of IFN-α, TNF-α, and IL-6 in response to SM-AF488, R837-TAMRA, or CpG-B–TAMRA by pDCs (data not shown). Blocking of TLR9 signaling by BafA was probably because of inhibition of proteases responsible for TLR9 cleavage.^23,25  Although this mechanism could contribute also to the blockade of TLR7 signaling,^23,25  our findings highlighted that the acidic pH of the MIIC is required for the localization of TLR7 agonist small molecules in there.

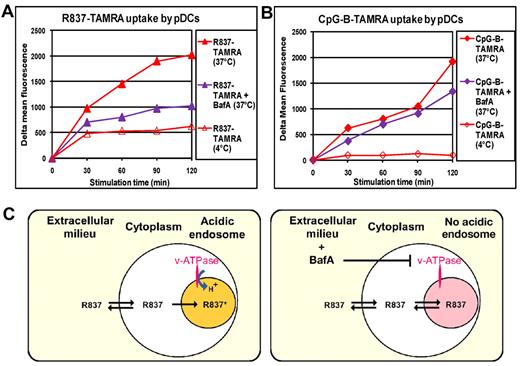

To get further insights on the mechanism of entry and accumulation of small molecule TLR7 agonists we studied the effect of BafA on R837-TAMRA uptake over time. As shown in Figure 7A, although BafA had little effect on the R837-TAMRA uptake at 30 minutes, it blocked further uptake of the compound almost completely at later time points. As expected, CpG-B–TAMRA uptake was almost unaffected by BafA (Figure 7B). To understand whether the internalization of TLR7 agonist small molecules was the result of passive diffusion or an active mechanism, we compared R837-TAMRA uptake at 4°C with uptake at 37°C (standard culture condition). Although the R837-TAMRA uptake after 30 minutes of incubation at 4°C was only marginally reduced compared with 37°C, further accumulation of the compound was blocked at 4°C. These results showed that an early passive diffusion of R837 is followed by an active mechanism that dramatically increases the accumulation of the TLR7 agonist in the MIIC (Figure 7A). No CpG-B–TAMRA internalization occurred at 4°C (Figure 7B), in agreement with previous data showing that CpG-B enters cells by an active mechanism involving rapid translocation to tubular lysosomal compartment (LAMP-1⁺) from early endosomes (EEA1⁺TfR⁺).¹³  On the basis of these results we propose that R837, which is a cell-permeable weak base, passively diffuses inside the cells (fast phase, v-ATPase independent, insensitive to 4°C) and then starts to accumulate in the acidic vesicles of the MIIC because it gets protonated and therefore trapped (slow phase, v-ATPase dependent, blocked at 4°C; Figure 7C).³⁷

To understand the mechanism of action of small molecule TLR7 agonists more completely, we labeled R848, R837, and SM36020 with TAMRA or AF488 fluorophore and studied their subcellular localization. All of the fluorescent compounds retained TLR7 agonist activity and induced human pDCs to produce cytokines and IFN-α and to increase expression of costimulatory molecules. Examination of pDCs by confocal microscopy showed that all compounds colocalized with CpG-B in LAMP-1⁺CD63⁺HLA-DR⁺ endosomes, independently of their chemotype or labeling fluorophore. Our observations are in line with an elegant study by Sadaka et al³⁸  showing that MHC II molecules converge with LAMP-1 and CD63 (but not with TfR and EEA1 markers) in human pDCs treated with IL-3. LAMP-1 and CD63 are markers of late endosomes and lysosomes, whereas HLA-DR identifies MHC II molecules. Therefore, the vesicles where small molecule TLR7 agonists accumulate appear to belong to the MIIC.^20,38,39  Indeed, in pDCs, like in other antigen-presenting cells, the endolysosomal compartment is specialized for MHC II antigen presentation and is considered as a lysosome-related organelle.³⁹  The function of MHC II molecules is to access the endolysosomal network, bind peptides derived from the antigens, and display them on the cell surface to CD4⁺ T cells. Notably, the regulation of MHC II expression and transport is completely different in pDCs compared with conventional DCs (cDCs) from both humans³⁸  and mice.^40,41  In particular, cDCs halt the synthesis and degradation of MHC II after activation, whereas pDCs maintain synthesis and turnover of MHC II. As a result pDCs are less efficient at presenting antigens than cDCs, but their more dynamic mode of antigen presentation should be advantageous in counteracting viruses that exhibit mutation rates.^40,41  Peptide binding by MHC II molecules requires the degradation of the invariant chain by endolysosomal proteases. These proteases have been implicated in the activation of TLR7 and TLR9.^23-25  Our data showing that small molecule TLR7 agonists and CpG-B localize to MIIC suggest that this compartment is the crossroad where antigens and MHC II molecules are assembled and nucleic acid–sensing TLRs signal on encounter with their ligands. The commonality of proteolytic cleavage to form functionally relevant forms of both MHC II and TLRs and their colocalization could affect the way pDCs inform T cells as to the specific nature of distinct pathogenic threats.

Small molecule TLR7 agonists and CpG-B did not localize to early endosomes (TfR⁺ or EEA1⁺), yet they induced high amounts of IFN-α production. These results are in contrast with the proposed model that in human pDCs TLR9 signaling from early endosomes (TfR⁺) leads to IFN-α production, whereas signaling from late endosomes (LAMP-1⁺) leads to up-regulation of costimulatory molecules.²⁸  However, our observations are in line with a recent report from Sasai et al⁴²  which showed that in mouse BM-derived macrophages TLR9 signals leading to IFN-I production are generated in acidic endosomes (LAMP-2⁺LysoTracker⁺).It is unclear why CpG-B is a poor inducer of IFN-α by freshly isolated pDCs²⁸  but a good inducer for IL-3 pretreated pDCs.⁴³  In both pDC populations CpG-B localizes to LAMP-1⁺ endosomes, suggesting that IL-3 treatment leads to changes in the constituents of these vesicles. Indeed, IL-3 treatment induced the relocalization of MHC II to LAMP-1⁺ endosomes, and it is tempting to speculate that key IFN-I–signaling components, such as IFN regulatory factor 7, are recruited to the MIIC in response to IL-3 treatment.

A key feature of the MIIC is low pH. Blockade of vesicle acidification by BafA or NH₄Cl (data not shown) abolished the accumulation of R837-TAMRA in the MIIC, suggesting that the electrochemical proton gradient is the driving force for the accumulation of small molecule TLR7 agonists in this compartment. Interestingly, a similar mechanism has been shown to cause the accumulation of neurotransmitters and hormones into secretory vesicles.⁴⁴  At the acidic pH found in the MIIC of pDCs (pH 5-6²⁸ ), small molecule TLR7 agonists are predicted to be positively charged and protonated and are expected to reach concentrations in the acidic compartment ∼ 100-fold higher than the rest of the cell.³⁷  This substantial accumulation of compound is consistent with what we observed in live pDCs (data not shown) and could serve to drive low-affinity interactions of small molecule TLR7 agonists with TLR7 or a coreceptor molecule or both above the threshold necessary for signaling.
