In this issue of Blood, Weeterings and colleagues report that binding to the GPIb/IX/V complex plays a role in mediating the platelet surface procoagulant effects of rFVIIa.
In 1997, our first article on the mechanism of action of recombinant activated factor VII (rFVIIa) in hemophiliacs1 was summarily rejected by Blood because the reviewers felt that the topic was not of interest to a general hematology audience. However, in the ensuing years, FVIIa has become a hot topic, not only in hemophilia but also for its off-label use to manage intractable hemorrhage in a wide variety of clinical settings. Even with all of this interest, the mechanism of its hemostatic effect is still not fully understood.

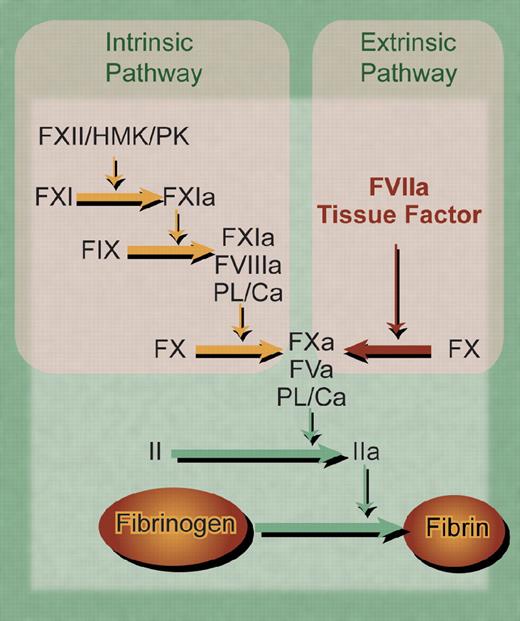

This first figure is a cascade model of coagulation. The “intrinsic” and “extrinsic” pathways appear to be redundant and converge at the FXa/FVa complex. It seems reasonable that adding excess FVIIa would give more FX activation via FVIIa/TF and make up for the lack of the FIXa/FVIIIa complex in hemophilia. PL/Ca indicates the requirement for a negatively charged phospholipid surface and calcium ions. HMK indicates high molecular weight kininogen; and PK, pre-kallekrein. Professional illustration by Debra Tyler Dartez.
This first figure is a cascade model of coagulation. The “intrinsic” and “extrinsic” pathways appear to be redundant and converge at the FXa/FVa complex. It seems reasonable that adding excess FVIIa would give more FX activation via FVIIa/TF and make up for the lack of the FIXa/FVIIIa complex in hemophilia. PL/Ca indicates the requirement for a negatively charged phospholipid surface and calcium ions. HMK indicates high molecular weight kininogen; and PK, pre-kallekrein. Professional illustration by Debra Tyler Dartez.

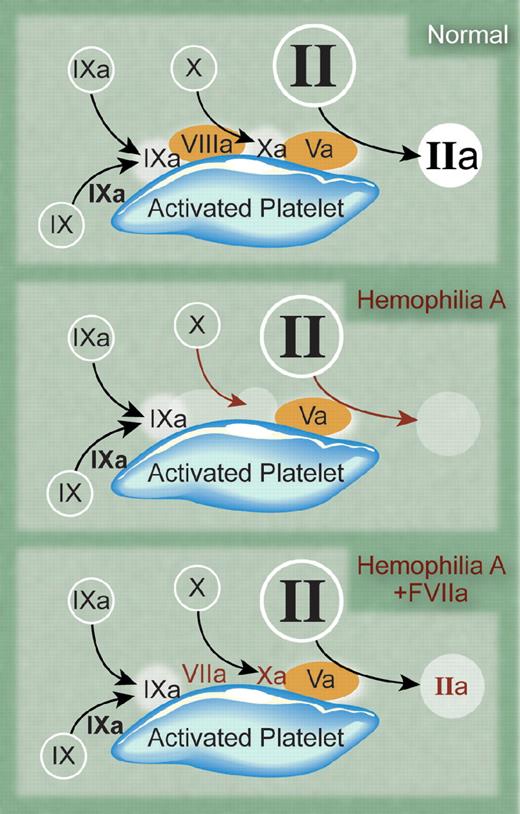

This second figure is of thrombin generation on platelet surfaces. In normal hemostasis, FIXa combines with FVIIIa on the activated platelet surface to activate FX. The FXa, in turn, combines with FVa to produce thrombin. In severe hemophilia, there is no platelet surface mechanism to activate FX. When high-dose FVIIa is used as a bypassing agent, it binds to the activated platelet surface and activates small amounts of FX. The resulting FXa is able to partially restore platelet surface thrombin generation. The binding and activity of FVIIa is mediated by negatively charged phospholipid, the GPIb/IX/V complex, and possibly other binding proteins that are unrecognized as of yet. Professional illustration by Debra Tyler Dartez.
This second figure is of thrombin generation on platelet surfaces. In normal hemostasis, FIXa combines with FVIIIa on the activated platelet surface to activate FX. The FXa, in turn, combines with FVa to produce thrombin. In severe hemophilia, there is no platelet surface mechanism to activate FX. When high-dose FVIIa is used as a bypassing agent, it binds to the activated platelet surface and activates small amounts of FX. The resulting FXa is able to partially restore platelet surface thrombin generation. The binding and activity of FVIIa is mediated by negatively charged phospholipid, the GPIb/IX/V complex, and possibly other binding proteins that are unrecognized as of yet. Professional illustration by Debra Tyler Dartez.
Plasma-derived FVIIa was first used in 1983 to provide hemostasis in 2 hemophiliacs with inhibitors.2 In 1996, rFVIIa was approved in the European Union and in 1999 in the United States for use as a “bypassing agent” in patients with hemophilia A or B (FVIII or FIX deficiency) and an antibody inhibitor. The rationale for FVIIa use was that FVIIa would drive activation of factor X (FX) by FVIIa/tissue factor (TF) in the absence of the “intrinsic” FX-activating complex (FIXa/FVIIIa), thus bypassing the need for FVIII or FIX. In light of the “cascade” model of hemostasis as shown in the first figure, this seemed a reasonable hypothesis. However, it soon became clear that the situation was not that simple. Very high levels of FVIIa were required for hemostatic efficacy, higher than needed to saturate TF binding. Thus, a debate ensued over whether the mechanism of FVIIa activity was “TF-dependent” or “TF-independent.”
Bom and Bertina demonstrated that FVIIa can activate FX on a negatively charged phospholipid surface independent of TF,3 and Rao and Rapaport initially suggested that this might underlie the hemostatic activity of FVIIa in hemophilia.4 However, several years later, they reported that FVIIa can compete with zymogen FVII for binding to TF and increase procoagulant activity by forming active FVIIa/TF rather than FVII/TF complexes.5 This competition could explain why unexpectedly high levels of FVIIa might be needed, even if it acted via a TF-dependent mechanism.
During this time, the understanding of hemostasis was evolving.6 While the FVIIa/TF pathway was viewed as critically important to initiating hemostasis, the “intrinsic” pathway was recognized as operating specifically on the platelet surface to propagate the burst of thrombin generation required for clot formation. Generation of activated factor X (FXa) on TF-bearing cells cannot necessarily make up for a lack of FXa on platelet surfaces. Thus, since the defect in hemophilia is in platelet surface FXa generation, it seemed logical that high-dose FVIIa might act to remedy this defect. Our group demonstrated that FVIIa binds to activated platelets independent of TF and partially restores thrombin generation in an in vitro model of hemophilia (see second figure).1 We proposed a platelet surface mechanism in which FVIIa binds to phosphatidylserine on the membrane of activated platelets, explaining the localization of FVIIa activity to a site of injury. A report by van't Veer et al countered this by providing evidence in support of the Rao and Rapaport hypothesis. They demonstrated that plasma levels of unactivated FVII delayed thrombin generation in a model of hemophilia, and FVIIa could overcome the inhibition.7 However, this competitive effect of FVIIa saturated at around 10 nM while the platelet surface effect was not saturated at 250 nM. The finding that the efficacy of FVIIa in patients with hemophilia was increased by dose escalation to levels of 100 nM or more tended to support the platelet surface mechanism as did the finding that FVIIa variants with increased TF-independent activity had increased efficacy in animal models.8 While not ruling out a TF-dependent effect, the current evidence suggests that FVIIa efficacy in hemophilia is due in large part to a platelet surface mechanism.
Now Weeterings et al have opened another chapter in the pursuit of the mechanism of action of FVIIa by demonstrating the involvement of the GPIb/IX/V complex in its platelet surface activity. While FVIIa can bind to a negatively charged lipid membrane, the presence of GPIb/IX/V enhances binding and procoagulant activity. It is tempting to speculate that GPIb/IX/V tends to localize FVIIa quite specifically to platelets. However, the details of the mechanism of FVIIa are still not completely clear. It is important to build on this new model since, as the authors note, a better understanding of the mechanism will allow the development of more active and targeted forms of VIIa as future hemostatic agents.
Conflict-of-interest disclosure: The author has received research funding from Novo Nordisk. ■
